IPS SPI 240*240 1.54 inch Square LCD Module TFT Screen with CTP Capacitive Touch Panel ST7789V 15 Pin FPC LCD Display
- Category: >>>
- Supplier: Shenzhen Toppop Electronic Co. ltd
Share on (1100014752995):
Product Overview
Description
Dear Respected Customer:
♥ Welcome to Toppop ♥ For samples,you can place order online directly; For bulk order,please contact service for quotation. Looking forward to cooperate with you! |
Product Description
|

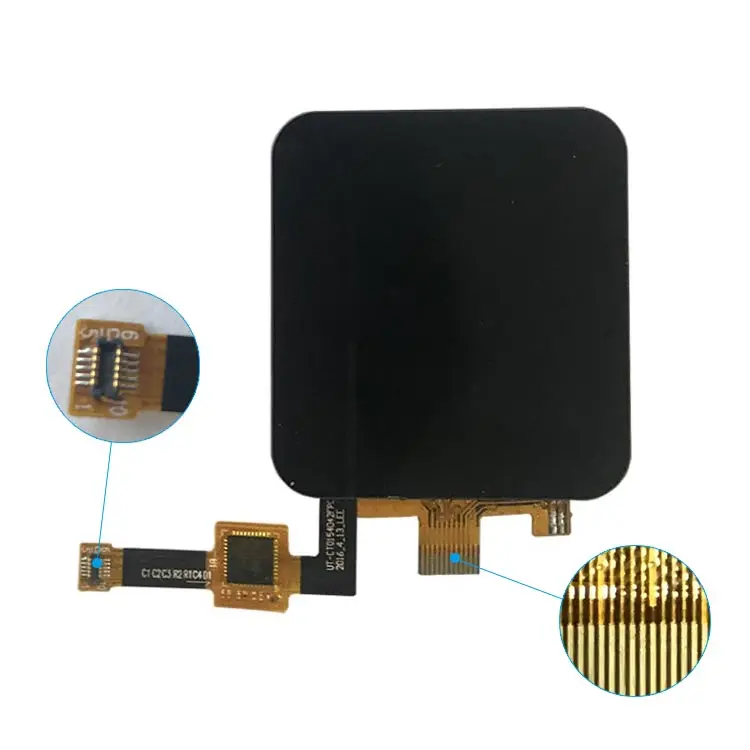

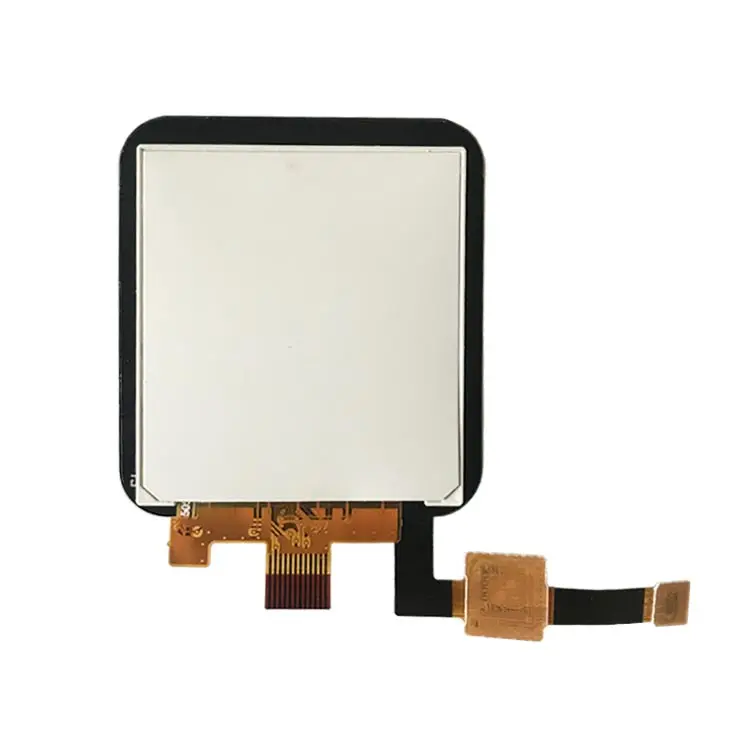

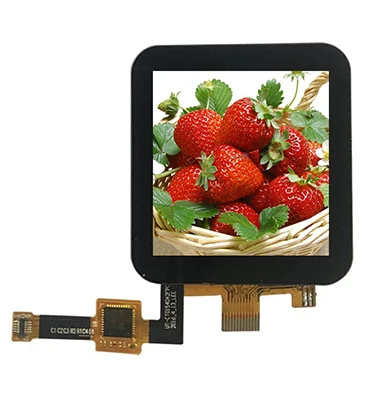

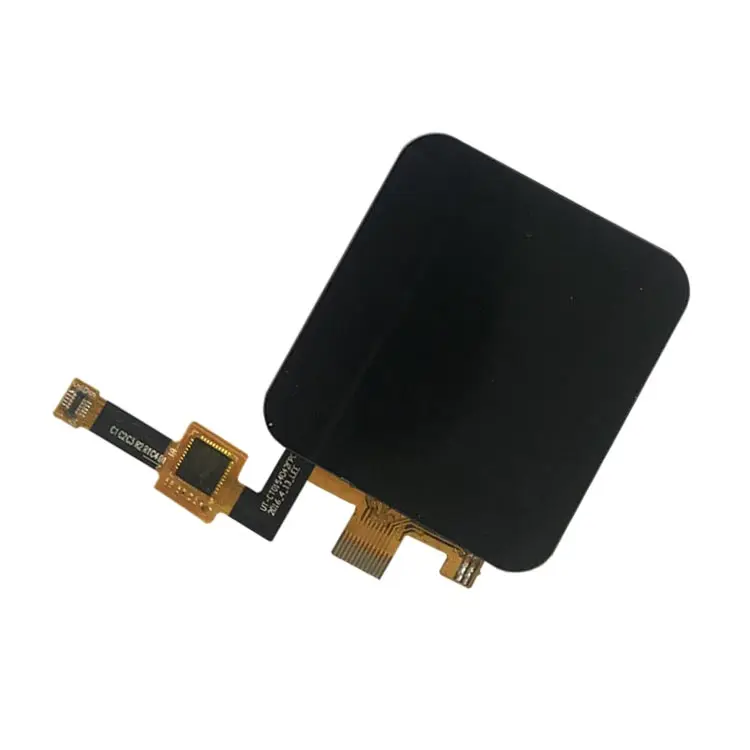

IPS SPI 240*240 1.54 inch Square LCD Module TFT Screen with CTP Capacitive Touch Panel ST7789V 15 Pin FPC LCD Display for Watch | ||
Display Specification | Brand | TORTOYO |
Model No. | TT154HSC14B | |
Size | 1.54 inch | |
Resolution | 240*240 | |
LCM Driver IC | ST7789V | |
Touch Driver IC | FT6236U | |
Viewing Angle | IPS Full Viewing Angle | |
Interface | SPI | |
Luminance | 280cd/m2 | |
Mechanical Characteristics | LCM Dimension | 36.8mm(W)*40.6mm(H)*2.9mm(D) |
Active Area | LCD: 27.72mm(W)*27.72mm(H) CTP: 28.14mm(W)*18.14mm(H) | |
LED Numbers | 3 LED in Series | |
FPC Connecting Mode | LCM: 12 Pin Plug in FPC CTP: 10 Pin Board to Board FPC | |
Touch Panel | With Capacitive Touch Panel Support Customization | |
Testing Board | Optional | |
Technical Documents | LCD Module Datasheet | |
LCD Driver IC Datasheet | ||
LCD Initialization Code | ||
CTP Driver&Configuration Files | ||
Product Show:
Free Accessories
A: Testing Board 1. Support transferring needle; 2. Pin Pitch: 0.3/0.4/0.5/0.8mm; 3. All kinds of conntecting mode; 4. Support ODM,60 pin max.
|
B: Extension Cable 1. Length: 10(default)/15cm; 2. Same or opposite pin direction; 3. Pin qty: 6-60 pin,0.5mm pitch; 4. Support custom dimension;
|
C: Dupont Cable 1. Hole diameter: 2.54mm; 2. Length: 10/20/30cm 3. Colorful cable,40pcs for 1 group; 4. Female to male,male to male;
|
D: Plug in Connector 1. Pin pitch: 0.3mm; 2. Support specify brand; 3. All kinds of pin quantity.
|
E: Board to Board Connector 1. Pin pitch: 0.4mm; 2. Support specify brand; 3. All kinds of pin quantity.
|
F: Transferring Board Connector 1. Pin pitch: 0.5mm; 2. Support specify brand; 3. All kinds of pin quantity.
|
Warm Note: 1. If you need,please contact us in advance,the default package is without free accessories; 2. Customer can choose one of above testing tool freely; 3. It will take 1 week for purchasing the accessories if it was out of stock; 4. If there was special requirements(type,quantity,or others),please contact us in advance.
| ||
