угол обзора, активно матричные осид, модуль 1,39 дюйма 400*400 круглый кулон покрытый IPS oled круговой дисплей для смарт часов
- Category: >>>
- Supplier: Shenzhen Eurotech Technology Co. Ltd.
Share on (1100014799648):
Product Overview
Description
Product Description

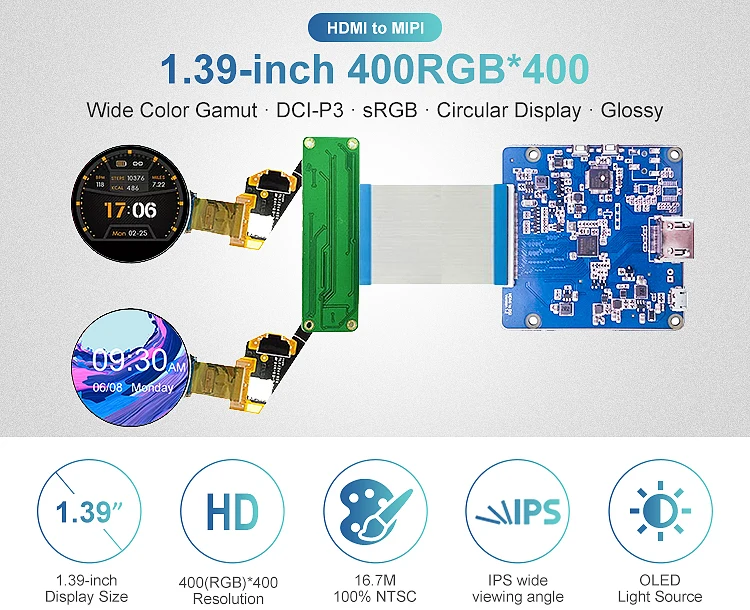

Full Viewing Angle Amoled Module 1.39 Inch 400*400 Round Circle IPS Circular Lcd Round Display For Smart Watch
Product size | 1.39-inch | Type | AM-OLED , OLED | ||

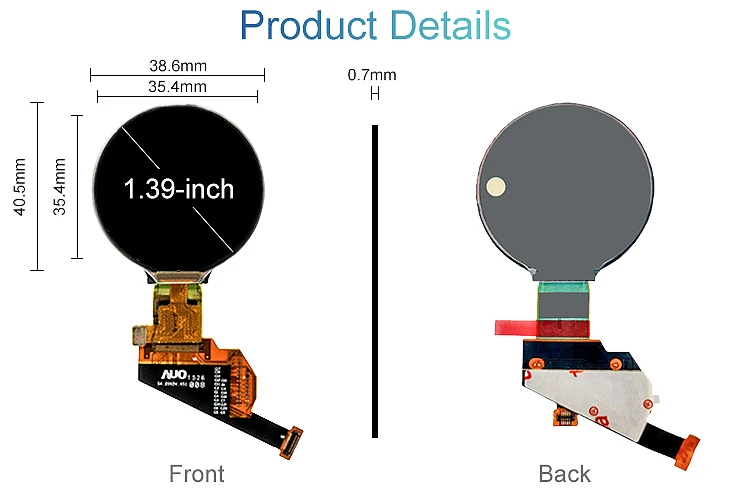

Pixel Format | 400(RGB)×400 287PPI | Outline Dim. | 40.5(H)×38.6(V) ×0.79(D) mm | ||
Active Area | 35.4(H)×35.4(V) mm | Treatment | Glare (Haze 0%), Hard coating (3H) | ||
Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 10000:1 (Min.) (TM) | ||
View Direction | Symmetry | Response Time | 2/2 (Typ.)(Tr/Td) | ||
Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) | Light Source | self | ||

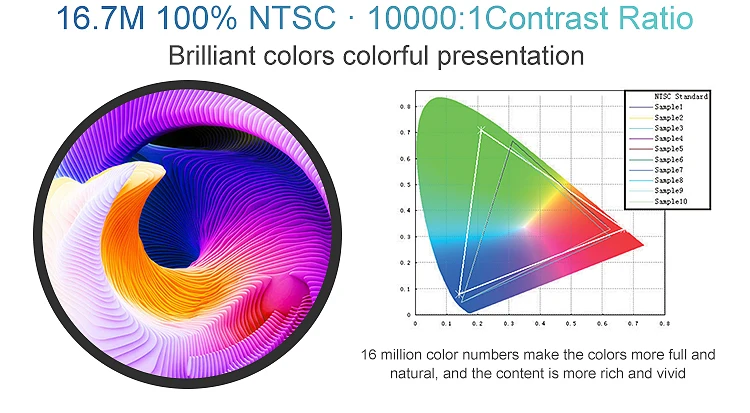

Support Color | 16.7M 100% NTSC | Designed For | Wearable/Round Display | ||
Weight | 2.15±0.33g | Touch Panel | Without | ||
D-IC Detail | COF Built-in RM69080 | ||||

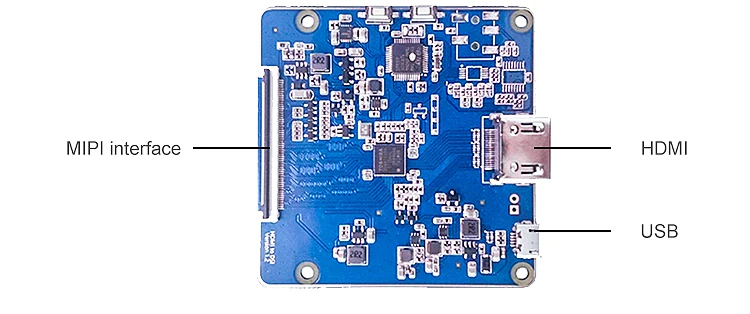

Interface Type | MIPI (1 data lane) 24 pins Connector | ||||
Power Supply | 1.8/2.8/4.6/-2.4V (Typ.)(VDDIO/VCI/ELVDD/ELVSS) | ||||
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||||
