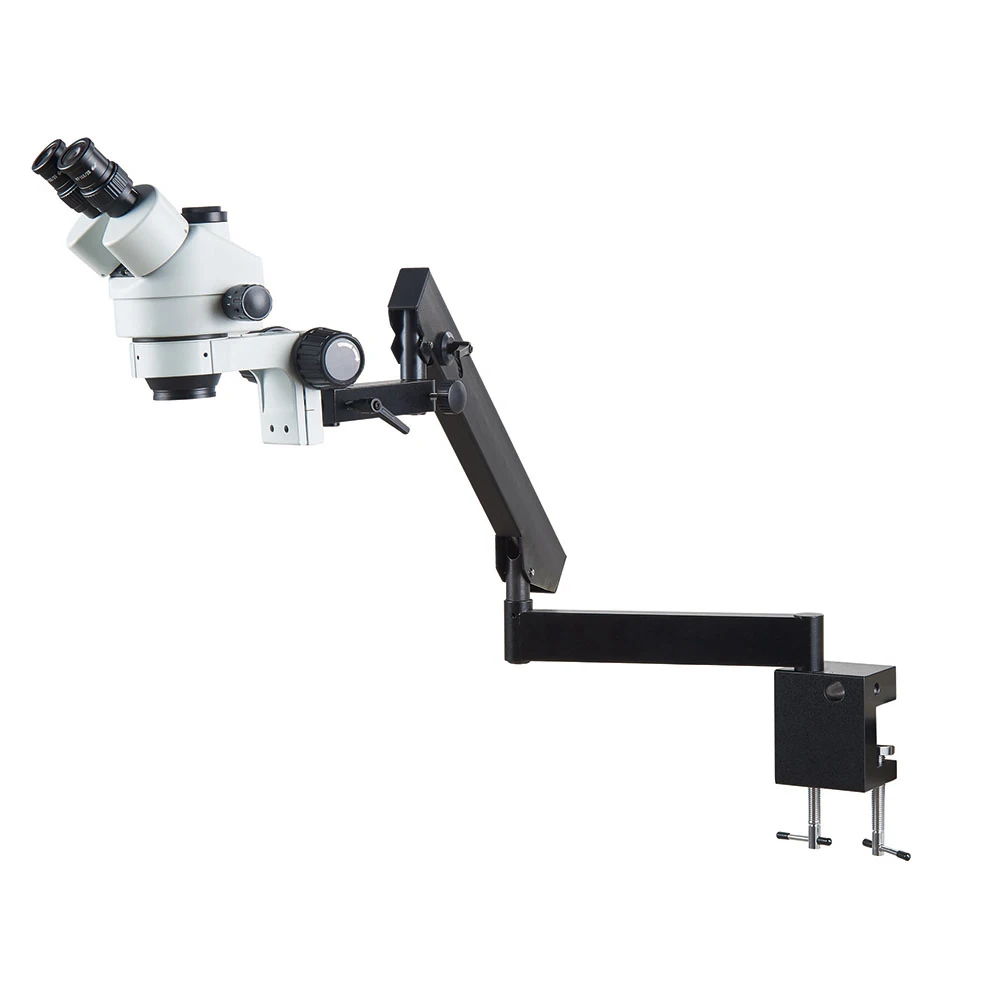

7X 45X Trinocular Stereo Microscope with VGA Digital Camera for Observation and Detection
- Category: >>>
- Supplier: Shenzhen Kuaiqu Electronic Co. Ltd.
Share on (1100014837021):
Product Overview
Description
OEM Logo for free once the quantity is above 50 units
7X-45X Trinocular Stereomicroscope With Vga Digital Camera Is Used To Observe And Discover Microscopic Materials
Products Description
SZM7045 Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, image remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 2X | ||||||||
Working Distance 100mm | Working Distance 165mm | Working Distance 30mm | |||||||||
Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | ||||||
10X/20mm | 7X-45X | 28.6-4.4mm | 3.5X-22.5X | 57.1-8.9mm | 14X-90X | 14.3-2.2mm | |||||
20X/10mm | 14X-90X | 14.3-2.2mm | 7X-45X | 28.6-4.4mm | 28X-180X | 7.1-1.1mm | |||||
30X/8mm | 21X-135X | 11.4-1.8mm | 10.5X-67.5X | 22.9-3.6mm | 42X-270X | 5.7-0.9mm | |||||
Magnification | 7X-45X | ||||||||||

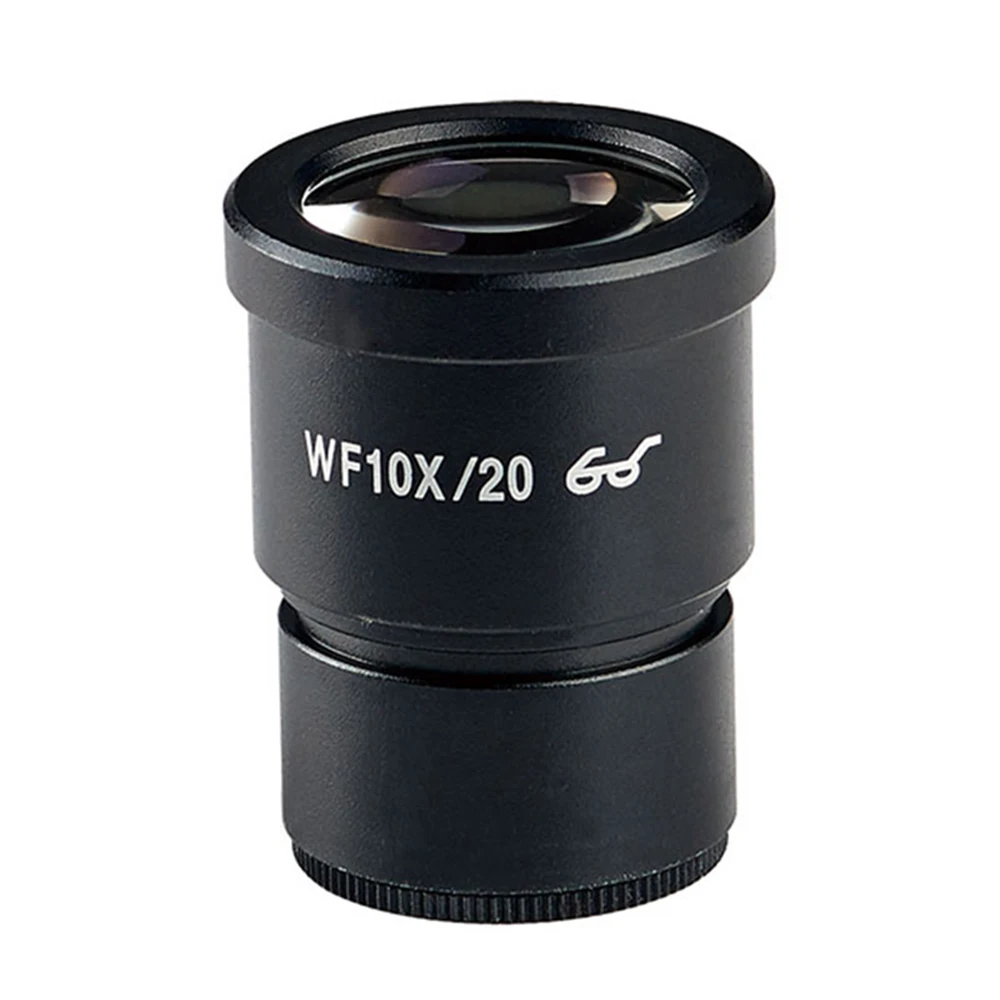

Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | ||||||||||
Optional Eyepiece | WF10X/20mm | ||||||||||

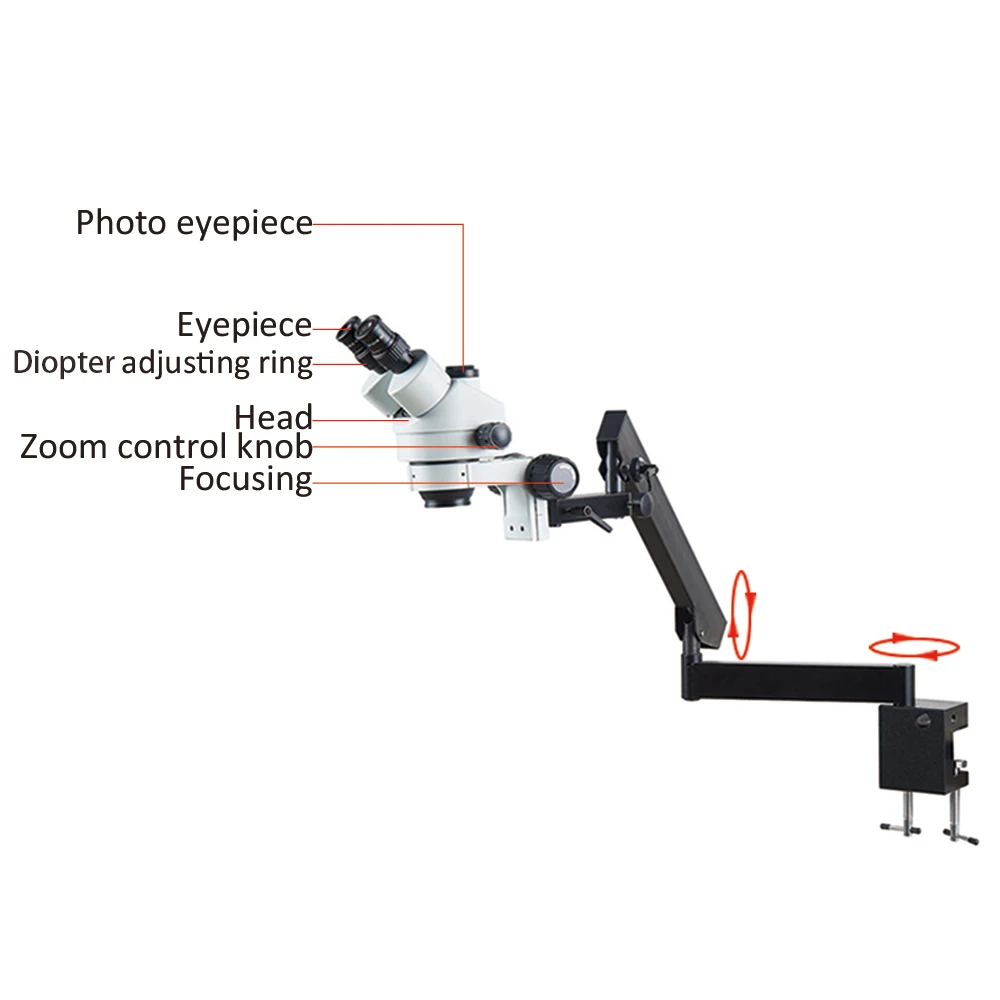

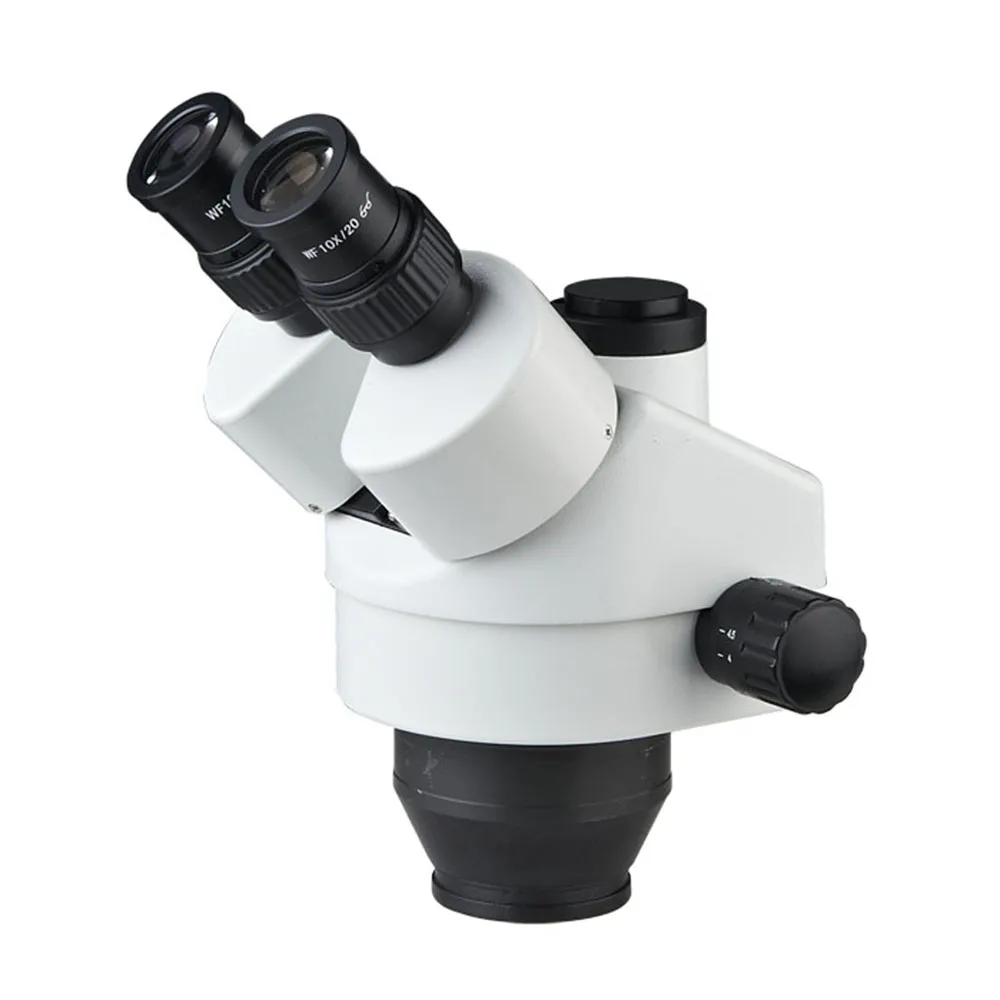

Main Body | Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | ||||||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | |||||||||||
Objective Lens | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | ||||||||||
Auxiliary Lens | --- | ||||||||||
Focusing Mount | A3 focusing mount with vertical working distance 50mm | ||||||||||

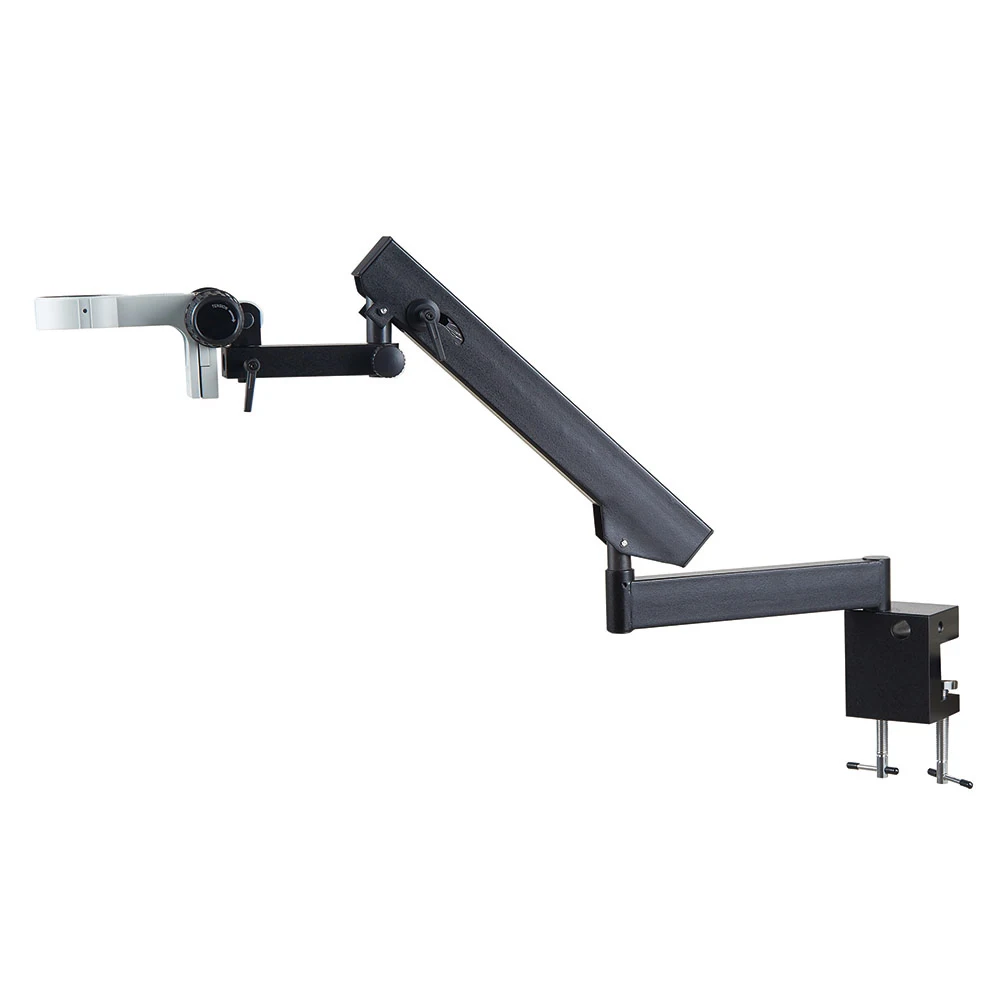

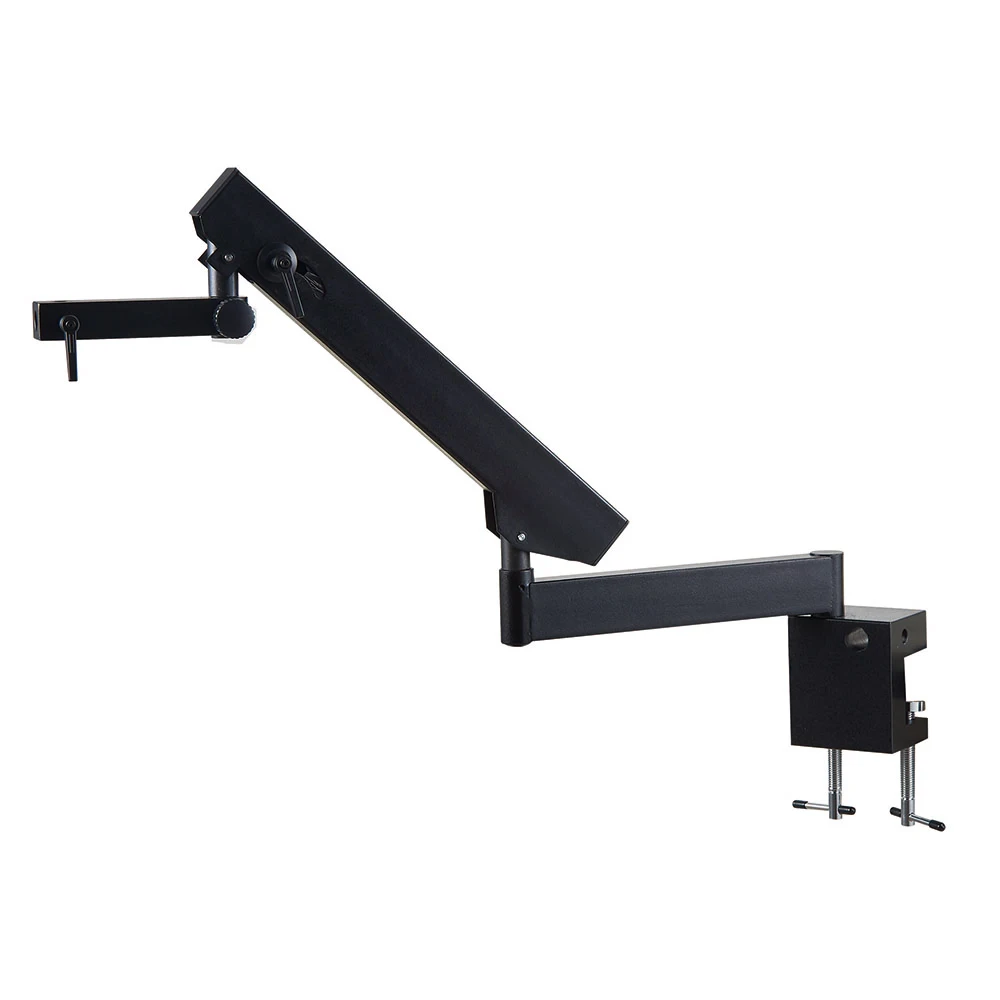

Stand | STL6 curved arm universal bracket | ||||||||||
Illumination | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | ||||||||||
Base
Packing List
7X-45X Trinocular Zoom Stereo Microscope *1
7X-45X Trinocular Zoom Stereo Microscope *1

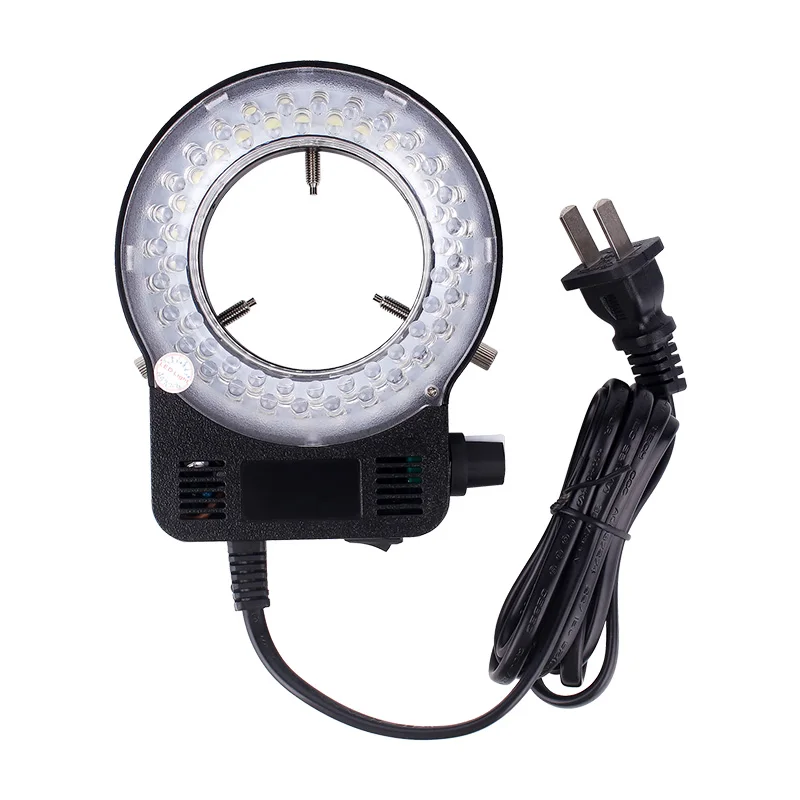

LED Ring Light Illumination*1

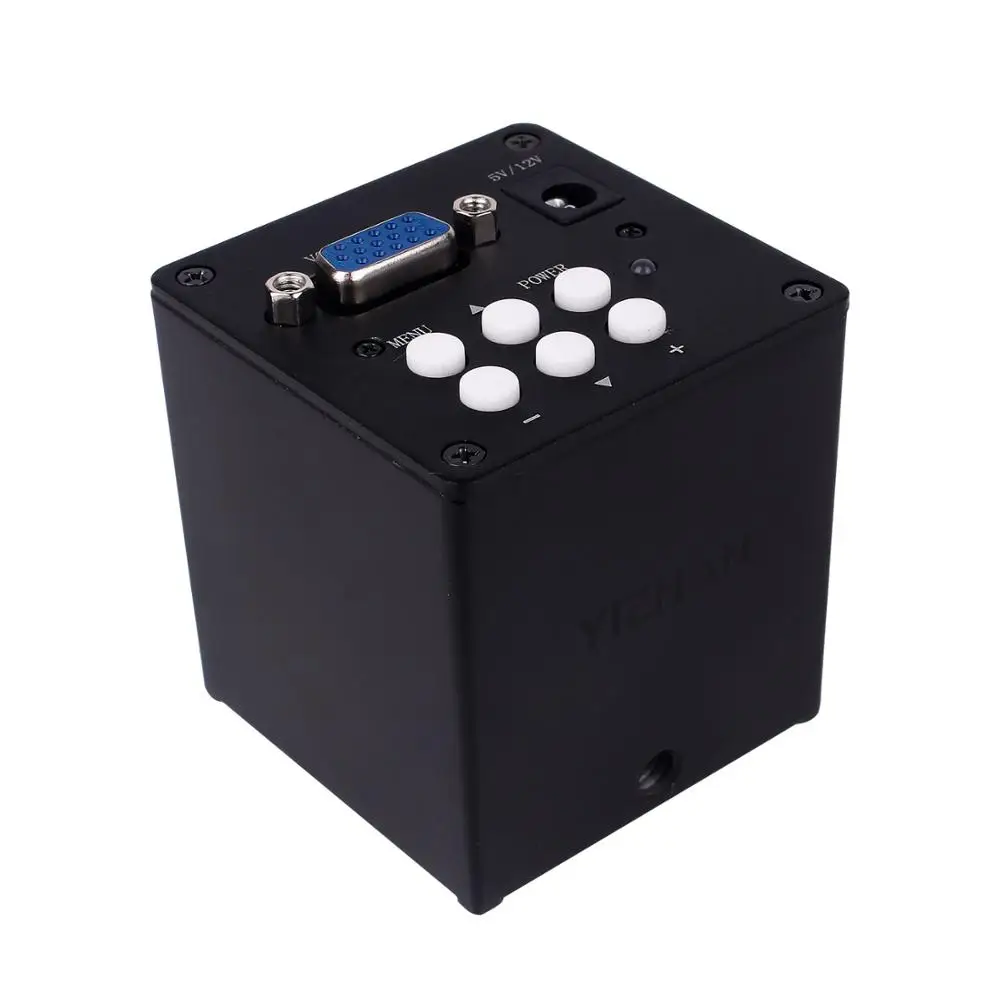

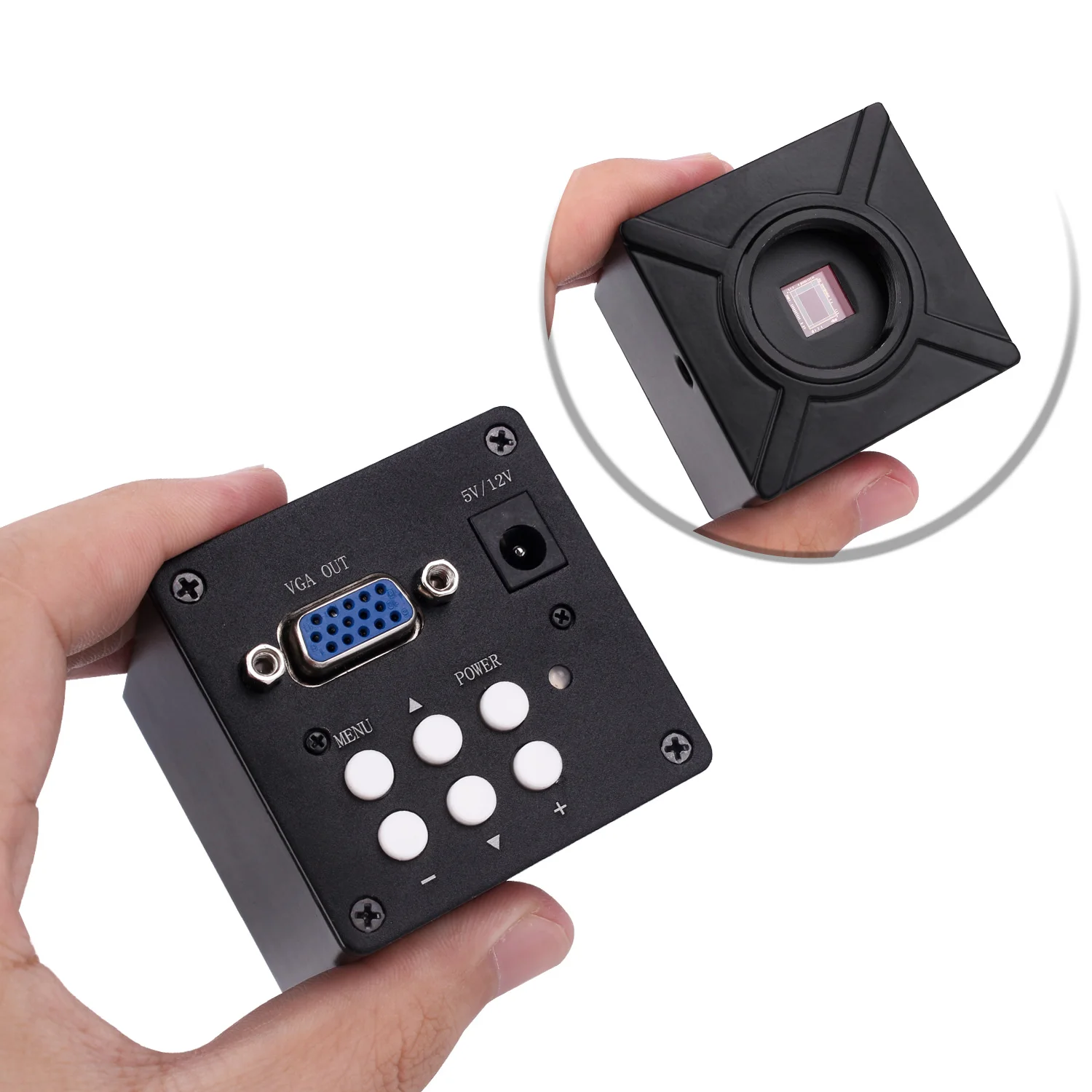

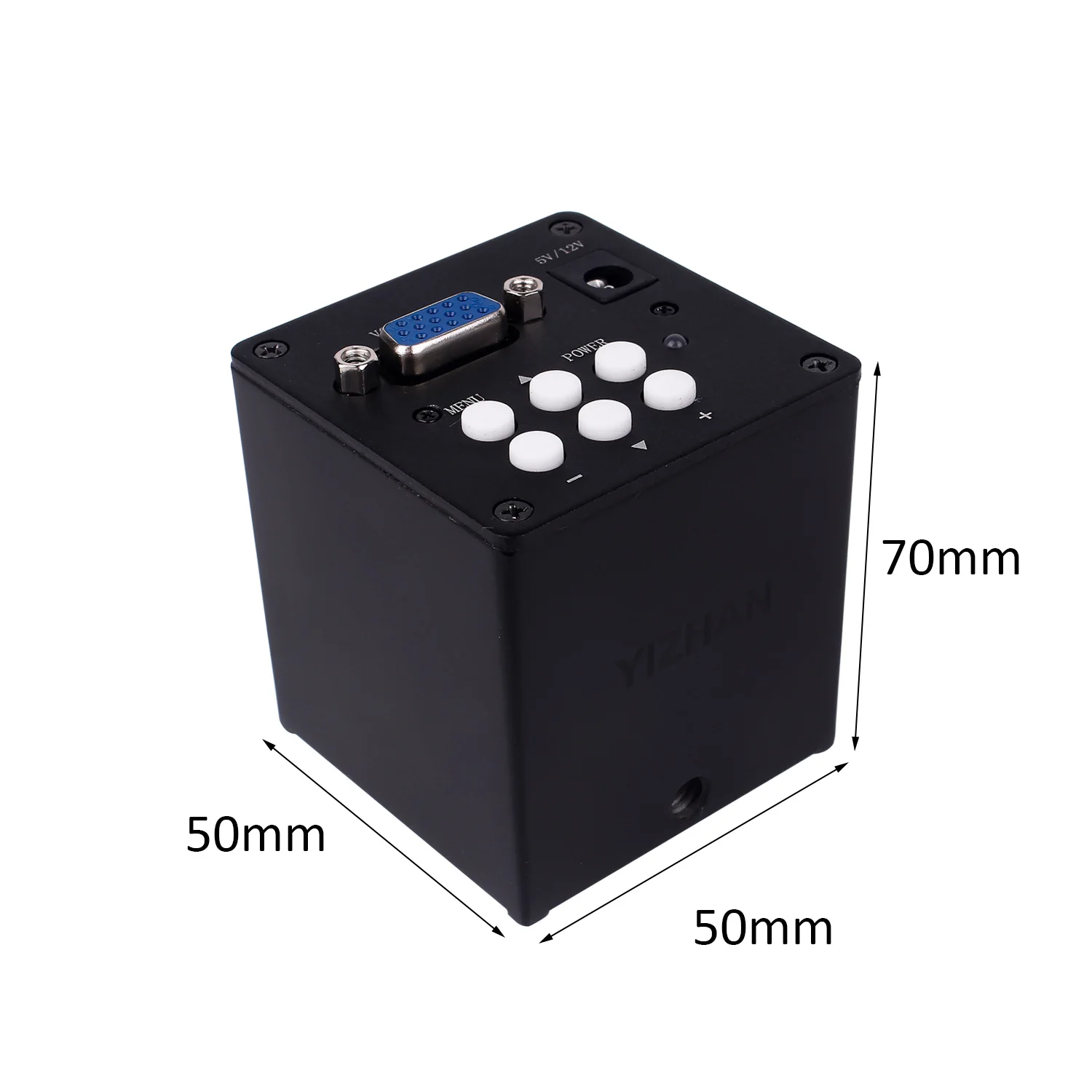

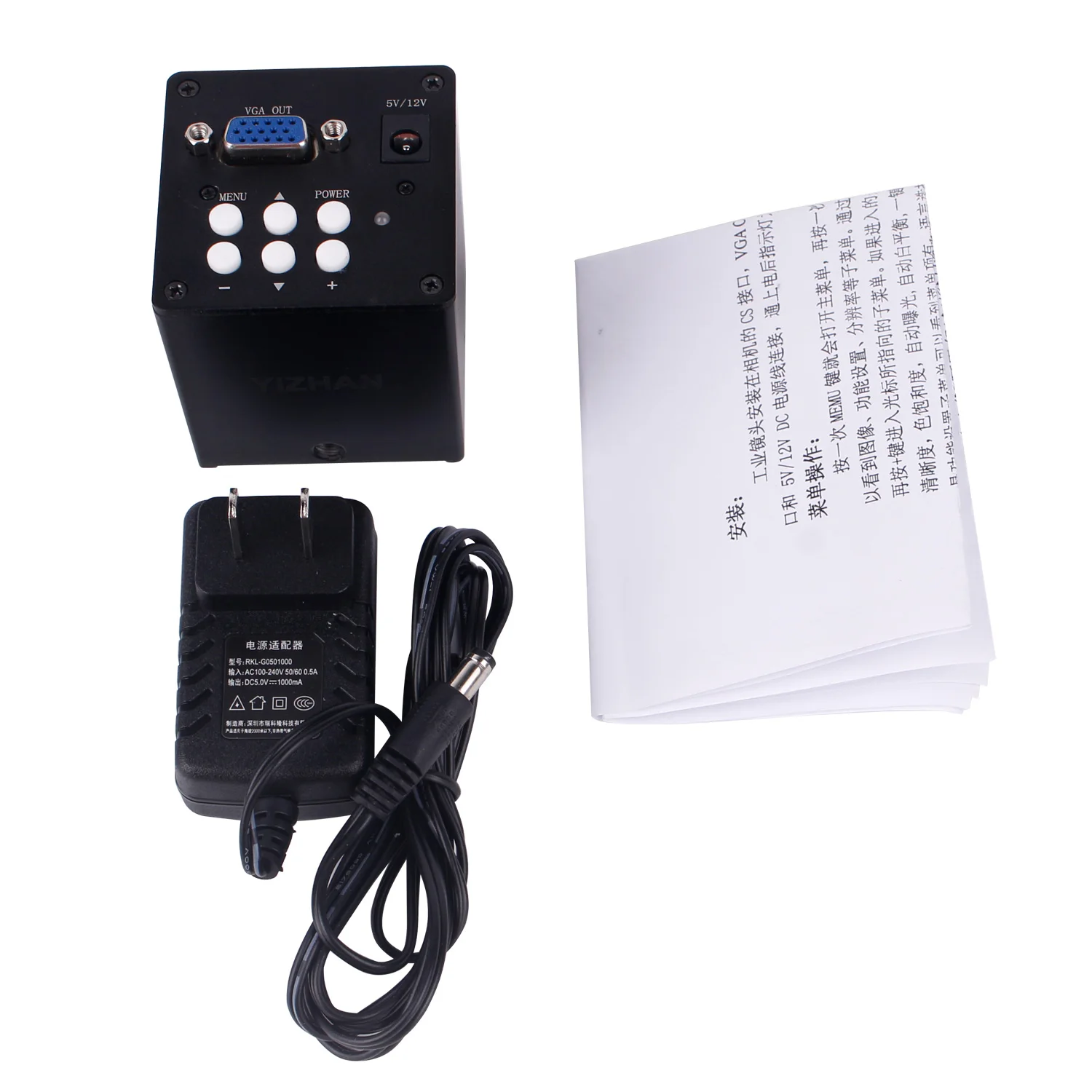

Black 2MP camera*1
Dust Cover*1
User manual*1
User manual*1
