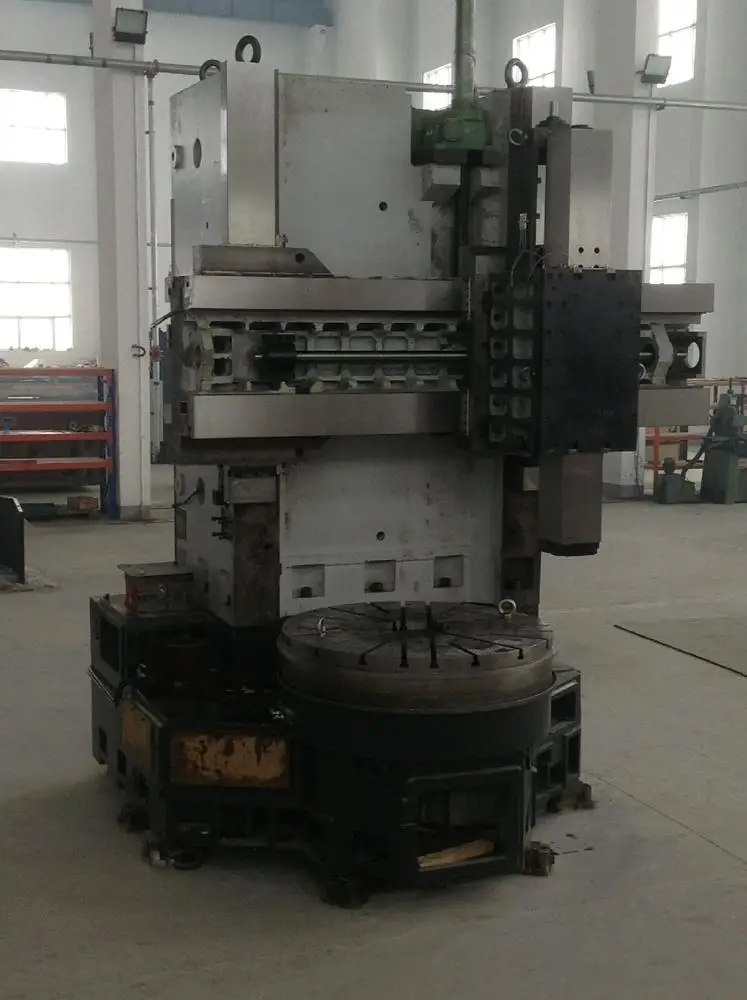

VTC120 High Speed CNC Vertical CNC Lathe/
- Category: >>>
- Supplier: Dalian Dahui Machine Tool Co. Ltd.
Share on (1100014887083):
Product Overview
Description
Product Description
Product Application

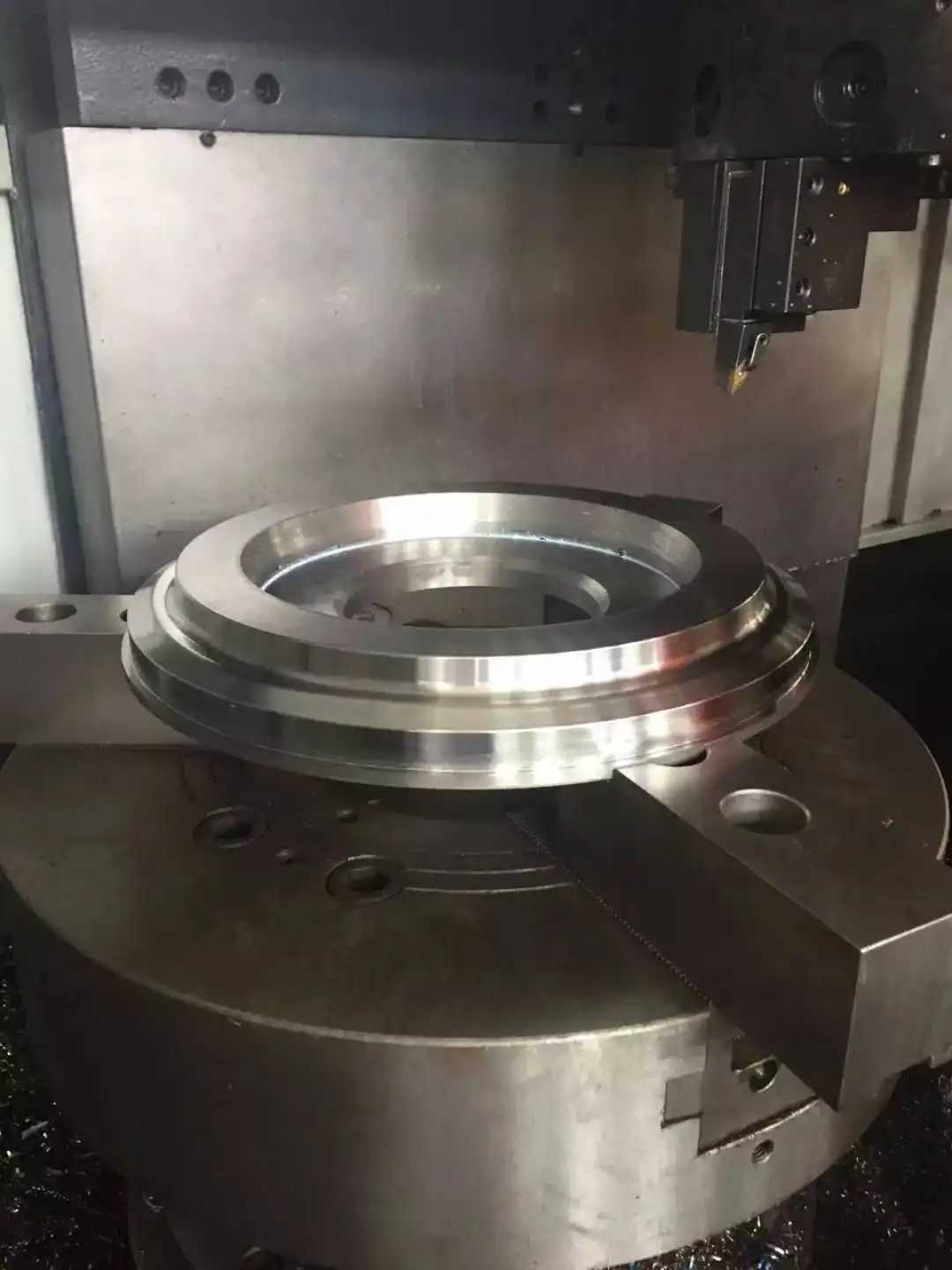

The lathe is widely used in wind power, metallurgy, bearing, petrochemical, military industry, aerospace and other industries. Can take advantage of the carbide or composite cutting tool machining nonferrous, ferrous metals, state of quenched and tempered or quenched material plane, inner hole, cylindrical, end face, circular arc surface, various shape, etc
Item | Unit | VTC120 | VTC160 | VTC200 |
Table Diameter | mm | 1200 | 1500 | 2000 |
Max Turning Diameter | mm | 1400 | 1730 | 2200 |
Max Swing Diameter | mm | 1400/1500 | 1730/1800 | 2200/2300 |
Max Turning Height | mm | 1200/1400/1600 | 1200/1600/2000 | 1600/2000 |
Max Workpiece Weight | Kg | 5000 | 8000 | 1000 |
Spindle speed (ZF Gear Box) | r/min | 1-350 | 1-300 | 1-200 |
Max torque of Spindle | Kn.m | 8 | 12 | 25 |
Main motor | kw | 22/30 | 30/37 | 37/45 |
Machine Size（L×W） | mm | 4200x3300 | 4500x3800 | 6200*500 |
Machine Weight（about） | Kg | 16000 | 20000 | 28000 |
Main Features
1) FANUC controller. The function is all ready, stable and reliable operation.
2) High rigidity, accuracy stable for a long time
3) Large diameter ball screw, movement smooth, high precision
4) Direction of circular symmetrical arrangement table base, thermal deformation is symmetrical, good thermal stability.
5) The workbench speed 8-315 r/min. Y, Z axis speed of 6 m/min.
Detailed Images

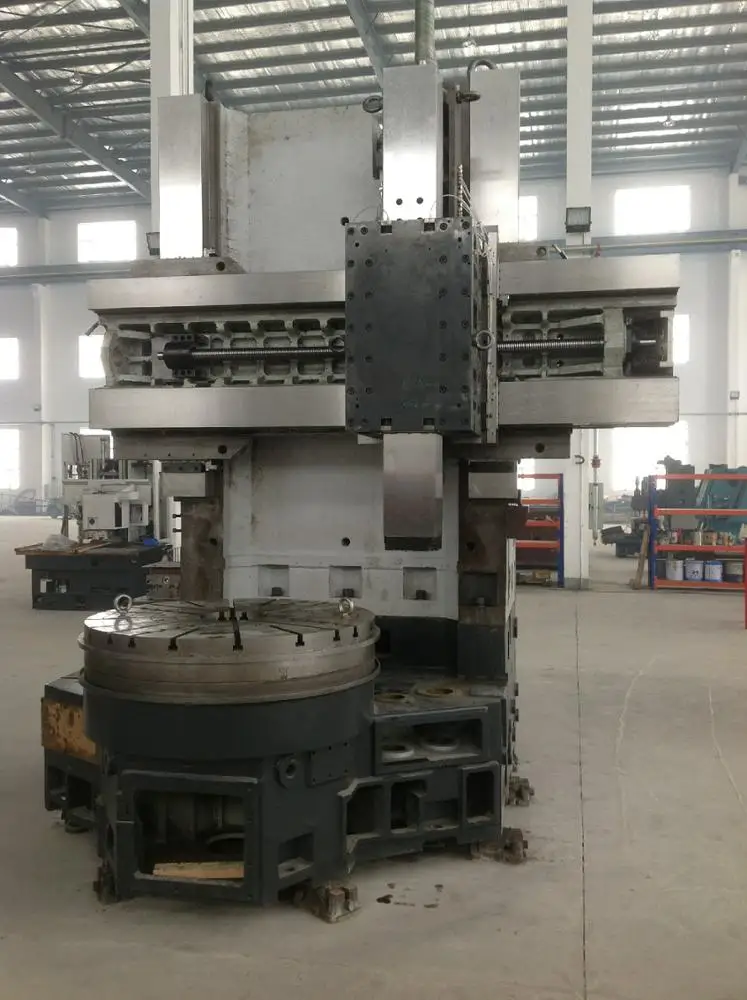

Machine Structure

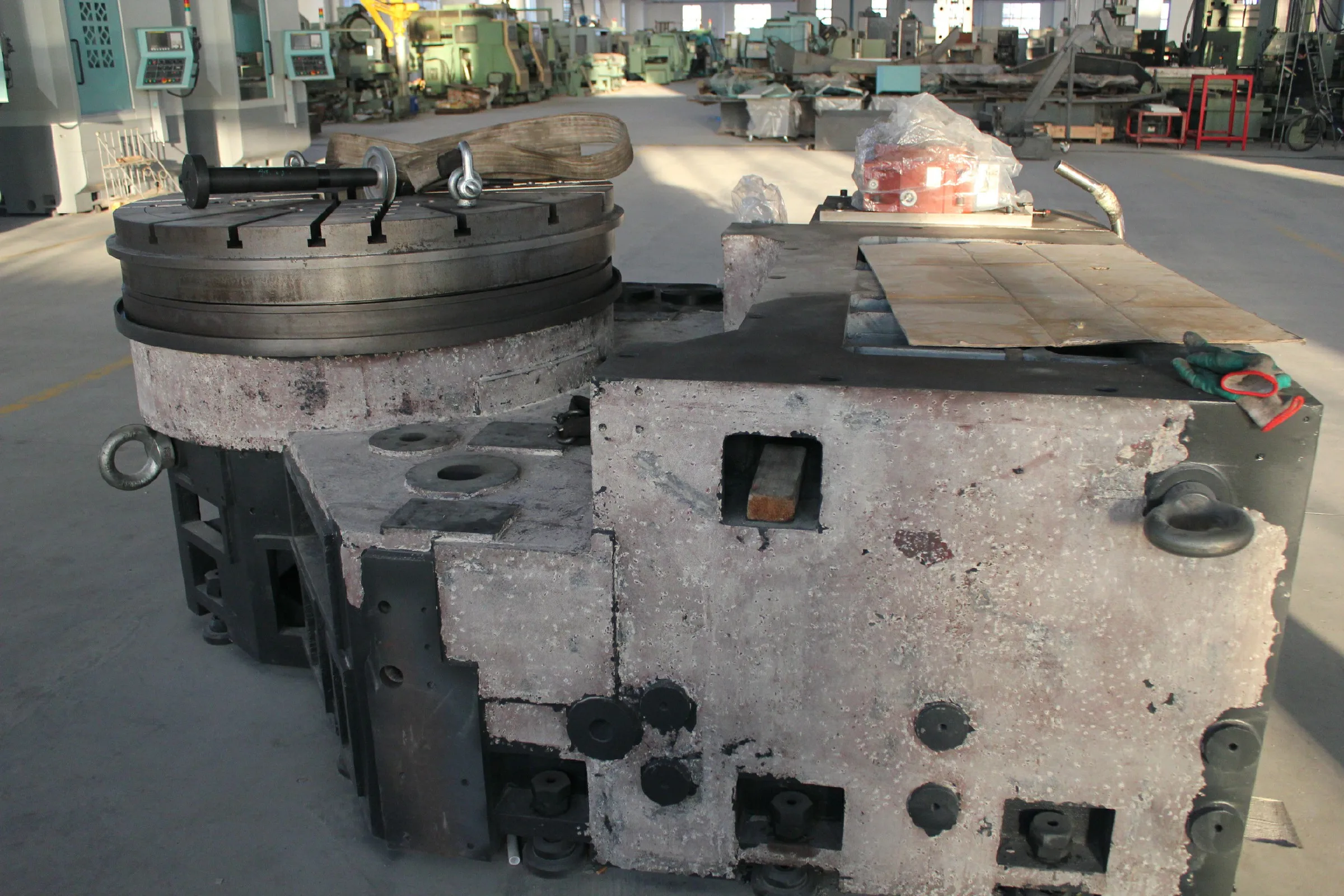

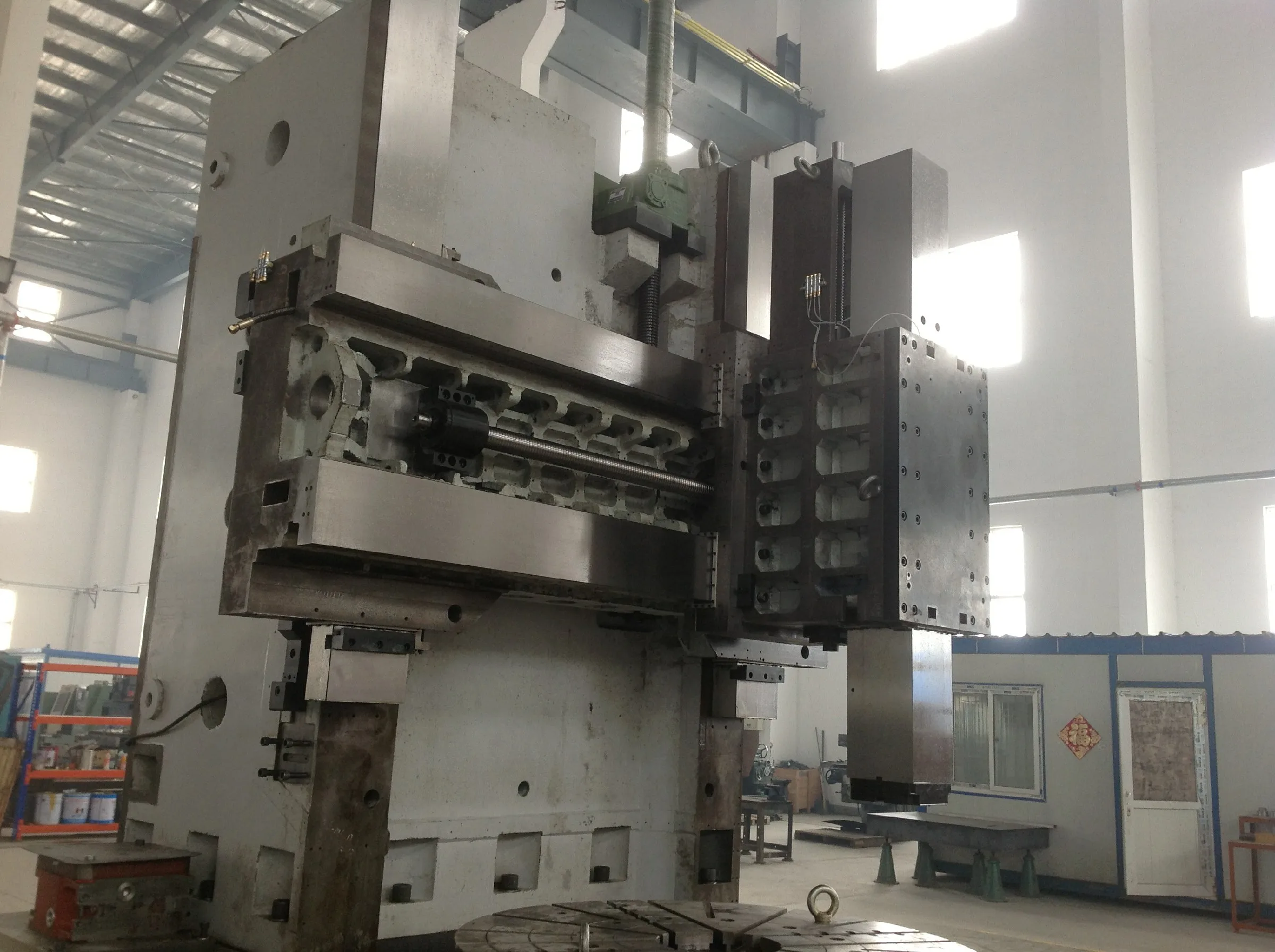

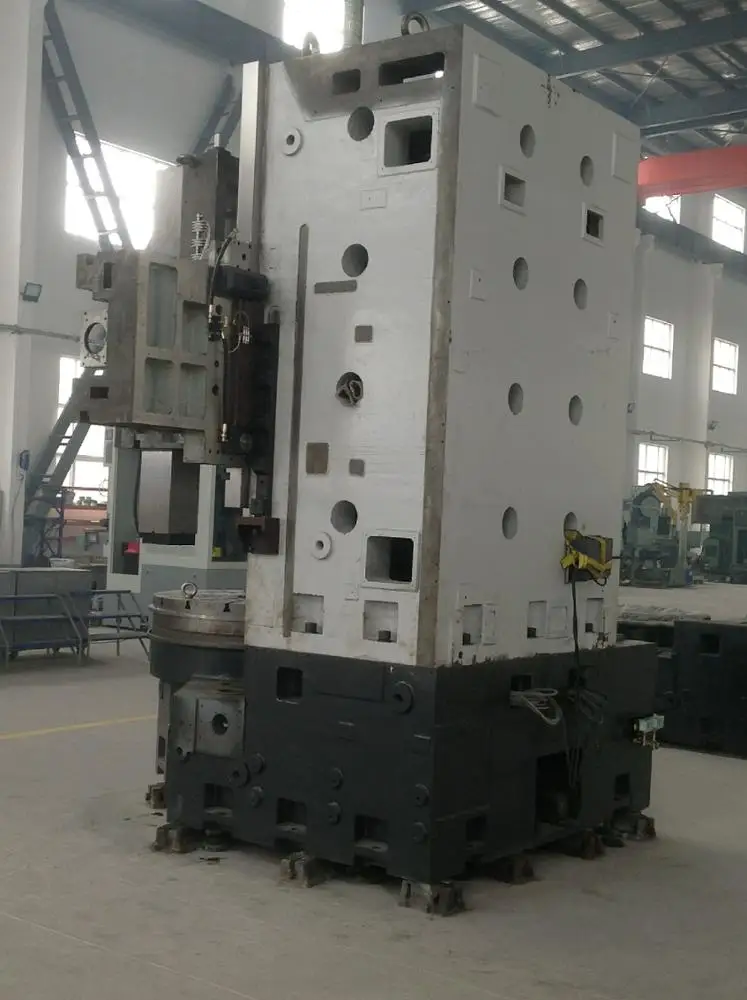

Machine Bed, Column, Worktable, Beam, Saddle, Spindle Box are Adopt high quality resin sand molding, high strength and high quality cast iron (HT250), make the precision of machine tools with high rigidity and stability for a long time.

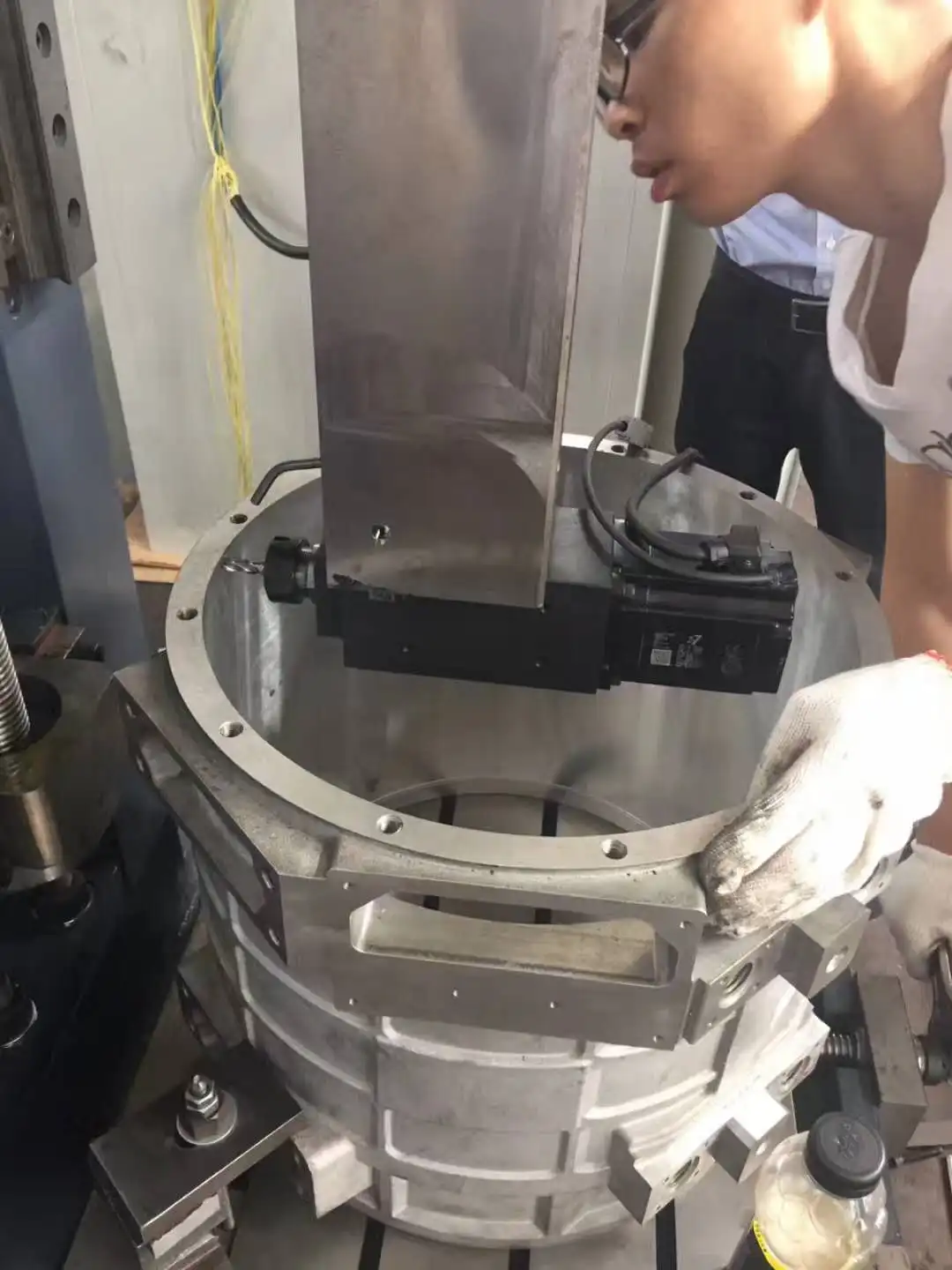

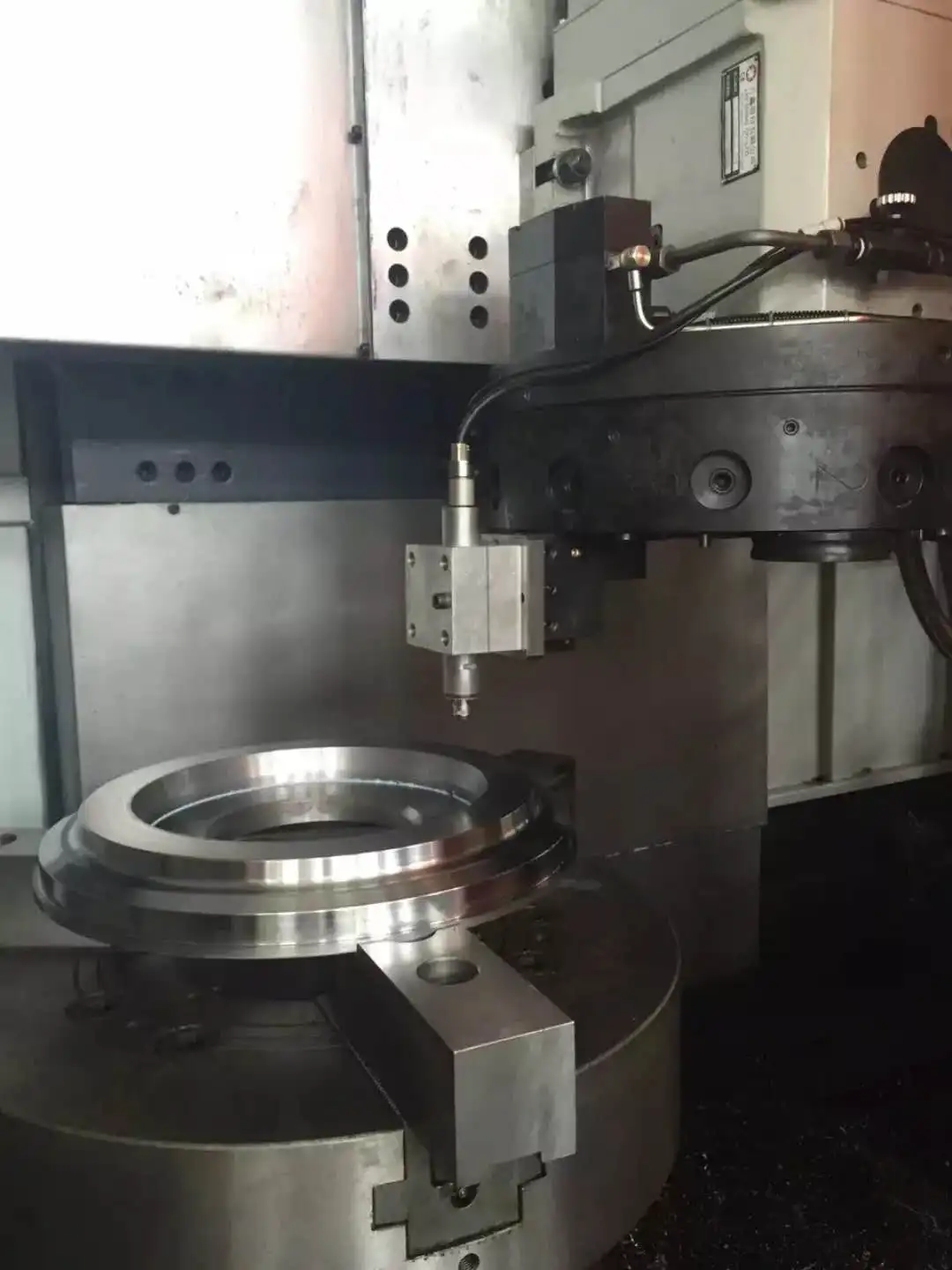

Grinding head:

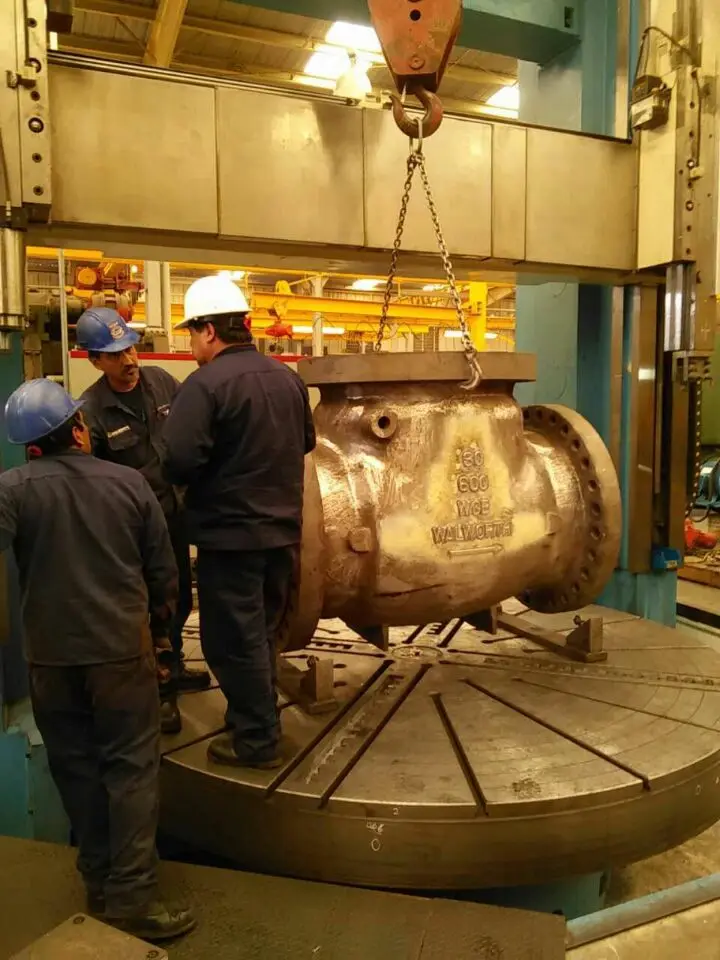

For valve users, purchasing a turning and grinding head will greatly improve the machining accuracy, While improving processing efficiency.
It can be a option whatever buy now or lather on.

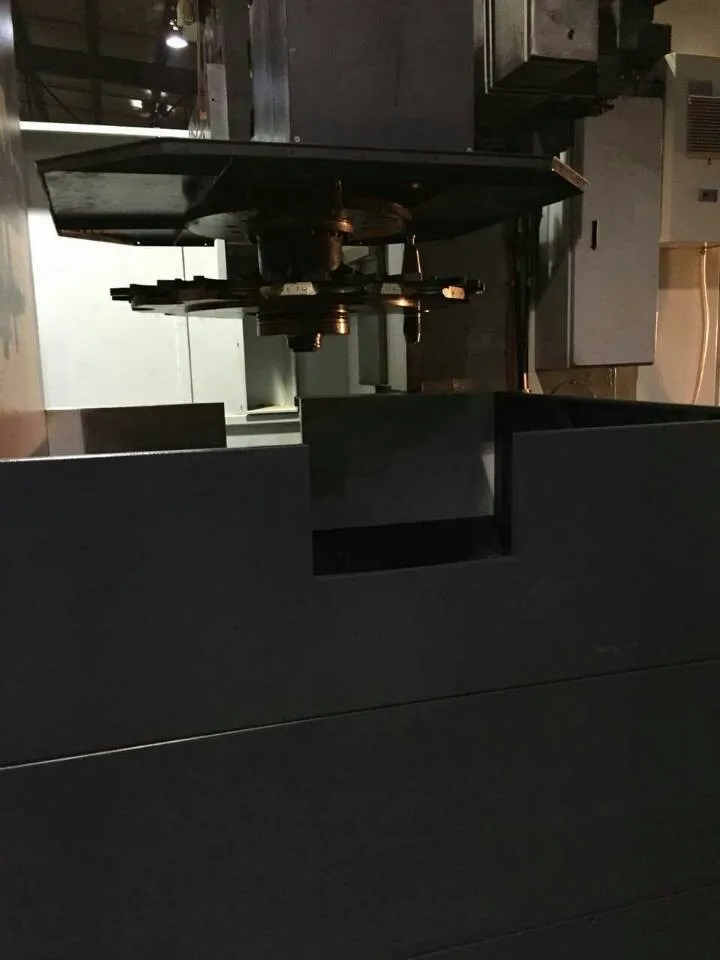

Tool magazine
As an option, we recommend the use of tool magazines to complete high-efficiency processing. The variety of tool magazine brands can fully meet customer requirements. The number of tool magazines is 8 or 12. The requirements for autonomous installation can also be completed later.

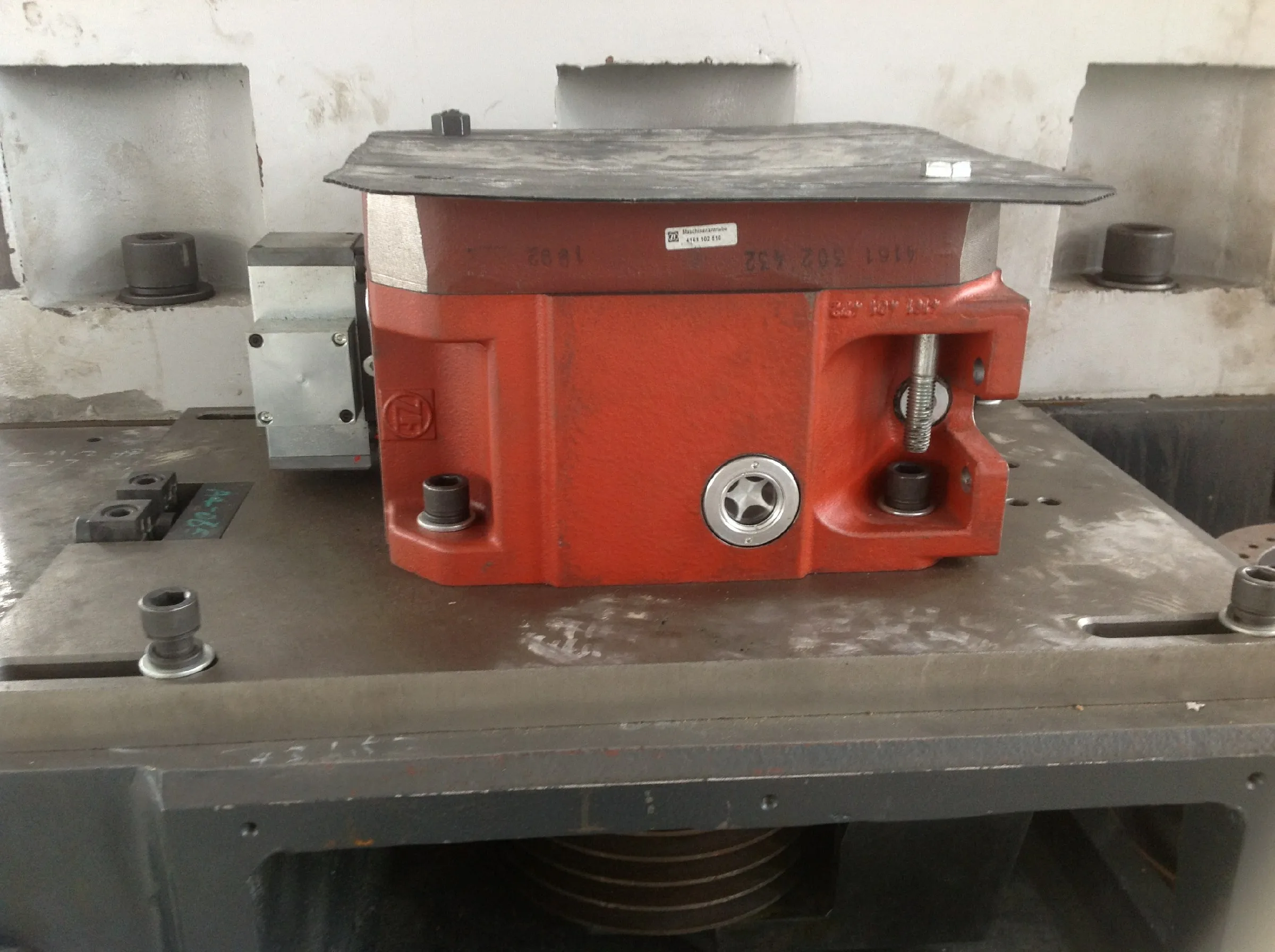

ZF Reduction Box
Main transmission adopts the German original ZF secondary mechanical gearbox + FANUC wide-area spindle servo motor stepless speed regulation; obtain a wide range of constant power in the infinitely variable speed, fast and convenient to change gear. Germany's ZF transmission excellent performance makes the machine table run more smoothly and less noise.
You may concerned

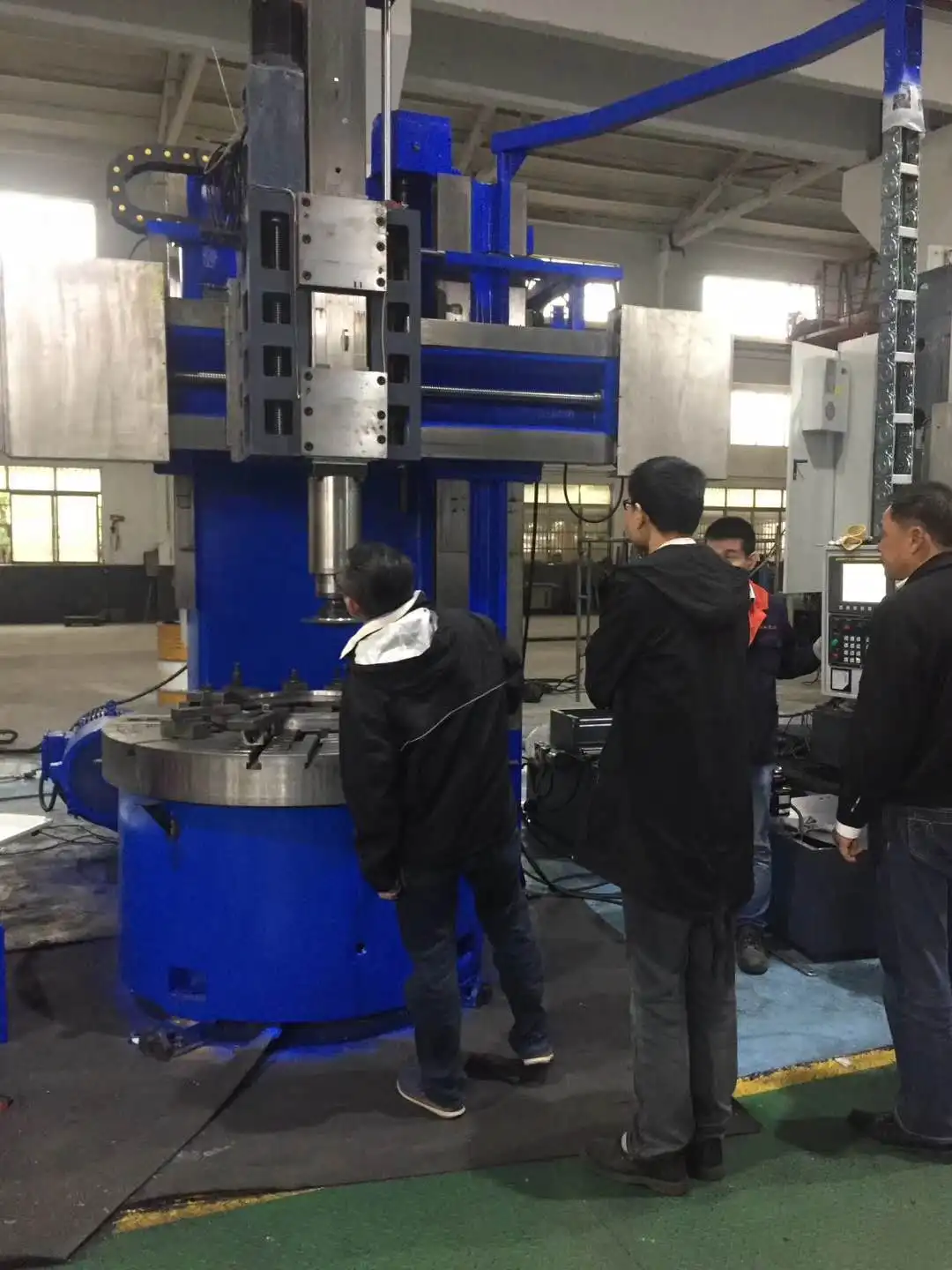

Before packaging, we will do strict accuracy test on worktable, tool turret to make sure our machine with execellent performance, meanwhil, testing report will be sent with other operation manual.
(Your saitisfaciton is our ultima goal )
Visting and Fair
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 16T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
