HORIZONTAL BORING MACHINE
TPX series of Horizontal Boring Machine on the basis of the traditional boring to optimize the design, machine tool can be widely used in the Box Body, Shell, Engine Base… large parts processing Drilling, Boring , Broaching, Reaming, Spot-facing, Milling flat, Turning thread cutting , etc. Especially suitable for large medium-sized of box parts and rough boring, Finished boring, milling and other machining process.Model | TPX6111B | TPX6111B/2 | TPX6111B/3 | TPX61113 | TPX6113/2 |
Spindle diameter(mm) | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 |
Grade of spindle rotate speed | 22 | 22 | 22 | 24 | 24 |
Spindle rotate speed range(r/min) | 8-1000 | 8-1000 | 8-1000 | 4-800 | 4-800 |
Facing head diameter(mm) | 600 | 600 | 600 | 800 | 800 |
Worktable Size(mm) | 960*1100 | 1200*140 | 1300*1600 | 1400*1600 | 1600*1800 |
Worktable turning angle | 360° | 360° | 360° | 360° | 360° |
Table cross travel--X axis (mm) | 900 | 1250 | 1600 | 2000 | 2000 |
Spindle Box travel--Y axis (mm) | 1000 | 1100 | 1300 | 1800 | 2000 |
Table Horizontal travel--Z axis (mm) | 1000 | 1000 | 1400 | 1500 | 1800 |
Main motor power(Kw) | 7.5 | 7.5 | 7.5 | 15 | 15 |
Detailed Images
Facing Head
Facing Head also call U axis tool, U axis generally refers to the X axis parallel to the machine tool, the U axis tool available in the U axis nc real-time variable diameter makes on the machining center machine tool can complete the past can only be done bythe lathe processing.

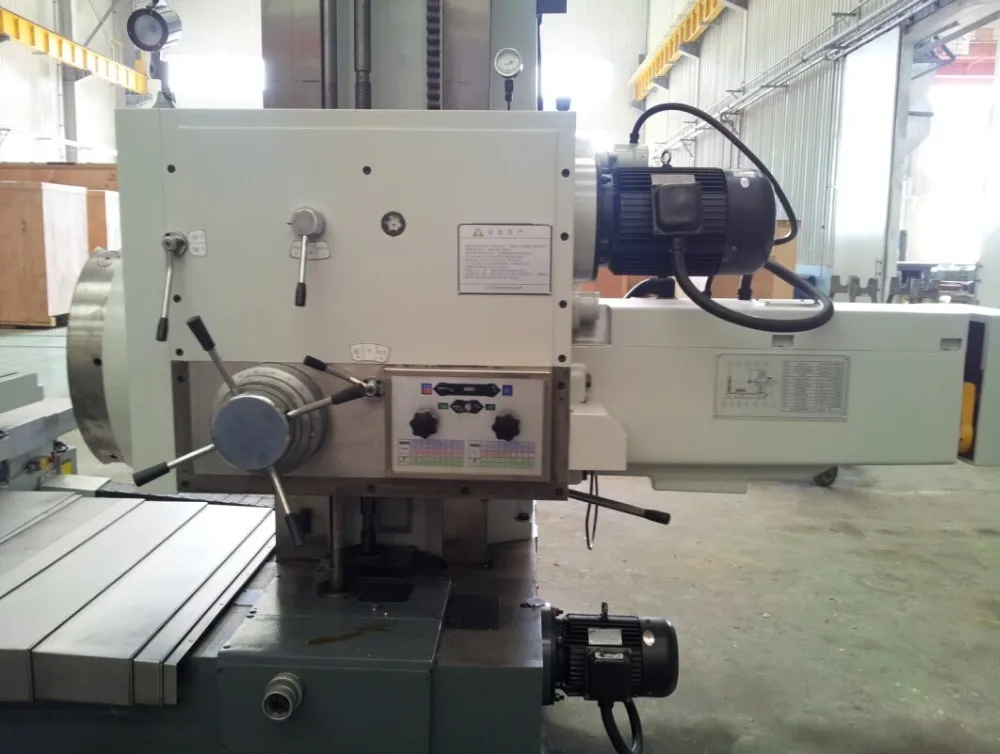

Machine Spindle Box
The headstock gear comes from SMTCL. At the same time, the bearings are selected from domestic high-quality suppliers, and
imported bearings can also be selected. The headstock is the core component of the machine. We will provide customers with the best configuration to satisfy customers.
imported bearings can also be selected. The headstock is the core component of the machine. We will provide customers with the best configuration to satisfy customers.

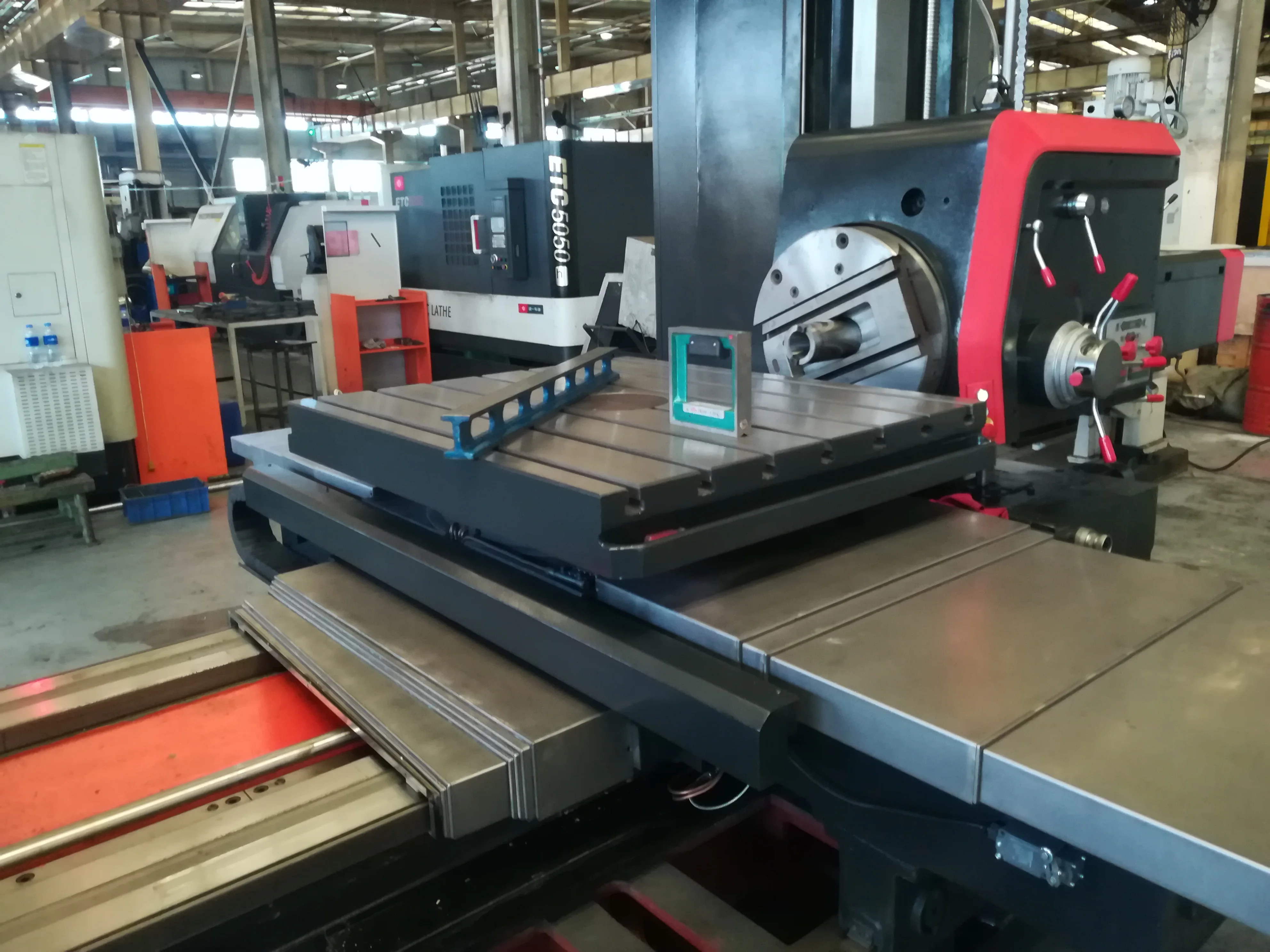

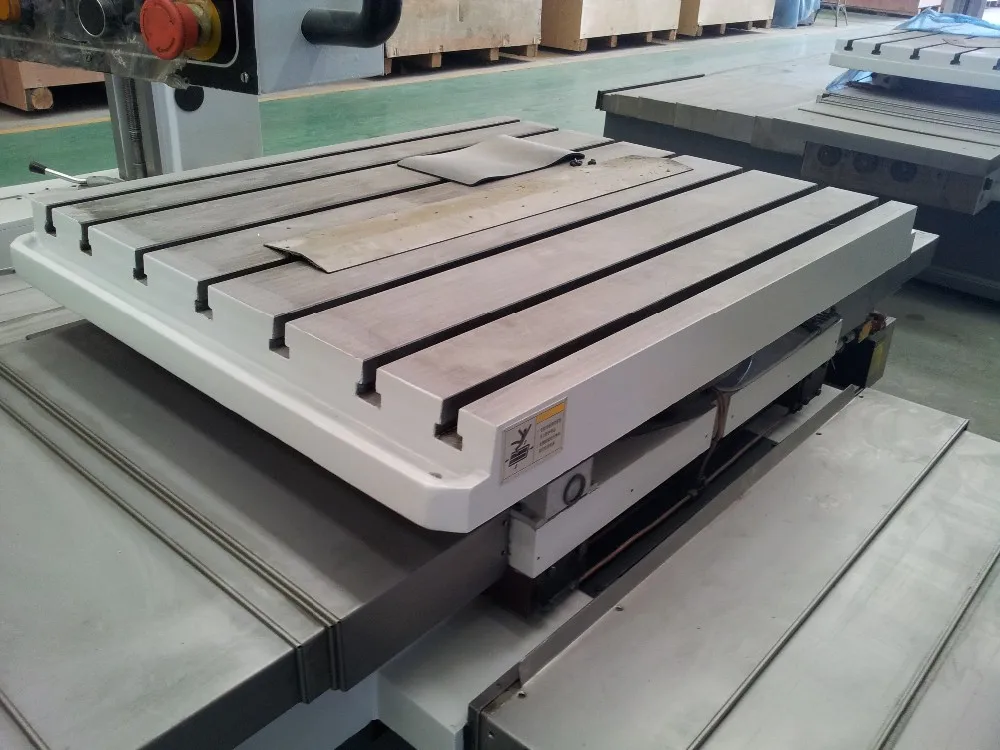

Worktable
Worktable 4×90°rotary positioning, By optical target , high positioning accuracy Ensure that there is a higher switching boring accuracy.
Guide Rail
X/Y/Z direction bed guide rail adopts rectangular guide rail, and the overall quenching combination grinding, its surface hardness can reach hrc48-51, smooth movement, good wear resistance, high positioning accuracy. The fitting surface of guide rail adopts sticking plastic technology to prolong the service life.
