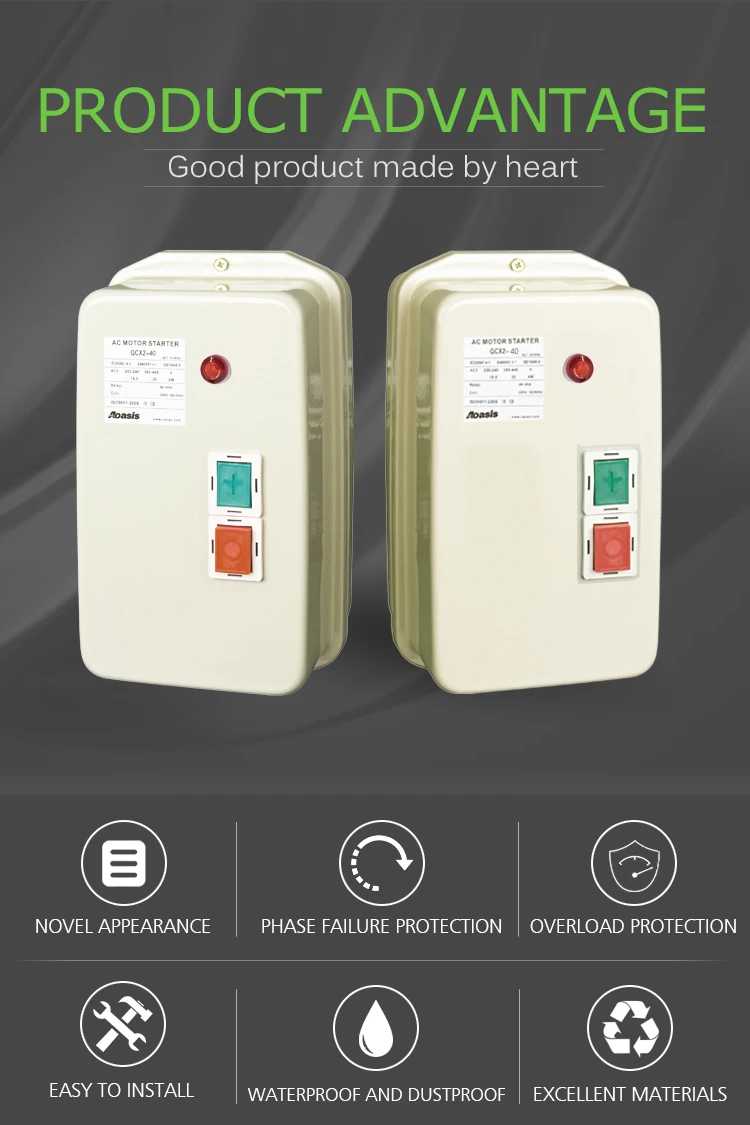

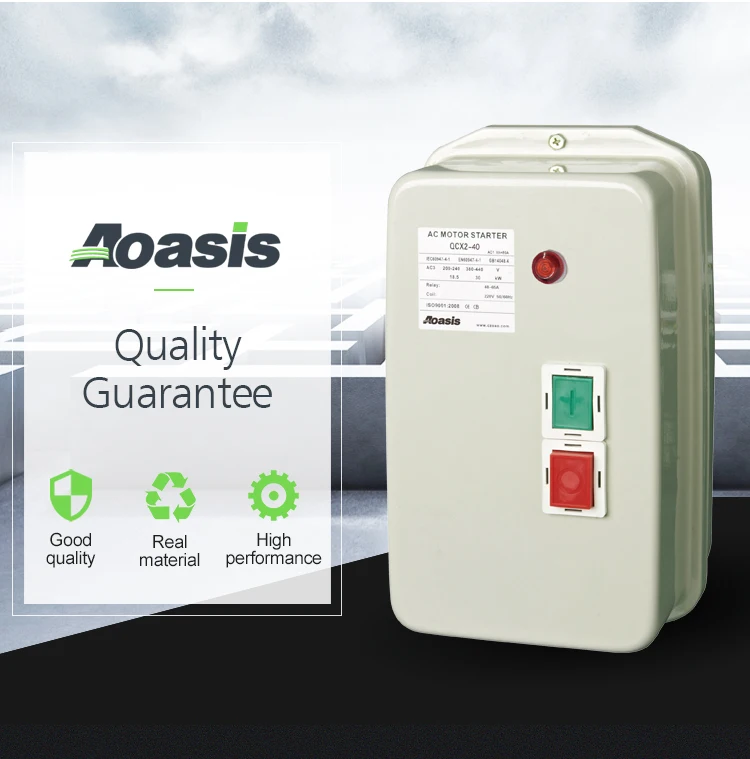

QCX2 40 Магнитный стартер со световым индикатором для 3 Фазы Дол мотор
- Category: >>>
- Supplier: Zhejiang Zhongao Electric Co. Ltd.
Share on (1100014953085):
Product Overview
Description
Product Brand: | AOASIS | Product Name: | Magnetic Starter | ||
Product Type: | QCX2-40 | Protection Grade: | IP54 | ||
Temperature: | -5~+40℃ | Altitude Range： | Not exceed 2000m | ||
Application: | Control various motors and distribution circuits | ||||
Mounting Condition： | The inclination between the mounting plane and the vertical plane shall not exceed 5° | ||||
Application Range
QCX2-□□series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.

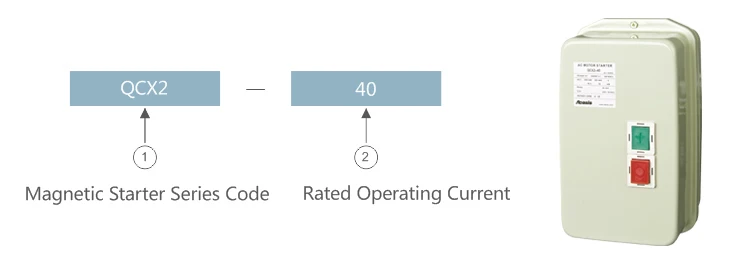

Type and Signification
Application Condition
Altitude: not exceed 2000m. Temperature: -5℃~+40℃, average not exceed +35℃ in 24 hours Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature. Pollution Grade: Grade III. Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°. The product shall be installed and operated at a place without obvious shake, impact and vibration.

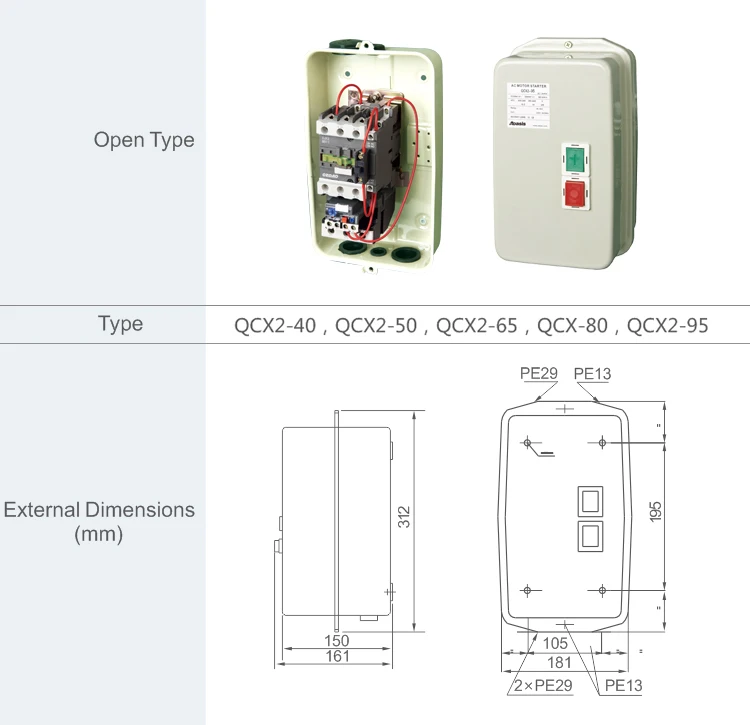

Dimensional Drawing

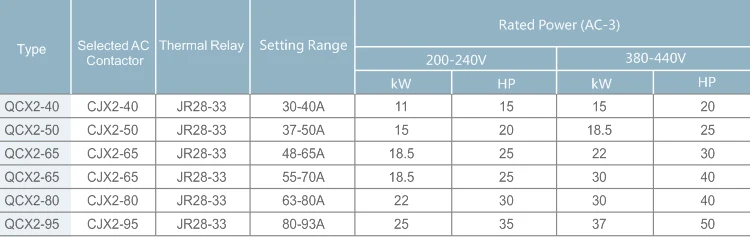

Technical Parameters

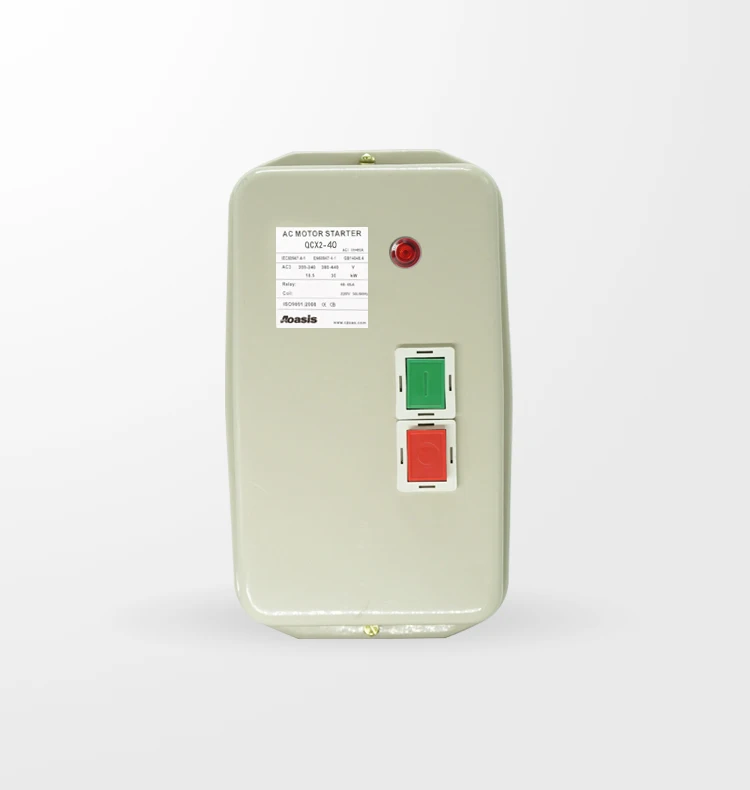

Front View

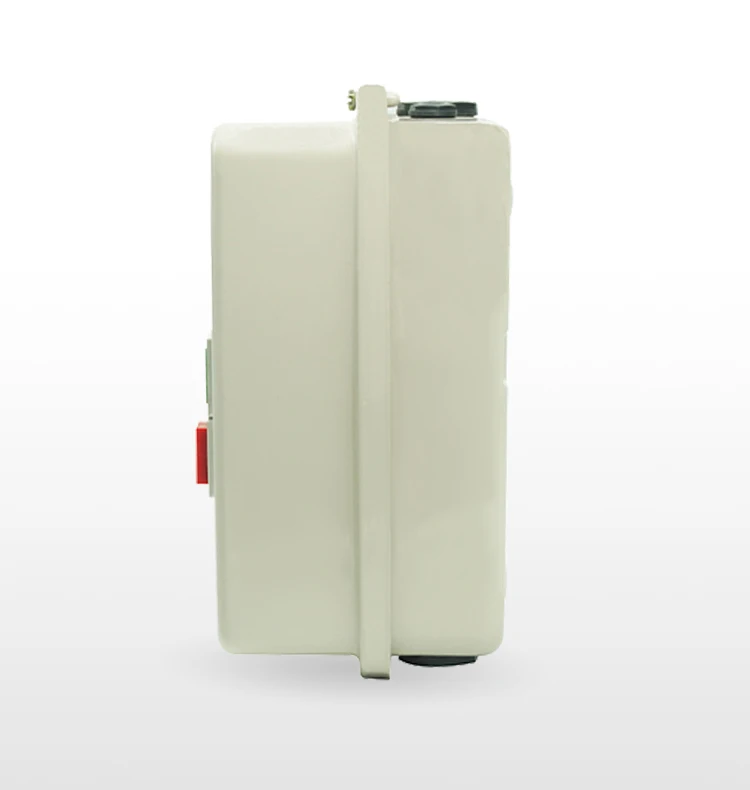

Side View
Vertical View
FAQ
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipping.
Q2. How's the delivery time ?
A. usually it will take about 25 days for production.
Q3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
A. We accept TT,30% deposit and 70% balance before shipping.
Q2. How's the delivery time ?
A. usually it will take about 25 days for production.
Q3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
