Electronic Strip NC/No Door Lock for RFID Door Access Control System

Share on (1100015000135):


Price:

Quantity:


Product Overview

Description



Product Description

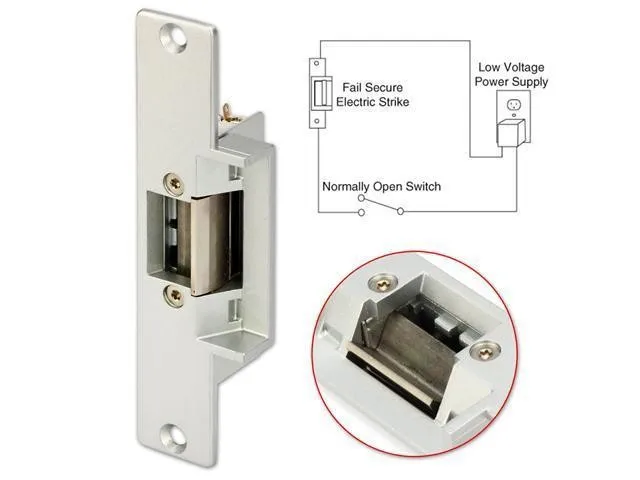

Electric Door Strike Lock fail secure fail safe optional

Y130 is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking

Product Parameter
Parameter Description
Feature
Fail Safe
Strike Structure
Stainless Steel
Holding Force
500kgs
Voltage
DC12V (Need Order DC24V)
Current
200mA(Y-132NO);200mA(Y-132NC)
Surface Temperature
Within +20℃
Suitable For
Wooden Door,Metal Door,PVC Door
Operating Humidity
0~90%(non-condensing)
Face plate Housing
Painted Steel
Operating temp
-10~+55℃(14~131F)
Function
Built-out MOV
Weight
0.4kg

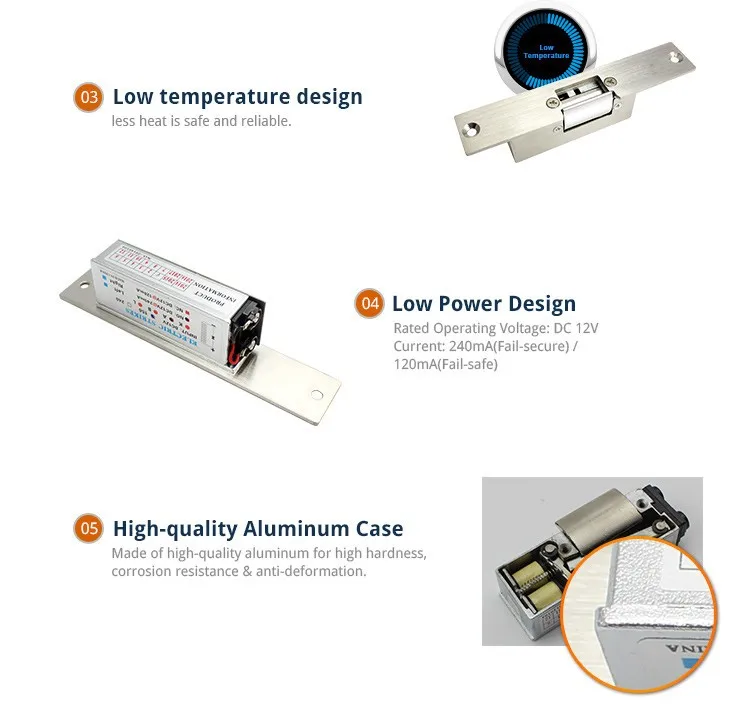

Product Advantages


Y131 is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking. particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.

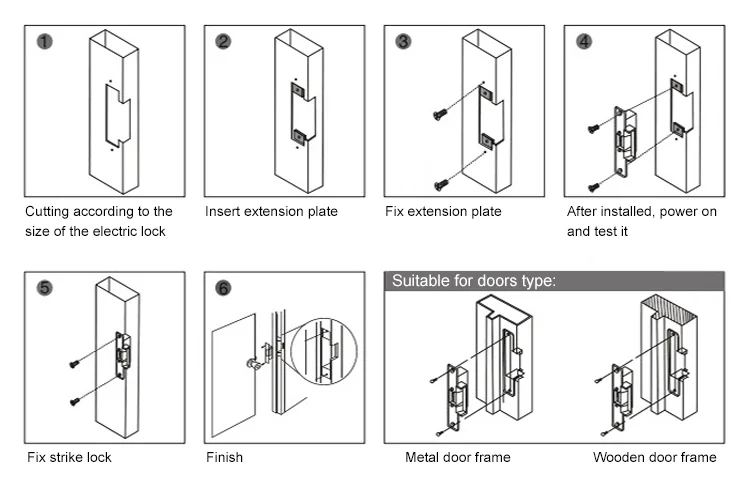

Installation Diagram

Packing & Delivery




Shipping Way

We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
