Выход 0,26 мм ~ 0,68 мм провод 14D медной проволоки проволочно волочильный станок с аннеалер
- Category: >>>
- Supplier: Shanghai Swan International Trade Co. Ltd.
Share on (1100015014210):
Product Overview
Description
Product Description

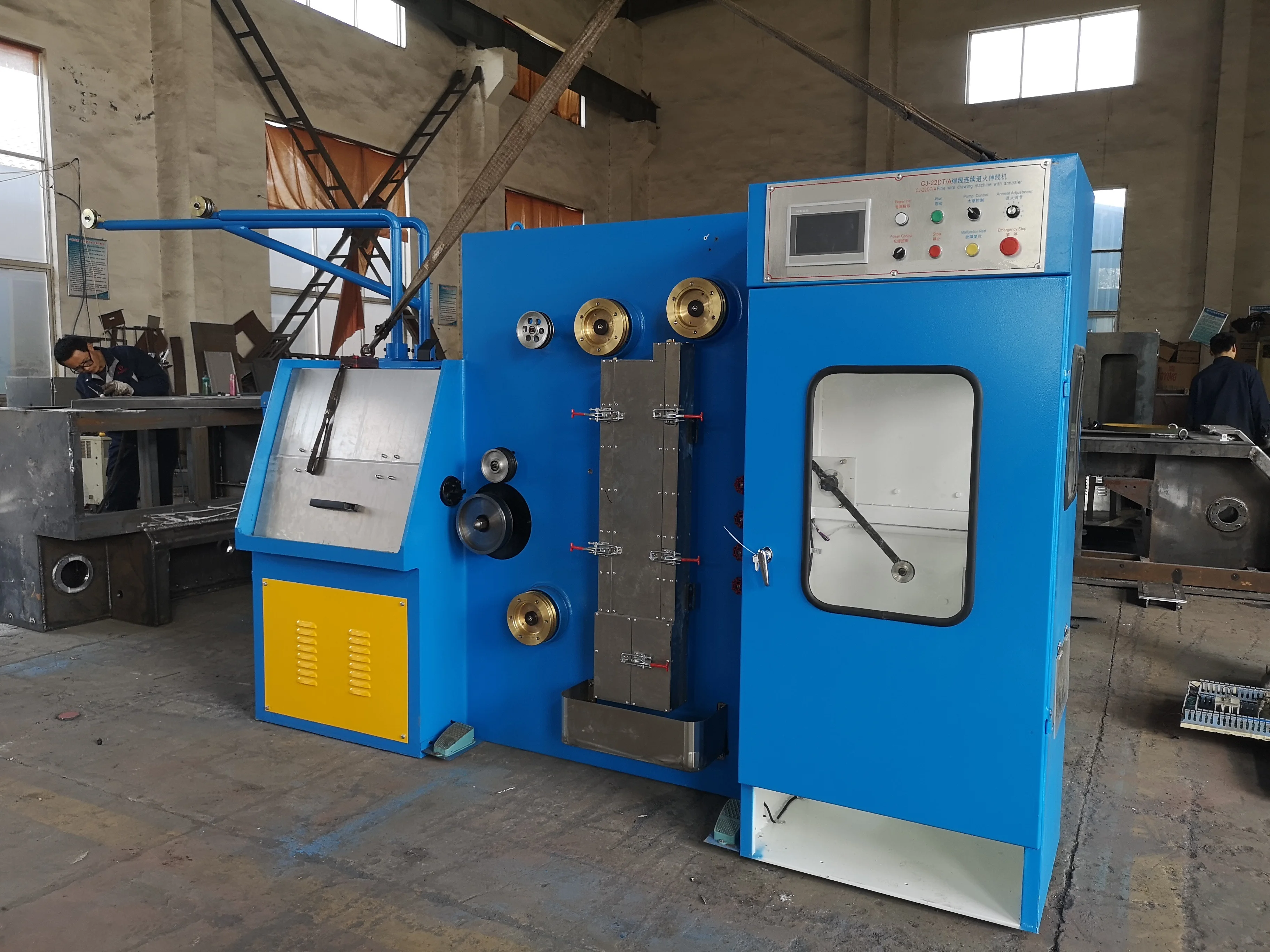

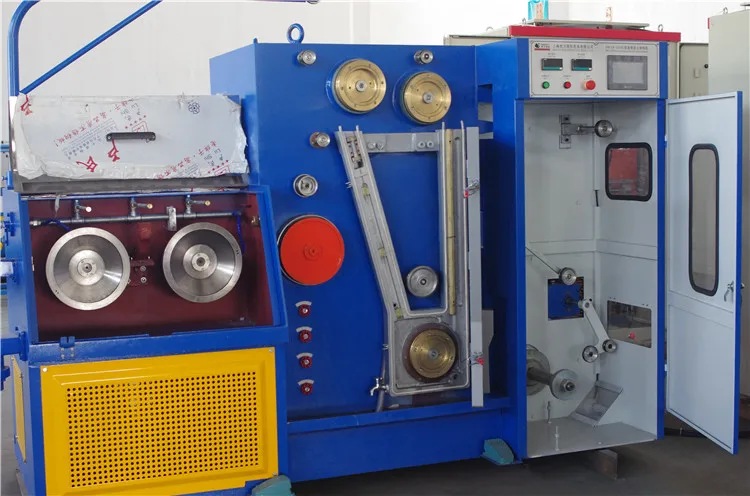

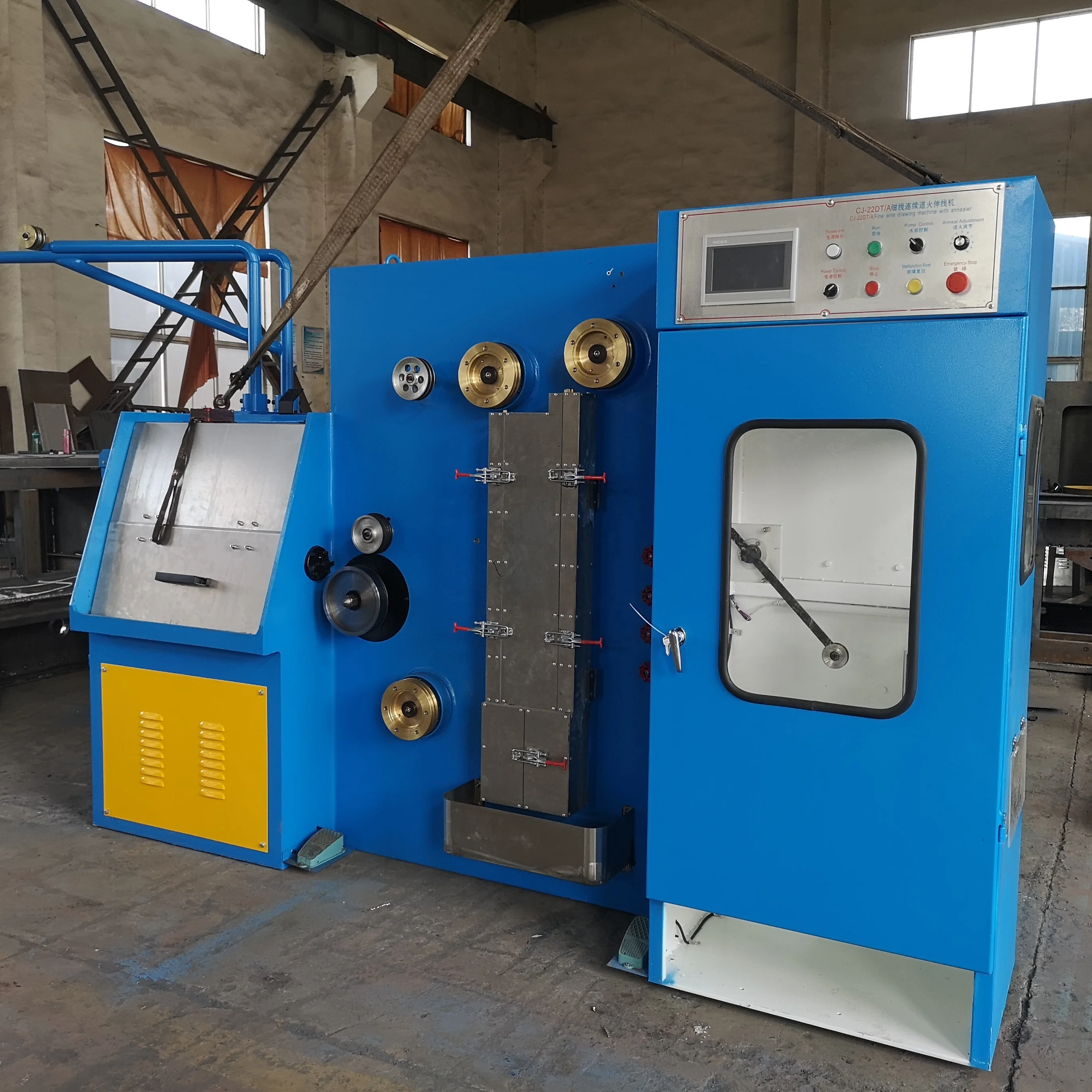

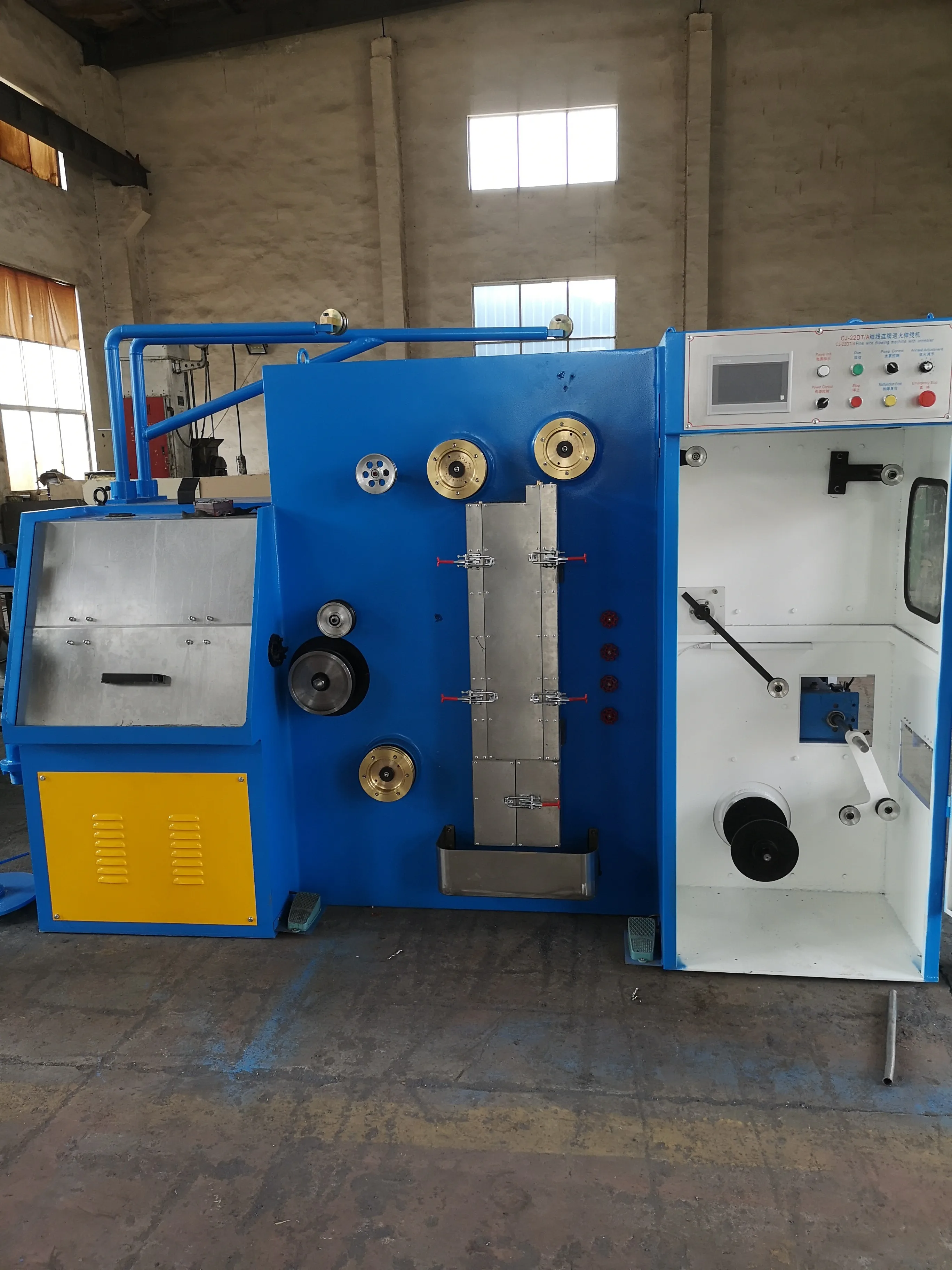

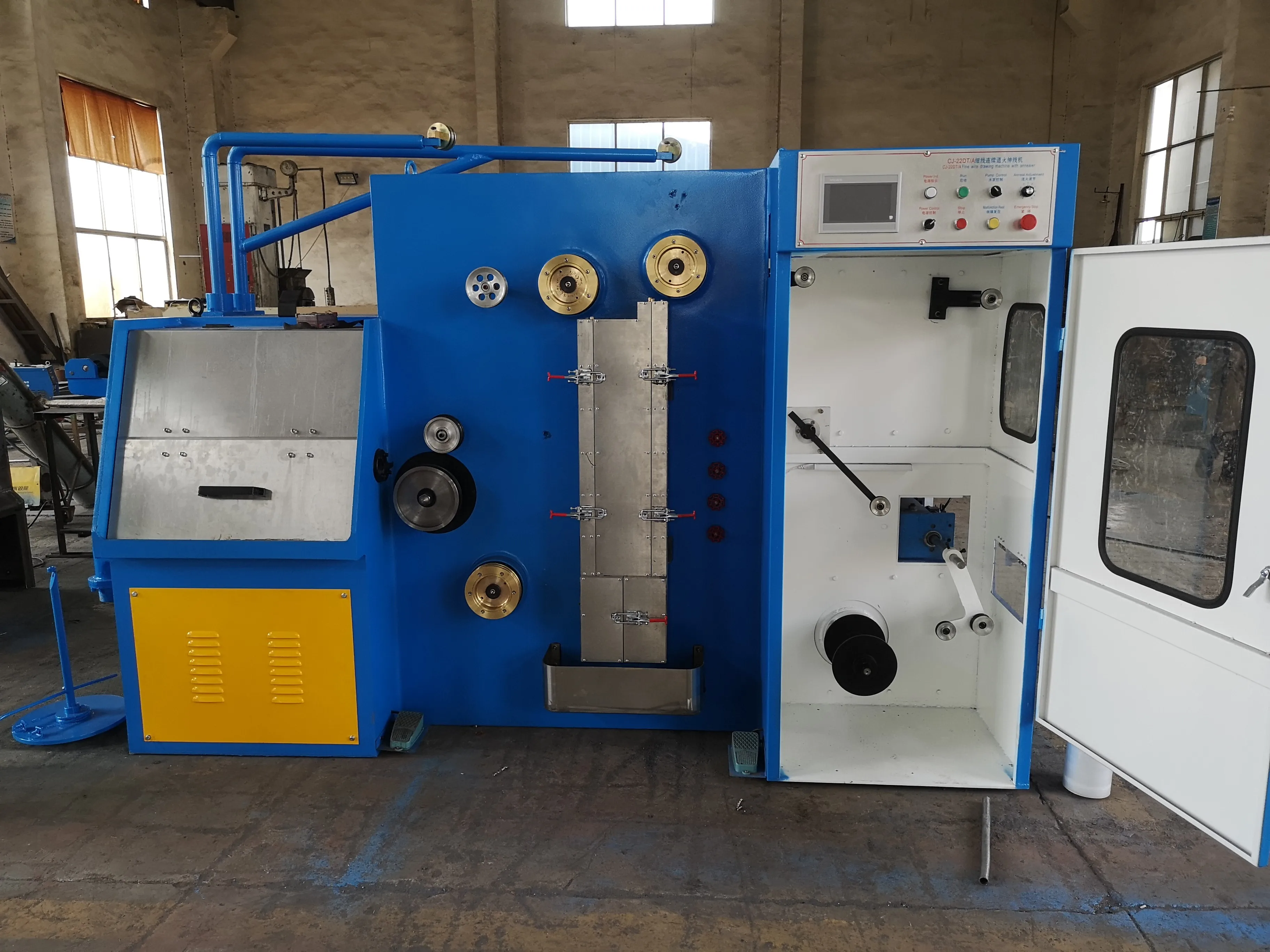

14 D wire drawing machine
Product Description
14DT FINE WIRE DRAWING MACHINE | ||

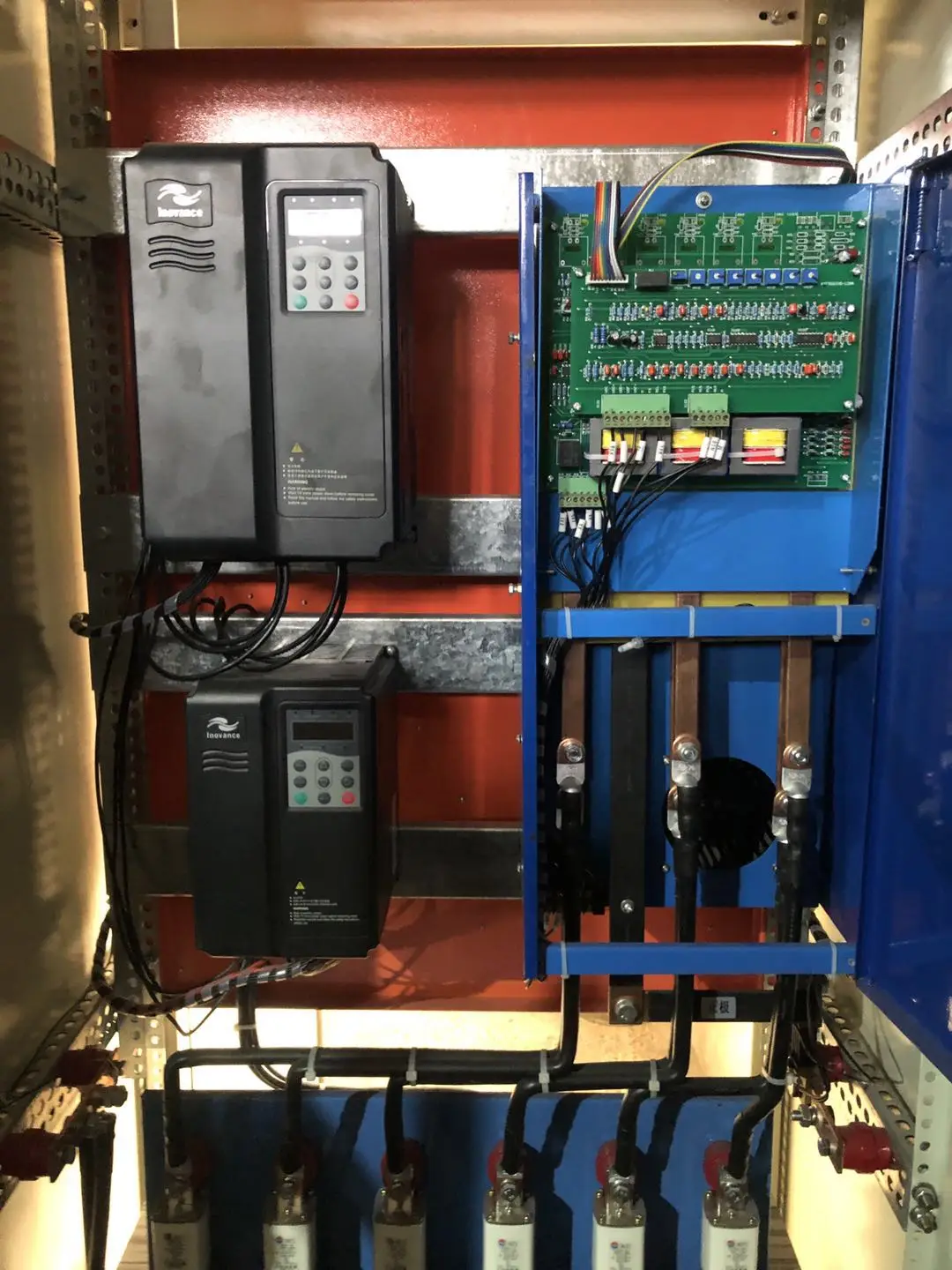

Inverter control | Double inverter control | |
Max. Drawing dies No. | 14 | |
Inlet diameter | Ø 0.8- 1.6mm | |
Out diameter | Ø0.25- 0.65mm | |
Drawing line speed | 1200mpm/max | |
Slip ratio of m/c | 15% | |
Fix speed capstan slip ratio | 8% | |
Main motor | 15kw | |
Spooler motor | 3.7kw | |
Annealing voltage | DC 0-60V | |
Annealing current | DC 600A | |
Our Advantage

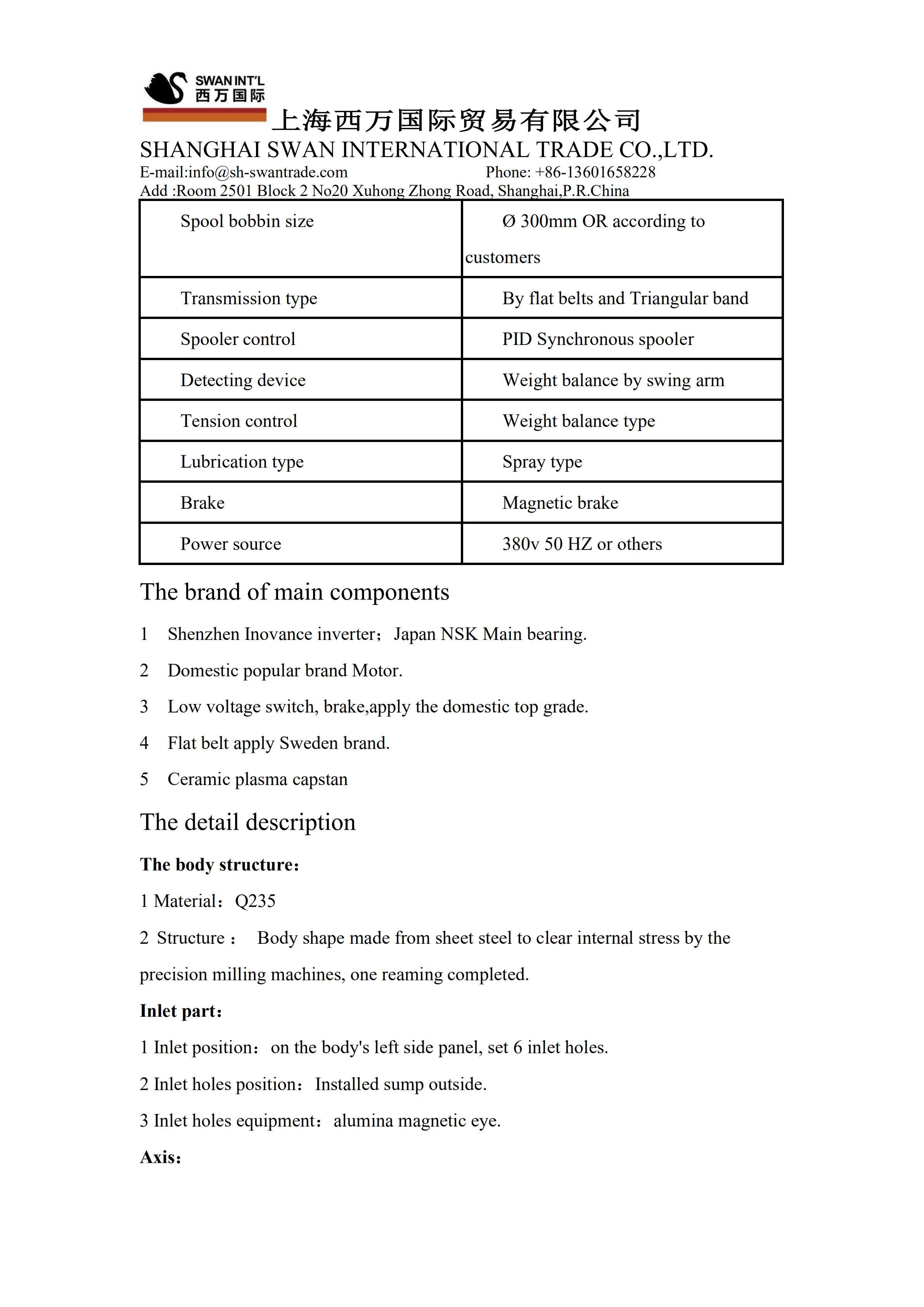

The box body is made of integral steel plate, which guarantees that the device box is stable and can be used for up to 10 years. The gears need not be replaced.
Our Advantage
The annealing temperature can reach 500 degrees Celsius, with a steam protection device to prevent oxidation of the wire surface.Can reach zero position annealing
Our Advantage

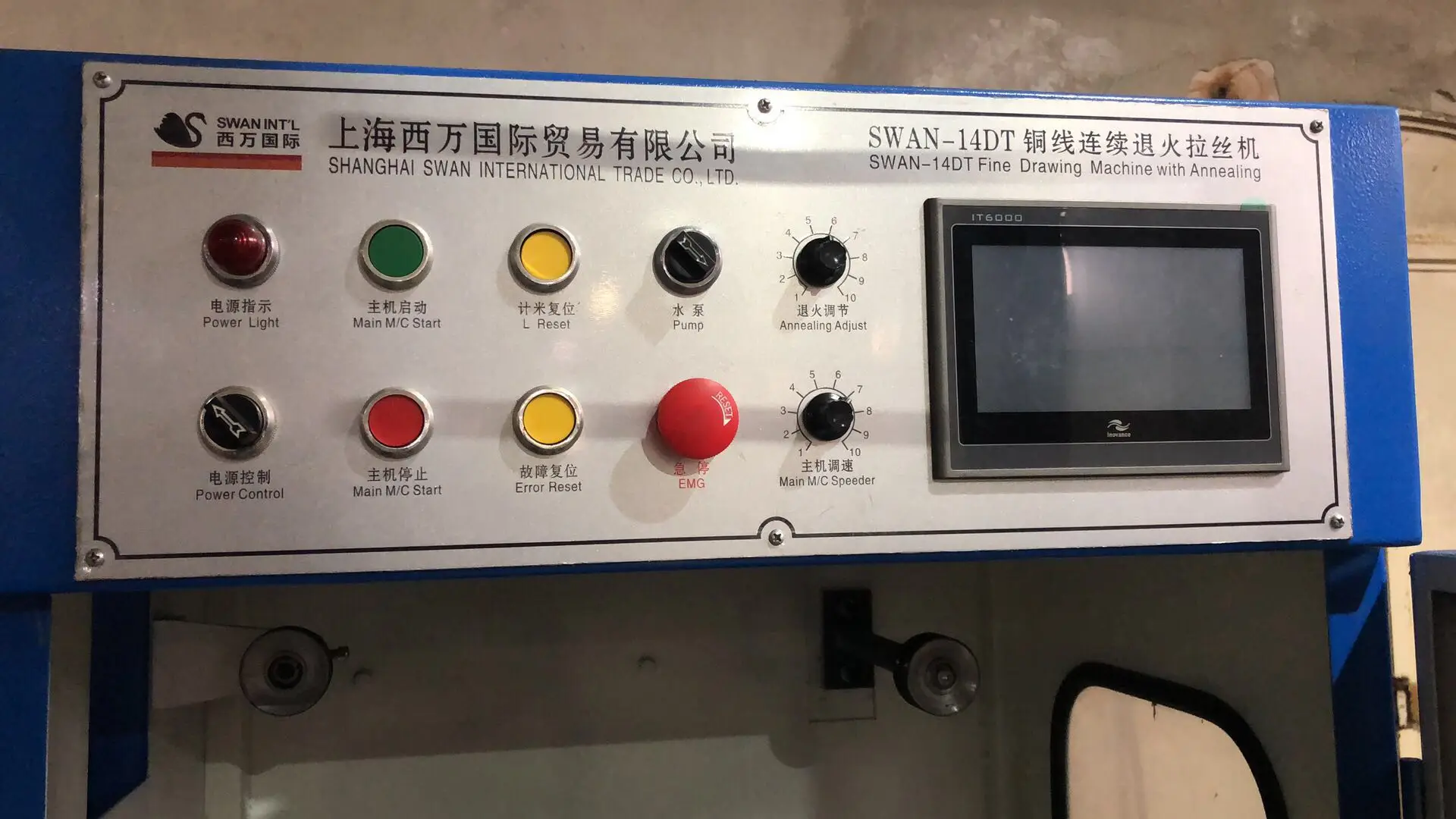

Flexible tension control, Reached synchronous start and stop. Simple operation saves time.
Our Advantage

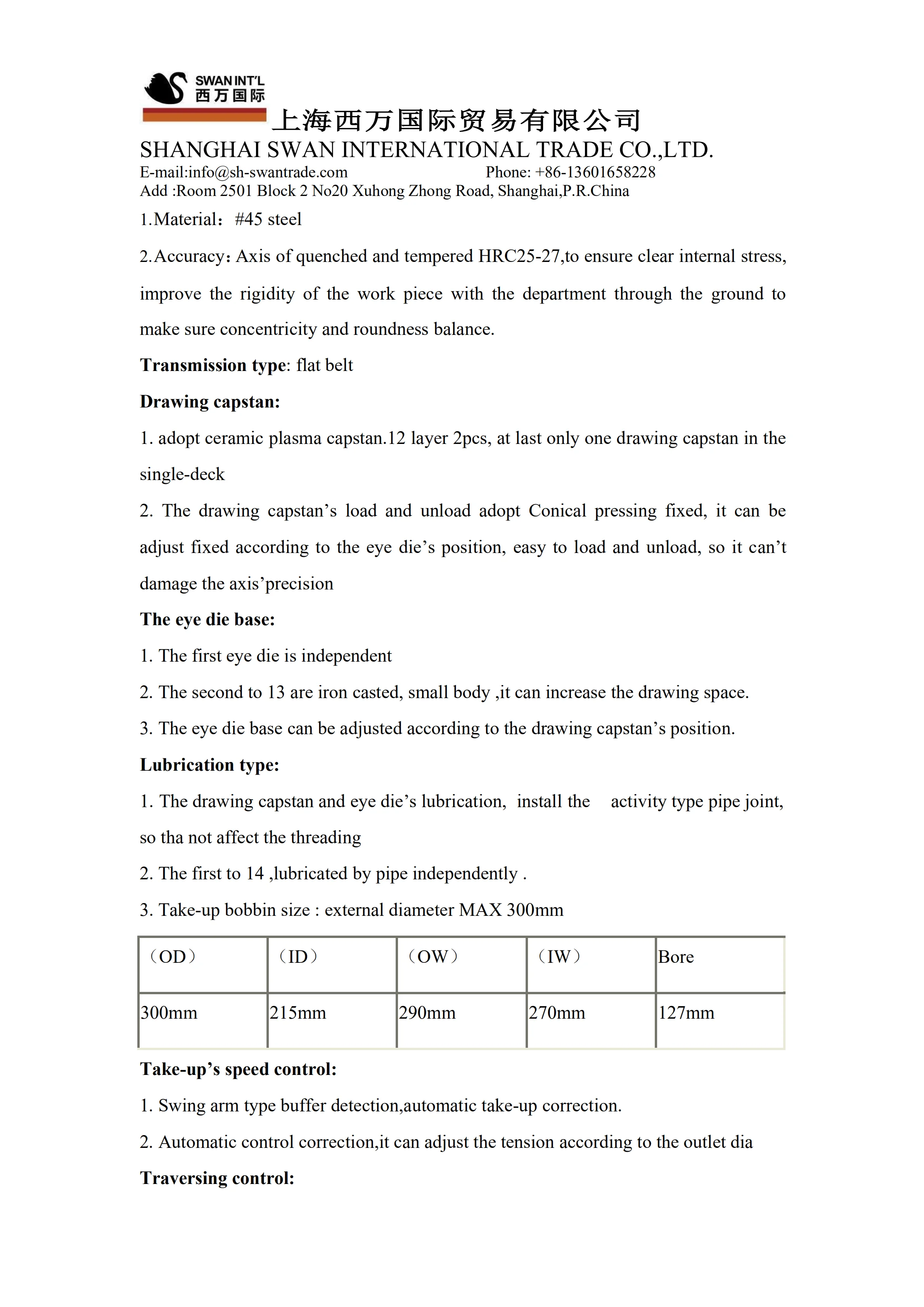

The surface of the outer tower wheel in the drawing box is made of vacuum-treated tungsten carbide, with a thickness of 1mm. Long-term wear. The surface of the inner tower wheel is made of ceramic, which effectively avoids wear and prolongs the service life.
