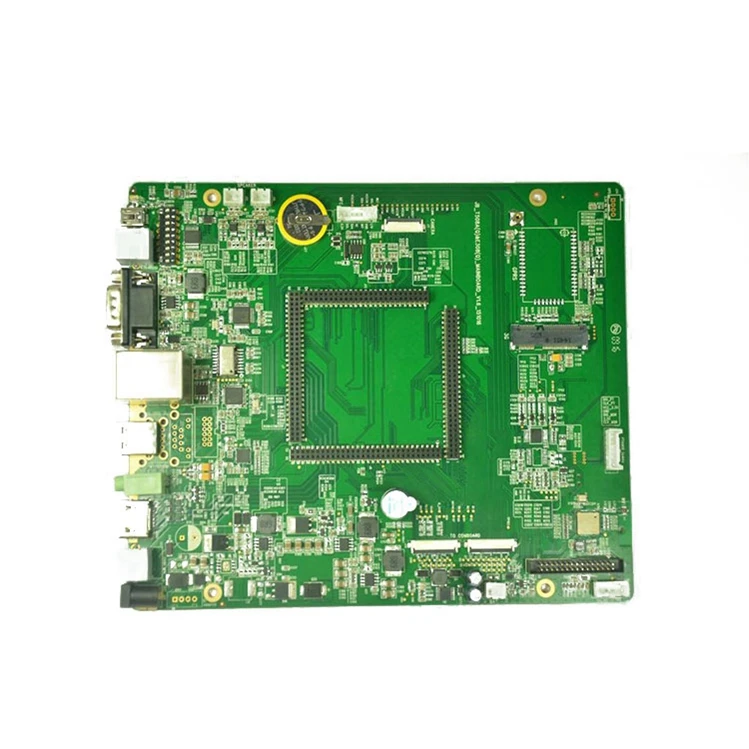

Надежное послепродажное обслуживание для беспроводного зарядного устройства сборку печатных плат Pcb Assembly
- Category: >>>
- Supplier: Shenzhen Shiny Pcb Co. Limited
Share on (1100015039269):
Product Overview
Description
One-Stop Service:
1. PCB manufacturing
2. Component sourcing
2. Component sourcing
Detailed Terms for Pcb Assembly
Quantity | Prototype&sample PCB Assembly, Small and middle mass prodution is our specialty and we also can handle the orders up to 2000. |
Type of Assembly | THD (Thru-Hole Device), SMT (Surface-Mount Technology), Double-sided SMT & THD mixed |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free. |
Components | Passives parts, smallest size 0201; |
BGA, uBGA, QFN, POP, and Leadless chips; | |
Fine Pitch to 0.8Mils; | |
BGA Repair and Reball; Part Removal and Replacement | |
Connectors and terminals. | |
Bare Board Size | Smallest: 0.25x0.25 Inches; Largest: 20x20 Inches. |
File Formats | Bill of Materials Gerber Files Pick-N-Place File(XYRS). |
Type of Service | Turn-Key, Partial Turn-Key or Consignment. |
Component Packaging | Reels,cut tape,Tube and tray,Loose parts and bulk. |
Turn Time | 3 - 10 days |
Testing | X-ray Inspection |
AOI (Automated Optical Inspection) | |
ICT (In-Circuit Test)/Functional Testing |
Specification of PCB Manufacturing
Product Name | Pcba multilayer pcb sdtv led assembly |
Materials | FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
Number of Layer | 1-32 layers (include Rigid-Flex PCB) |
Board Thickness | Rigid 0.2-4.0mm, Flex 0.01-0.25mm |
Board Thickness Tolerance | 5-10% |
Board Cutting | V-cut,Routing |
Copper Weight | 0.2oz-10oz |
Copper Weight Tolerance | ±0.15 oz |
Copper Thickness | 0.5oz-5oz |
Min Trace Width | 0.15mm |
Min Space Width | 0.15mm |
Min Drill Hole Diameter | 0.1mm |
Silk Screen Min Line Width | 0.15mm |
Soldermask | green,red,blue,white,black,yellow,etc. |
Flame resistance | 94v0 |
Certification | ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640 |
Suface Finish | HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc |
Product Categories
Manufacturing Technique
Company Profile
FAQ
1. MOQ?
There is no MOQ
2. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
3. What's the delivery time?
Bare PCB | ||||||
Layer | Prototype | Mass productions | ||||
Quick turn | Usual time | above 30 ㎡ | ||||
2 | 24 hours | 3-4 days | 8-10 days | |||
4 | 48 hours | 5-6 days | 10-12 days | |||
6 | 72 hours | 6-8 days | 12-14 days | |||
8 | 72 hours | 8-10days | 16-18 days | |||
10 | 96 hours | 10-12 days | 18-20 days | |||
...... | ...... | ...... | ...... | |||
PCB Assembly | ||||||
Order conditions | Standard delivery date | The fastest delivery date | ||||
Prototype(<20 pcs) | 2 days | 8 Hours | ||||
Small volum(20-100 pcs) | 3 days | 12 Hours | ||||
Medium volum(100-1000 pcs) | 6 days | 24 Hours | ||||
Mass volum(>1000 pcs) | depends on BOM | depends on BOM | ||||
