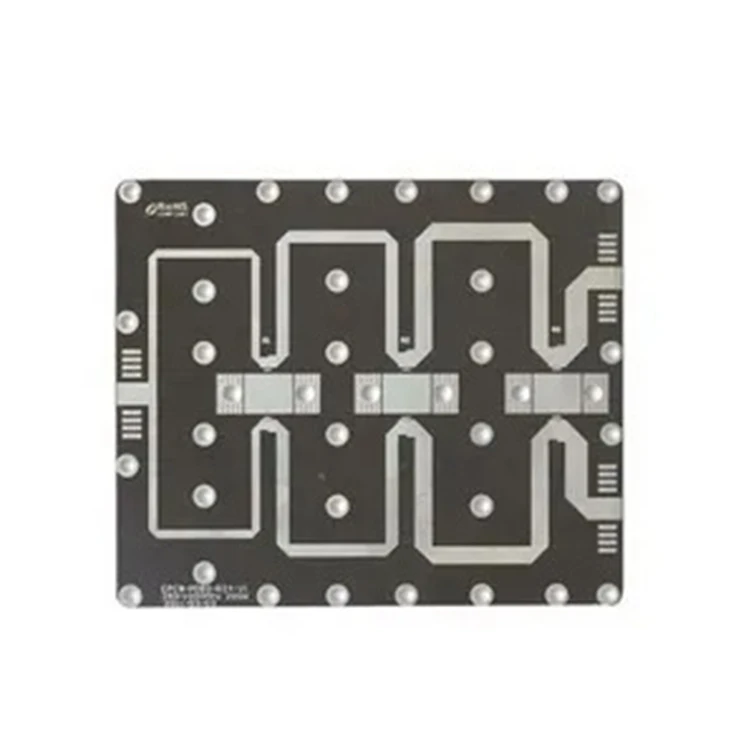

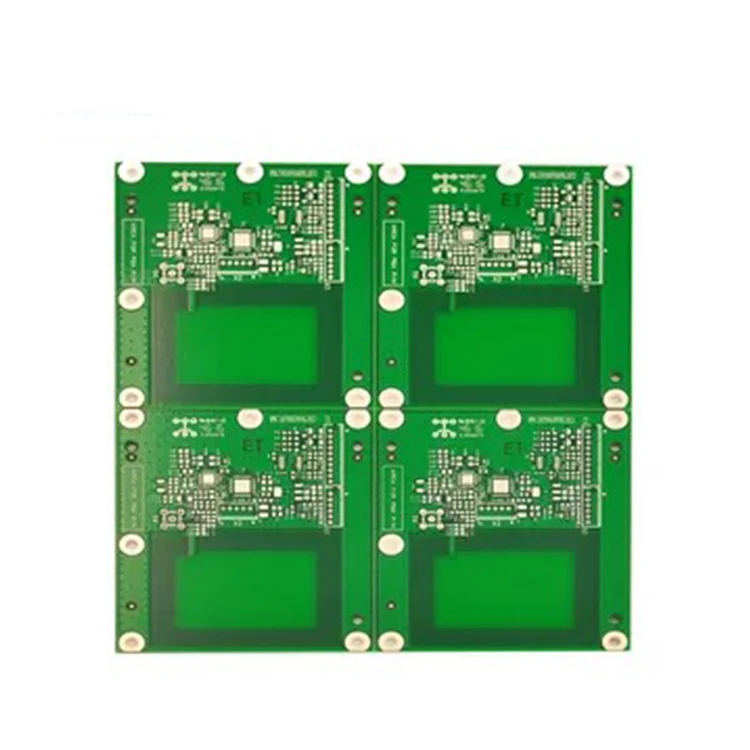

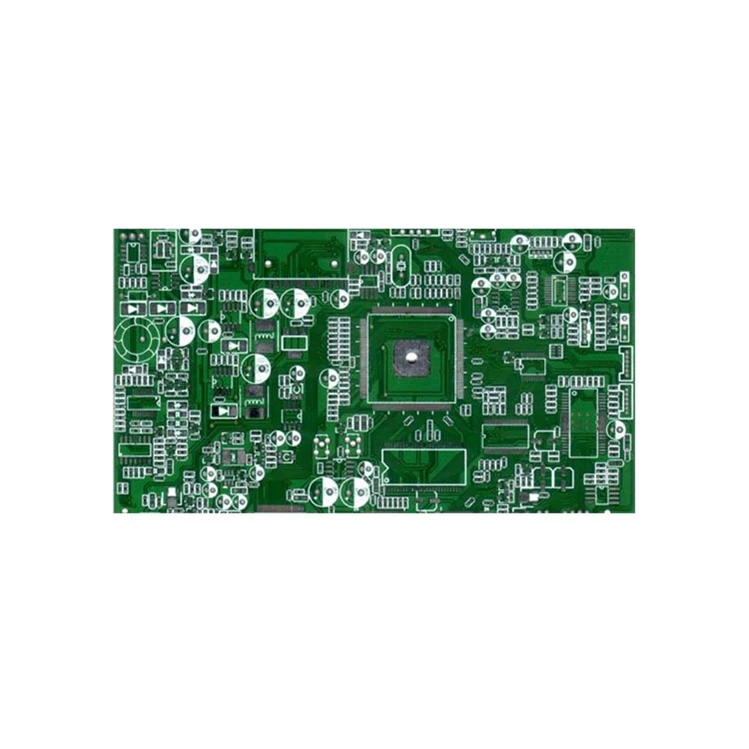

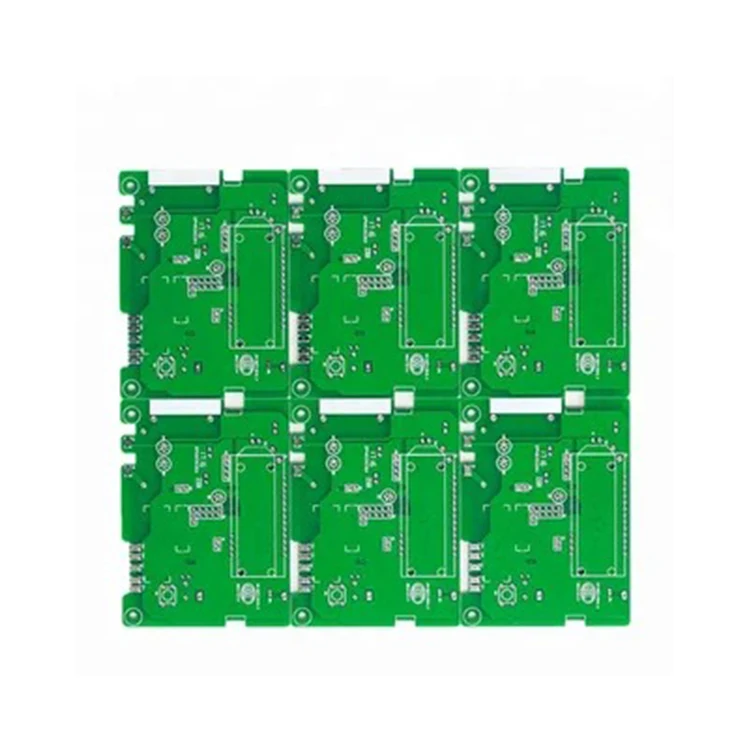

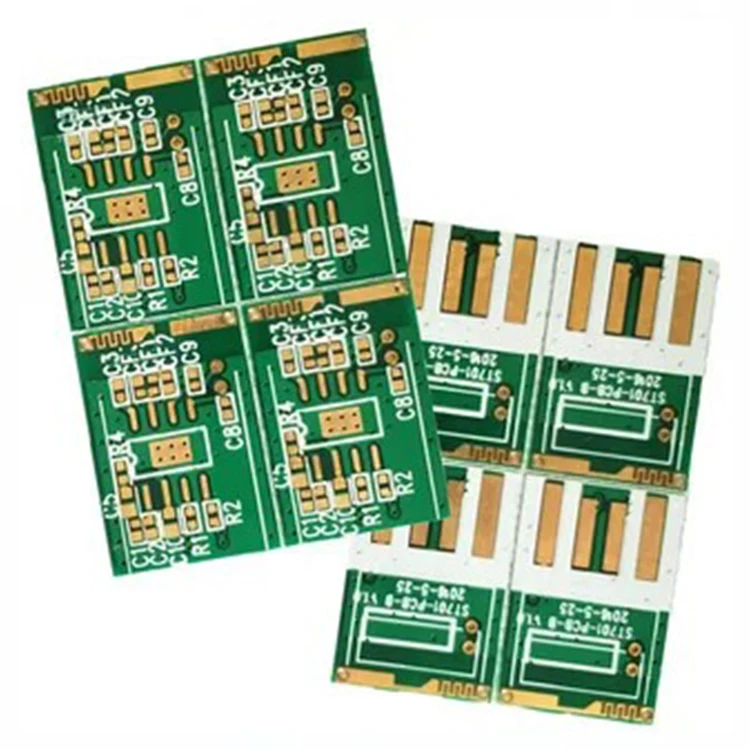

SMD DIP soldering components for electronic circuit board
- Category: >>>
- Supplier: Shenzhen Shiny Pcb Co. Limited
Share on (1100015043188):
Product Overview
Description
One-Stop Service:
1. PCB manufacturing
2. Component sourcing
2. Component sourcing
Specification of PCB Manufacturing
Product Name | High Quality Custom Fr4 Multilayer Pcb Manufacturer |
Materials | FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
Number of Layer | 1-32 layers (include Rigid-Flex PCB) |
Board Thickness | Rigid 0.2-4.0mm, Flex 0.01-0.25mm |
Board Thickness Tolerance | 5-10% |
Board Cutting | V-cut,Routing |
Copper Weight | 0.2oz-10oz |
Copper Weight Tolerance | ±0.15 oz |
Copper Thickness | 0.5oz-5oz |
Min Trace Width | 0.15mm |
Min Space Width | 0.15mm |
Min Drill Hole Diameter | 0.1mm |
Silk Screen Min Line Width | 0.15mm |
Soldermask | green,red,blue,white,black,yellow,etc. |
Flame resistance | 94v0 |
Certification | ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640 |
Suface Finish | HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc |
Product Categories
Manufacturing Technique
Company Profile
Product packaging
FAQ
1. MOQ?
There is no MOQ
2. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
3. What's the delivery time?
Bare PCB | ||||||
Layer | Prototype | Mass productions | ||||
Quick turn | Usual time | above 30 ㎡ | ||||
2 | 24 hours | 3-4 days | 8-10 days | |||
4 | 48 hours | 5-6 days | 10-12 days | |||
6 | 72 hours | 6-8 days | 12-14 days | |||
8 | 72 hours | 8-10days | 16-18 days | |||
10 | 96 hours | 10-12 days | 18-20 days | |||
...... | ...... | ...... | ...... | |||
PCB Assembly | ||||||
Order conditions | Standard delivery date | The fastest delivery date | ||||
Prototype(<20 pcs) | 2 days | 8 Hours | ||||
Small volum(20-100 pcs) | 3 days | 12 Hours | ||||
Medium volum(100-1000 pcs) | 6 days | 24 Hours | ||||
Mass volum(>1000 pcs) | depends on BOM | depends on BOM | ||||
