Product Overview
Description
Product Description
Product Introduction
BSG are major by-products in the beer production. However, high moisture (80-85%) brings a lot of problems on utilization and transportation. Today the best way to solve this problem is to dehydrate BSG and transfer them into composite feed, which could be effectively absorbed. According to the need of different livestock, people could make variable feed by adding specific additive such as trace element. By this way, BSG could get fully used, which could bring priceless environmental benefits and economic benefits.
By considering the situation of global market, our company cooperated with relevant designing institute, eventually designing and manufacturing the 'extruding-desiccation machine plus BSG dryer' systems. The new product line could fulfill continues and stable production and has the characterization of low cost, easy installation and maintain, and less need for labor. Meanwhile, the product moisture of dehydration process and drying process could separately approach 50-65% and 12%, which is satisfying. According to the test report of national feed quality supervision, inspection and test center, the nutrient in BSG will not loss in the process of dehydration and drying. Currently, we could provide different series of drying equipment to meet the demand of different beer suppliers.

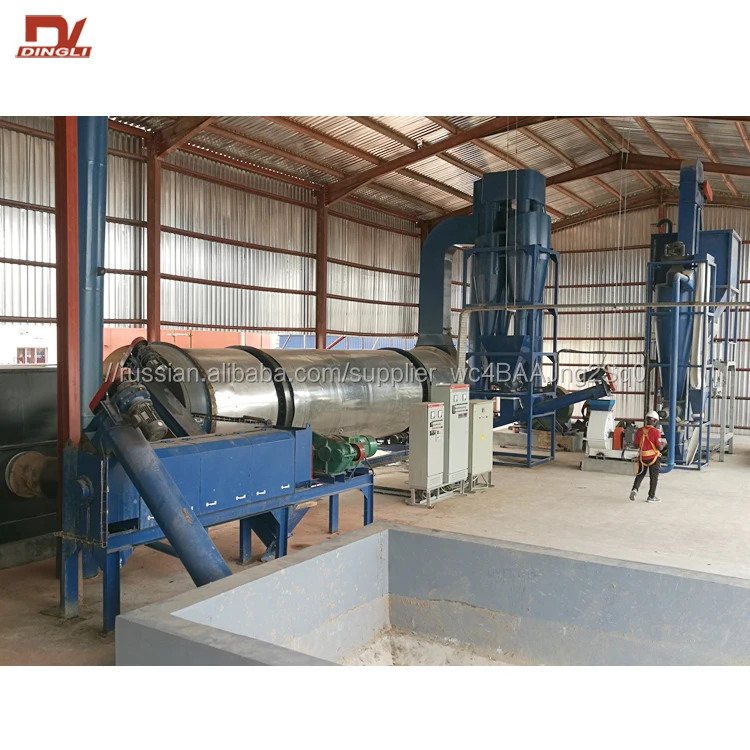

Brewer's grains dryer is mainly consist of heat source, feeding machines, feeder, rotary drum, discharging machine, draft fan, discharge and power distribution cabinet.
Brewer's grains dryer is mainly consist of heat source, feeding machines, feeder, rotary drum, discharging machine, draft fan, discharge and power distribution cabinet.
Main Features
1. This dryer has a high degree of mechanization, large production capacity and continuous operation.
2. Structure was simple and excellent. Materials pass stably through the cylinder's resistance. Convenient to operate.
3. Low failure rate. Low maintenance cost and energy consumption.
4. Good uniformity of dried products. Bright color. Pleasant aroma. Nutrients remain unchanged.
Process & Principle

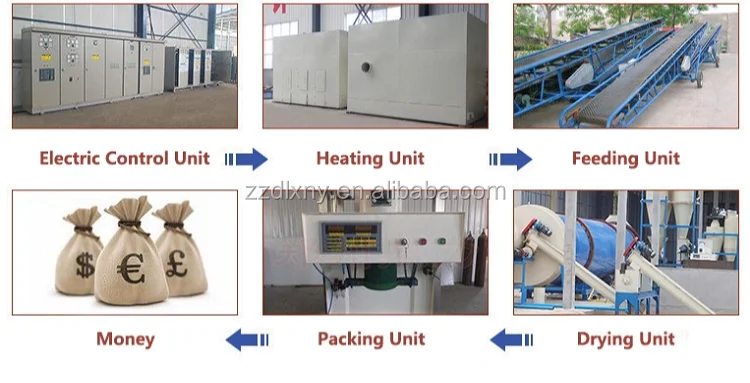

Below is Drying Process
Below is Working Principle
BSG with 85% moisture are delivered into the screw dehydration machine (or belt dehydration machine) and dehydrated to 50% to 60% moisture content. Then the dehydrated product was delivered into the rotary dryer by screw conveyor for the drying process. High-temperature air heated by furnace could has full mass and heat exchange with BSG, taking away the moisture. The dry materials could pass through the drum quickly with the air force. Wet materials would be dropped gradually and get the fully dried. The eventual dry materials would be delivered out of the systems through screw conveyor.
Specifications
Other Related Technical Parameters
We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.
Model(DLSG) | 1409 | 1615 | 2008/3 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | 2912/3 | ||||||||
Input Capacity(t/h) | 0.85 | 1.60 | 2.89 | 3.68 | 4.02 | 4.95 | 5.84 | 6.75 | ||||||||
Output Capacity(t/h) | 0.40 | 0.75 | 1.36 | 1.73 | 1.89 | 2.33 | 2.75 | 3.18 | ||||||||
Vaporization(t/h) | 0.45 | 0.85 | 1.53 | 1.95 | 2.13 | 2.62 | 3.09 | 3.57 | ||||||||
Early Moisture(%) | 60±5% | |||||||||||||||
Final Moisture(%) | 15%(adjustable) | |||||||||||||||
Drying Temperature(°C) | 350±30℃ | |||||||||||||||
Total Power(KW) | 34 | 45 | 78 | 90 | 105 | 125 | 140 | 155 | ||||||||
Total Weight(T) | 22 | 28 | 40 | 45 | 50 | 60 | 68 | 76 | ||||||||
Plant Area(M) | 5*15 | 6*22 | 8*16 | 8*18 | 8*20 | 10*20 | 10*24 | 10*24 | ||||||||
Except above models, we also can supply special model according to your requirements. | ||||||||||||||||
Our Service
Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below is Dingli Group Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
Company Information
Dingli Group Advantage:
1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 15,000 square meters;
3. 480 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.
Below are Dingli Dryer Factory & Sales Team & Production Workshop Pictures:
Below are Dingli Group Honors & Certificates & Patents:
Buyer & Project Case
Below are Dingli Customers Visiting:
Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

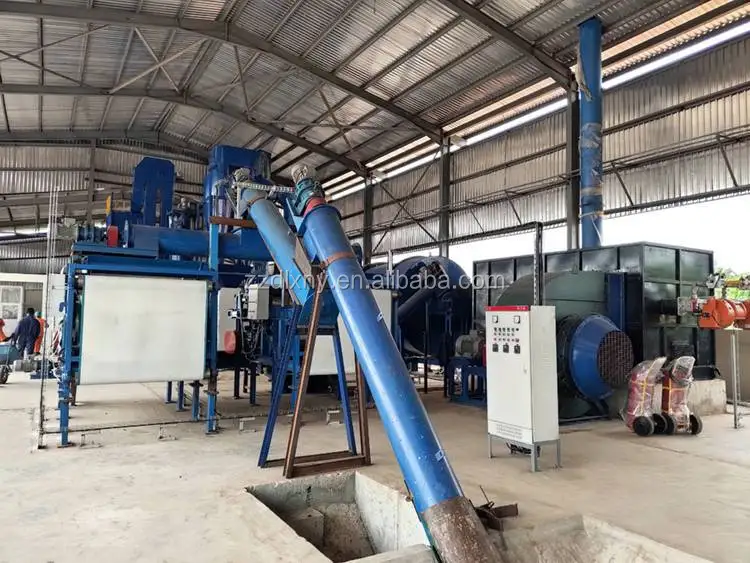

Below are Installation Sites of Our Customers:
