N45SH Srtong Strong Permanent Magnetic Connection with Industrial Application

1.About Magnetic Coupling

 A magnetic coupling is a device that is capable of transmitting force through space without physical contact. Attractive and repulsive magnetic forces are harnessed to perform work in either a linear or rotary fashion. In its simplest form, a magnetic coupling is comprised of two components: a driver and a follower.
The driver is the portion of the mechanism connected to the prime mover (motor). Through magnetic interaction, the follower reacts to the motion of the driver, resulting in a non-contact transmission of mechanical energy.

2.The Application of Magnetic Coupling

 The magnetic chuck is suitable for the lathe machines, grinding machines, and milling machine, EDM, etc.

3. Basic Structure and Material of Magnetic Coupling

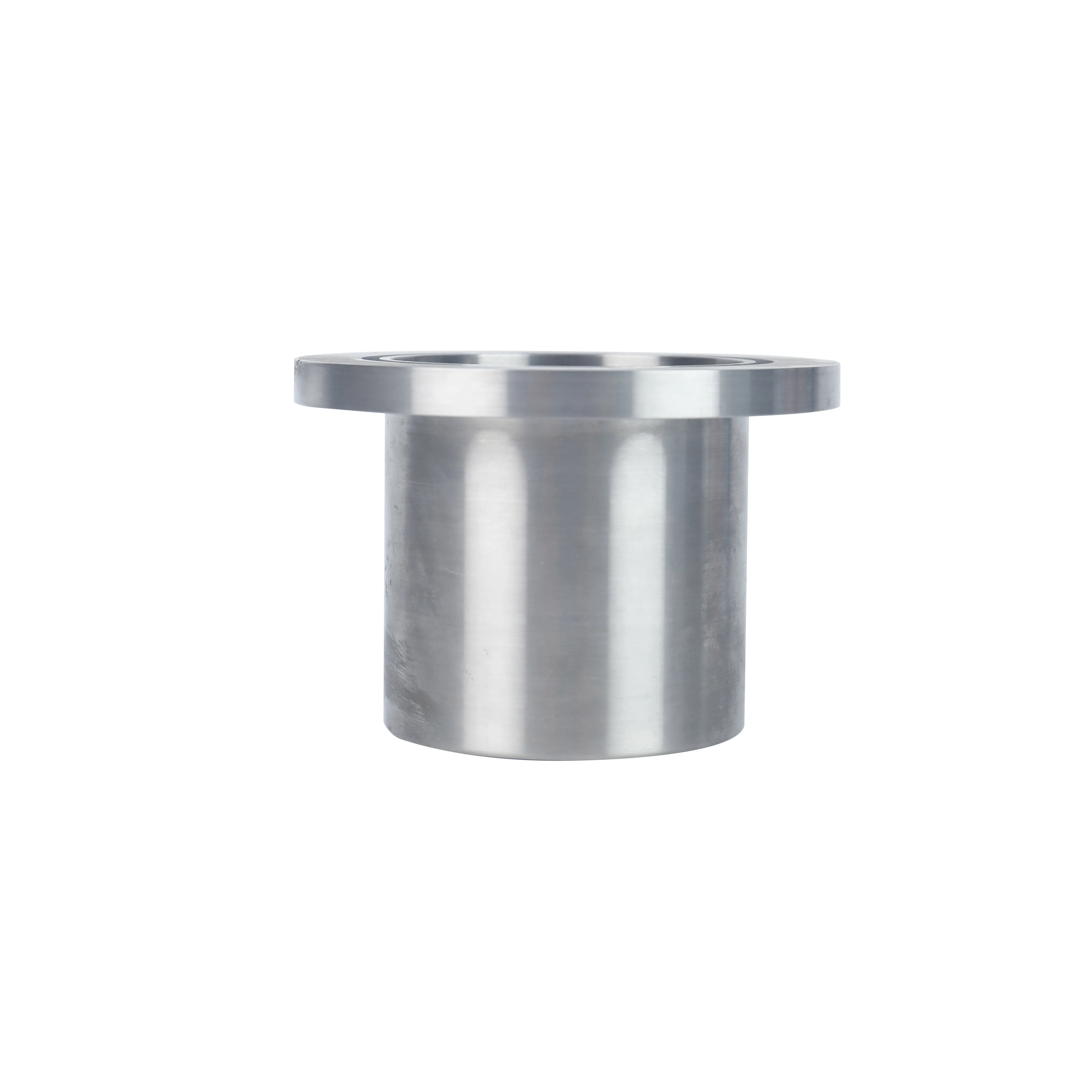

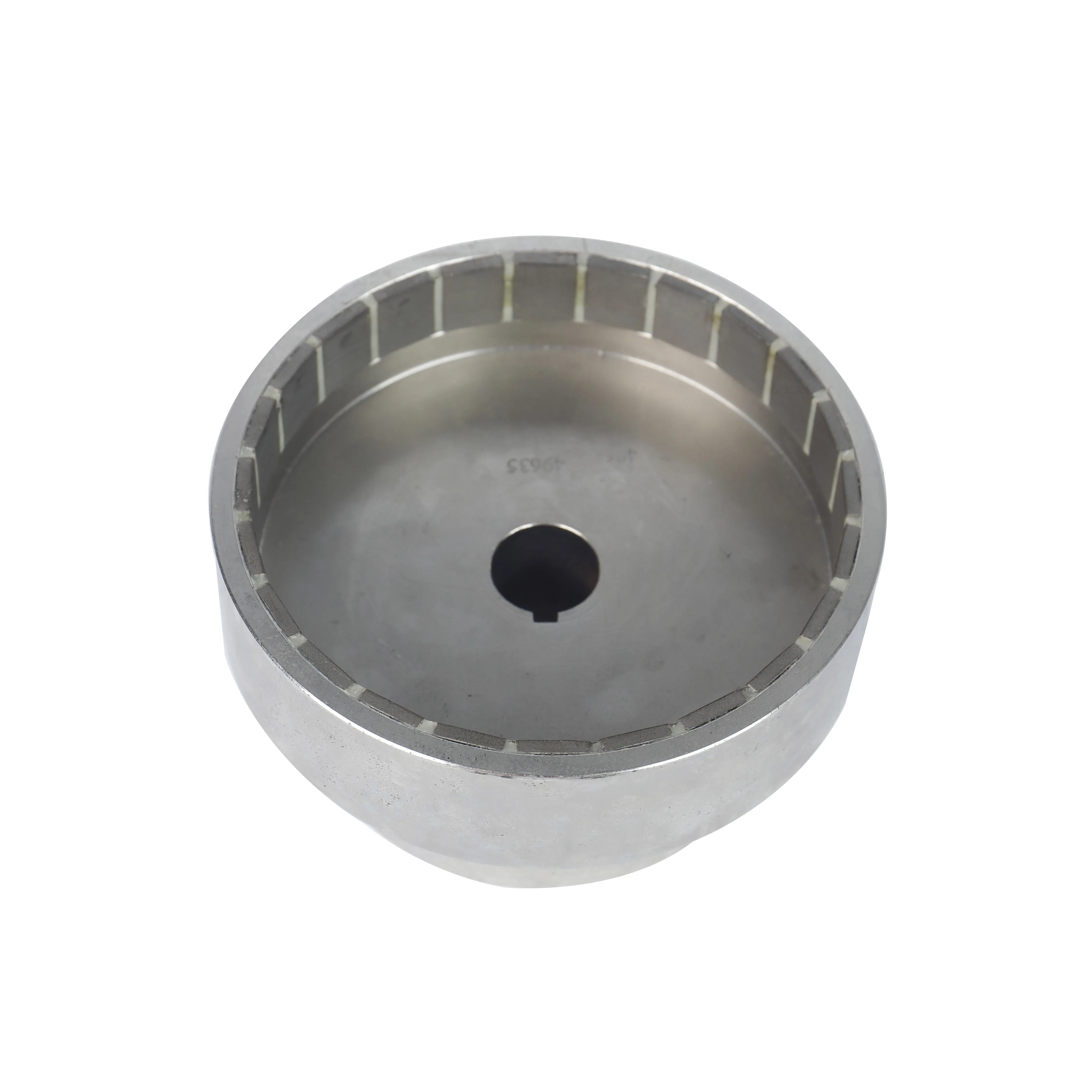

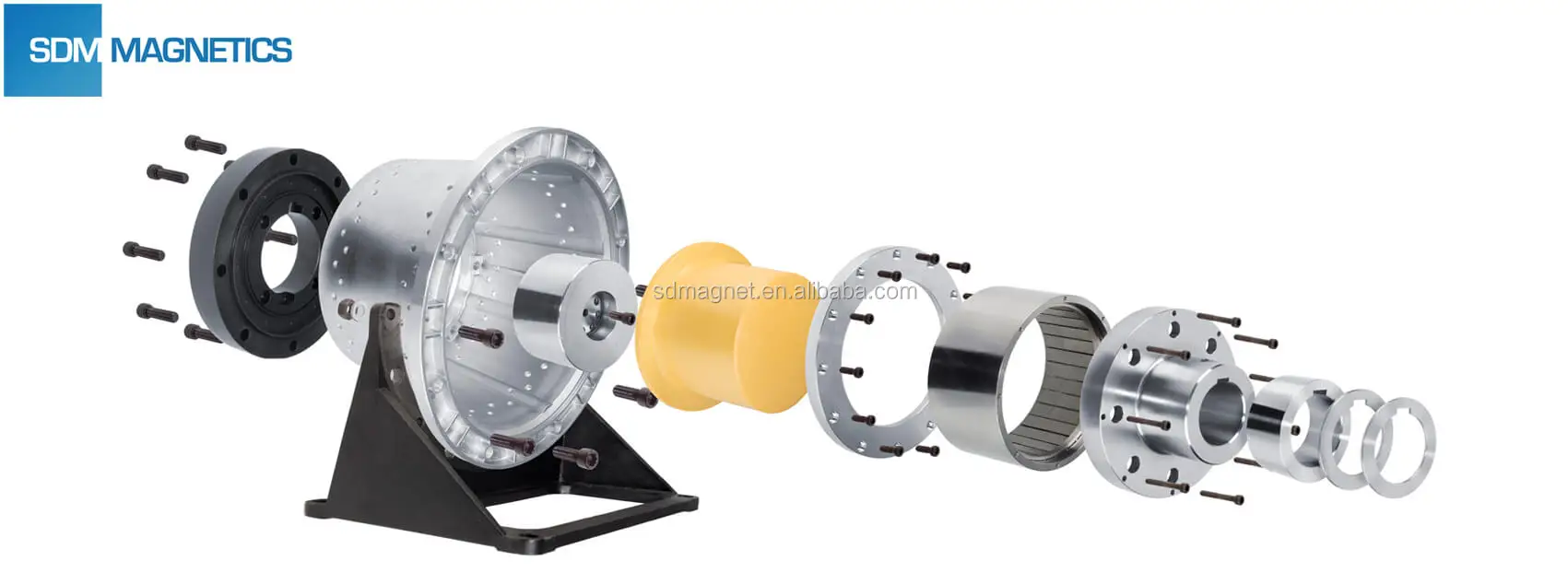

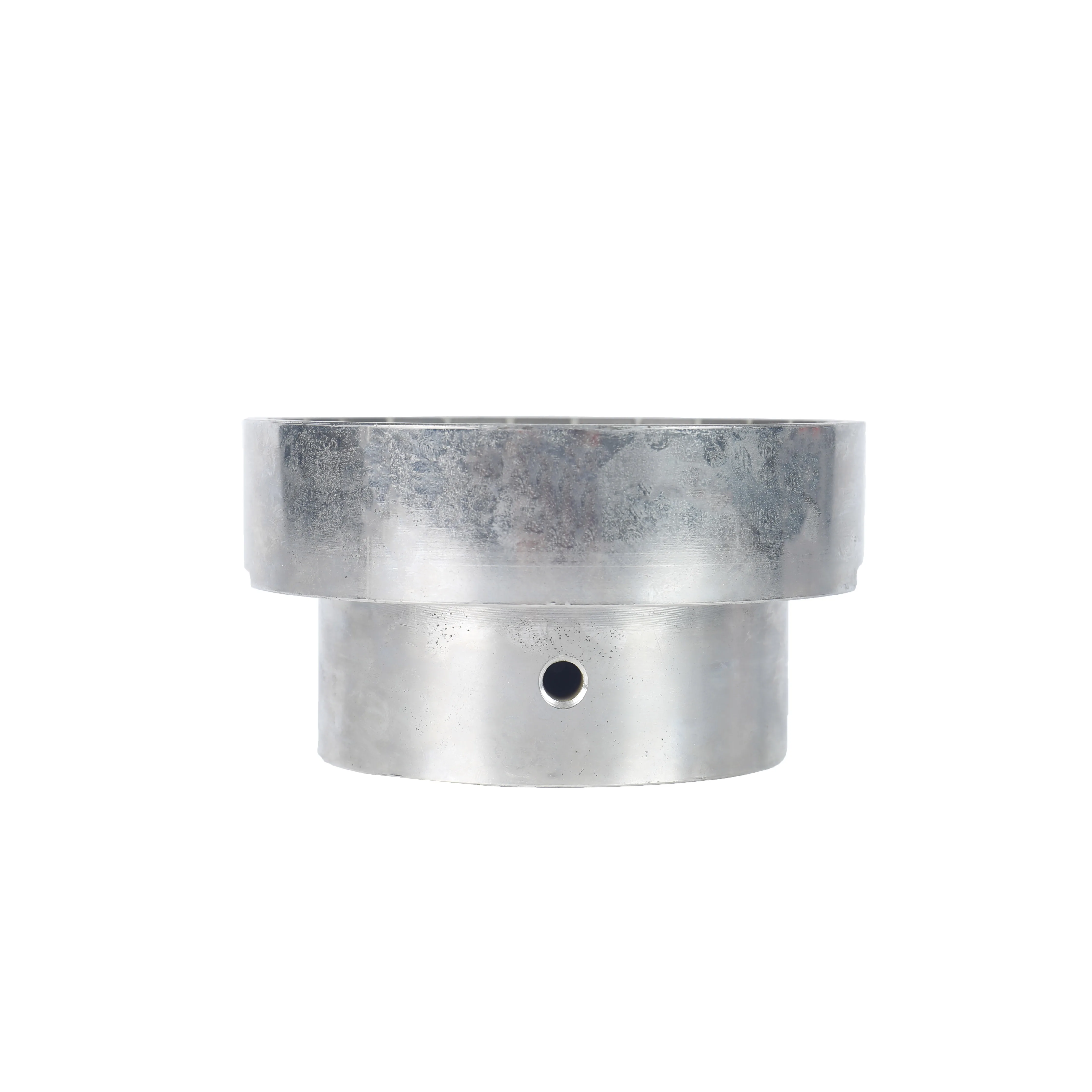

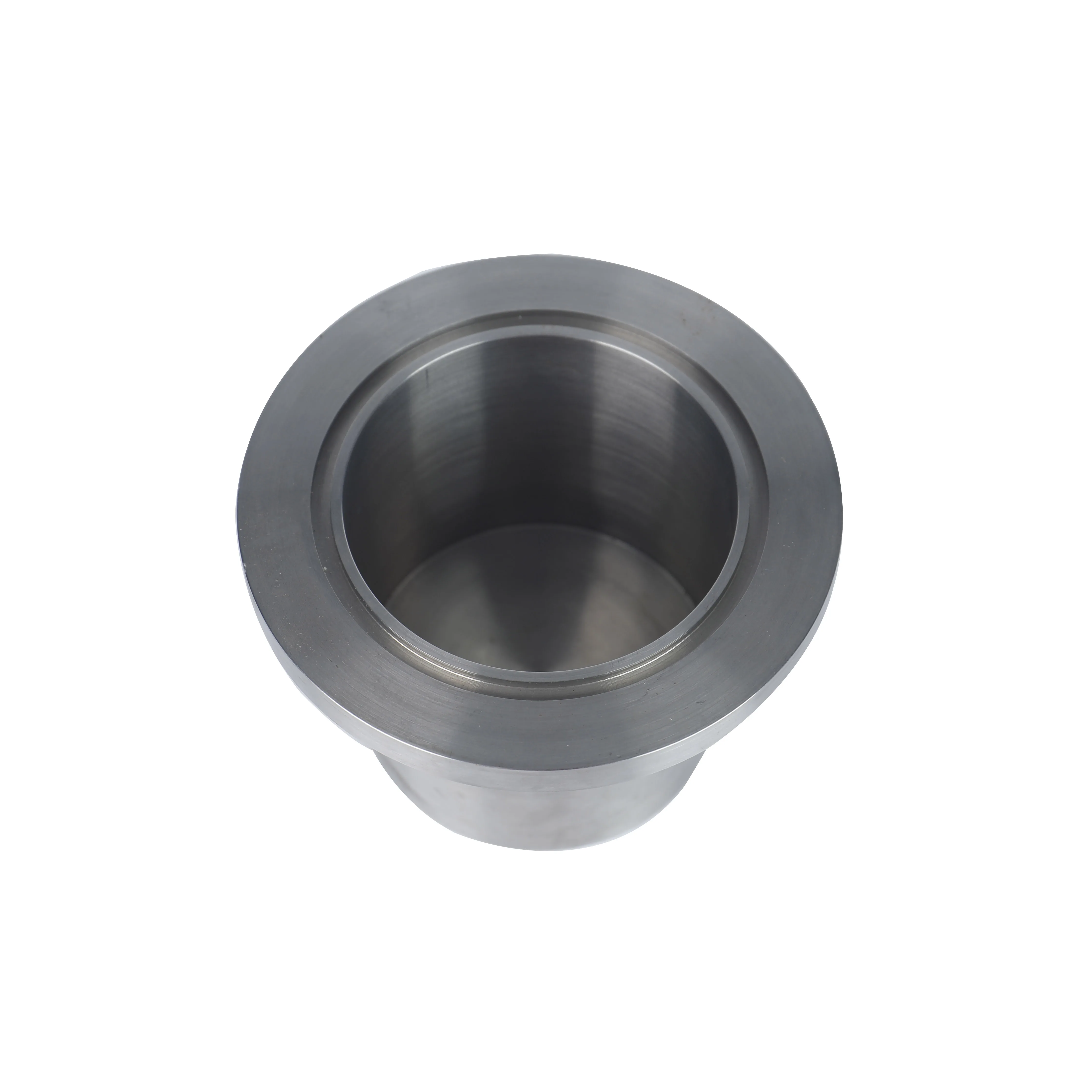

The basic structure includes outer rotor, inner rotor and isolation shell which involve permanent magnet, soft magnetic material and magnetic shielding material.

4. The Features of Magnetic Coupling

◊ All metal top plates-hard wearing brass and steel.
◊ Extra strong magnetic force and less remaining magnetism.
◊ While turning magnetic for ON/OFF the face’s accracy of magnetic force surface doesn’t change and can keep high coolant and water proof structure.
◊ Easy to operate handle
◊ High performance at a copetitive price.
