Double Membrane Gas Balloon,Gas Holder,Gas Storage Tank Volume,Control system,Type for customizing

Product Overview

Description

 Dboule Membrane Gas Balloon

-- for Biogas Plant,Waste Management & Electricity



AMA TYPE:





AMA Type is separated sphere. It can store and output biogas independently, and can be erected on the ground.



Advantages:



1. It can store large amount of biogas.

2. There is no need to climb high when use, observe and repair.

3. This system is separated with fermentation cylinder, when one of this is under repair, the other will not be affected.





Main material:



Biogas specialized membrane material is made of imported high-strengthened, high-elastic synthetic engineering membrane and of perfect anti-acid and anti-corrosion ability, so we do not have to do regular maintain when we use membrane storage tank. The biogas specific membrane has been widely used in energy treatment, sewage treatment, agriculture waste, landfill site and other industries. The service life is over 15 years.





Advantages:





Imported special high polyester materials. Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage, fire(Euro Standard B), abrasion, pleating and H2S;Biogas container is light in weight, lower weight pressure on tank body than steel tank top; Lower pressure of independent gas container on base, civil work investment can be decreased. No freezing problem in winter and can realize non-break operation.







Fundamental consist of this system:





1. Main material: Biogas special-used membrane material is made of highly tear-resistant polyester fabrics and generally it can be divided into inner membrane and outer membrane. Detailed information, please contact us.

2. Gas in and out system: standard pipeline

3. Boost pump: make to order

4. Observation window: standard stainless steel

5. Probing system: make to order

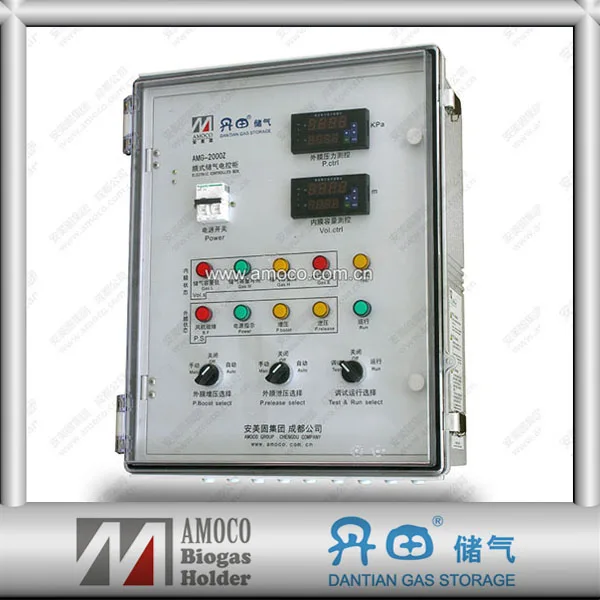

6. Auto-control system: make to order

7. Alarming system: make to order

8. Display system: make to order

9. Security: safe by water seal and electric decompression

10. Functional tank: different kinds of metal materials

11. Different kinds of pipe lines, valves and sealing







For long years of being specific in our biogas tank manufacture, we have many unique designs :







Ventilation between the inner membrane and outer membrane

If there are few biogases in the air between, so we must ventilate. As we know biogas are explosive gases, so it would be dangerous to let it be there.





Drainage design between the inner membrane and outer membrane

If there is temperature difference, it will form condensation water. Specially, in cold area, water will easily freeze, this will totally do harm to the storage system. So we have drainage system between the inner membrane and outer membrane.





Special designed inner membrane

We have taken advanced tension structure, which makes the inner membrane try to be as less folded as possible. This will greatly increase the lifespan of biogas tank.





AMOCO are the member of IFAI and industry standard organization commission of

 “cable & membrane building structure products” authorized by the Ministry of

Construction of China, we own diplomatic, skilled and unique experiences for

membrane products, certificated by ISO9000. Our technology of membrane

biogas holder has reached and exceeded international industry level.

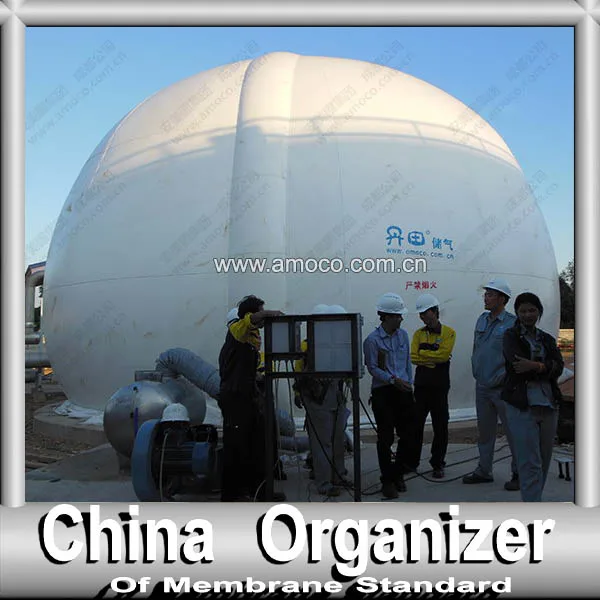

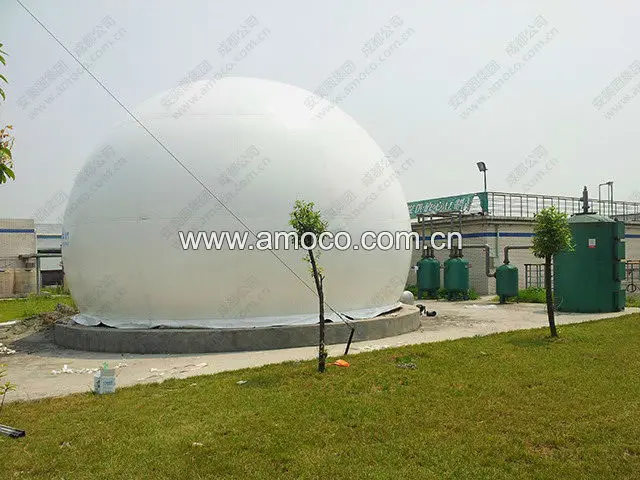

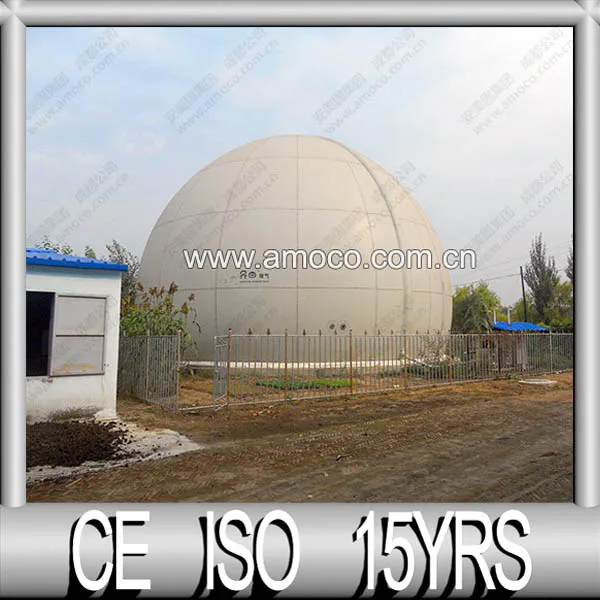

Amoco biogas holder projects Pictures :







AMOCO Factory:
