HT8800

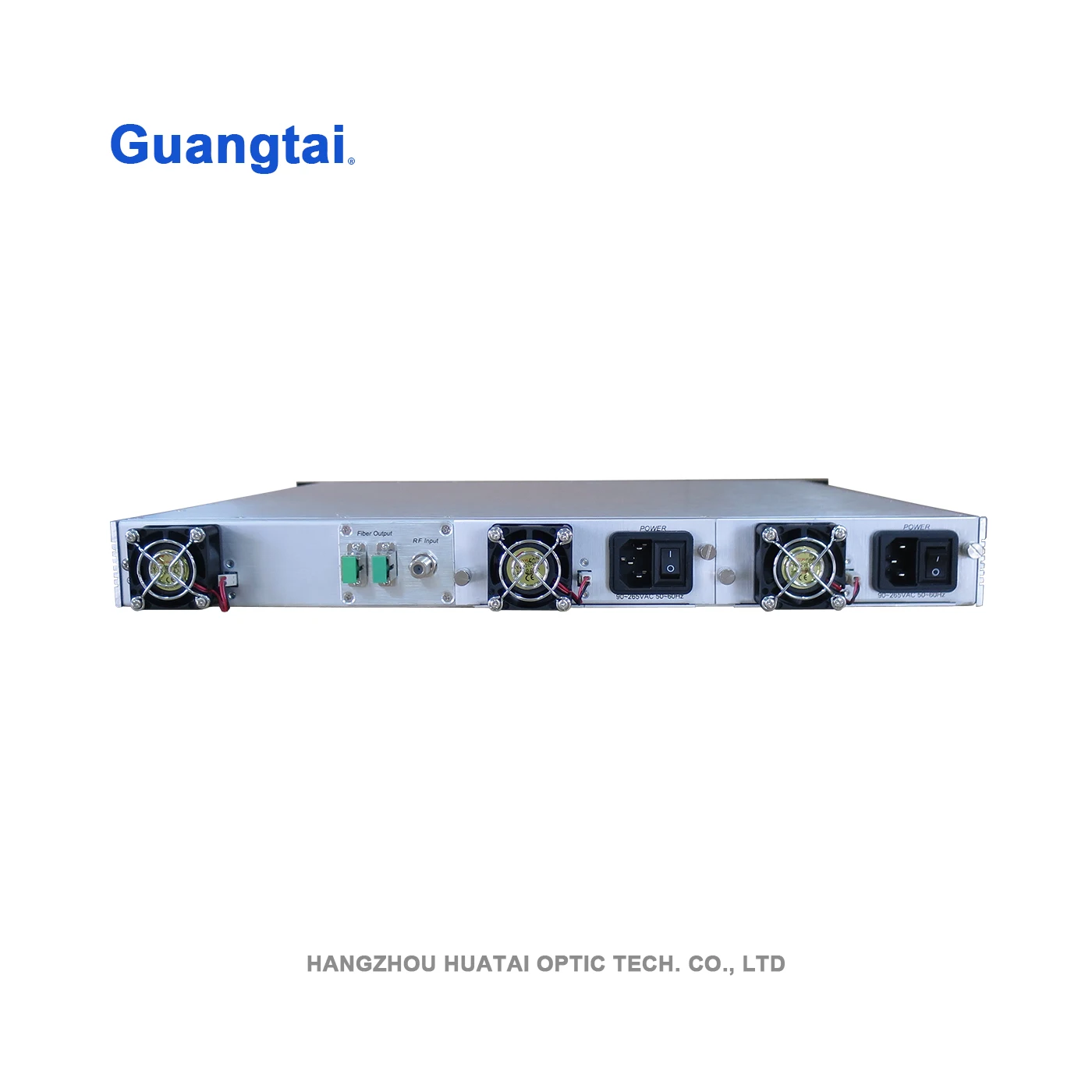

1550nm CATV External Modulated Fiber Optical Transmitter
Product description
HT8800 all C band tunable 1550nm CATV external modulated fiber optical transmitter. The tunable range of wavelength: 1528.77~1563.86nm, the adjustable wavelength: >35nm. With the traditional ITU standard wavelength ±0.8nm( ±100GHz ) can tunable, is a completely new concept and application ranges.
It including all C band’s useable wavelength, Its database stores 89 ITU standard wavelength channels ( C band 0.4nm gallery interval ). Users can achieve the selection, switch and route etc wavelength management function quickly, accurately. High wavelength accuracy, high wavelength stability, fast tuning rate, perfectly adapt the NGB DWDM system. It’s high wavelength flexibility and replaceability will become the development direction of next generation broadcast television network ( NGB ) external modulation optical transmitter.
Product features
- Full C-Band tunable, tunable range >35nm
- 0.4nm interval, 89 ITU channels, database storage
- ITU cord, Frequency, Wavelength three tunable ways, flexible and convenient
- Fleible tunable speed (<20mS)
- High wavelength(frequency) lock precision(±0.02nm)
- High wavelength(frequency) stability (±0.012nm)
- Excellent side mode suppression, high extinction ratio
- Low noise, narrow linewidth ( Typ.=0.3MHz )
- Working frequency bandwidth up to 1050MHz
- Excellent system CNR,CTB,CSO index
- SBS threshold 13 ~ 19dBm continuously adjustable
- The safety and reliability of the telecommunication level , network management
- 10/100M Ethernet interface, support SNMP, and WEB remote control and management
- 1+1 power backup, support hot plug-ing
- Excellent cost performance
Main application
- Next Generation Broadcasting ( NGB )
- FTTH, FTTx PON, RFoG, Triple-play
- Narrow plug data service as VOD, IP/QAM, etc
- Replacing traditional fixed wavelength 1550nm external modulation optical transmitter
- Providing highly wavelength flexible and replace ability
- As an alternate machine of ITU fixed-wavelength optical transmitter, to reduce the amount of inventory reserves
- Fully use of existing fiber resources, achieving network upgrades and expansion
- The CATV network with super capacity backbone and metropolitan area networks
- Dynamic wavelength configuration, wavelength conversion, wavelength routing
- Optical path protection, DWDM line back up
- Dynamic optical add-drop multiplexing (OAOM)
- DWDM system test
Technical index
Performance | Index | Supplement | |||||
Min. | Typ. | Max. | |||||
Optic feature | Tuning Range | (nm) | 35 | C-Band | |||
| Frequency tuning Range | (nm) | 1528.77 | 1563.86 | ||||
| Wavelength tuning Range | (THz) | 191.7 | 196.1 | ||||
| Number of ITU grid locking | 89 | 50GHz spacing | |||||
| Channels Spacing | (nm) | 0.4 | 50GHz spacing | ||||
| Locked wavelength Accuracy | (nm) | -0.02 | +0.02 | ± 2.5 GHz | |||
| Wavelength stability | (nm) | -0.012 | +0.012 | ± 1.5 GHz | |||
| Tuning Speed | (mS) | 20 | |||||
| Number of Output port | 2 | ||||||
| Output power of each port | (dBm) | 5.5 | HT8826 | ||||
| 6.5 | HT8827 | ||||||
| 7.5 | HT8828 | ||||||
| 8.5 | HT8829 | ||||||
| Power ripple | (dB) | -0.25 | ±0.15 | +0.25 | Over tuning range | ||
| Line width | (MHz) | 0.35 | 1 | FWHM , ( -3dB full width ) | |||
| Side Mode Suppression ratio | (dB) | 45 | 50 | SMSR | |||
| Relative Intensity Noise (RIN) | (dB) | -160 | RIN ( 20~1000MHz ) | ||||
| Return loss | (dB) | 50 | |||||
| Optical connector | SC/APC | Optional FC/APC, LC/APC | |||||
RF Feature | Work bandwidth | (MHz) | 47 | 862 | |||
| Input level | (dBmV) | 18 | 28 | AGC | |||
| Flatness | (dB) | -0.75 | +0.75 | ||||
| Return loss | (dB) | 16 | |||||
| Input impedance | (Ω) | 75 | |||||
| RF connector | F-Female | ||||||
Link Feature | SBS restrain | (dBm) | 13 | 19 | Adjustable | ||
| Transmit channel | PAL-D / 60CH | PAL-D / 99CH | |||||
| CNR1 | (dB) | ≥54.0 | ≥52.5 | Back to back | |||
| CNR2 | (dB) | ≥52.5 | ≥50.5 | 65Km optical fiber, 0dBm receive | |||
| CTB | (dB) | ≤-65 | ≤-65 | ||||
| CSO | (dB) | ≤-65 | ≤-65 | ||||
General Information | 10 / 100M Ethernet interface | RJ45 | |||||
| Net working protocol | SNMP | ||||||
| Communication interface | RS232 | ||||||
| Power supply | (VAC) | 90 | 265 | 50 / 60Hz | |||
(VDC) | -72 | -48 | -36 | ||||
| Power Consume | (W) | 50 | Single power works | ||||
| Operating temp. | (°C) | -5 | 65 | Machine temp. control automatically | |||
| Storage temp. | (°C) | -40 | 85 | ||||
| Operating relative humidity | (%) | 5 | 95 | ||||
| Size (W)x(D)x(H) | (") | 19×15.2×1.75 | |||||
