Wave Vibrating Sieving Mesh shale shaker screens

Product Overview

Description

Wave Vibrating Sieving Mesh shale shaker screens



Our  company Hengying Wire Cloth Co., Ltd. is one of the leading manufacturers of  shale shaker screen based in Anping, Hebei Province of China. Abided by the principle of Being Practical, United and Enterprising, Hengying Wire Cloth Co., Ltd is a fast-developing company with more than 500 employees at present.Shale shaker screen  produced by this company are sold well to the U.S.A., Japan, Turkey, Mexico and some other countries.

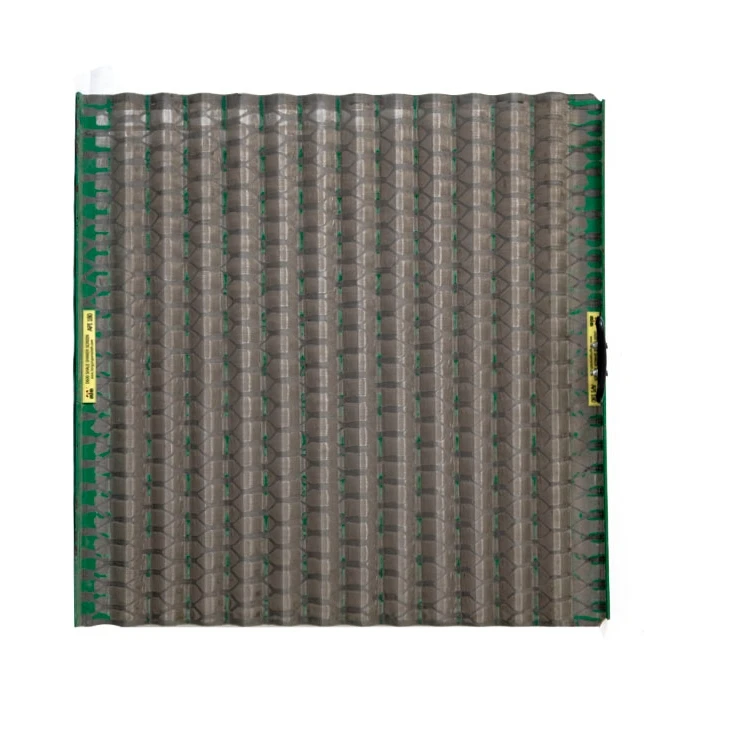

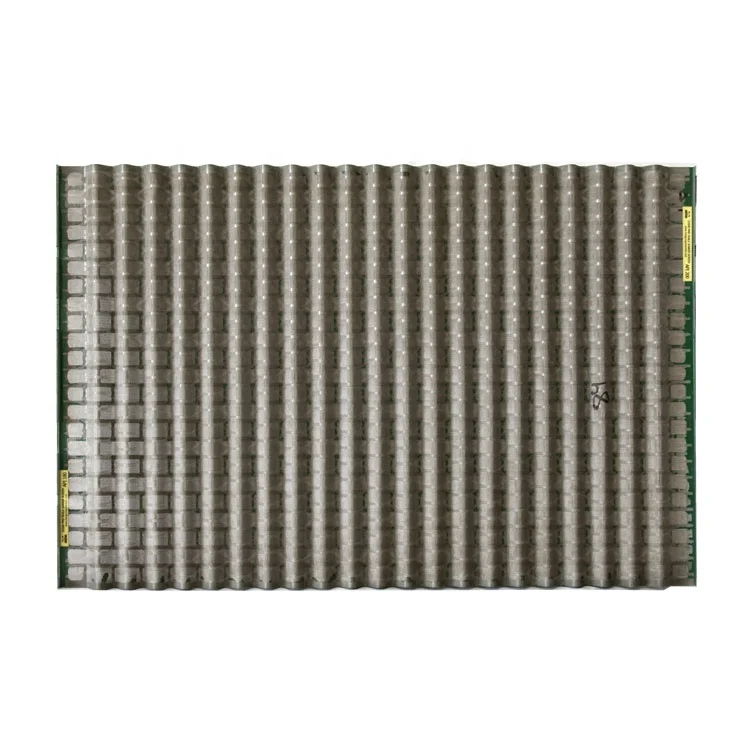

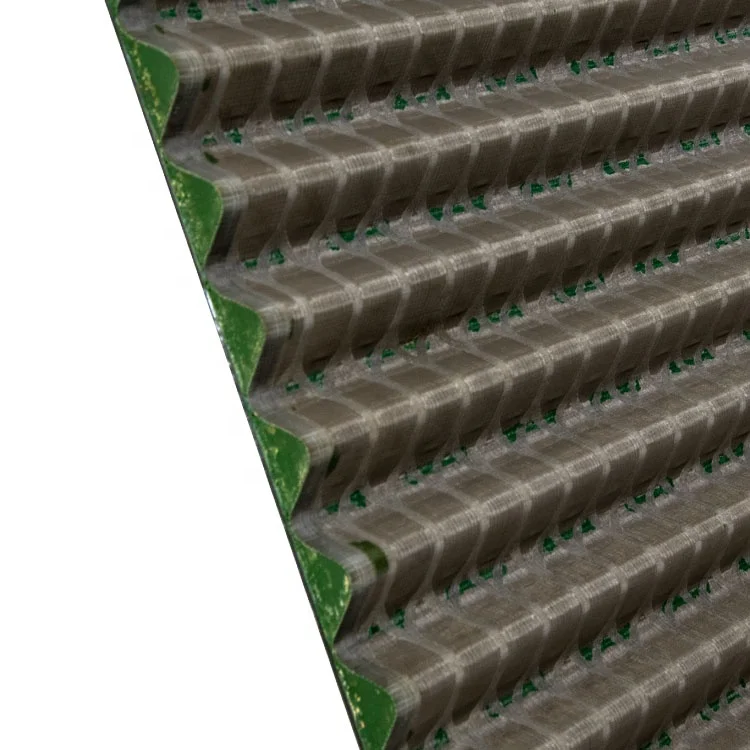

Wave shaker screen is constructed of multiple layers of stainless steel wire mesh cloth with different densities. Arrange these layers reasonably and exactly, the finished shale shaker screen with revolutionary three-dimensional corrugated screens structure. Wave screens offer 125% to 150% usable areas of traditional flat multi-layered screens. And the fluid capacity also has been increased.

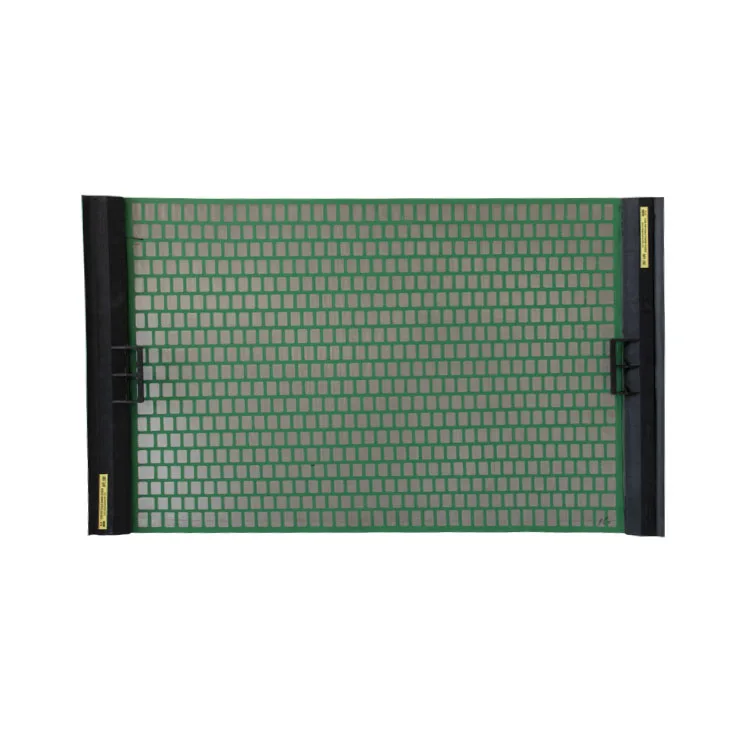

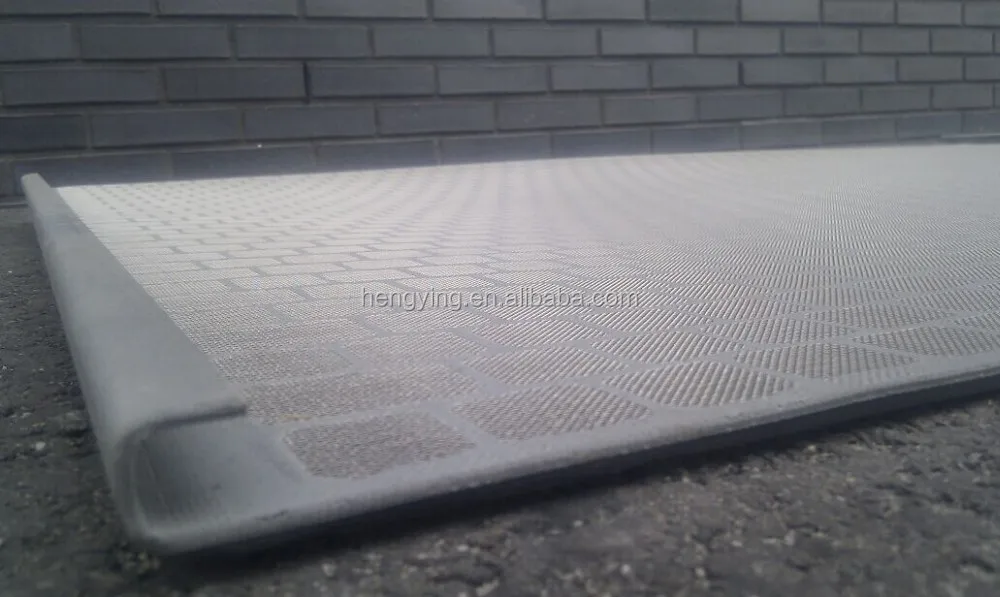

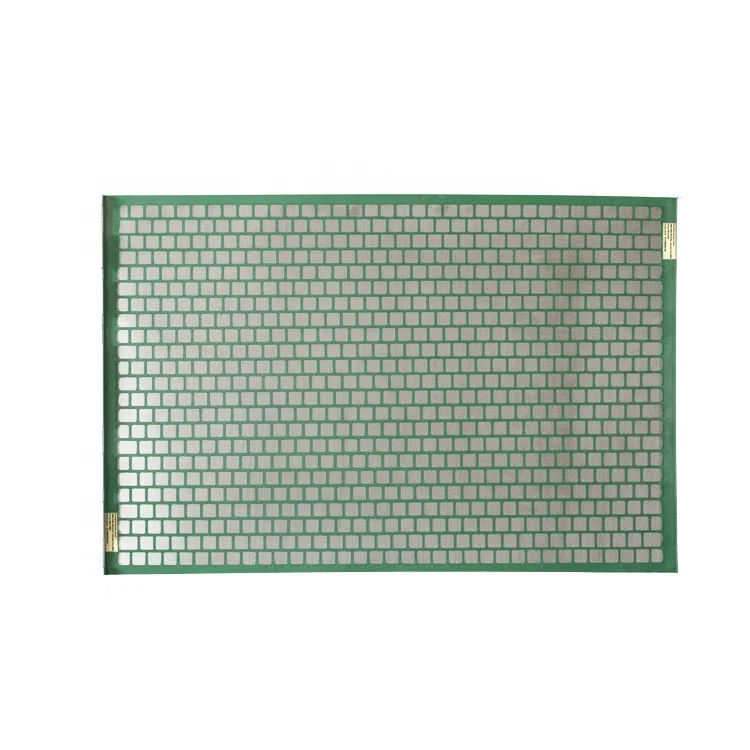

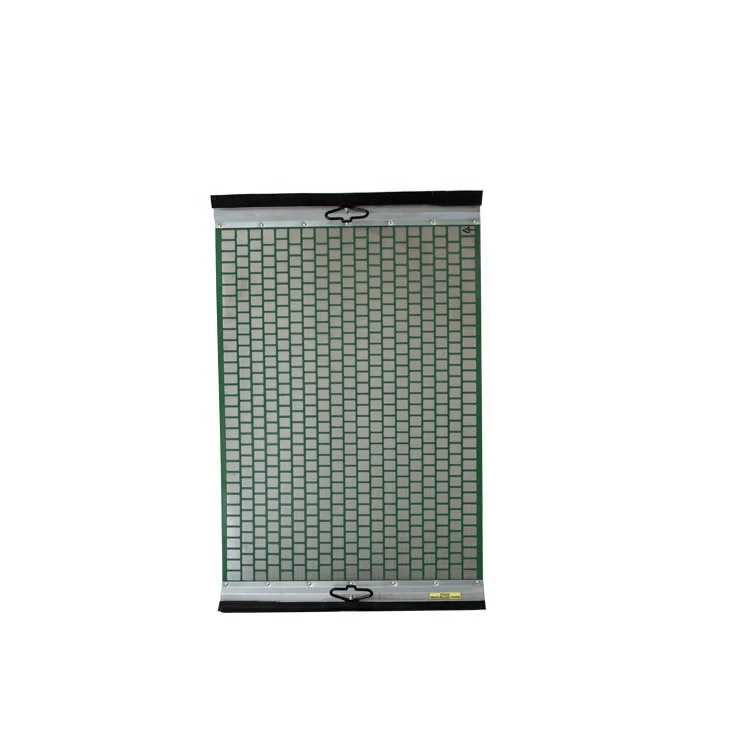

Hookstrip flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.

Screen Model	Range of Mesh	Dimension (Length x Width)	Brand & Model Of Shaker	Weight(Kg)
HYP-1	20-325	903×1155mm	BEM-3	5.6
HYP-2	20-325	1212×1141mm	ALS-11	9
HYP-3	20-325	697×1050mm	500 Series	6
HYP-4	20-325	697×1053mm	2000	4.2
HYP-5	20-325	697×846mm	313M	4
HYP-6	20-325	915×1150mm	LCM-2D	8.6
HYP-7	20-325	720×1220mm	KTL48 Series	5.6
HYP-8	20-250	700×1165mm	S250	4.6
HYP-9	20-250	1186×1280mm	ZX-60	9.2



Screen Model	Range of Mesh	Dimension (Length x Width)	Brand & Model Of Shaker	Weight(Kg)
HYB-1	80-325	635×1253mm	BL-50	17.5
HYB-2	80-325	697×1050mm	500 Series	7.5
HYB-3	80-325	697×1053mm	2000  Series	5.8
HYB-4	80-325	915×1150mm	LCM-2D	10

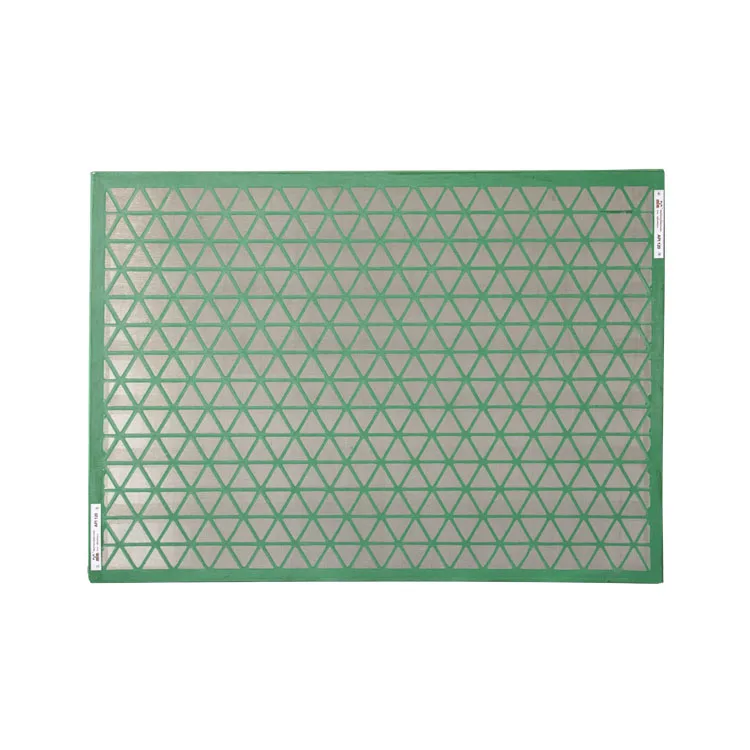

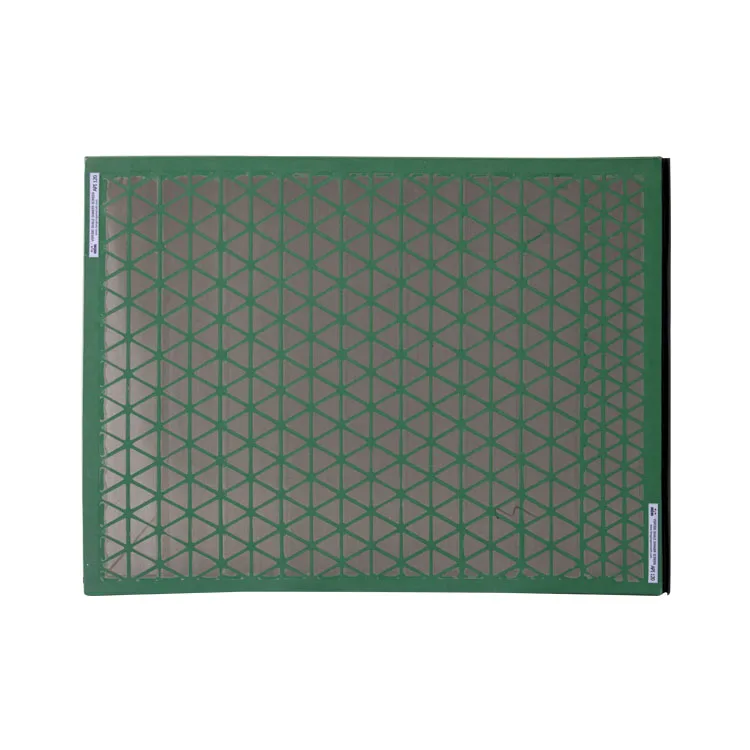

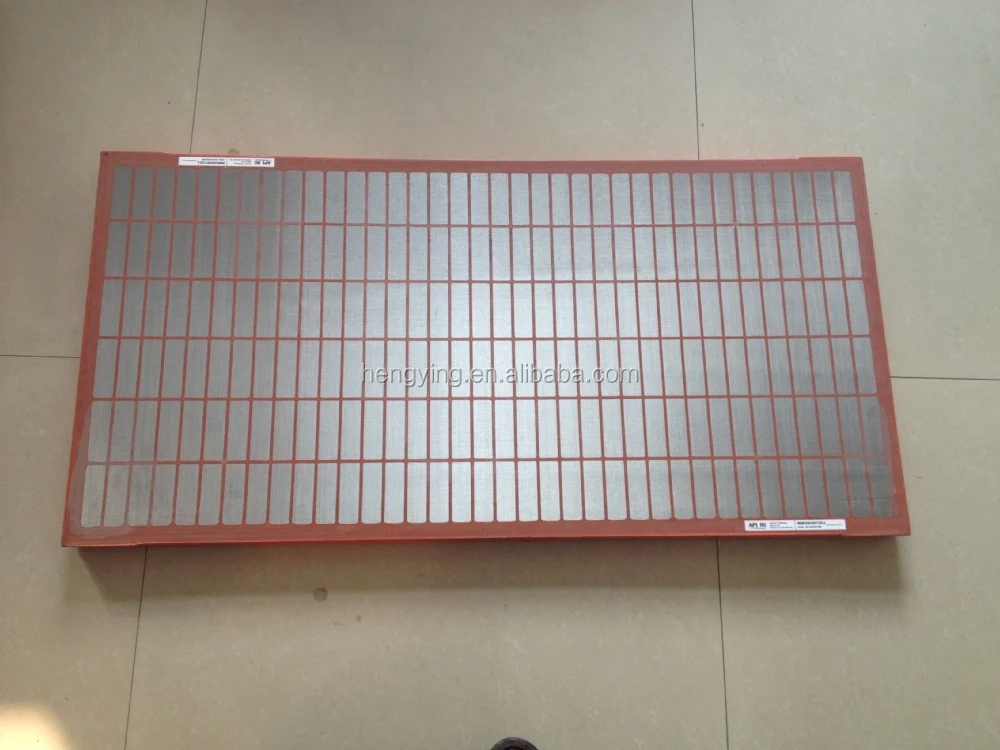

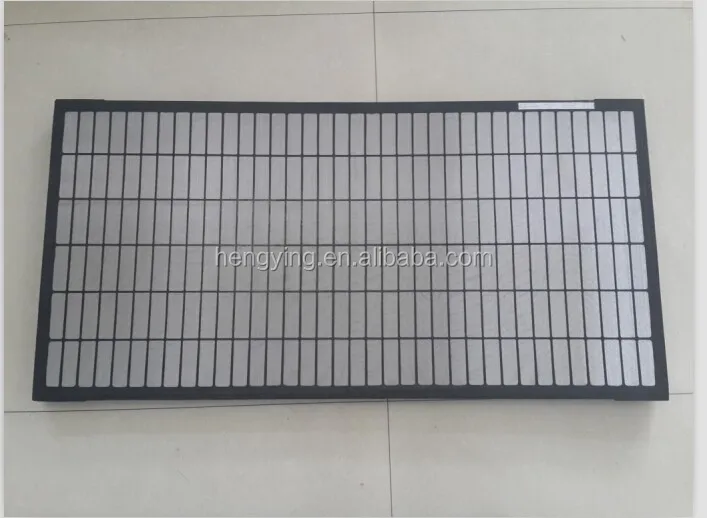

Steel frame screens are mostly applied to the shale shakers with wedge fastening equipment. The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction. They are sturdy and reliable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply steel frame screens with mesh sizes ranging from API 20 to 325
