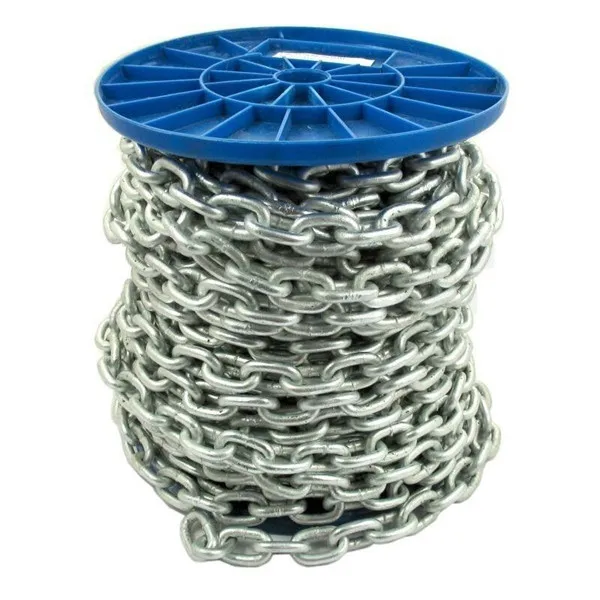

Supply hardware chip conveyor chain

Material:

25MnV or 20MN2

A3(Q235, Q195)

Standard:

  chip conveyor chain

Size:

Customized Size

Delivery time:

1x20 GP

2x20 GP

3x20 GP

4x20 GP

30days

45days

55days

68days

Package:

gunny bags/ cartons

iron drums 500kg per drum

plastic reels. pack as you like

Grade:

G80 G70 g60 g43 g30 etc

Mine Chain

The dimension and properities completely conform to grade B or C requirements specified in

the National Industrial Standard GB/T 12718 and DIN22252-1/2

Material: high -alloy steel (Din 17115)

Elongation: 12%max

Finish: Rust Preventive oil Coating or Black Painted.

item

Chain

Pitch of the

Width(mm)

Curve

Testing Load

Breaking Load

Weight

Diameter

Chain link

Inside

Outside

Radius

(KN)

(KN)

KG/M

mm

mm

(Min.)

(Max.)

mm

Class 1

Class 2

Class 1

Class 2

Wells10

10

±0.4

40

±0.5

12

34

15

±2.0

85

100

110

130

1.93

Wells14

14

±0.4

50

±0.5

17

48

22

±2.0

150

200

200

250

4.00

Wells18

18

±0.5

64

±0.6

21

60

28

±2.0

260

330

330

610

6.60

Wells22

22

±0.7

86

±0.9

26

74

34

±2.0

380

490

490

720

9.50

Wells26

26

±0.8

92

±0.9

30

86

40

±2.0

540

680

680

850

13.70

Wells30

30

±0.9

108

±1.0

34

98

46

±2.0

710

900

900

1130

18.00
