Forklift Carriage Mounted Roll Prong F RPC QR2 40 1200

Product Overview

Description

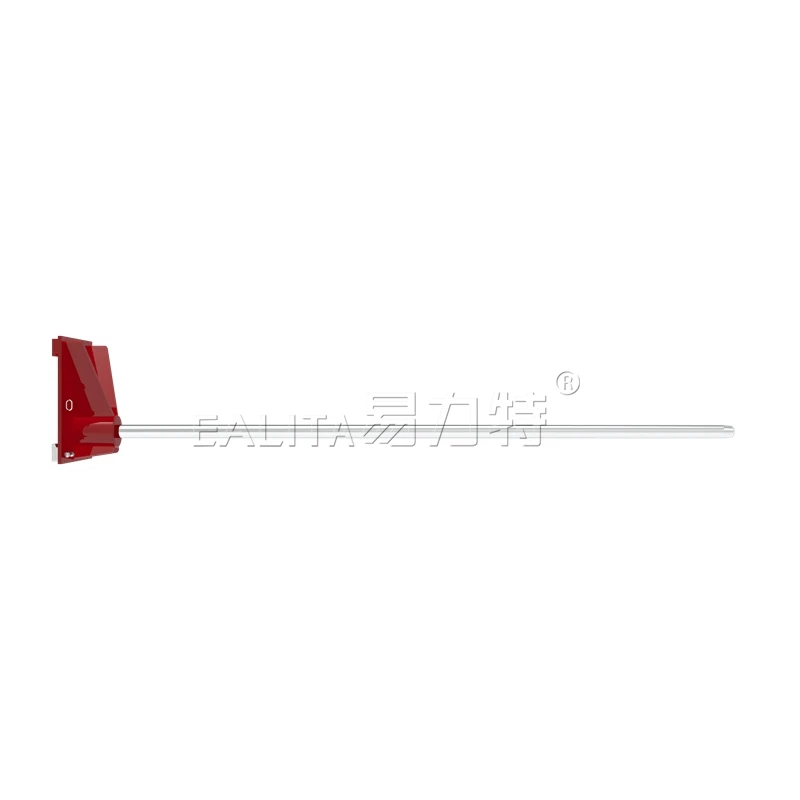

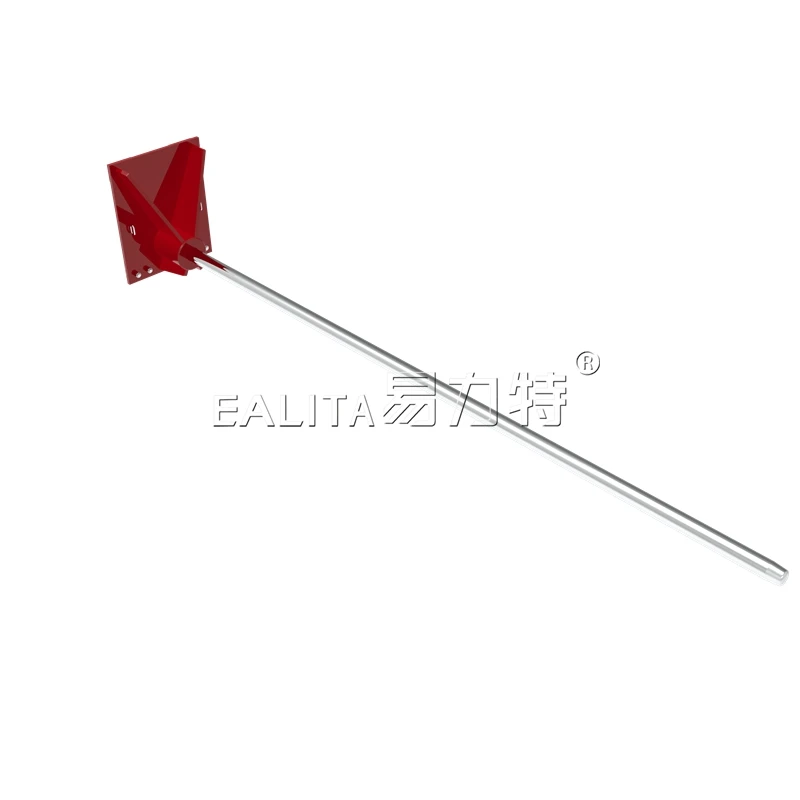

Carriage Mounted Roll Prong F-RPC-QR2-40-1200



The F-RPC Carriage Mounted Roll Prong is suitable for carpet, vinyl, fabric etc. All “QR” model roll prongs are fitted with “Quick Release” mounting locks providing a safe and easy connection to the forklift carriage, saving time and eliminating the need for any tools. Prongs are made from high tensile steel. Enamel paint finish.

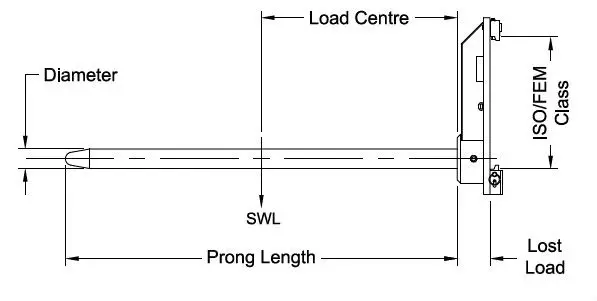

Type	Class	Lost Load	Prong Dia.	Prong Length	SWL at Load Centre	Weight
F-RPC-QR2-40-1200	2A	100mm	40mm	1200mm	200kg/600mm	63kg
F-RPC-QR2-50-1800	2A	100mm	50mm	1800mm	250kg/900mm	79kg
F-RPC-QR2-60-2800	2A	100mm	60mm	2800mm	340kg/1400mm	113kg
F-RPC-QR2-70-2800	2A	100mm	70mm	2800mm	510kg/1400mm	135kg
F-RPC-QR2-80-2800	2A	100mm	80mm	2800mm	850kg/1400mm	166kg
F-RPC-QR3-70-2800	3A	225mm	70mm	2800mm	510kg/1400mm	190kg
F-RPC-QR3-80-2800	3A	225mm	80mm	2800mm	850kg/1400mm	220kg
F-RPC-QR3-100-2800	3A	225mm	100mm	2800mm	1700kg/1400mm	282kg
