Product Overview
Description
Epoxy phlogopite mica plate is usually used as insulation material between F grade direct current diverter and other electric engine, gasket insulation and so on.

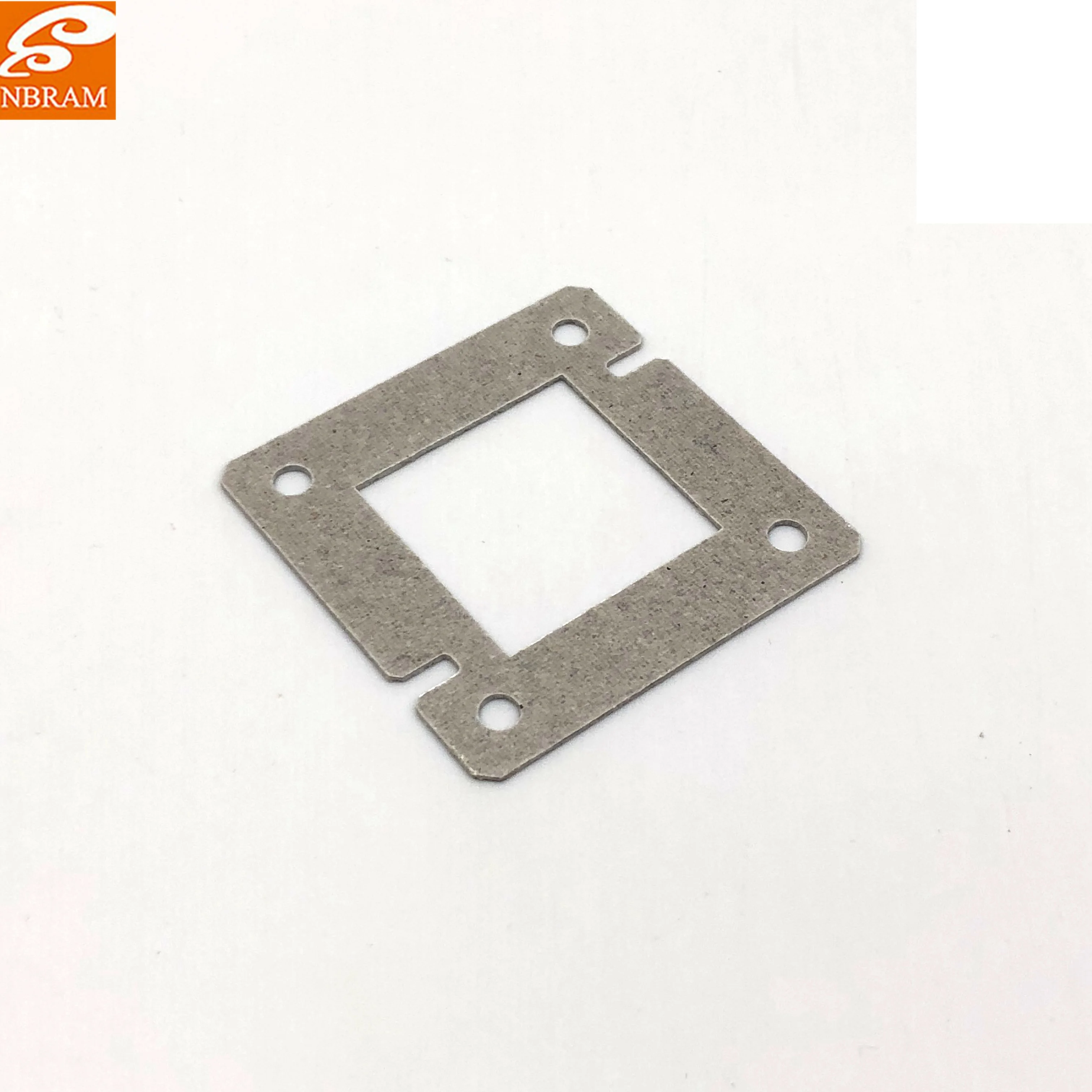

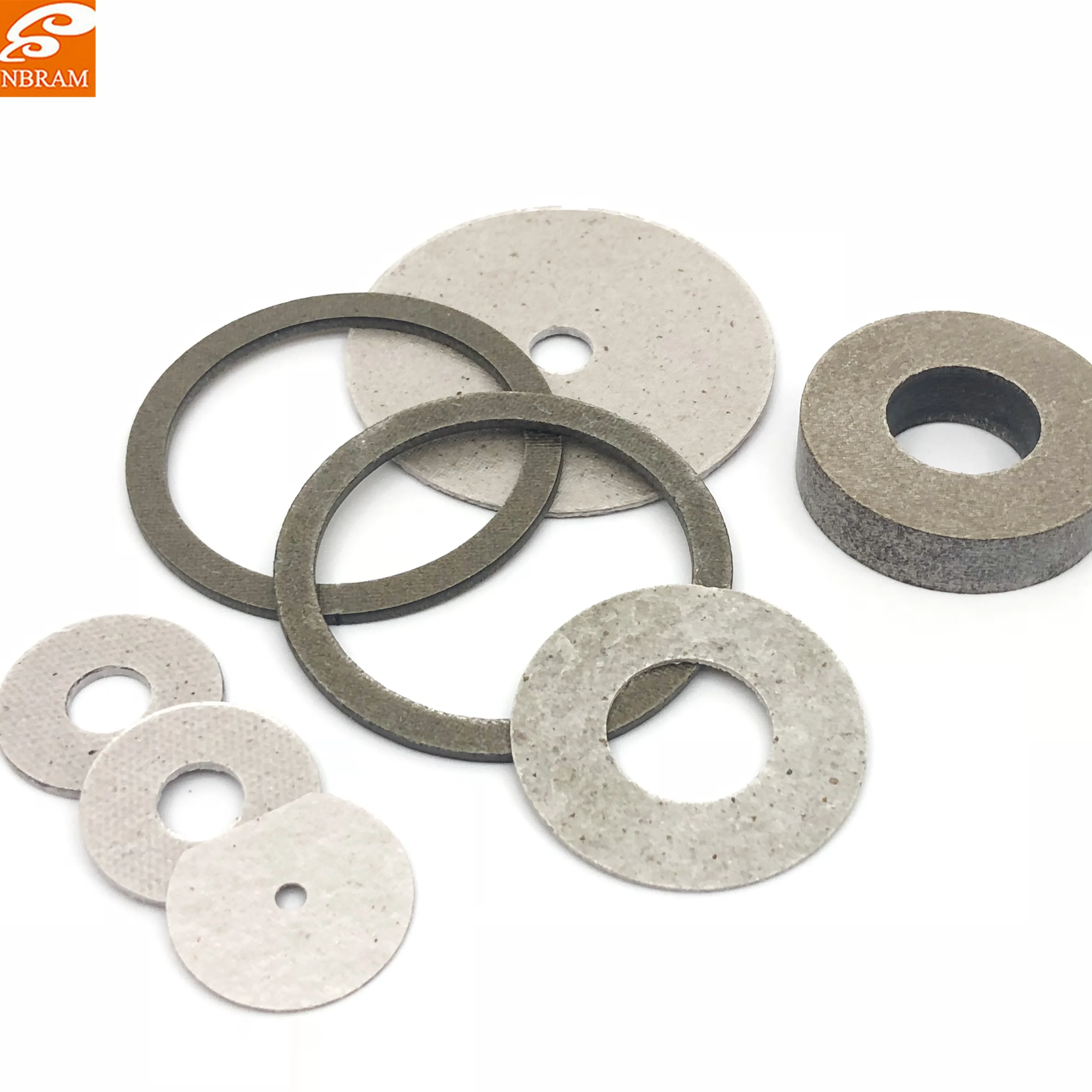

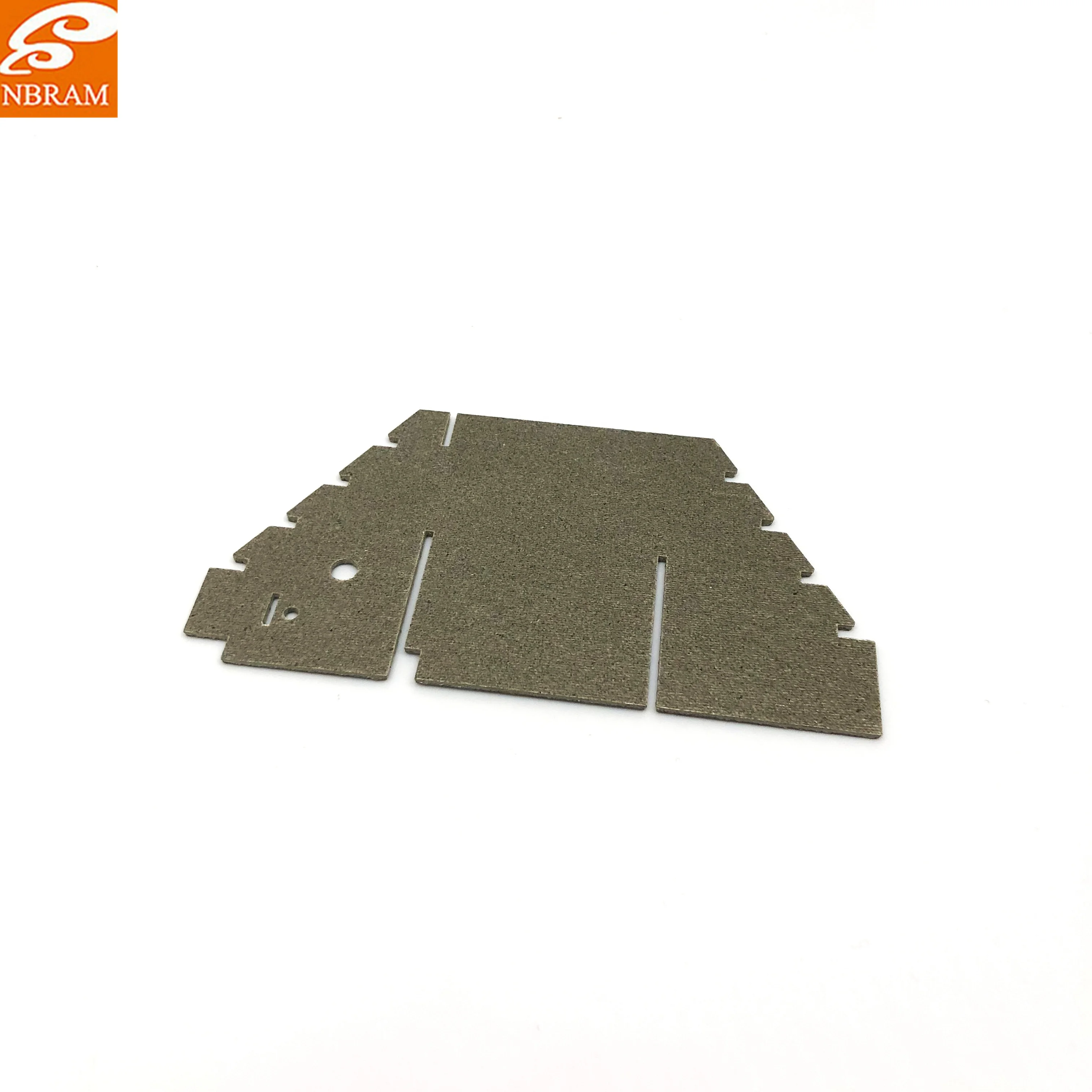

at size of 1000*600mm 1000*1200mm 1000*2000mm, in strips and in cut parts according to drawings. Thickness from 0.2-2.0mm
all meet customer requirment
| Type | Epoxy Muscovite plate | Epoxy Phlogopite plate | |
| Binder | Epoxy resin | Epoxy resin | |
| Mica content | 90%-93% | 90%-93% | |
| Binder content | 7%-10% | 7%-10% | |
| Thickness | 0.4-2 | 0.4-2 | |
| Thickness | Average | ±0.02 | ±0.02 |
| tolerance(mm) | Individual | ±0.03 | ±0.03 |
| Density g/cm3 | 2.4±0.2 | 2.4±0.2 | |
| Compressibility | Ce-elastic% | ≤2 | ≤2 |
| Cp-elastic% | ≤2.5 | ≤2.5 | |
| Flexural strength(kgf/mm2) | 30 more | 30 more | |
| Dielectric strength(KV/mm) | 20 more | 20 more | |
| Resistance to exudation and displacement C | 300 | 300 | |
| Standard size | 600x1000 1000x1200 | ||
| Standard reference | IEC371 | ||
