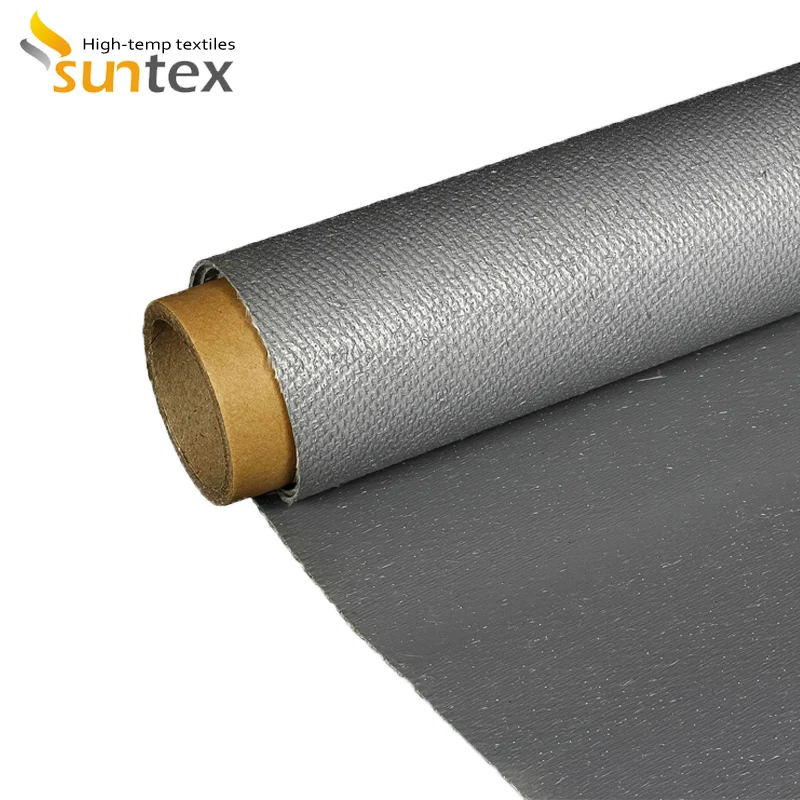

0.4mm Heat Resistance Colored Silicon Rubber Coated Fiberglass Anti Flame Fabric
- Category: >>>
- Supplier: Suntex Composite Industrial Co. Ltd.
Share on (1103897451):
Product Overview
Description
Product Description
DESCRIPTION |
| ||
GF430P-SI261-1020 is a medium weight woven fiberglass fabric with a specially formulated, flame retardant silicone rubber coating. The fabric is designed for removable insulation covers, dust lagging and other fire control systems.
| |||
| |||
BASE FABRIC | Base fabric style No. GF430P | ||
| (metric) | (English) | Test methods |
Weave | 4H Satin | Crowfoot |
|
Yarn |
|
|
|
Warp | EC9 68 1*2 | ECG 75 1/2 |
|
Weft | EC9 68 1*2 | ECG 75 1/2 |
|
Construction |
|
|
|
Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
|
| ||
COATED FABRIC | Coating style No. SI261-1020 | ||
Coating | Silicone rubber 2 sides | ||
Weight | 730 ± 25 g/m2 | 21.5 ± 0.74 oz/yd2 | ASTM D3776-96 |
Thickness | 0.53± 0.02 mm | 0.020 ± 0.0007 inch | ASTM D1777-96 |
Color | Green |
| |
Fire resistance | Flame retardant |
| |
Temp resistance | Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) | ||
Suntex continues to research, develop and manufacture high-performance industrial fabrics since it born. Nowadays, Suntex has developed a wide and extensive range of technical coatings, treatments and laminations to meet customers' requirements of thermal protection and high performance needs.
Silicone coated fiberglass fabrics

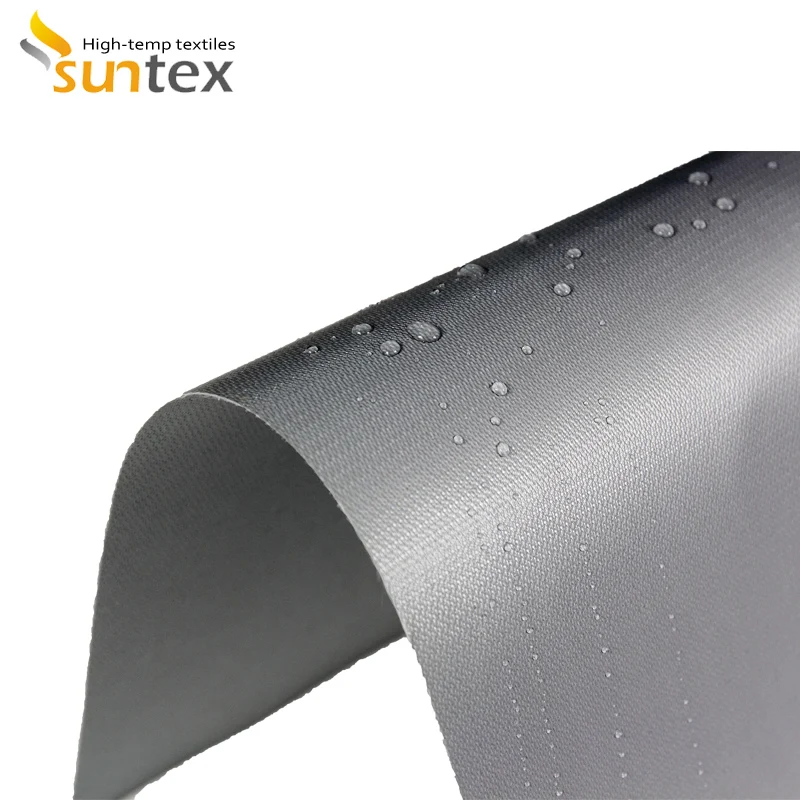

Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +2500C. It also has excellent weatherproof, water repellent, good chemical resistance to acids and lye, good mechanical properties for make-up.
Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors and widths for difference applications.
Main applications
-Insulation jackets, mattress and pad
-Fabric expansion joints
-Fabric ductwork connector
-Fire doors & Fire curtains
-Welding/fire blankets
-Other fire control systems

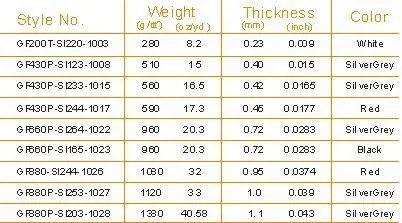

Main Specifications:

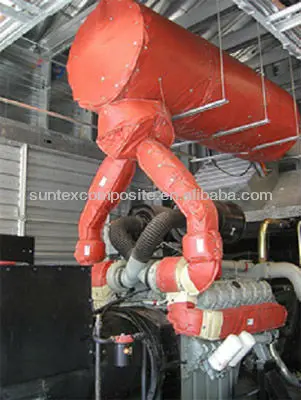

Application samples:(thermal insulation)

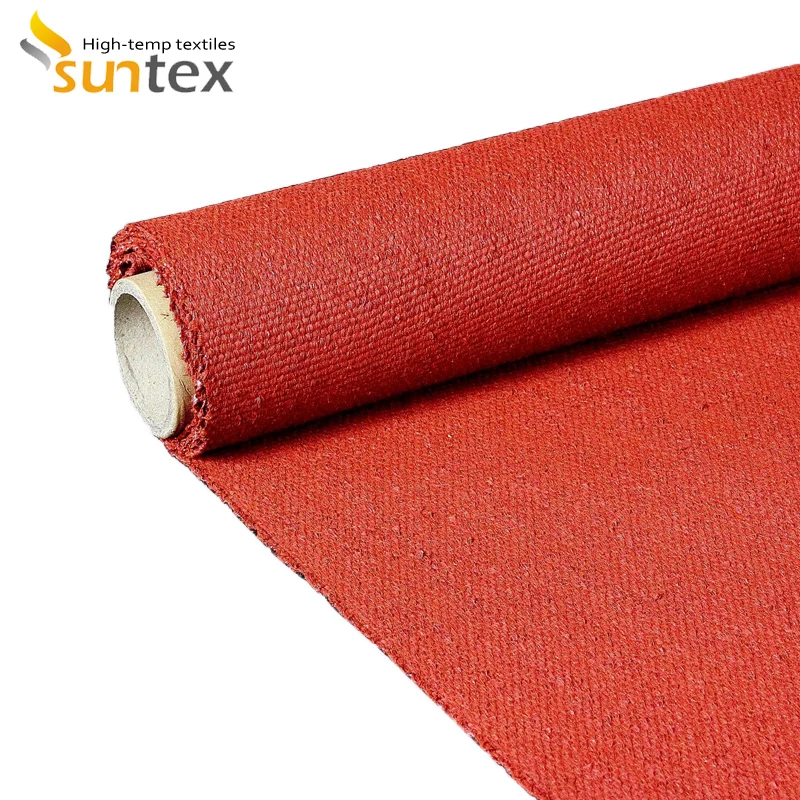

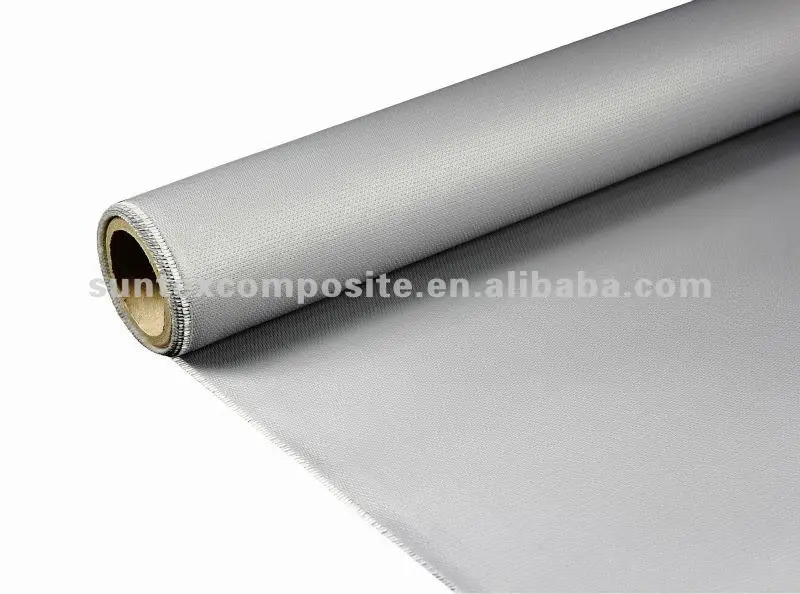

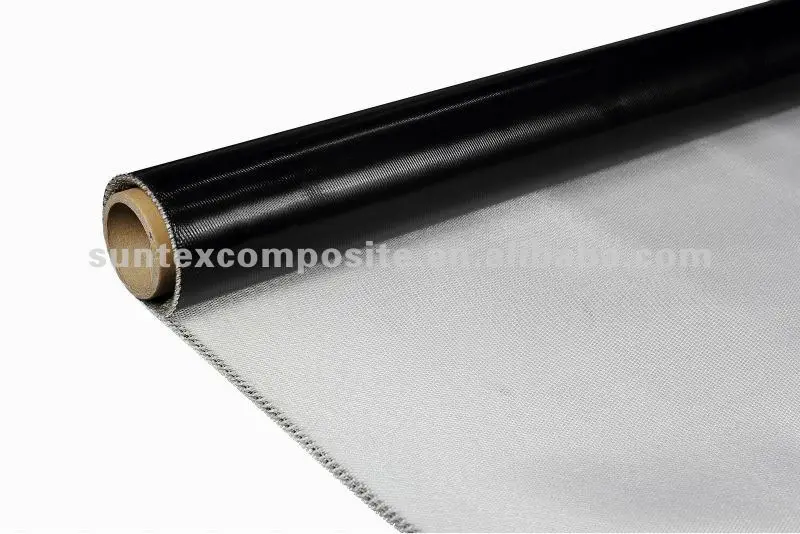

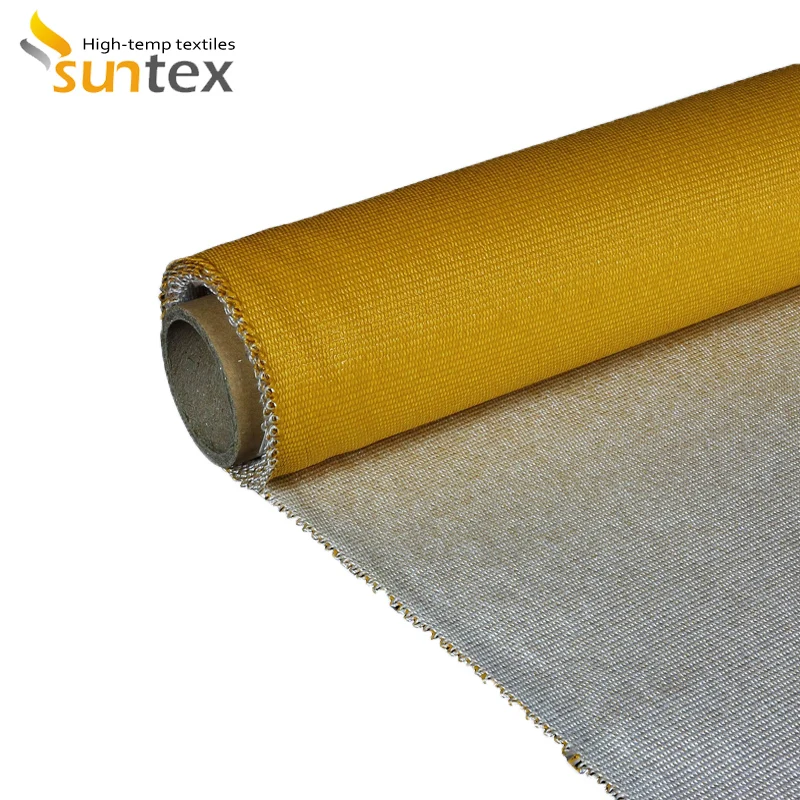

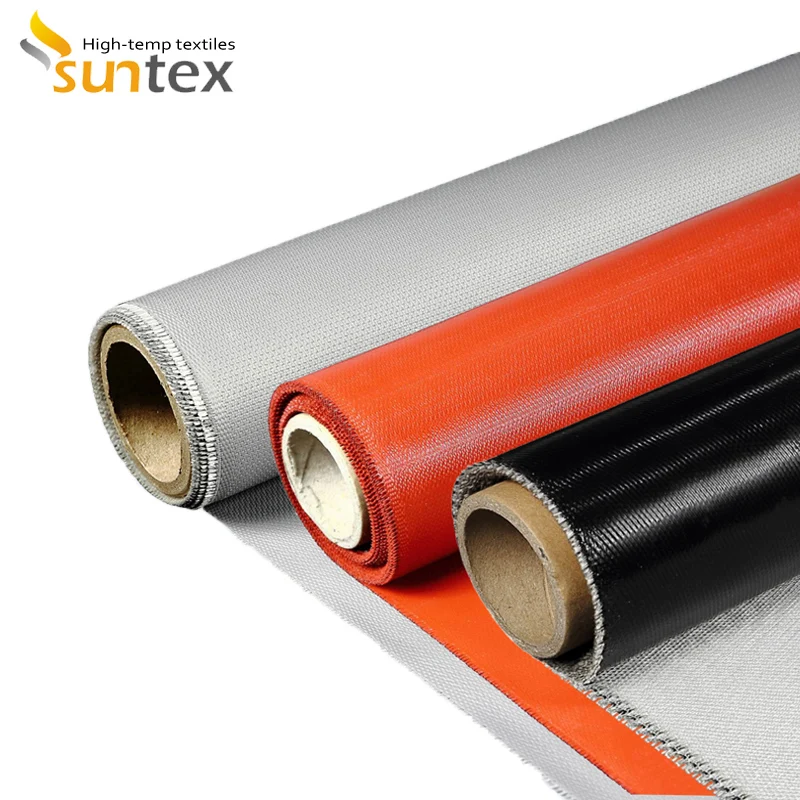

Other colors samples:
