BZ Model electric turning column mounted Jib Crane 3 ton jib crane

Product Overview

Description

BZ Model Electric Turning Column Mounted Jib Crane 3 ton Jib Crane:



BZ model column mounted jib crane(Pillar crane) is a small and medium-speed lifting equipment developed recently. It has characteristics of unique structure, safe and reliable operation, high efficiency, energy saving, time saving,effort saving and flexibility. It can be operated under three-dimensional environment.It is superior in the cases of short distance,concentrated lifting..



This jib crane is widely used at various sites for various trades.
The capacity:0.25T, 0.5T, 1T, 2T, 3T, 5T.

 Max. working range: 6m.

 The lifting height from 2m to 6m.







Rated Capacity	t	0.25	0.5	1	2	3	5
Beam length	mm	2000~6000
Lifting height	mm	2000~6000
Lifting speed	m/min	8; 8/0.8
Travelling speed	m/min	10; 20
Turning speed	r/min	0.76	0.69	0.6	0.53	0.48	0.46
Turning degree	degree	360°
Duty Class		A3
Power source		380V, 50HZ, 3 phase (or other standard)
Working temperature		-20~40°C
Control model		Pendant pushbutton control or remote control

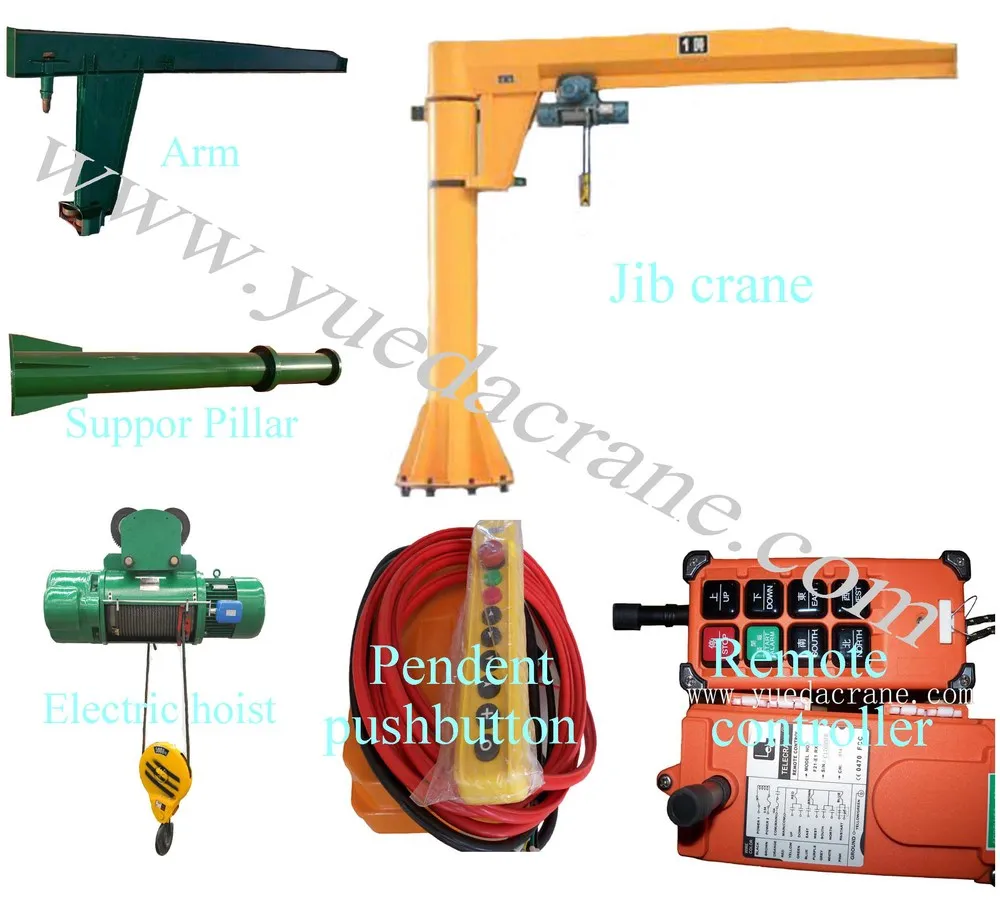

  Electric Hoist(Lifting Unit) And Control System:









The Arm And Support Pillar Of Jib Crane







 The Packing And Transport Of Jib Crane:





BZ model electric turning column mounted jib crane 3 ton jib crane
