Product Overview
Description
—DESCRIPTION [expanded mesh machine expanded metal making machine ]
Process flow:

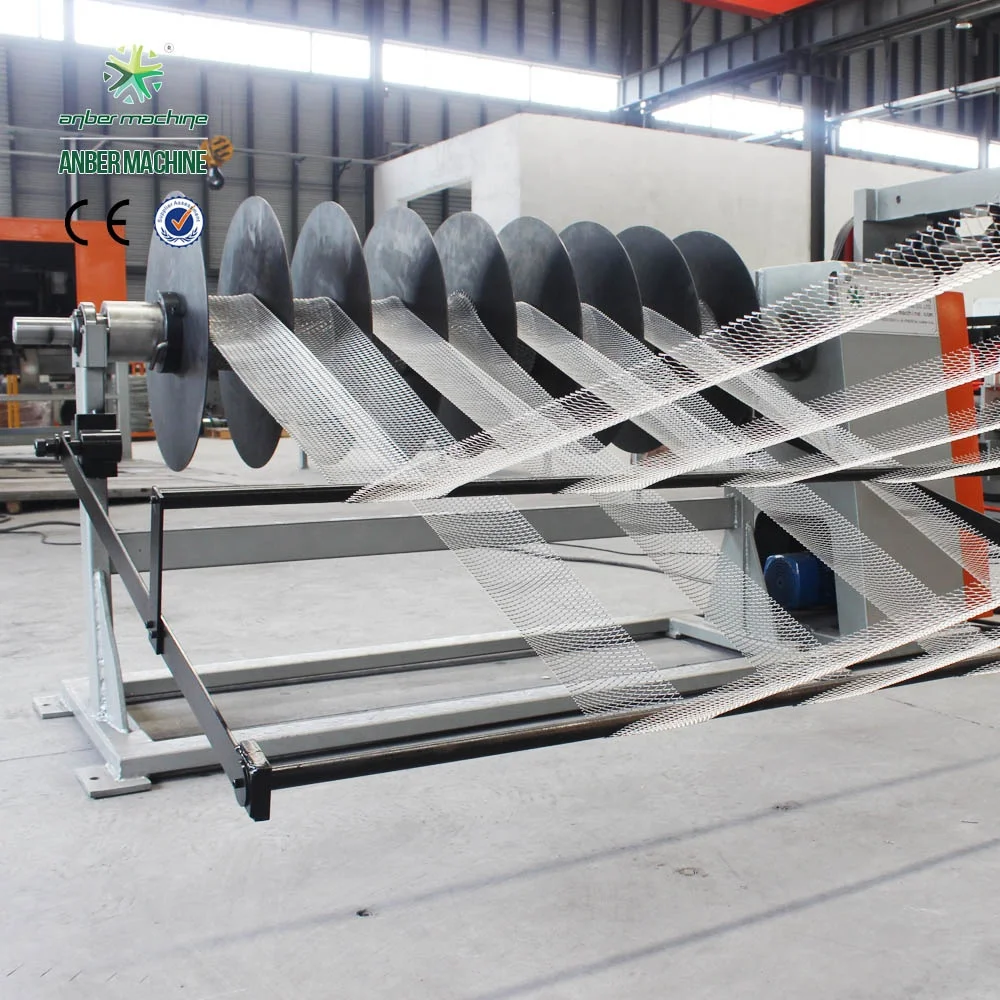

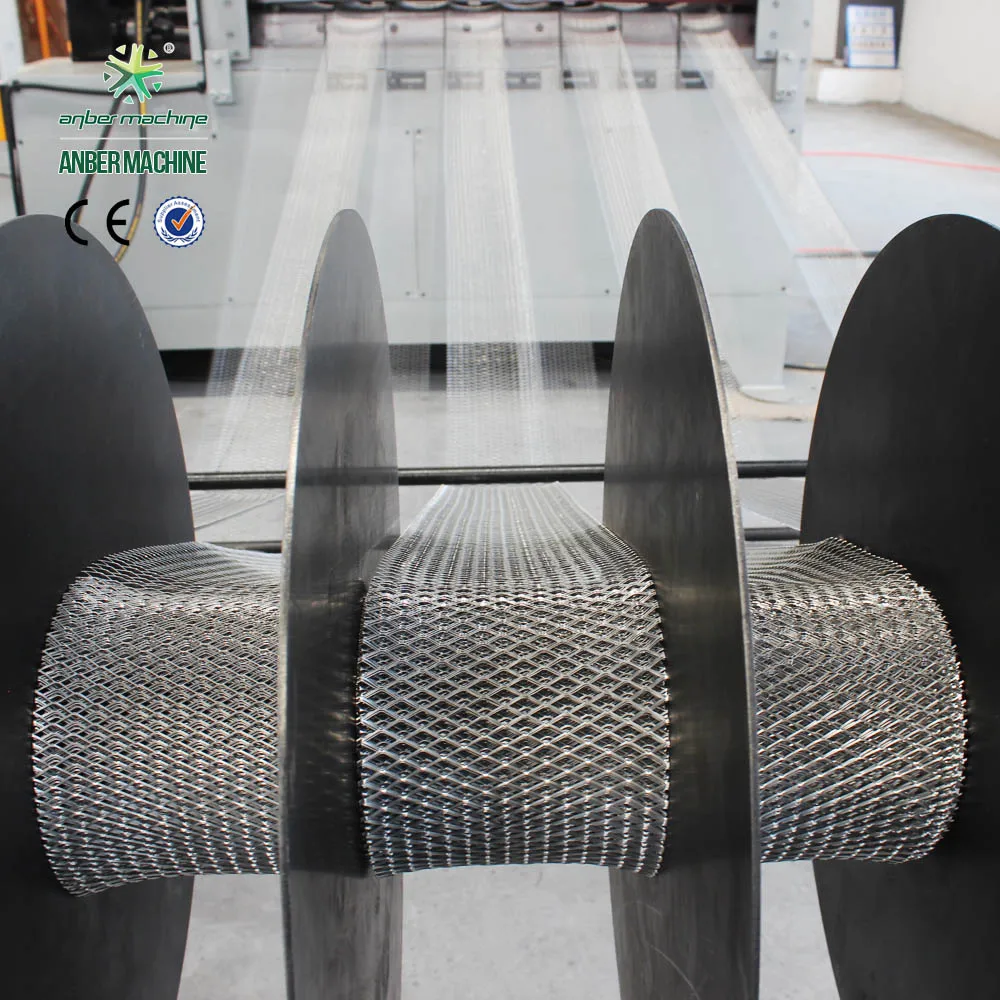

The expanded mesh slitting line production line firstly use the de-coiler to initiative release galvanized steel plate or stainless steel sheet coil, coil cross the expanded main mesh machine feeding mechanism into the expanding link, expanded mesh machine cross the motor belt drive to send the power to the crankshaft, then drive the mold to do the up and down high speed shearing movement, expanded the sheet steel, then the next levelling and slitting machine expanded the required product size. Finally, automatic re-coiler start recoil the mesh.
The production line is applied to expanded mesh automatic continuous production, the main characteristic is high degree of automation, high accuracy, running safely and can reduce man cost, improve production efficient.
Structure description and draw:

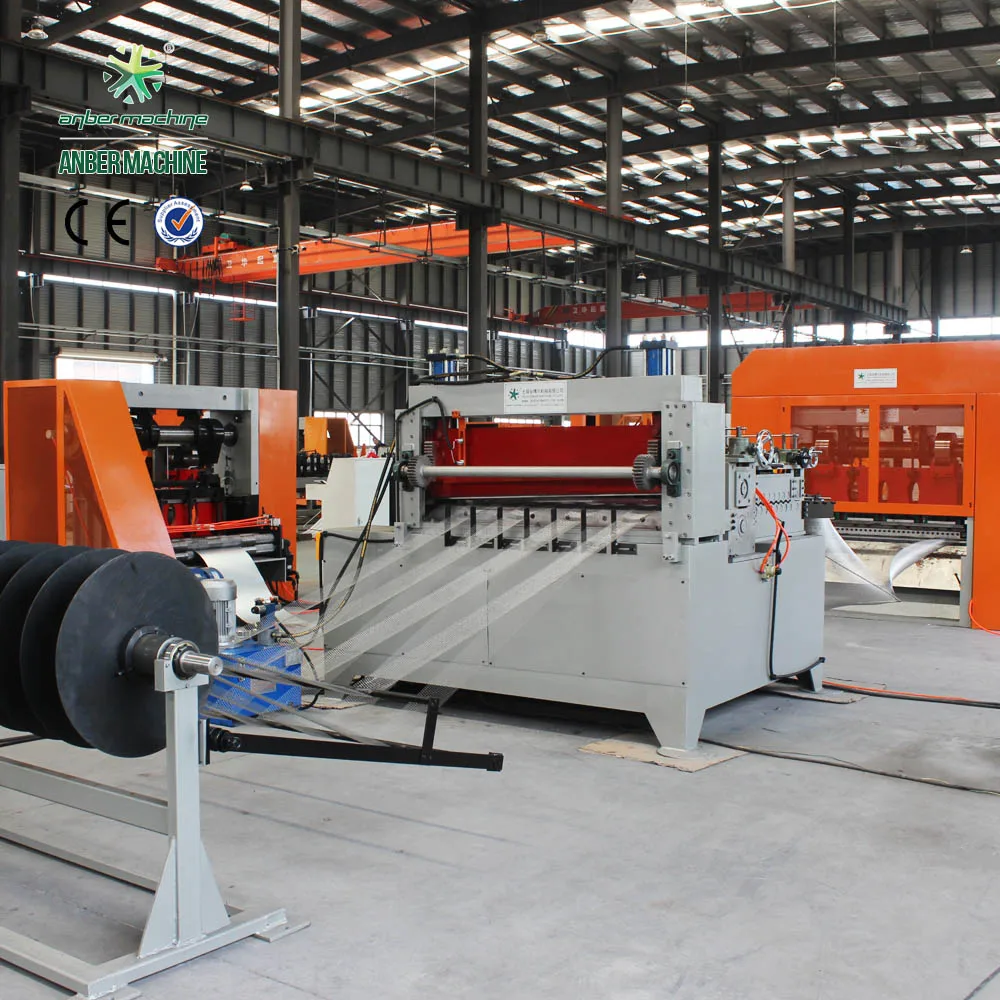

The expanded mesh slitting line is composed of de-coiler, expanded metal machine, leveling and slitting machine, automatic re-coiler and electrical controlling cabinet.
De-coiler: use motor drive to re-coiler roller’s initiative release, easy to control, simple structure.

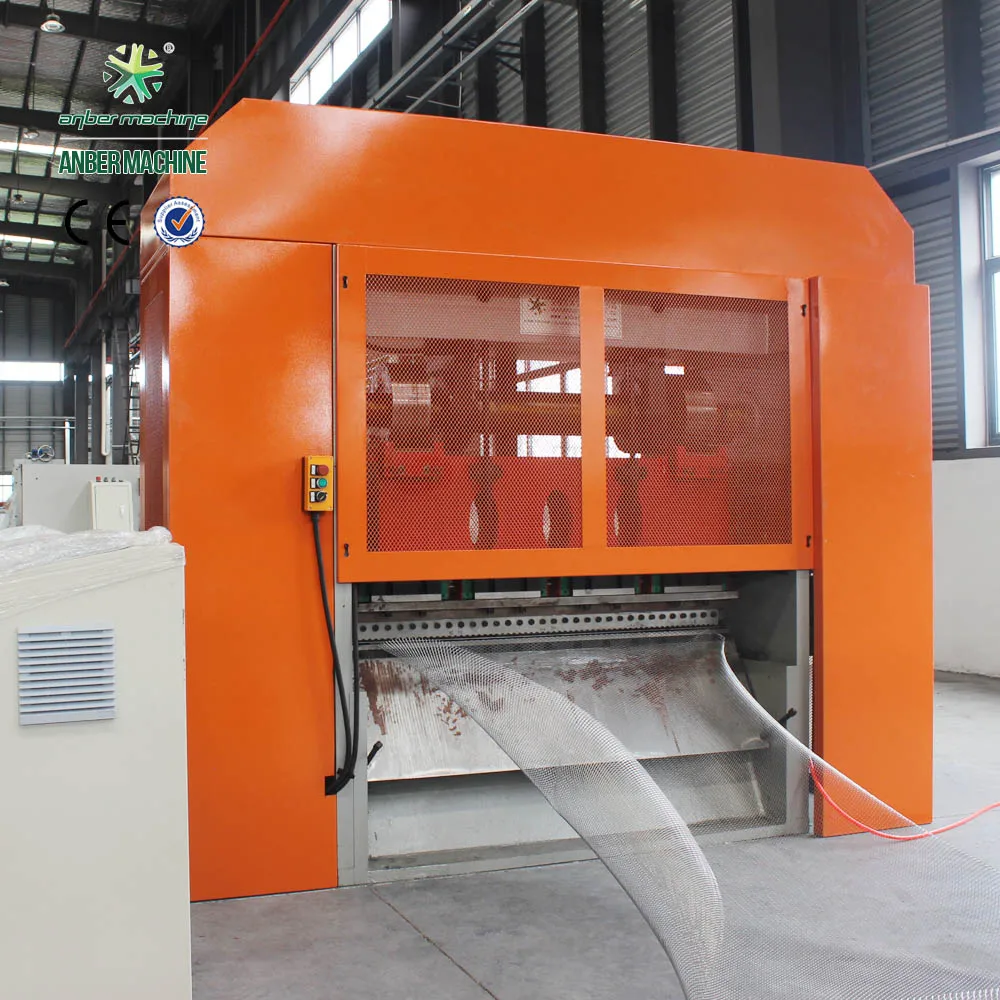

Expanding machine: Motor drive the belt pulley, send the power to crankshaft, then crankshaft drive the mold to do the up and down high speed running. At the same time, crankshaft’s rotary motion drive the feeding mechanism intermittent feeding, match the expanding action.

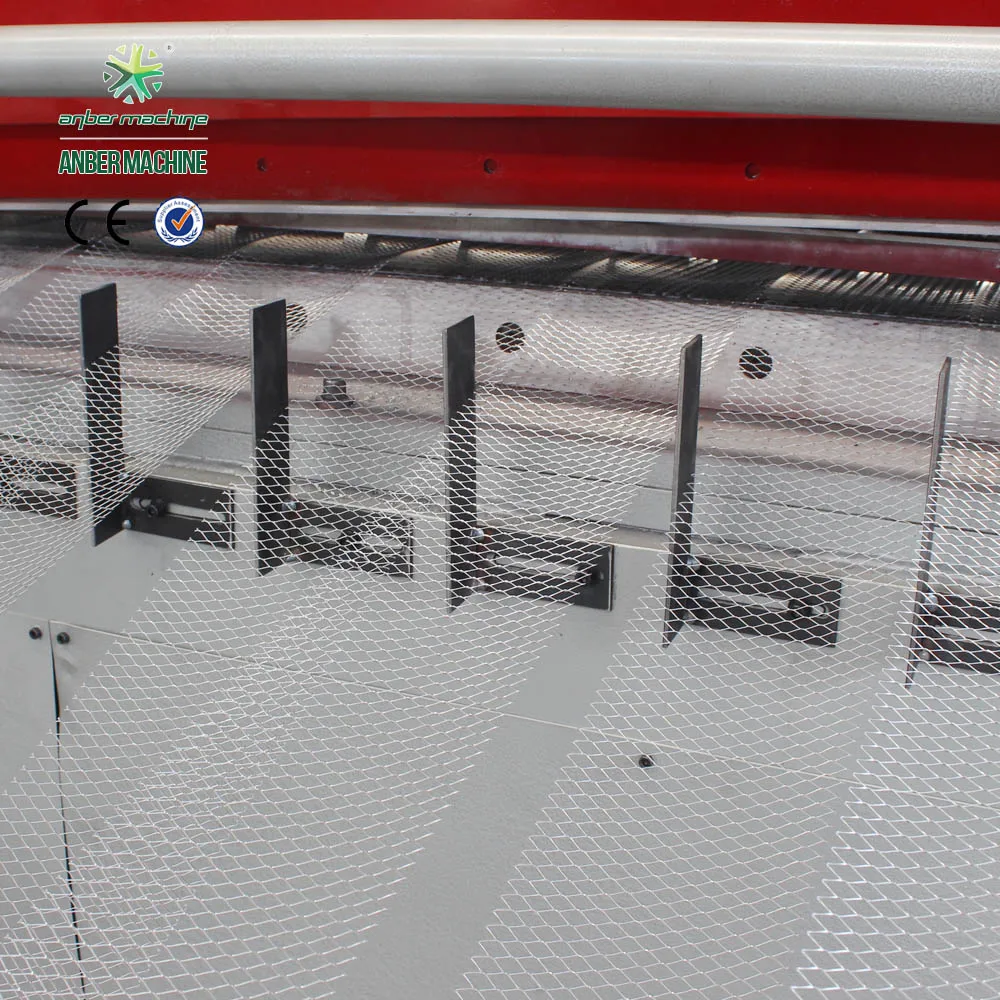

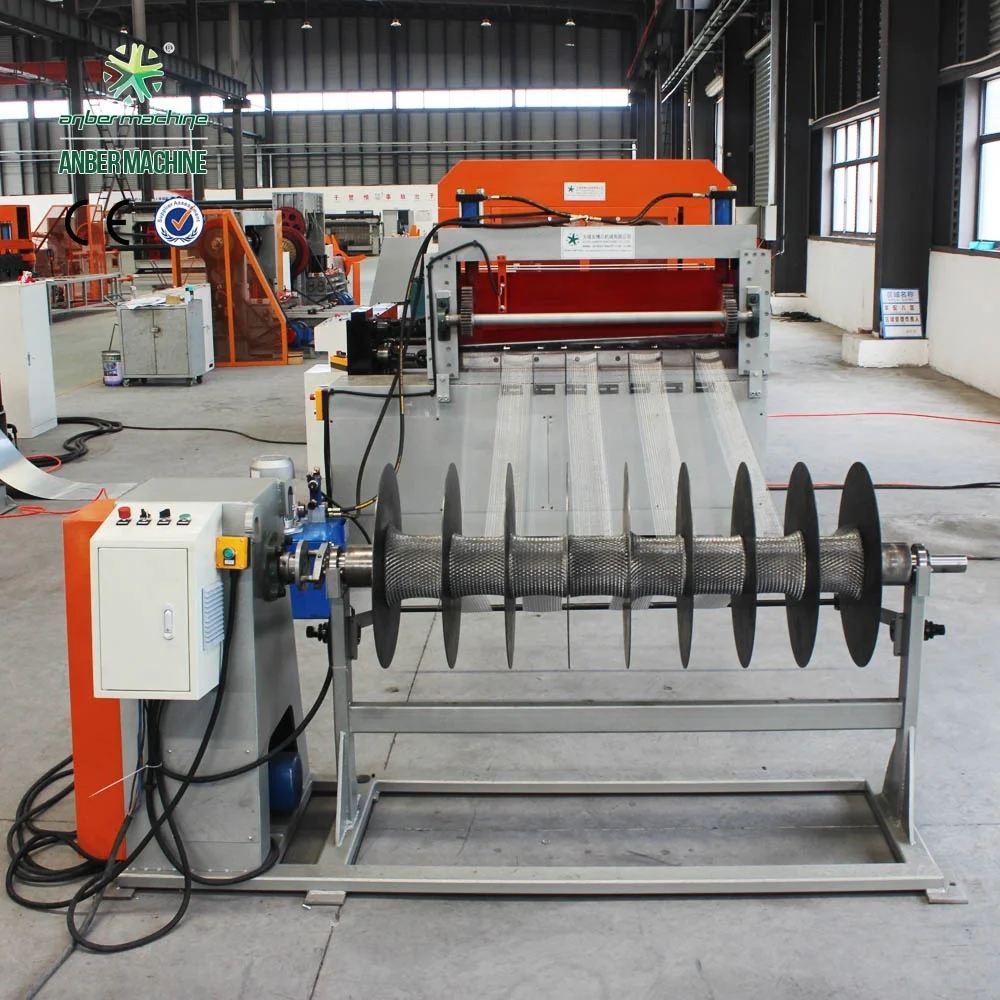

Leveling and slitting machine contains machine frame, roller leveling, slitting, etc. Motor sent the power to each roller to leveling expanded steel plate, then to the slitting part to shear, worker can adjust the mesh width.
Expanded metal mesh production line process:
decoiler --- expanding the mesh --- straightening and slitting machine --- recoiling machine --- electrical controlling cabinet
Main technical parameters De-coiler I.D.: Φ40mm—Φ500mm, adjustable; Loading weight: 2-3 tons; Motor power: 2.2KW. Expanded metal mesh machine Speed: 180-300 stroke per min; Drive type: V belt drive; Motor power: 4KW, 380V 50HZ; Mould: Cr12MO1V1, hardness: HRC58-62 Leveling and slitting machine Motor: 2.2KW, 380V 50HZ; Drive type: by chain Auto re-coiler Motor: 1.5KW, 380V 50HZ; Width of recoiling: 200-400mm, adjustable; Quantity of re-coiler: 3 pieces. Electric control cabinet PLC control; Electric element: Schneider. |
—PRODUCTS SHOW [expanded mesh machine expanded metal making machine ]
Contact us
—ABOUT DELIEVERY [ Expanded metal mesh machine expanded metal machine, ]
Our Services
Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment.
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
ABO- EXHIBITION
From 2013, we ABO have attend many fairs, like
"IBS&KBIS 2016" in Las Vegas, 2016 BIG5 in Dubai, we will attend annual fair to show our new type.
Here is the fair show.
ABO-CERTIFICATE
For metal beads and lath, we ABO have got many certificate,
1, rib lath sliting device patent,
2, multi angle beads slitting and rollforming patent,
3, Architrave beads patent,
4, Hi-tech enterprise cartificate
5, chinese industry-academy-research reward
FAQ
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
