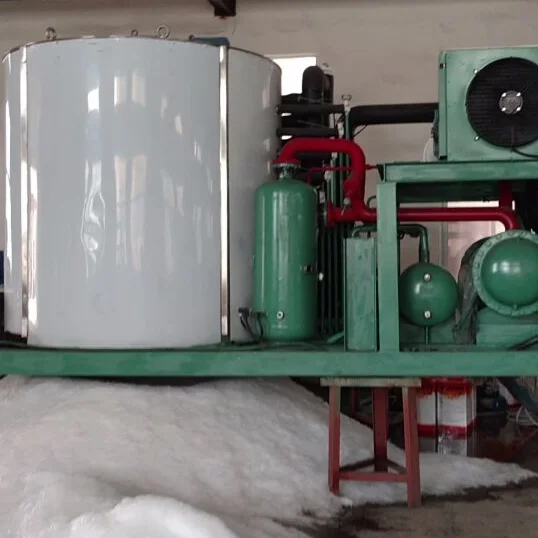

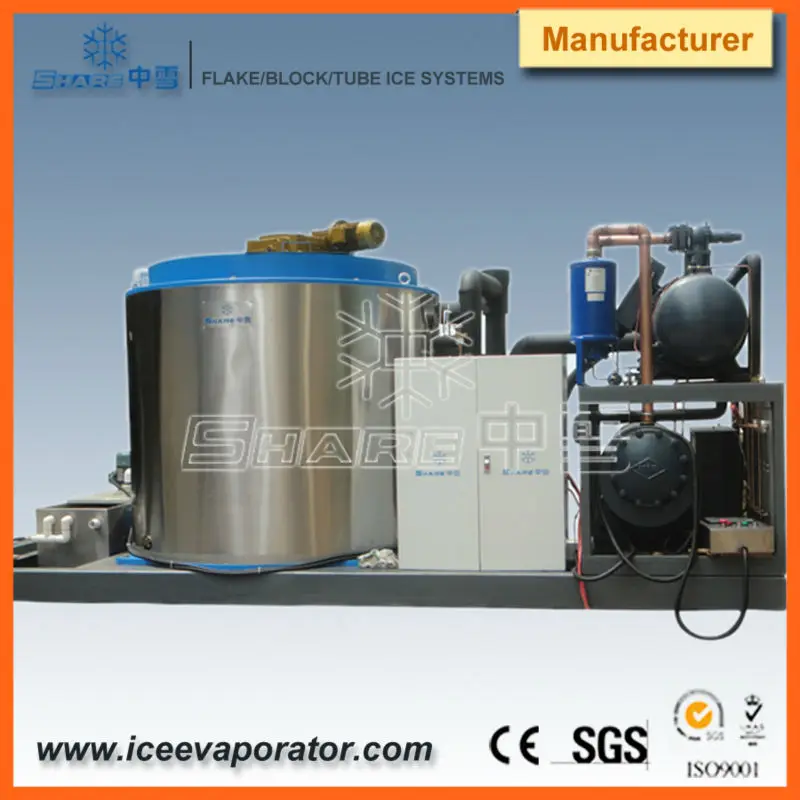

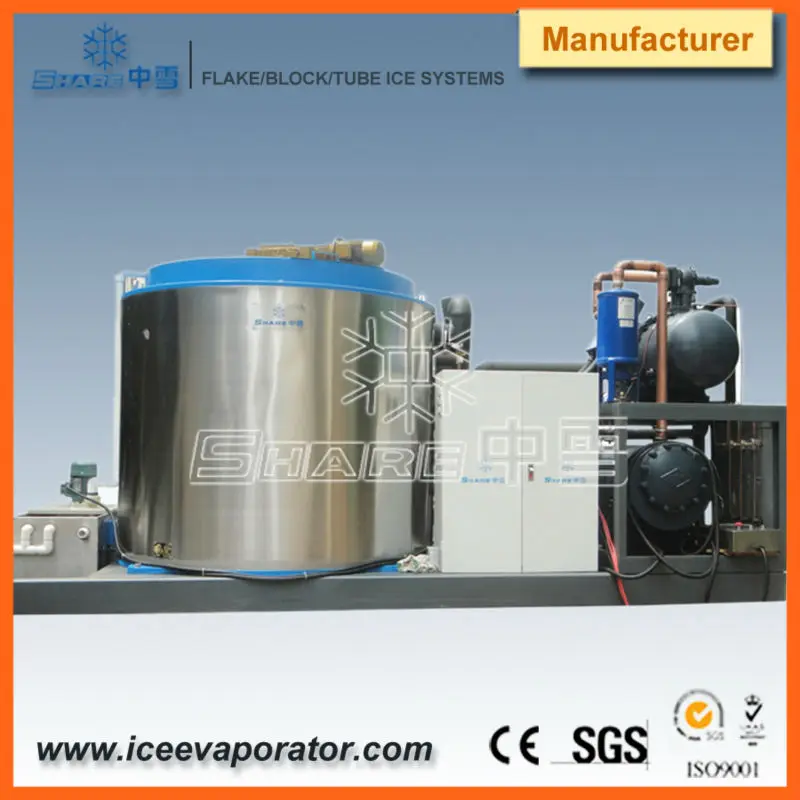

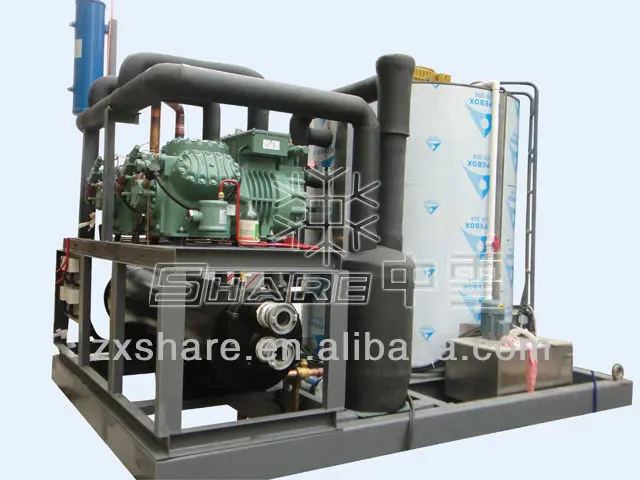

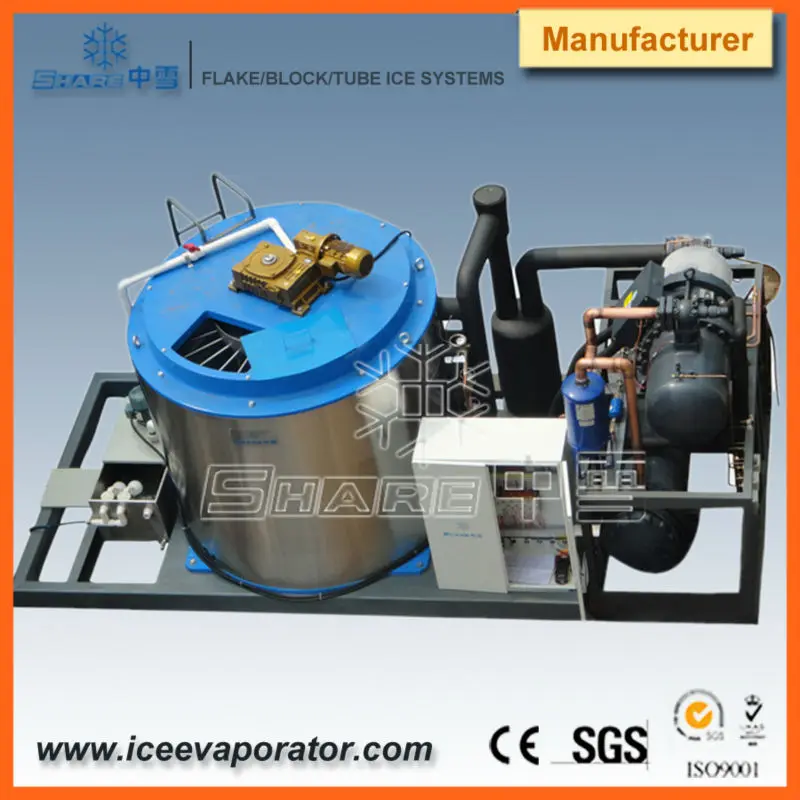

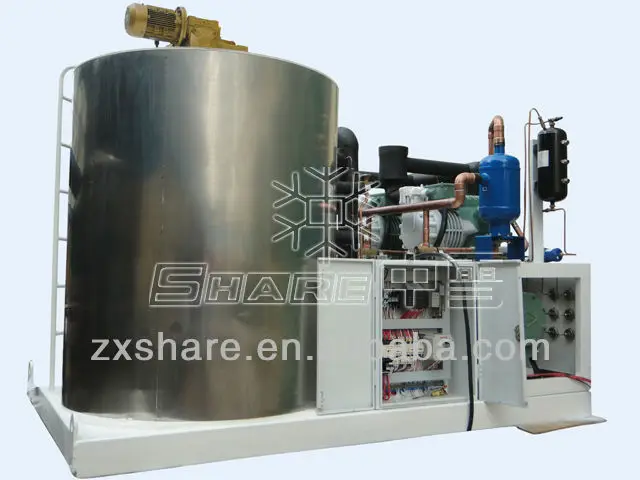

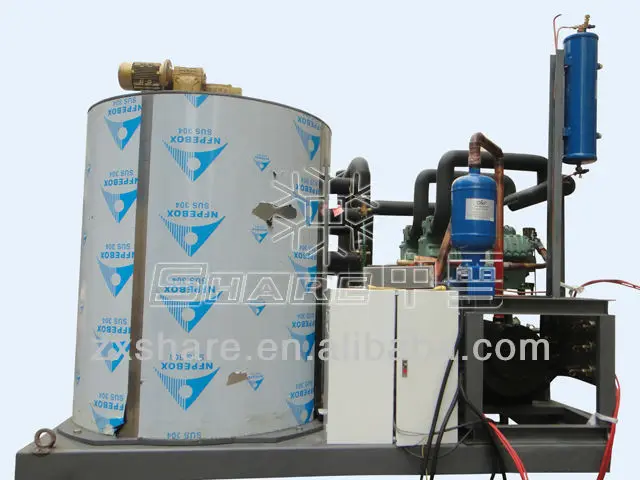

10tons flake ice maker machine with water cooling, for fishery industrial

1,Ambient temp.

 max. +450C

2,Wet-bulb temp.

 max. +280C

3,Power supply

 380V/3Phase/50Hz

4,Refrigerant

 R404A

5,Compressor

 Semi-hermetic Piston

6,Condenser

 Shell and Tube Water-cooled

NO.

Name

Parameters

Note

1

Design Capacity

10000kg/24h

2

Refrigerating Capacity

71.6 KW

3

Refrigerant

R404A

4

Total Input

47.5kW

5

Power of Compressor

41.5kW

6

Power of Cooling Water Pump

3.7kW

7

Power of Cooling Fan

1.5Kw

8

Power of Reducer

0.75kW

9

Power of Water Pump

0.18kW

10

Power of Brine Water Pump

0.016kW

11

Power Supply

380V/3Phase/50Hz

12

Nominal Current

81A

13

Cooling Mode

Water cooled

14

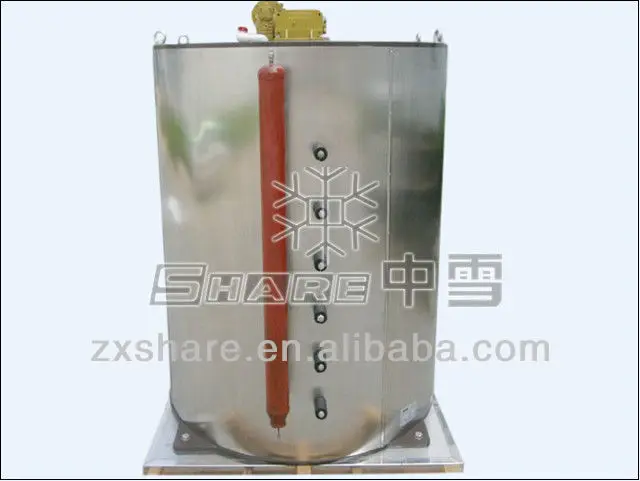

Evaporator Structure

Spiral Groove

15

Evaporating Temp.

-20°C

16

Ice Flake Temp.

-5°C

17

Cooling Water Flow

31.2m3/h

18

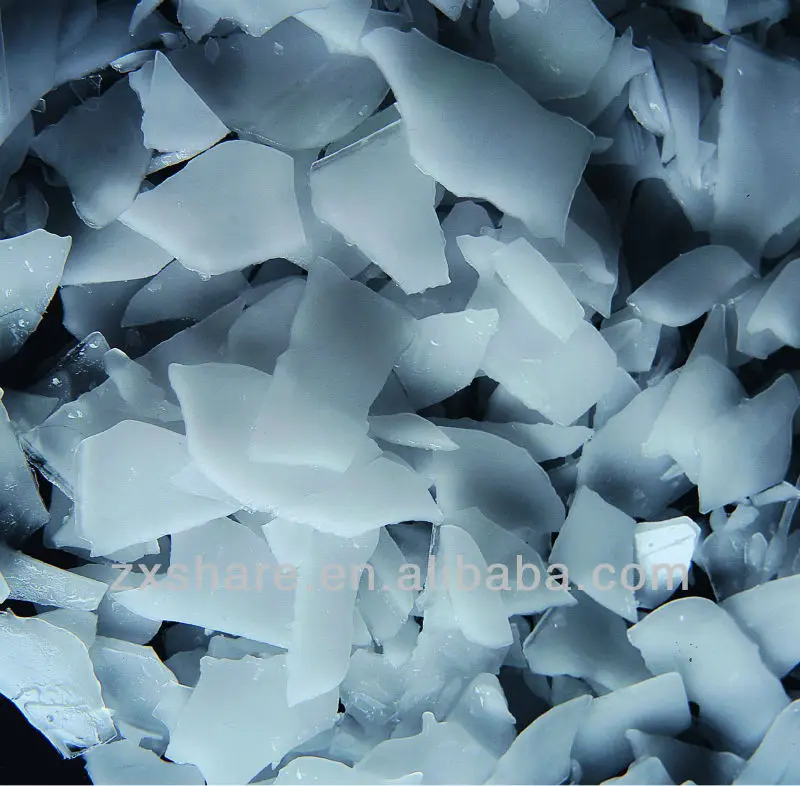

Thickness of Ice Flake

1.5-2.2mm

19

Water Feeding Pressure

0.1Mpa

20

Dia. of Water Inlet Pipe

1/2"

21

Ambient Temp.

25°C

22

Ambient Water Inlet Temp.

18°C

23

Noise

72dBA

24

Unit Weight

2000kg
