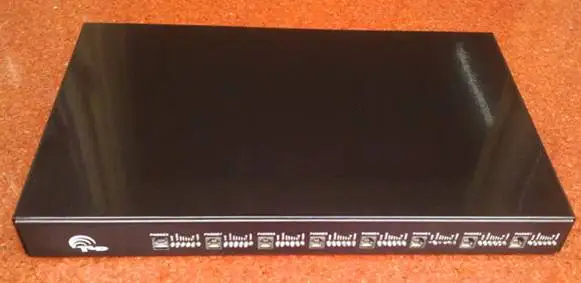

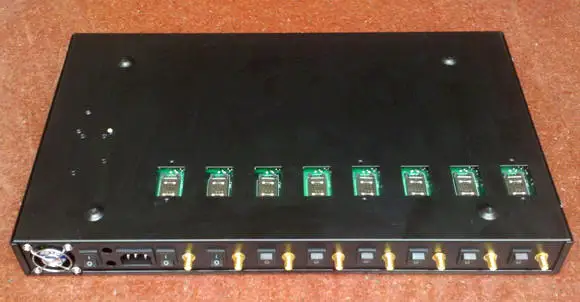

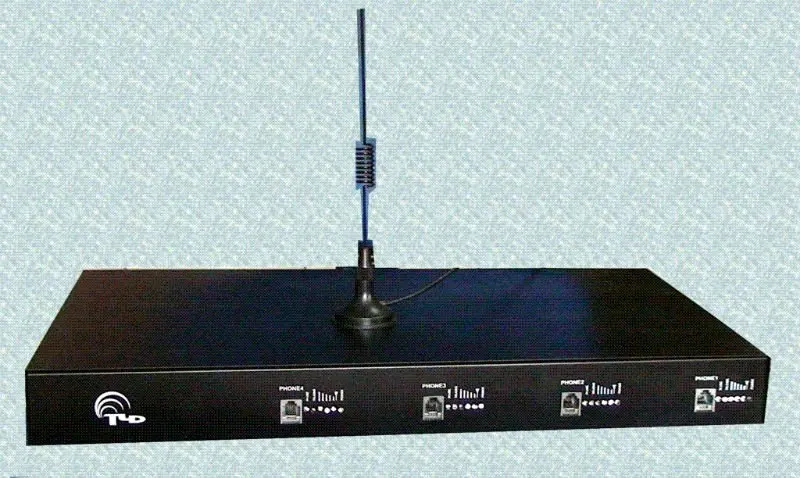

8 CHANNELS GSM GATEWAY WITH IMEI CHANGED

Product Overview

Description

Product: GSM gateways	Model Number: TLD SX01G-8ways
Place of Origin: China	Brand Name: TELESTAR
Quality/Safety Certifications:CCC,CE	Price Terms: FOB ShenZhen
Minimum Order: 1 units	Payment Terms: T/T in advance
Delivery Lead Time: 20 days	Supply Ability: 2,000 units/month

 We are a realy factory, our products quality is perfect and very cheaper. We have already sell it in worldwide more than 10000pcs. We can do any features you want for you.

  Welcome OEM ,ODM,and buy sample.

Features:

• Providing 900mhz and 1800mhz GSM connectivity. 850mhz/1900mhz opation
• Simple to install/easy to maintain
• Allow PIN code entering and reciprocal phone-card lock
• Provide optimized circuit directly connecting the exchange device for extensions
• Polarity reversal signal for metering
• 3.5dBi gain antenna
• Compatible to PABX,VOIP gateway, IP PBX, Call back system, cW ord phone, Voice system, and etc.
• Suitable for call termination of ISP
• Dialing tone
• DTMF Dialing
• Display Incoming caller ID. with DTMF or FSK format

• Hide calling out number.
• Working state indicator

• Signal Strength indicator
• limit calling time
• black or white namelist
• and etc.

Specifications:

• Air interface standard: GSM 900/1800 MHz Phase 2+
• Frequency ranges:
• GSM900:
• Transmit: 890~915MHz;
• Receive: 935~960MHz
• GSM1800:
• Transmit: 1710~1785MHz;
• Receive: 1805~1880MHz
• Channel space: 200KHz
• Sensitivity: -104dB
• Peak power consumption: 8W

• Phone interface:supply RJ-11 Phone Interface Hanging voltage: 48V.
• Dialing tone Frequency:450Hz

• Operating environment requirements:
• Temperature: 0°C - +40°C
• Relative humidity: 45% - 90%
• Connectors: SMA antenna connector
• Atmospheric pressure: 86~106Pka
• Power consumption: static≤ 100 mA, emission≤ 2000 mA
• Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
• Power supply:
• AC220V±10% 47-54Hz AC110V/60Hz( optional)
• DC12V ( optional)

Packing:

• Product dimension: L 440x W260 x H48 mm (1U)
• Carton dimension: L 490x W330 x H115 mm 1pcs/carton
• G.W: 4.2Kg
