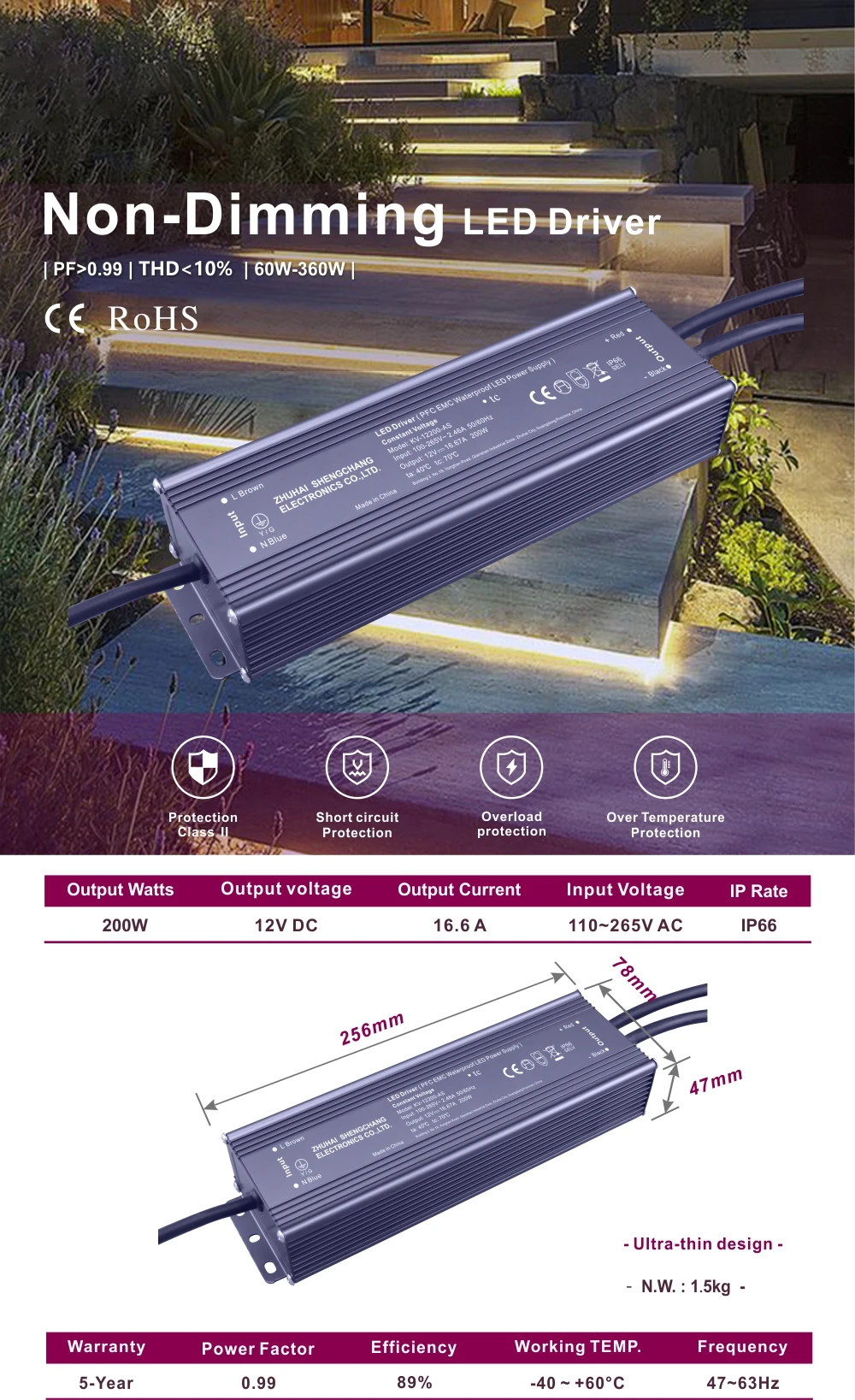

SC LED driver 16.66A 12V 200W IP66 Constant Voltage Waterproof LED Driver

Model

KV-12200-AS

KV-24200-AS

KV-36200-AS

KV-48200-AS

Certificates

CE, ROHS

Output

DC Voltage

12V

24V

36V

48V

Rated Current

16.67A

8.33A

5.56A

4.17A

Rated Power

200W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

Input

Voltage Range

100-265VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.99@100VAC ;0.97@230VAC; 0.95@265VAC

THD(Typ.)@ full load

<10%@100VAC  <20%@230VAC   <20%@265VAC

Efficiency(Typ.)@ full load

87%@100VAC

89%@100VAC

90%@100VAC

90%@100VAC

AC Current(Max.)

2.32A@100VAC

2.27A@100VAC

2.24A@100VAC

2.24A@100VAC

Inrush Current (Typ.)

15A, 50%, 1.4ms@100VAC;55A,50%,220us@230VAC;30A,50%,1.4Ams@265VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode,recovers automatically after fault condition is removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90% RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety& EMC

Safety standards

EN61347-1  EN61347-2-13  EN62493

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015    EN61000-3-2    EN61000-3-3
