Auto continuous rendering plastering wall machine

Product Overview

Description

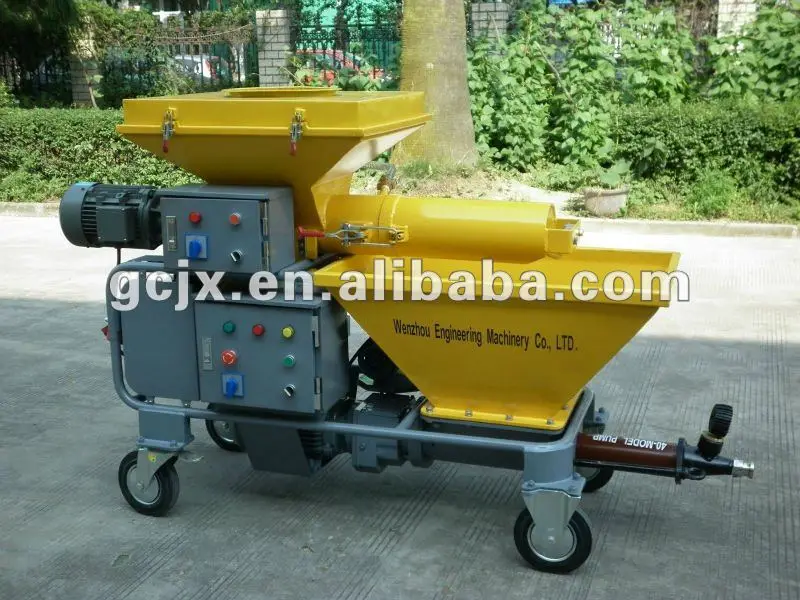

   JP40-W    Auto continuous rendering plastering wall machine



JP40-W is small plastering machine introduced German technology. It's applied for mixing, delivery, bonding and plastering of various characteristics and use of dry ready-mixed mortar. It has the selectable adjustment function of output, pressure and plastering speed. Equips with continuous automatic mixer, dual axis design, and fixes water pump and water supply measuring system. It sets the pressure controlling protection mechanism and achieves the remote control. Its structure is very compact, and it's easy to move and operate.







Technical parameters





Model	—	JP40-W
Supply power	—	400V 50Hz
Motor power	kw	3.3/4   3.7/4.4
Maximum grain size	mm	5
Output	l/min	30
Delivery pressure	bar	30
Horizontal delivery distance	m	60
Vertical delivery distance	m	20
Mixer power	kw	2.2
Mixer type	—	continuous automatic mixer
Hopper volume	l	100
Net weight	kg	290
Dimension (L×W×H)	mm	1900×680×1300





Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.

The products are improved without notice!



1. JP40-W is composed of a continuous mixer and plastering machine. The continuous mortar mixer achieves dry ready mortar continuous stirring. While feeding dry mortar, spraying can be done. Compared with ordinary plastering machine, it can save 1/3 time than common ones which improve much more working efficiency. The continuous mixer can be removed for easy cleaning.

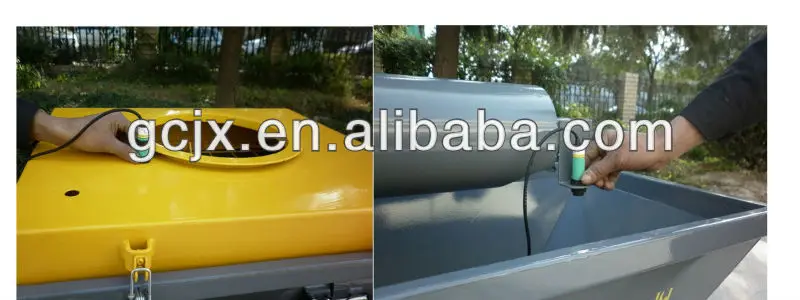

2. JP40-W is installed two advanced material level sensors. When the mortar is feeded over full, JP40-W will automatically stop working.

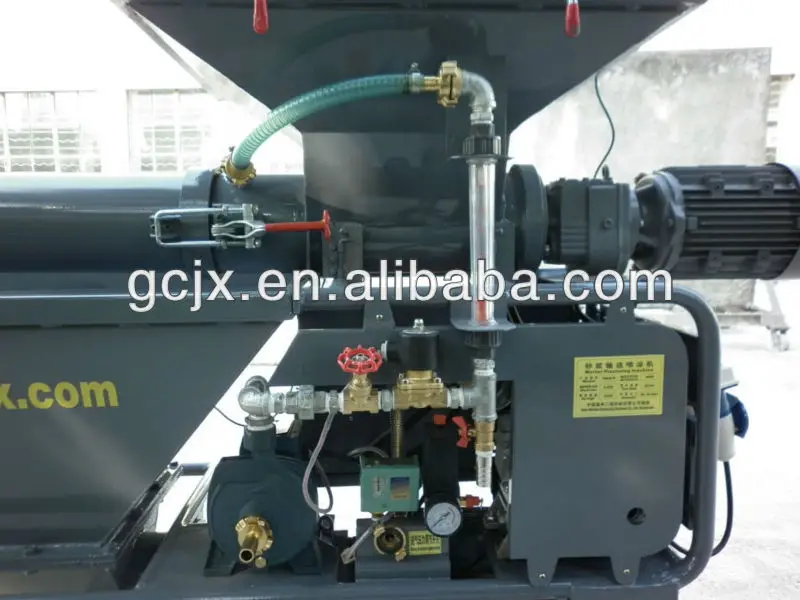

3. JP40-W installs air compressor and water supply instead of the manual adding water, automated operation, extremely advanced!

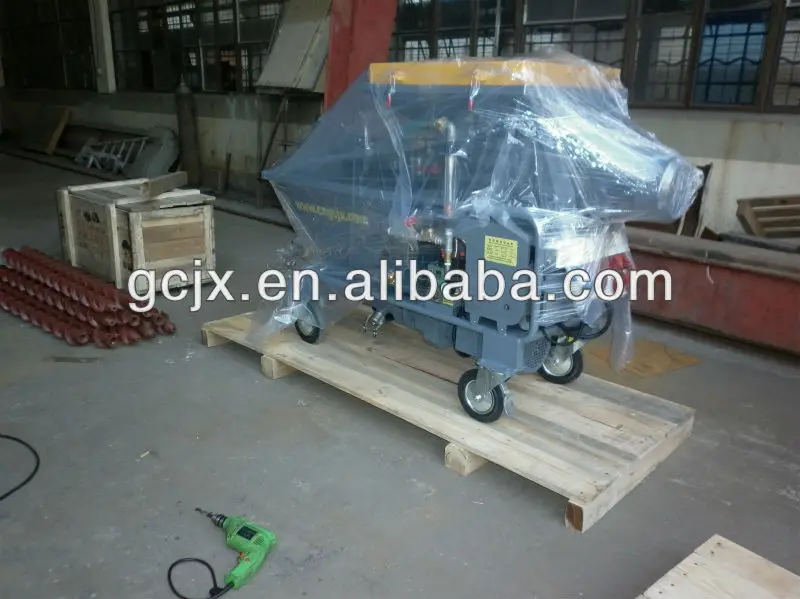

 7. JP40-W is packed into wood carton.
