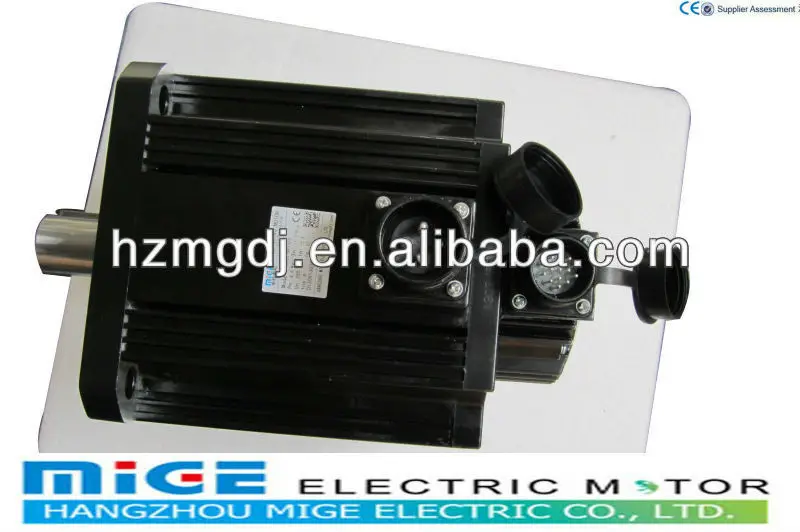

180mm 4.5kw 3 phase high torque servo motor

Product Overview

Description

180mm 4.5kw 3 phase high torque motor has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.



The specification of 180mm 4.5kw 3 phase high torque motor



Motor model	180ST-M21520
Rated power(KW)	4.5
Rated voltage(V)	220
Rated current(A)	16
Rated speed(rpm)	2000
Holding torque(N.m)	21.5
Peak torque(N.m)	53
Voltage constant(V/krpm)	84
Torque coefficient(N.m/A)	1.34
Rotor inertia(Kg.m2)	4.7×10-3
Phase Resistance(Ω)	0.24
Phase Inductance(mH)	1.45
Machanical time-constant(Ms)	6
Weight(Kg)	22.2
Encoder line number(PPR)	2500
Insulation class	Class B(130 centigrade)
Safety class	IP65
The operating of Environmental Conditions	Temperature:-20 ~ +50 centigrade                                     Humidity: Below 90%RH No dewing

Motor winding plue	Winding lead wire	U				V					W				PE
	Plug serial numberr	2				3					4				1
Encoder plug	Signallead wire	5V	0V	A+	B+		Z+	A-	B-	Z-		U+	V+	W+		U-	V-	W-	PE
	Plug serial number	2	3	4	5		6	7	8	9		10	11	12		13	14	15	1



Please contact with us for more detailed technical information.



We can make according to your requirements.
