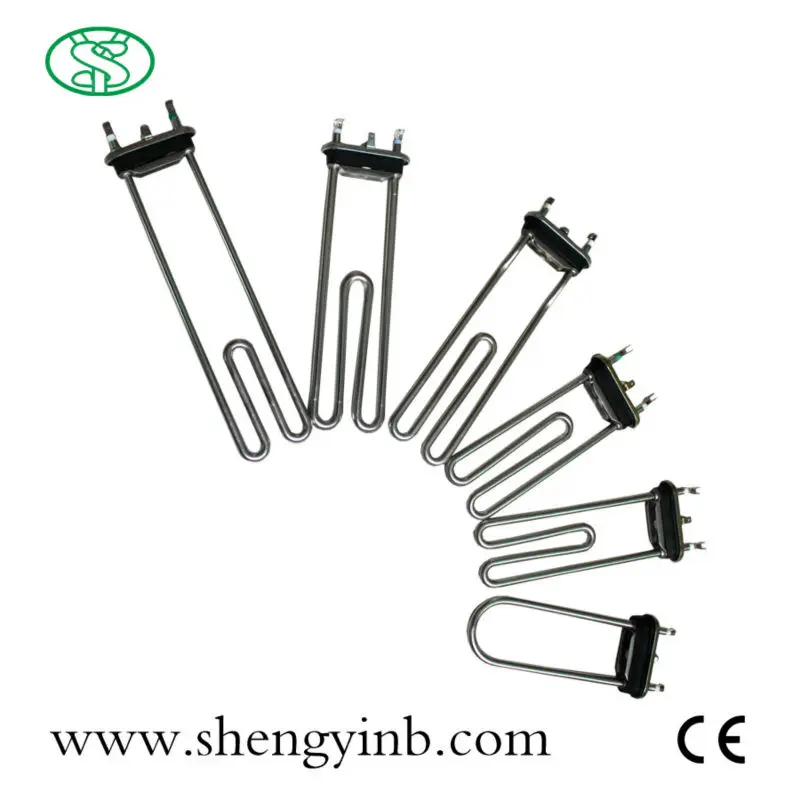

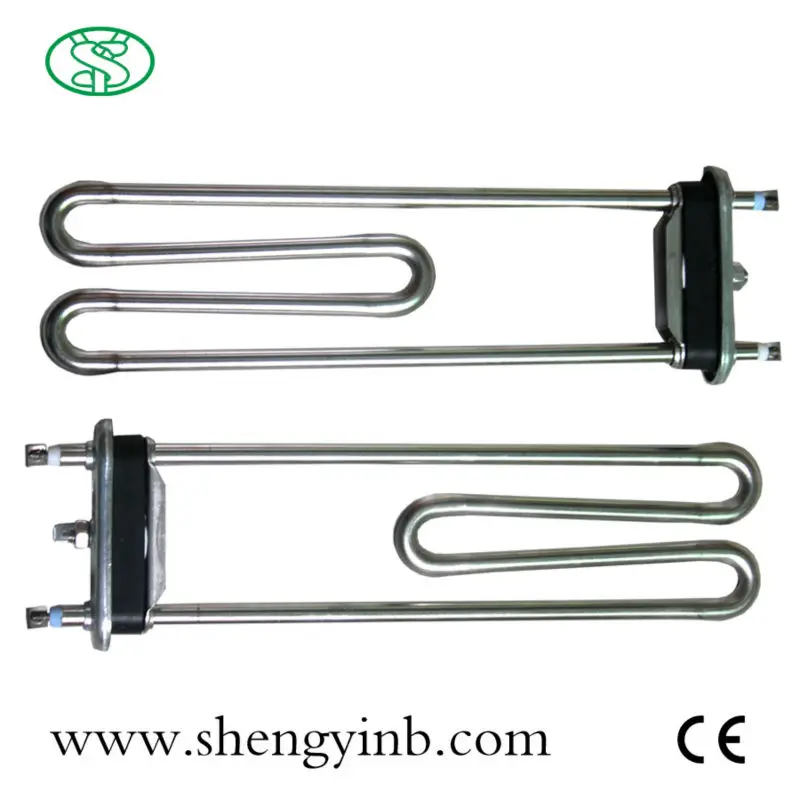

dry heating element for washing machine
- Category: >>>
- Supplier: Fenghua Shengyi Electrical Applications Co. Ltd.
Share on (1117101581):
Product Overview
Description
The heating element used for washing machine with high quality&long life.
| No. | Main Parameters | |
| 1 | Model No. | SY9520WM |
| 2 | Material | SUS304/316/Incoloy800/840 |
| 3 | Output power | 800W-3000W+5%, -10% |
| 4 | Voltage | 220V-240V/50Hz. 110V/60Hz |
| 5 | Hi-pot test | 1800V/S min cold condition |
| 6 | Heating resistance wire | Ocr25AI5, Cr20NI80 or as custom's requirement |
| 7 | Leakage Current | 0.75ma max |
| 8 | Insulation | 500MΩ |
| 9 | Sheath Diameter | 8.4mm |
| 10 | Safety device | with or with NTC. |
| 11 | Surface | Polish |
| 12 | Developed Length of Sheath | Customized |
We can manufacture every technically possible heating element as your requirement.
