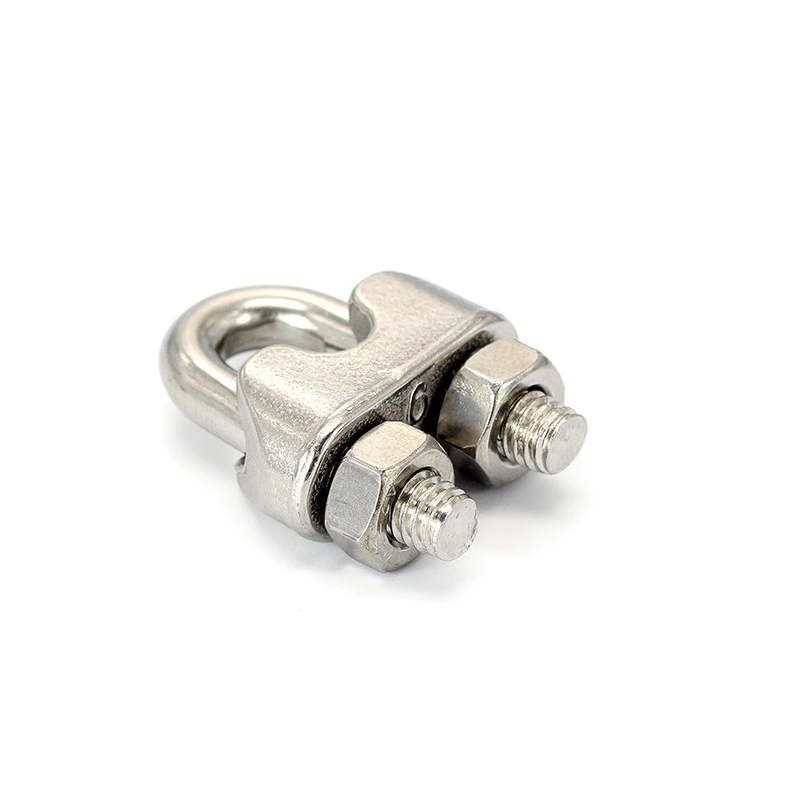

Supply rope light clips

Product Overview

Description

 $keywords$

Material	Malleable Steel/ carbon steel
Technology	Casting & drop forged
Finish	Electro Galvanized
Brand Name	wells
Type	US type Jan type DIN741 DIN1142 A type B type
Use	Wire rope fittings
Size	5mm-50mm
Marking	Size or according to customer's  requirements
Payment	T/T, L/C
MOQ	100PCS per Size
Capacity to produce	500T per month
Packing details	packed in carton or gunny bag then on steel pallet
Delivery times	30-35days after you confirm the order
Shipment	By sea, by air or DHL,UPS, Fedex
Port	Qingdao, Shanghai
Origin	China
Certificate	Mill certificate
Free sample time	in one week



tips for  $keywords$

The DO'S & DONOT'S during use wire rope clips:



1. check the size of clips is suitable for the diamater of steel wire rope, the inside net distance of U-bolt is larger than the rope's diameter by 1-3mm. if too large, it is hard to fast rope.

2. before using, pls tighten the U-bolt untill the rope is flattened by about 1/3. Since rope will be deformed after stress, the clips need to be tightened again  to ensure the safety of joint point. if you want to check wether the clips will slide or not,  pls add another safety clip.

3. the arranged distance between ropes should be 6-7 times of rope diameters.

4. the correct arranged number and methods:

wire rope's diameter               the number of clips

1).      <= 18 mm                                           >=3 pcs

2).      18mm-26mm                                       >=4 pcs

3).       26-36mm                                            >=5 pcs

4).       36-44mm                                            >=6pcs

   5).       44-60 mm                                           >=7pcs





------------Forbide long-term use, check regularly, discard as useless regularly, No repeatly use.



specification of $keywords$

1) DIN741 Specification:







2)DIN1142 Specification:

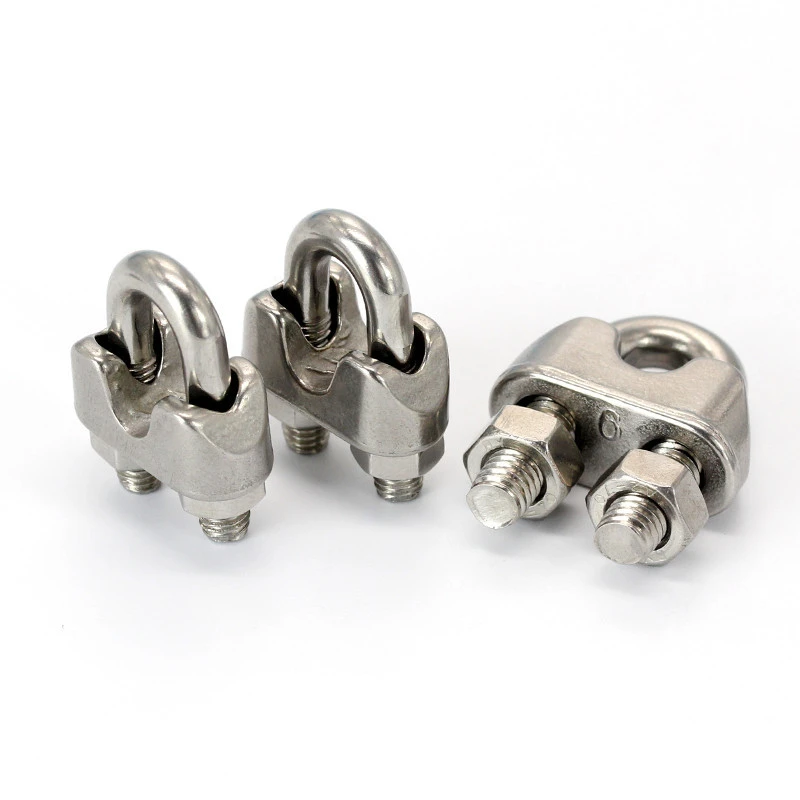

2.  Din741 wire rope clip

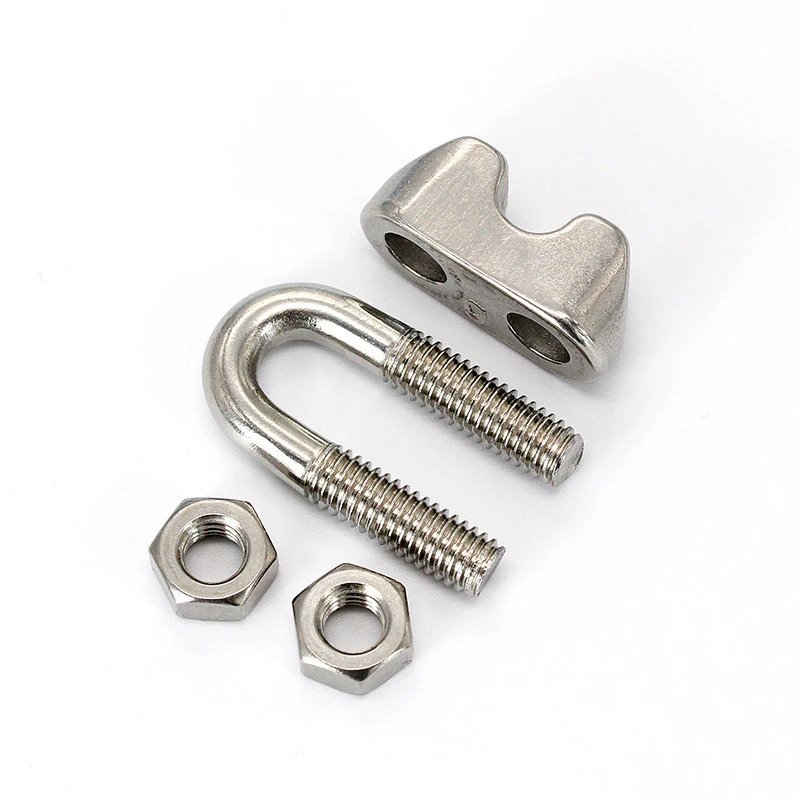

3 parts of DIN1142 wire rope clips



U bolt:  mild steel, carbon steel Q235

Flange Nut:  prevent steel wire rope from falling down.

Bridge: malleable type & colorful galvanized.





 4. US Type drop-forged wire rope clips





 5. A type wire rope clips







the package for $keywords$ :

2 currogated 5 layers cartons than in free fumigated pallet.





or gunny bags according to customers' requirements.





$keywords$ advantage:



       1. samples order is accepted.

       2. strict inspection on quality.

      3. skilled technicians with rich experiance.

       4. effective production & on-time delivery.

 services:  marks/logos can be printed.



Any interest in $keywords$ or other type, pls contact me soon!  TKS(*^__^*)





...
