SM/MM mode of 4 channel Fiber Optic rotary joint slip rings / FORJ SNFO

Product Overview

Description

Solve the rotating connection between system components, fiber slip ring provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic sliprings, call optical-electrical hybrid slipring, transmit power and high speed data.







SNFO-04A Specifications

• Channel

  4

• Wavelength range

  850-1310 nm

• Insertion loss

  <2.5dB (normal: <0.8dB)

• Insertion loss ripple

  <+/-0.25 dB (typical: +/-0.15 dB)

• Maximum speed

  300 RPM

• Pressure compensation

  1000 psi (RPT only; RPC for higher pressure)

• Pulling strength

  10 N

• Start up torque

  <0.1 Nm

• Estimated life cycle

  200-400 million revolutions

• Optical power handling

  23 dBm

• Working temperature

  -40 to 85 C

• Storage temperature

  -50 to 85 C

• Package style

  Pigtail or receptacles (FC, FC/APC, or ST)

• Housing material

  Stainless steel

• Fiber types

  MM, 3 mm Kevlar/PVC or 2.9 mm armore

• Connector types for RPT

  FC, SC, ST, SMA, or LC (PC and APC)

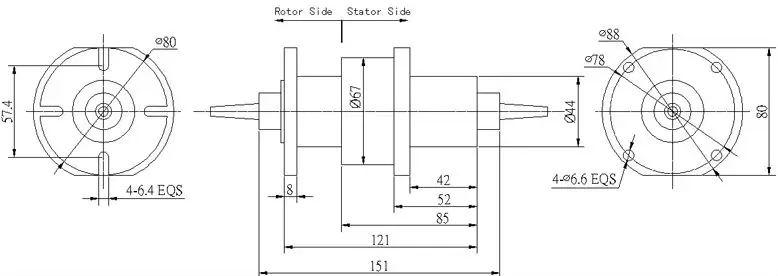

• Dimensions

  67 mm dia. (body) x 80 mm dia. (flange)

• Weight

  ~250 g

• IP rating

  IP 68 for all models

• Appication

      1 between in undersea robot and control ship

      2 between in radar antenna and on-board signal processing system

      3 with the chariot rotating tower car body console

      4 between in welding robot and console

      5 rmote mechanical input and output devices and control
