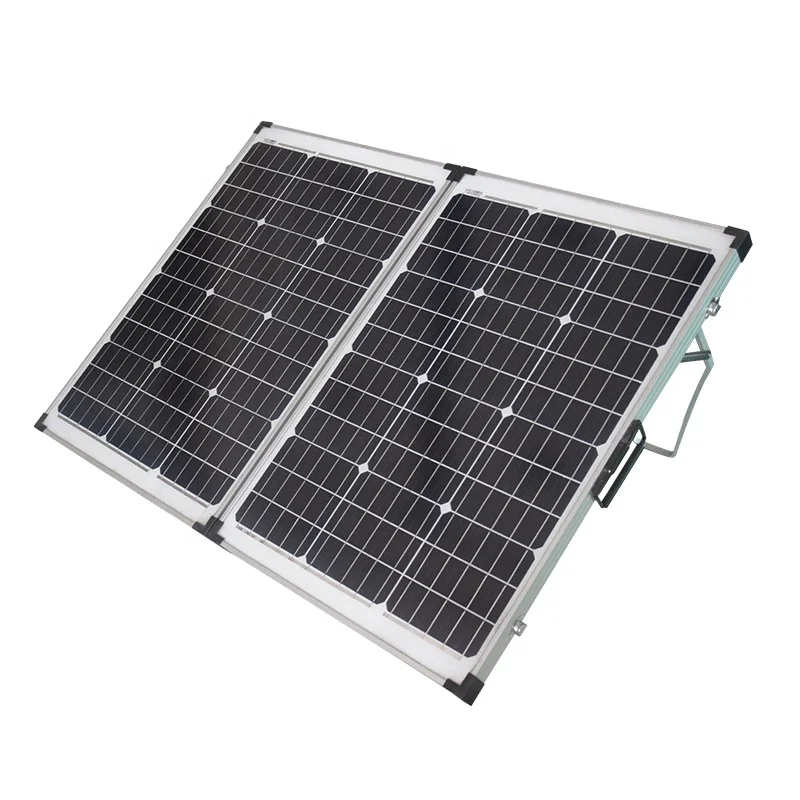

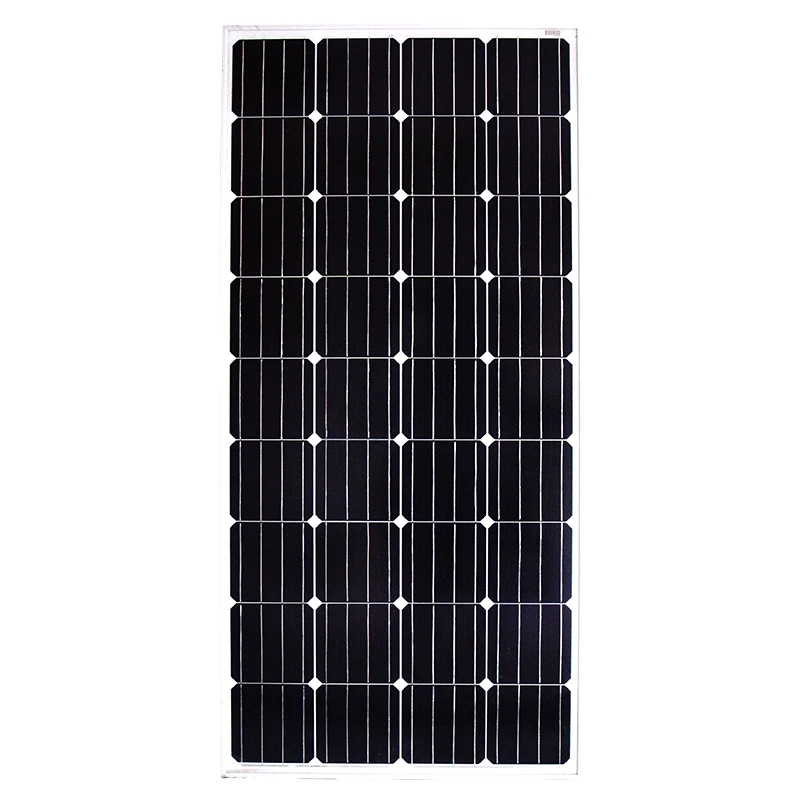

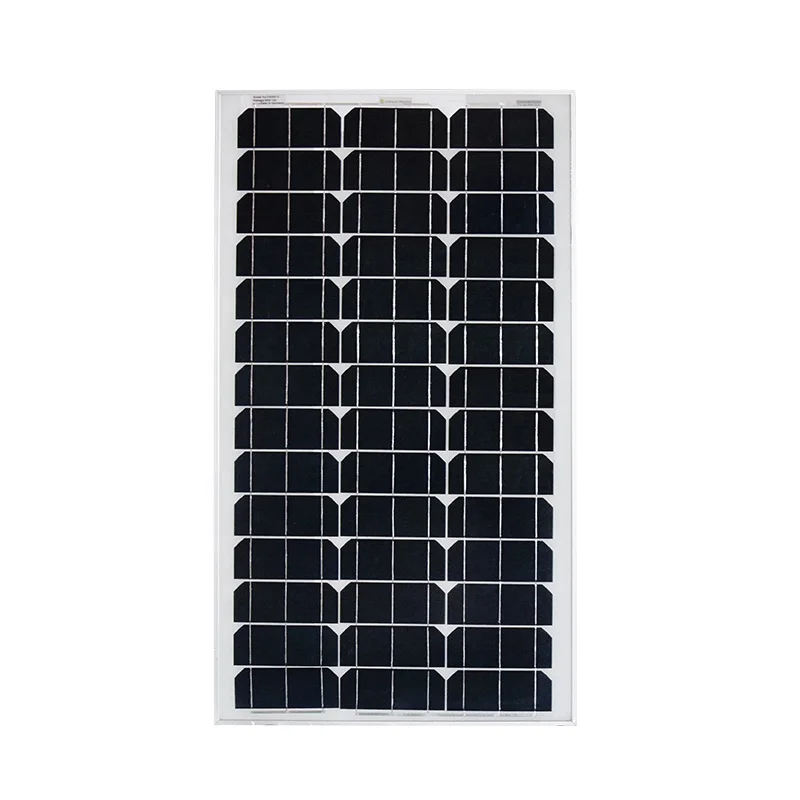

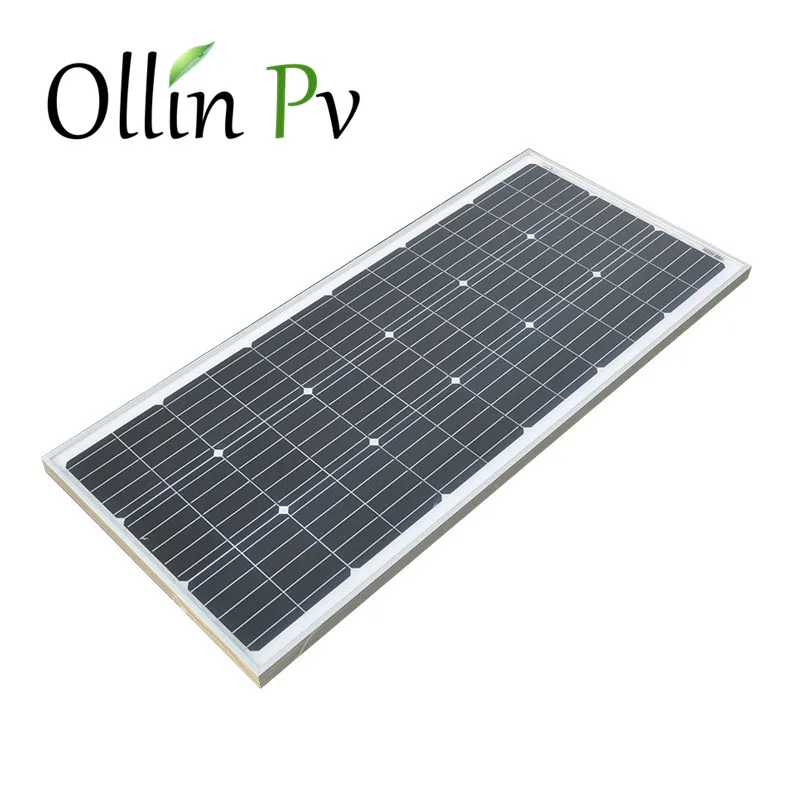

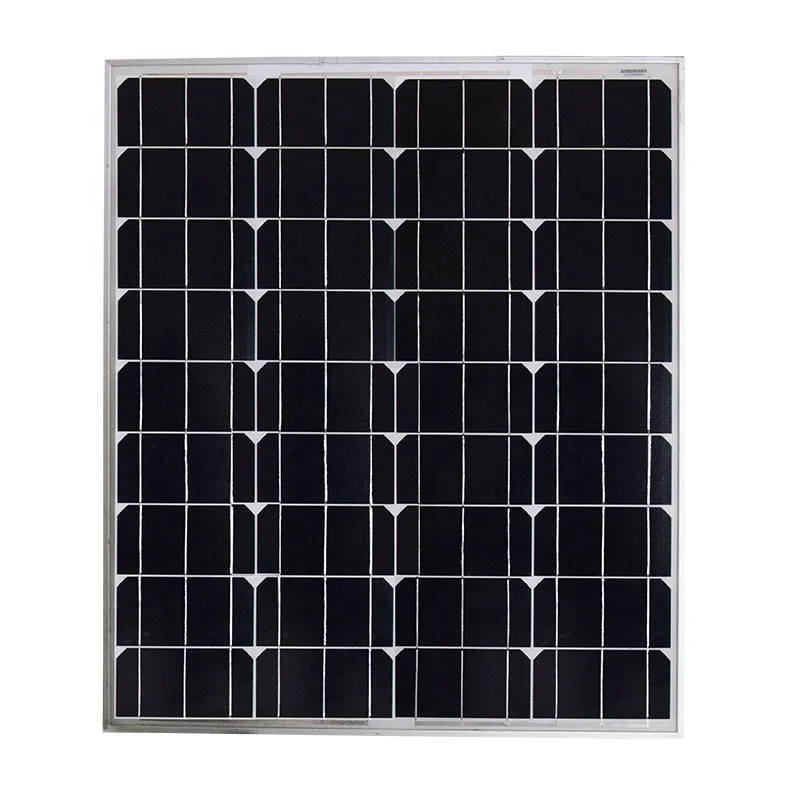

Solar Power Panel Portable Solar Fridge Solar Crank Radio 12V 90W Solar Panel

Product Overview

Description

Features

1)  Module efficiency : 16%



2)  Warranty : 12 years/90%,25 years/80%, guaranteed 10years material and workmanship



3)  Tolerance : Guatanteed tolerance,different model with diffetent tolerance,and delivers higher outputs reliably



4)  Excellent performance under low light conditions



5)  Module certified to wind and snow loads



6)  Anti-reflective,hydrophobic layer with light absorption and minimal surface dust



7)  Rich selection of solar power



Electrical Characteristics
STC (Irradiance 1,000W/m2, module temperature 25℃, AM=1.5)	OL90M-10
Rated Power (Pmax)	90W
Voltage at Pmax (Vmp)	18.1V
Current at Pmax (Imp)	5.15A
Warranted Minimum Pmax	100W
Short-Circuit Current (Isc)	5.43A
Open-Circuit Voltage (Voc)	21.6V
Module Efficiency	19.00%
Operating Module Temperature	-40℃ to + 85℃
Maximum System Voltage	1,000V(IEC) / 1,000V(UL)
Maximum Series Fuse Rating	10A
Maximum Reverse Current	20.25A
Power Tolerance	0 ~ +5 W





FAQ:

Q1 Are you a factory or trading company?

   A Yes, we are factory, supplying OEM/ODM service.

Q2 Can you accept OEM service?

   A Yes, we can. Qty is not the only standard , more qty, less cost.

Q3 How about your after sales-service?

   A 1.Guarantee time: one year, but solar panel 10 years

       2.Spare parts:1% spare parts will be shipped with your order.

Q4 How about your payment terms?

   A We accept T/T, LC

Q5 What certification do you have?

   A 1.CE,        2.According to your need , do the certification or report , if you have a big order.

Q6 How many day about delivery time?

   A 1.Sample delivered in 3-5 days.

       2.Order delivered in 15-20 days.

Q7 Which port shipping goods?

  Ningbo port/ shanghai port/yiwu port
