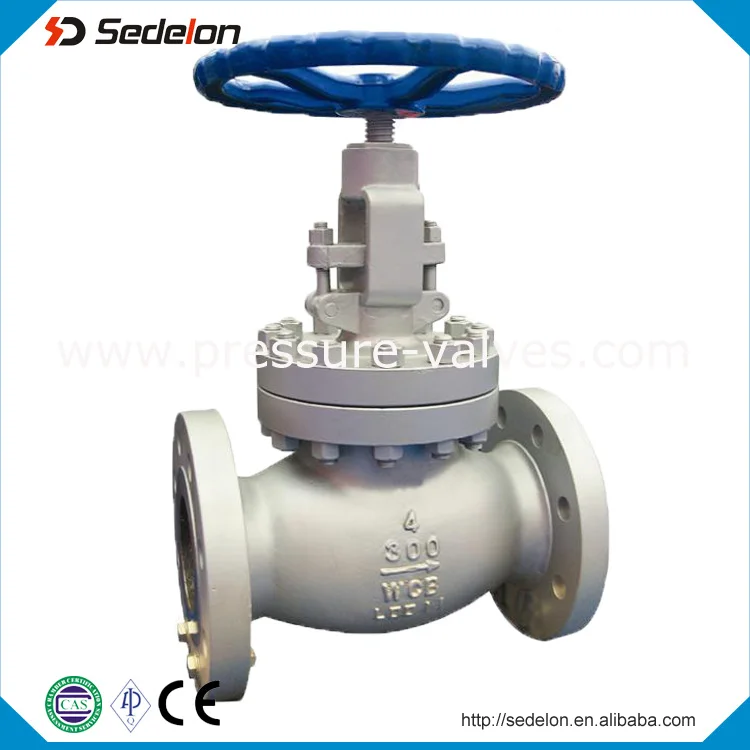

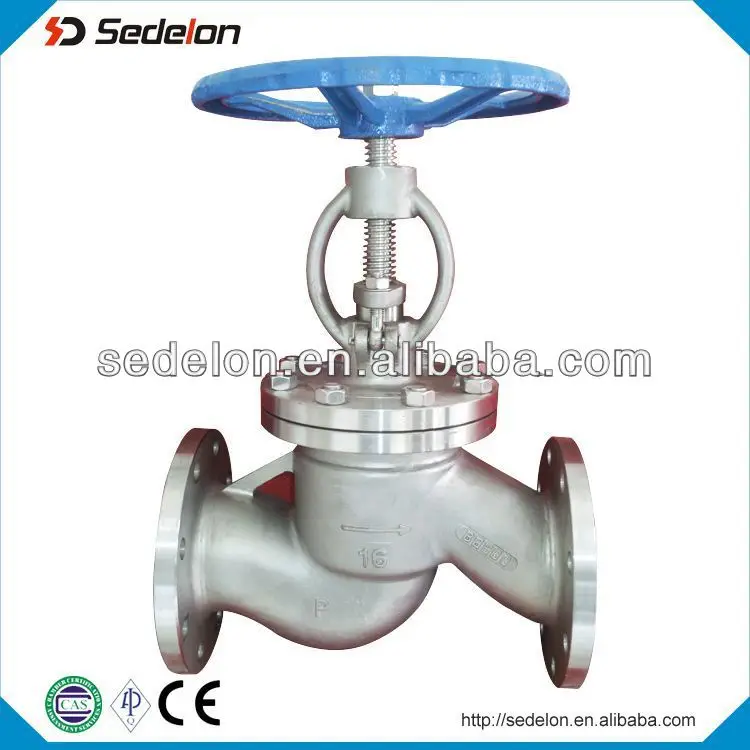

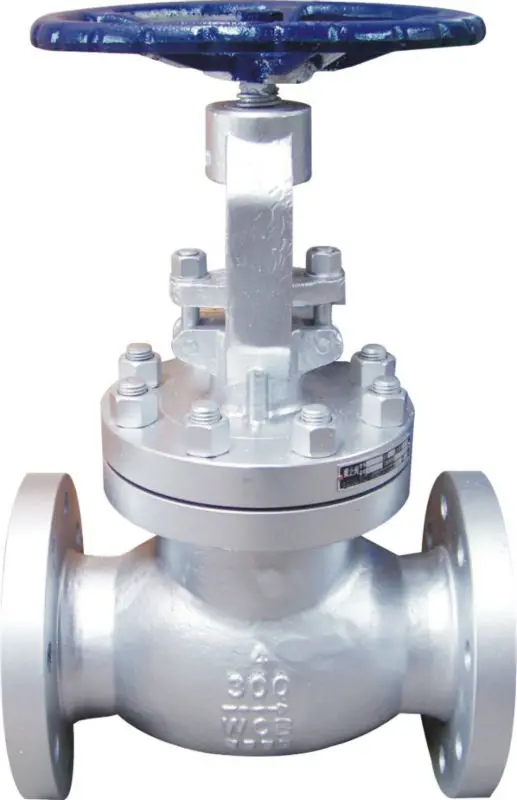

duplex stainless steel 2205 flow control Globe Valve with price
- Category: >>>
- Supplier: Sedelon Valve Co. Ltd.
Share on (1118608849):
Product Overview
Description
duplex stainless steel 2205 flow control Globe Valve with price
product show
Product Description
| CLASS 150-2500# OS&Y Globe Valve | ||
| NO | Part Name | Material |
| 23 | Grease nipple | Brass |
| 22 | Grub screw | Carbon steel |
| 21 | Hand wheel nut | Carbon steel |
| 20 | Hand wheel | Malleable Iron/cast steel ductile Iron |
| 19 | Yoke nut | Carbon steel/stainless steel |
| 18 | pin | Carbon steel/stainless steel |
| 17 | Stem nut | A439-D2/ Cu-alloy |
| 16 | Gland flange | Carbon steel/stainless steel |
| 15 | Gland | Stainless steel |
| 14 | Gland bush | Carbon steel/stainless steel |
| 13 | Back seat | Stainless steel |
| 12 | Disc nut | CS+SS/ SS / SS+STL |
| 11 | Stem | Stainless steel |
| No | Part Name | WCB | LCB | WC6 | WC9 |
| 7 | Stud and Nut | A193 Gr B7 /A194 Gr4 | A193 Gr B7 /A194 Gr4 | A193 Gr B7 /A194 Gr4 | A193 Gr B7 /A194 Gr4 |
| 6 | Gland packing | Graphite | Graphite | Graphite | Graphite |
| 5 | Gasket | Soft Iron | Soft Iron | Soft Iron | Soft Iron |
| 4 | Thrust ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 3 | Back up ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 2 | Yoke | A216 Gr WCB | A352 Gr LCB | A271 GrWC6 | A271 Gr WC9 |
| 1 | Bonnet | A216 Gr WCB | A352 Gr LCB | A271 GrWC6 | A271 Gr WC9 |
| 2 | Body | A216 Gr WCB | A352 Gr LCB | A271 GrWC6 | A271 Gr WC9 |
| No | Part Name | C5 | C12 | CF3 | CF8M |
| 8 | Stud and Nut | A193 Gr B16 /A194 Gr4/7 | A193 Gr B16 /A194 Gr4/7 | A193 Gr B16 /A194 Gr4/7 | A193 Gr B16 /A194 Gr4/7 |
| 7 | Gland packing | Graphite | Graphite | Graphite | Graphite |
| 6 | Gasket | SS304 | SS304 | SS304 | SS304 |
| 5 | Thrust ring | A182 F22 | A182 F22 | A182 F22 | A182 F22 |
| 4 | Back up ring | A182 F22 | A182 F22 | A182 F22 | A182 F22 |
| 3 | Yoke | A216 Gr C5 | A216 Gr C12 | A351 Gr CF8 | A351 Gr CF8m |
| 2 | Bonnet | A216 Gr C5 | A216 Gr C12 | A351 Gr CF8 | A351 Gr CF8m |
| 1 | Body | A216 Gr C5 | A216 Gr C12 | A351 Gr CF8 | A351 Gr CF8m |
