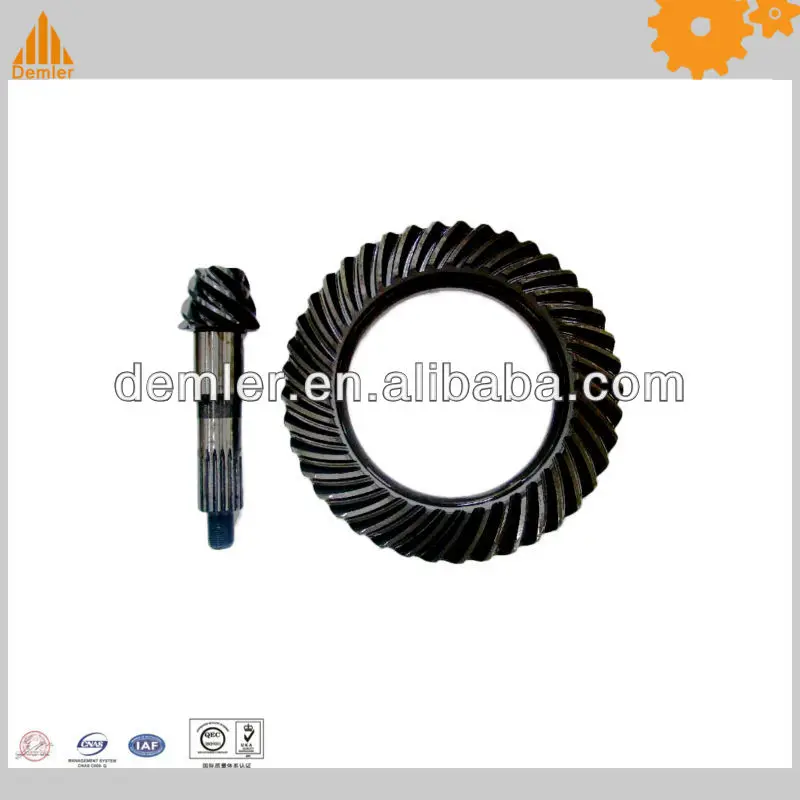

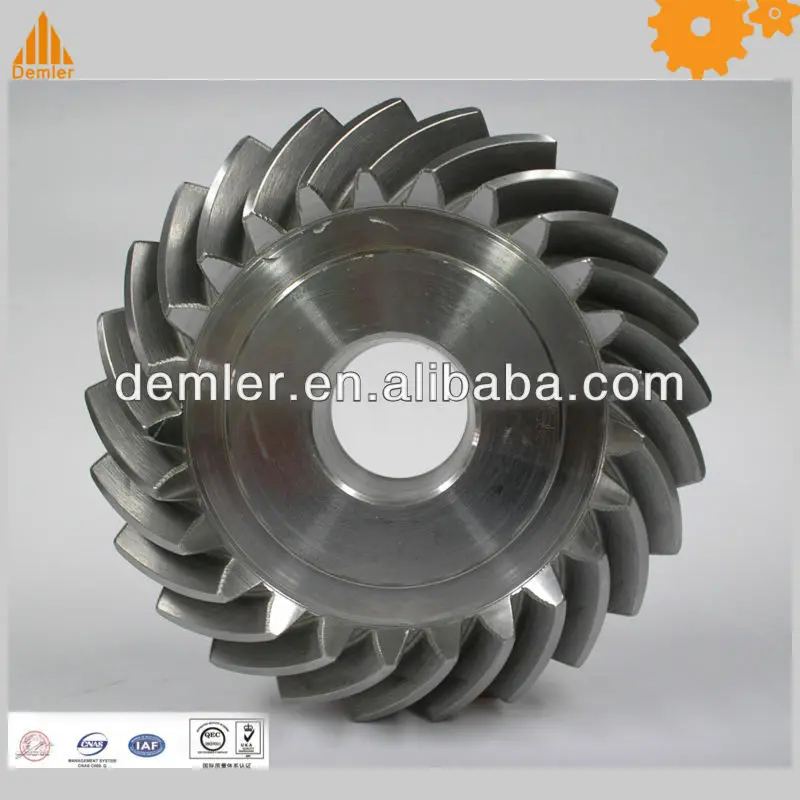

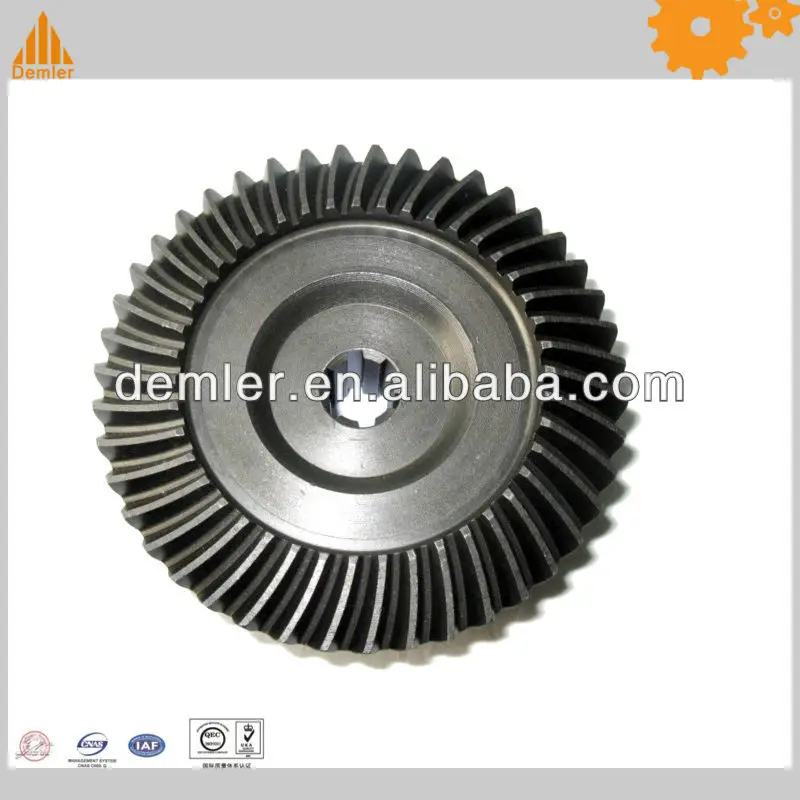

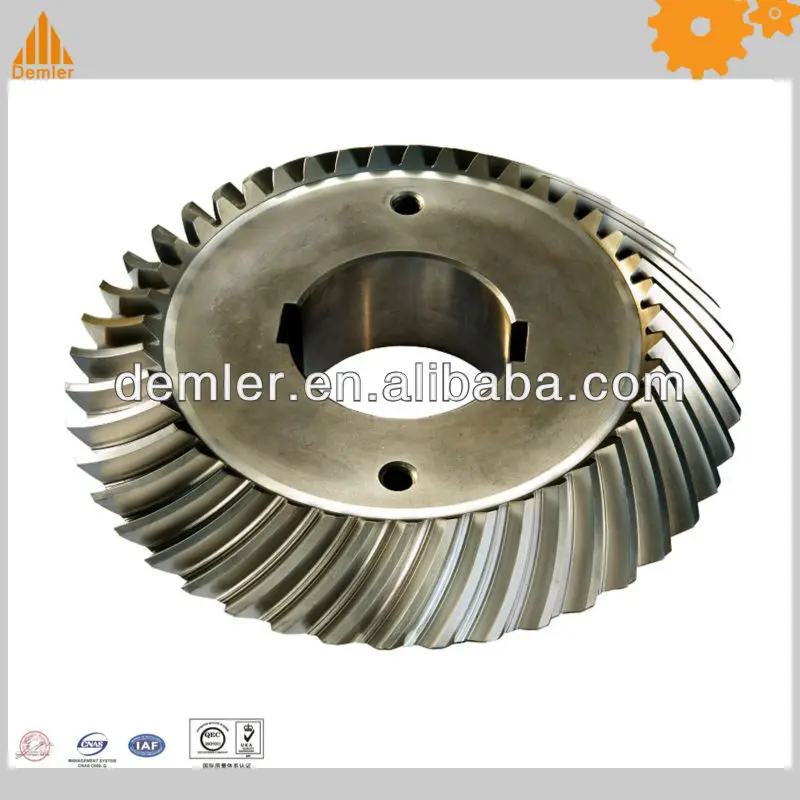

gleason bevel gear

Product Overview

Description

Specifications

Bevel gear material:steel/plastic/as required ISO 9001 certificated samples/OEM services available High precison good price.

Bevel gear We can provide kind of gears with superior quality at reasonble price!

Bevel Gear

1. Types: External/internal gears / Spur / Helical / Double helical / Bevel / Hypoid / Crown / Worm / Non-circular / Rack and pinion / Epicyclic / Sun and planet / Harmonic drive / Cage gear

2. Material: alloy steel / carbon steel / stainless steel / copper / nylon

                   20CrMnTi/42CrMo/20CrMo/20CrMoTi/42#/45#/ZF7B

3. Quality: ISO9001:2000 / ISO/TS16949:2000

4. Standard process: Annealing - Forging - Shaping - Heat Treatment - Machining-inspection-Packing

5. Surface: Galvanizing/Black Anodic Treatment/Spray Printing/Mirror Finish/Burnishing/Sand-blasting

6. Packing: Neutral packing / Brand packing / Customized packing

                  1) Inner: Waterproof kraft paper                   2) Outer: Export carton / Pallet

7. Samples / OEM services available

If you did have sample , you know the detail specification of the prduct please offer to me as follow:

List of Drawing Symbols[edit]

Np - Number of teeth on pinion

Ng - Number of teeth on given gear

Dg - Pitch diameter of given gear

Dp - Pitch diameter of given pinion

F - Face width (length of single tooth)

γ - Pinion pitch angle (radians)

Γ - Gear pitch angle (radians)

Ao - Cone distance (distance from pitch circle to intersection of shaft axes)

rb - Back-cone radius

P - Diametrical pitch (teeth per inch of pitch diameter (N/D))

p - Circular pitch (inches of circumference per tooth (Π/P))

8. Small orders accepted. Larger order quantity makes lower unit price.
