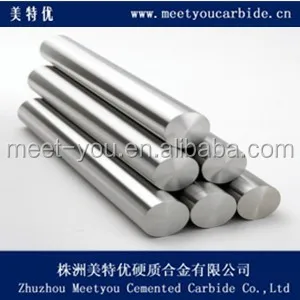

High quality tungsten carbide 4mm diameter YG8 polished rod High quality tungsten carbide 4mm diameter YG8 polished rod
- Category: >>>
- Supplier: Zhuzhou Meetyou Cemented Carbide Co. Ltd. [Hunan China]Zhuzhou
Share on (1121869782):
Product Overview
Description
High quality tungsten carbide 4mm diameter YG8 polished rod
1/Production process
Mixture(WC+CO+alcohol)→wet grinding→ drying→grinding again→suppression(Oil press,Automatic hydraulic press)→QC for blank→rubber extrusion→Wc+Co→sintering(HIP )→tungsten carbide blank→Fine grinding→QC→packing
2/TDB Intered rods with standard dimension
1.Advanced equipment ,Good quality
2.state of the art technologies ,world's most Advanced equipment,fast delivery,with high hardness and wear / corrosion resistance.
3.Small Orders are valid
3/Descriptions:
Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.
We are ISO 9001 certified manufacturer of tungsten carbide cutting tool components for turning, milling, drilling, grooving and threading applications
4/ Features and applications:
Our Carbide rods have a good shock resistance and bending resistance in use.
Tungsten Carbide Rods are manufactured as standards with one, two, or three holes, straight or twisted to a 30 or 40 degree helix, or solid with no holes. All rods are available in standard lengths of 310 and 330 mm. Custom lengths available by request.
GRADE AND SPECIFICATION OF RODS
Our Grade | Equal to ISO Category Number | Performance | Application | |||||
Density | Bend Strength | Hardness | ||||||
G/Cm3 | N/mm2 | HRA | ||||||
YB10 | K20-K30 | 14.4-14.5 | ≥3000 | ≥91.8 | Qualified for the machining of common steel, cast iron, stainless steel, refractory steel, nickel and titanium alloy. It is recommended to be used for the common tools such as twist drill, vertical milling cutter and gun drill. | |||
Type specifications: φDiameter x Length
Type(mm) | Type(mm) | Type(mm) | Type(mm) | Type(mm) |
ø1.0*330 | ø5.0*330 | ø10.0*330 | ø15.0*330 | ø20.0*330 |
ø1.2*330 | ø5.5*330 | ø10.5*330 | ø15.5*330 | ø21.0*330 |
ø1.6*330 | ø6.0*330 | ø11.0*330 | ø16.0*330 | ø22.0*330 |
ø1.8*330 | ø6.5*330 | ø11.5*330 | ø17.0*330 | ø23.0*330 |
ø2.3*330 | ø7.0*330 | ø12.0*330 | ø16.5*330 | ø24.0*330 |
ø2.5*330 | ø7.5*330 | ø12.5*330 | ø17.5*330 | ø25.0*330 |
ø3.0*330 | ø8.0*330 | ø13.0*330 | ø18.0*330 | ø26.0*330 |
ø3.5*330 | ø8.5*330 | ø13.5*330 | ø18.5*330 | ø27.0*330 |
ø4.0*330 | ø9.0*330 | ø14.0*330 | ø19.0*330 | ø28.0*330 |
ø4.5*330 | ø9.5*330 | ø14.5*330 | ø19.5*330 | ø30.0*330 |
Tolerance of diameter(mm):+0.2/+0.6 Tolerance of length(mm):-0.1/+0.5

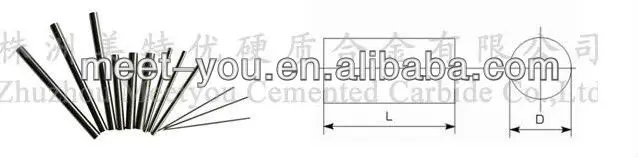

The drawing of rod

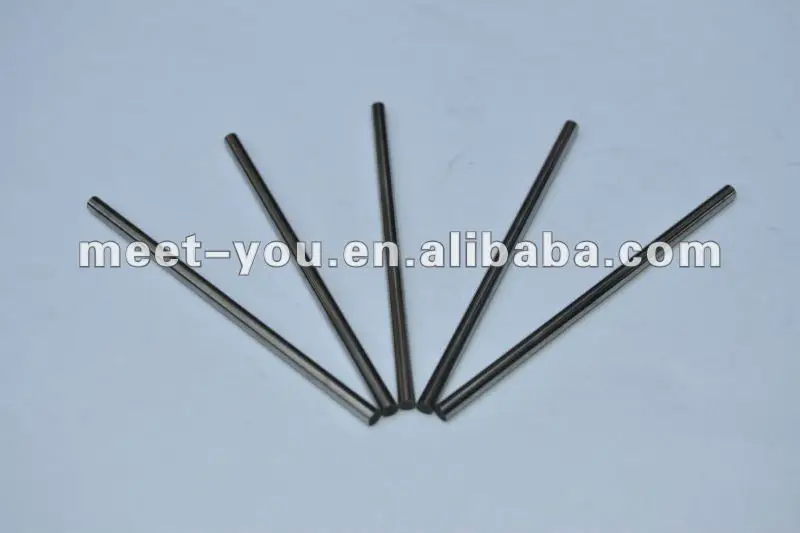

product show

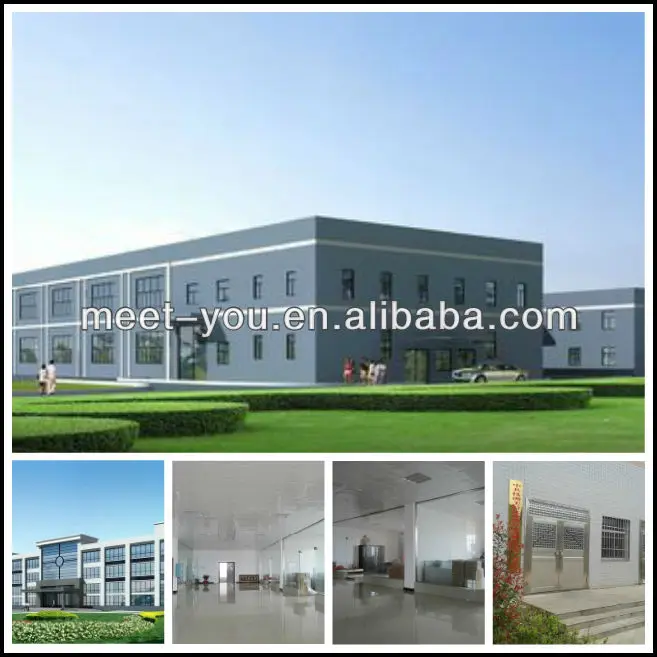

company image
