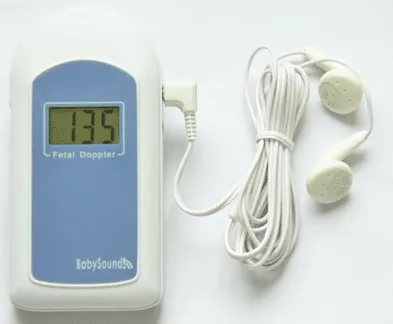

CE approved Babysound B Homecare Mini fetal heart doppler

Product Overview

Description

Home Use Pocket Fetal Heart Doppler





Instructions



Baby Sound B Pocket Fetal Doppler is a hand held equipment for detecting Fetal Heart Rate(FHR) which is specially designed for family of pregnant women to conduct daily detection of FHR by themselves. Pregnant women can operate by themselves to hear fetal heart sound and calculate FHR to realize the purpose of pre-monitoring and fetus caring.Baby Sound B is a high performance model with LCD digital display.











Main Features



1. The probe and main units integrated together

2. Delicate and compact design, portable to use

3. Particular 2 Headphone Sockets design can let expectant mother and father hear the fetal heart sound together

4. High sensitive doppler probe

5. Low ultrasound output intensity, much lower than the relative government standard and with high safe quality

6. Low power consumption, two AAA size batteries can last more than 8 hours for continuous use (depend on battery type and volume)

7. Can be connected to a computer or recorder to record the fetal heart sound with recording cable

8. LCD FHR Display with high accuracy

9. Screen will be locked automatically without signal for 15s, which is convenient for pregnant women to operate individually











Main performance



Anti-electroshock Type: Internally powered equipment

Anti-electroshock Degree: Type B applied part

LCD Display:25 mm×14 mm

FHR Measuring Range: 50 - 240 BPM (BPM: beat per minute) Resolution:1 BPM

Accuracy:±2 BPM

Power Consumption:< 1 W Voltage:DC 3.0 V

Power Supply: TWO 1.5V(AAA size)alkaline battery

Suitable Using Range: Suitable for use after the 12th week of pregnancy

Probe: Nominal Frequency: 2.0 MHz

Working Frequency: 2.0 MHz±10%

Ultrasound Output Power: P < 10 mW

Ultrasonic Output Intensity:Isata < 5 mW/cm²

Working Mode: Continuous wave Doppler

Effective Radiating Area of Transducer: 208 mm²±15%

Physical Characteristic

Dimension: (L) 110 mm × (W) 55 mm × (H ) 16.8 mm(the space between probe culmination and upper panel is 26 mm)

Weight: About 80 g (including batteries)
