GOVO GYTC8S 4B1 4 cores Fiber Cable Figure 8 Fiber Optical Aerial Cable
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (1122308136):
Product Overview
Description
GOVO GYTC8S-4B1 4 cores Fiber Cable Figure 8 Fiber Optical Aerial Cable
Product Description

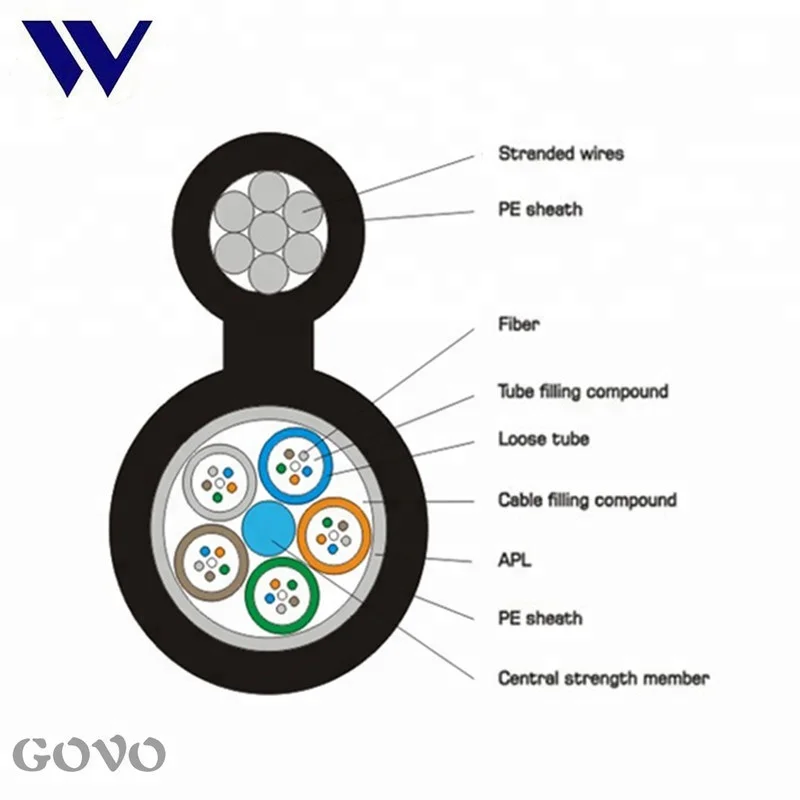

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethyene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
figure 8 cable GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation.
Features
Characteristics
- High tensil strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
- Good mechnical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensures a critical protection of fiber
- The following measures are take to ensure the cable watertight:
- steel wire used as the central strength member
- loose tube filling compound
- 100% cable core filling
- APL moisture barrier
Technical Parameters
Cable Type (increase by 2 fibers) | Fiber Count | Tubes | Fillers | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N | Bending Radius Static/Dynamic mm |
GYTC8A -2~6Xn | 2~6 | 1 | 4 | 6.8×9.2×18.0 | 214 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A -8~12Xn | 8~12 | 2 | 3 | 6.8×9.2×18.0 | 214 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-14~18Xn | 14~18 | 3 | 2 | 6.8×9.2×18.0 | 214 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-20~24Xn | 20~24 | 4 | 1 | 6.8×9.2×18.0 | 214 | 600/1500 | 300/1000 | 10D/20D |
GYTC8A-26~30Xn | 26~30 | 5 | 0 | 6.8×9.2×18.0 | 214 | 600/1500 | 300/1000 | 10D/20D |
Packaging & Shipping
Packed by Wooden Spool, Delivery length: 2km, 3km etc as per your request
About Us
Our company is professionally engaged in supplying of fiber optical products
Our products mainly fall into six categories, namely
Optic Power Meters, Light Source,Optic Multimeter,VFL
OTDR, Fiber Optic Identifier...

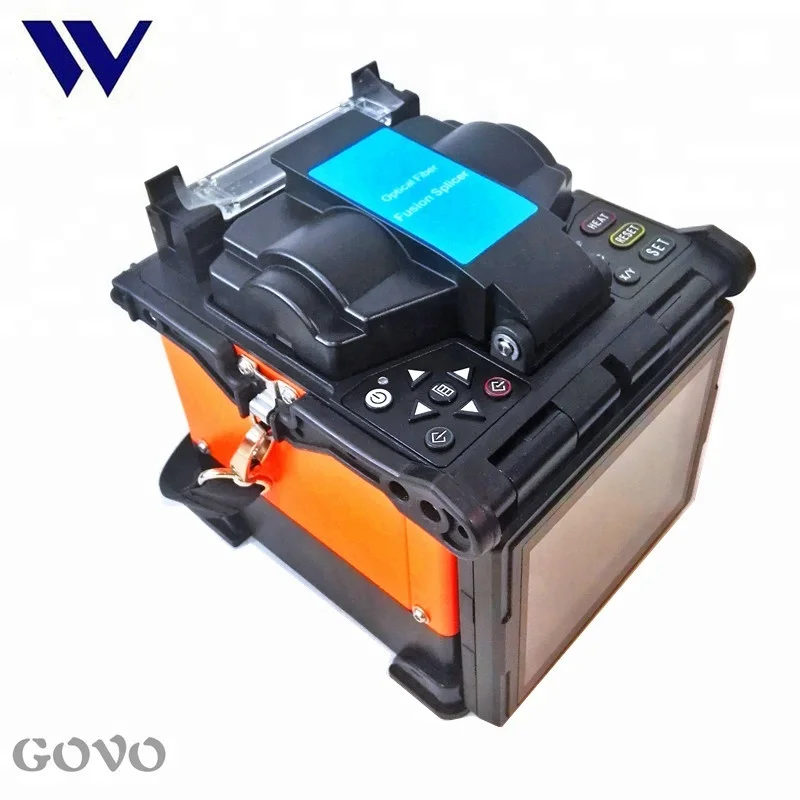

Fusion Splicers; Fiber Cleavers; Mechanical Splice;Splice-on Connectors;
Protective Sleeves;Blades,Electrodes, Batteries etc
Patch Cords, Pigtails,Attenuators,Couplers,Adapters, Fast Connectors,
Our products are extensively used in CATV, telecom/data transmission and other industries.
Shanghai Govo Telecom Co.,Ltd.
Your reliable supplier and partner!
Feel free to send us inquiry , we will offer the quality products with best prices and services.
