Insulin Syringe Automatic Assembly Machine

Product Overview

Description

  Insulin syringe Automatic Assembly Machine



Applies Japan Omron programmable controller, while servo mechanism is used in a stake gluing

process,  its pneumatic configuration applies imported elements.The machine  adopts rotary disc

drum  pulley type  rotating movement, and  the assembly of  injector  is  automatic completely.

Operating  panel with  touch screen, finished products are of electronics counting, high efficient

simple to operate, and running is stable without noise. It meets the demand of high-purified space.



Feature



Control system adopts computer touch screen



The shield of machine is all made stainless steel material



Speed control system adopts Japan's Panasonic frequency converter



Special add transparent safety shield,decrease products pollution.





Production SPEC	1ml	2-3ml	5ml	10ml	20ml	30ml	50ml
Production speed	180/min	220/min	250/min	250/min	160/min	150/min	120/min

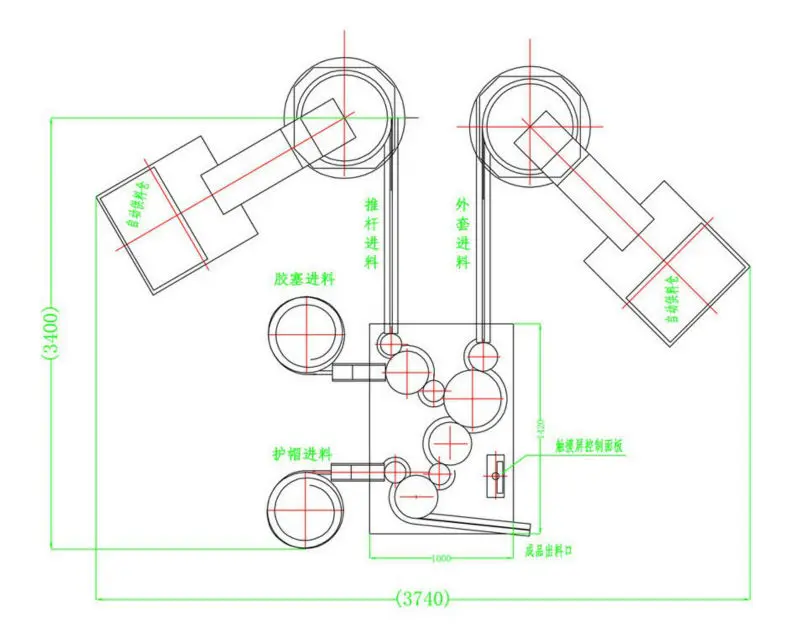

Contour size	4200*3000 *2100	4200*3000 *2100	4200*3000 *2100	4200*3000 *2100	4200*3000 *2100	4200*3000 *2100	4200*3000 *2100
Weight	1500kg	1500kg	1500kg	1500kg	1500kg	1500kg	1500kg
Power source & power	AC220v/2.5kw	AC220v/2.5kw	AC220v/2.5kw	AC220v/2.5kw	AC220v/2.5kw	AC220v/2.5kw	AC220v/2.5kw
Compression air discharge	0.3m3/min	0.3m3/min	0.3m3/min	0.3m3/min	0.3m3/min	0.3m3/min	0.3m3/min
