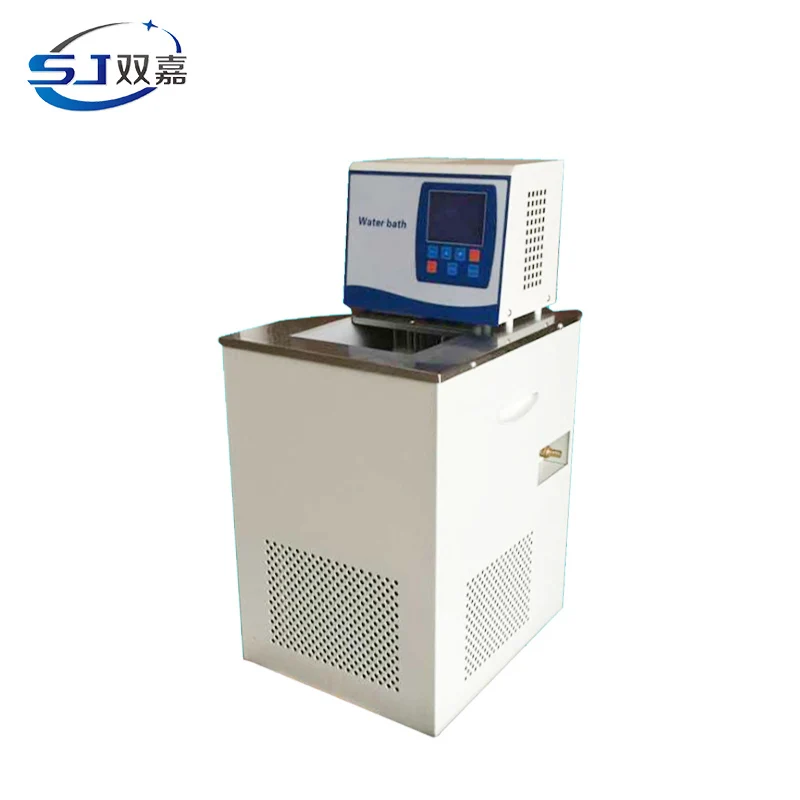

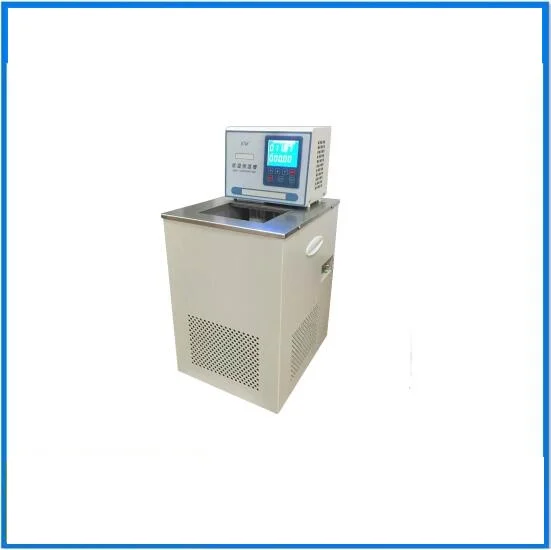

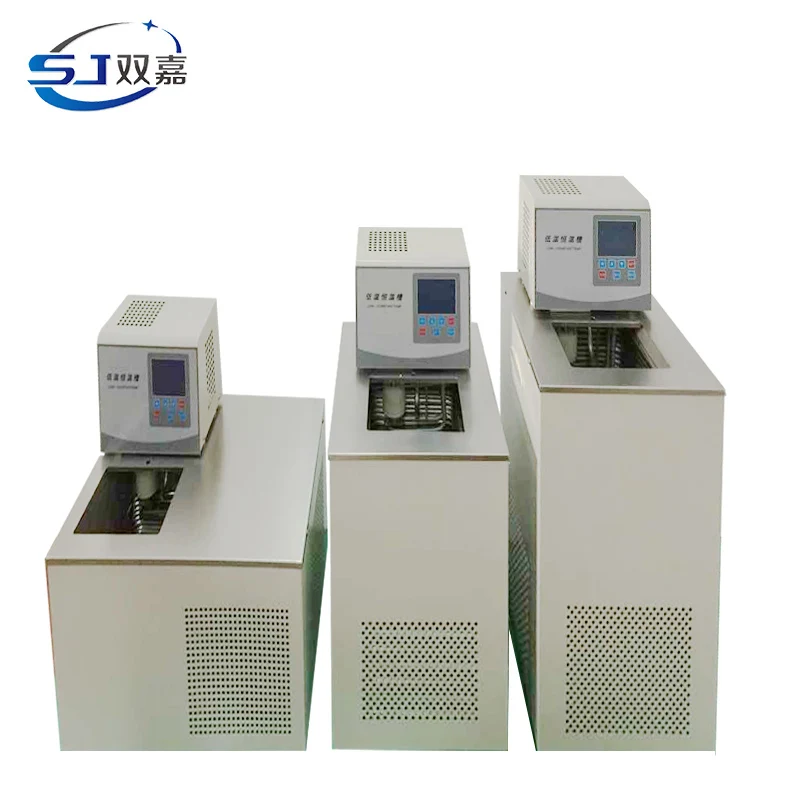

Super-heated water tank series (with level alarm function)
Product description:
CNC super-heated water tank is widely used in chemical, petroleum, medicine, biology, physical chemistry, measurement control, electronic instrumentation processing and other fields, and as a basic laboratory equipment in universities, research institutes and enterprises spread.
Main features:
Digital Resolution: 0.01 ℃
Temperature fluctuation values: ± 0.02 ℃
Temperature uniformity: ± ± 0.05 ℃ horizontal / vertical
Controlled temperature range: room temperature ~ 300 ℃ (medium selected according to the temperature range: water, methyl silicone oil, etc.)
Technical characteristics:
1.water oil dual: choose room temperature ~ 100 ℃, room temperature ~ 200 ℃, room temperature ~ 300 ℃ temperature range;
2. outer loop functions: Centrifugal jet circulation pump can be heated liquid tank outside the guidelines, a second temperature field, the control unit external experiment containers.
3. capacity range: 5L, 10L, 15L, 20L, 30L, 50L, 100L, can also be completely designed and manufactured in accordance with the requirements of users of non-standard.
4. Temperature control: integrated into the latest generation PID automatic temperature control program, built the highest precision PT100 temperature sensor 1/3B level. Bright LCD screen with a large screen, bilingual display, digital display resolution: 0.01 ℃, ensuring accurate and stable temperature control.
5. inner loop function: no-calorie centrifugal circulating pump, to avoid the traditional heat pumps due to their own body temperature affect the tank farm. Within the circulatory system is porous U-reflow cycle principle designed to achieve a trough in vivo flow field and temperature field turbulence and highly uniform.
6. Anti-aging body shell is made of mirror electrostatic painting techniques, interior and countertops made of high quality stainless steel S304 drawing panel.
7. work fine chassis front panel and countertops, coupled with the unique design of humanized R rounded structure, can avoid operator inadvertently injured by edges.
8. drainage system can meet all kinds of laboratories and production medium was changed.
protection device:
1 with power protection
(2) having upper and lower temperature alarm setting function
3 low-level protection and alarm functions
4 Temperature control protection and alarm functions
5 heating tube has a low water level anti-dry, explosion-proof function
Optional Features Guide
1. optional extended external PT100 temperature sensor, real-time detection and control of the outer loop when the external temperature of the system.
2.Optional built a 30-stage temperature control program for automatic program temperature control, real-time display set temperature - time program running.
3 Optional RS232 or RS485 communication interface, easy to connect PC ModbusRTU protocol.
4 Optional design, equipped with a magnetic stirring system, can be put into the working chamber bath beaker magnetic stirring of the sample directly, without external vertical mixer, reducing tedious operation, and can achieve closed treatment, produced by the mixing process to reduce mist loss.
5 Optional tank internal cooling coil, the exothermic reaction of the system for rapid cooling and control.
6 Optional height adjustable immersion loading platform, easy to adjust the sample immersed in the liquid level.
Packaging & Shipping
Our Services
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company , to carry out maintenance , consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting,
maintenance and other services immediately.
FAQ
1.Q:How to choose the suitable one?
A:Please tell us your detailed requirements by mail or online,we will recommend the suitable one
as your request.
2.Q:Why the price is just a range?
A:Because different model and qantity,the price is different,competitive price will be according to
your model and quantity.
3.Q:How can I pay?
A:We accept many payment,such as T/T,Western Union
4.Q:When I receive it after pay?
A:The normal models can be sent out within 2-5 days,please contact us to check shipping time
to your address.
5.Q:Is it will be broken during transport?
A:Please don't worry,our goods with standard export package.
6.Q:What should I do if I don't know how to use?
A:Please don't worry,manual user will be sent together,you can also contact us for technical support
7.Q:What should I do if some parts broken?
A:Please don't worry,we have 12 months warranty except wear parts.
