128x64 Graphic LCD Display COG Type LCD Module (LM12864)
- Category: >>>
- Supplier: Shenzhen TOPWAY Technology Co. Ltd [Guangdong China]Shenzhen
Share on (11254573):
Product Overview
Description
Product Description

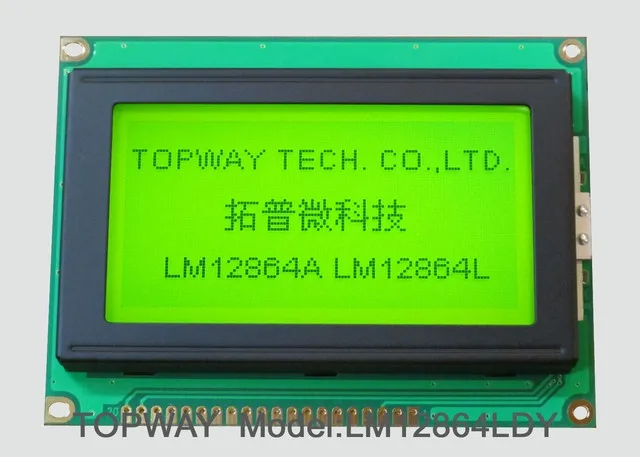

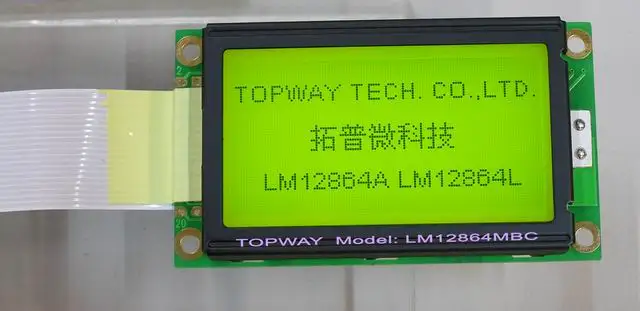

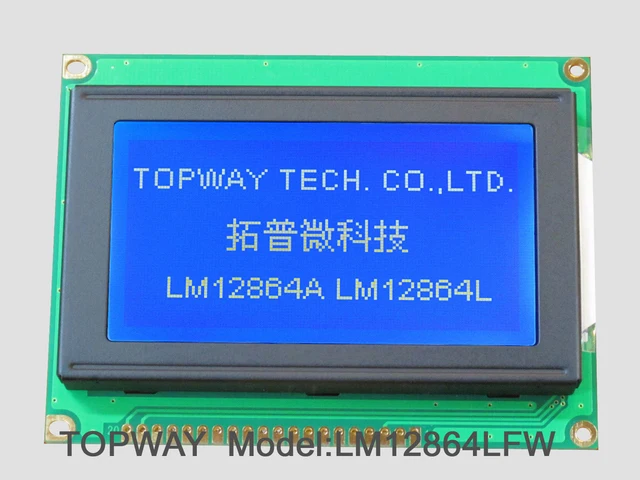

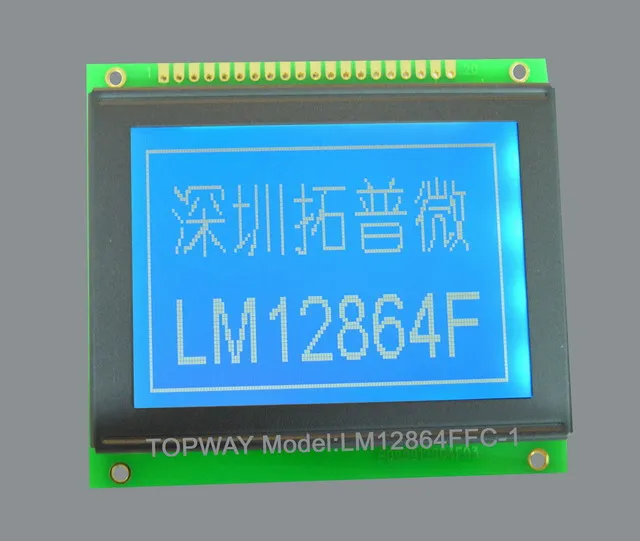

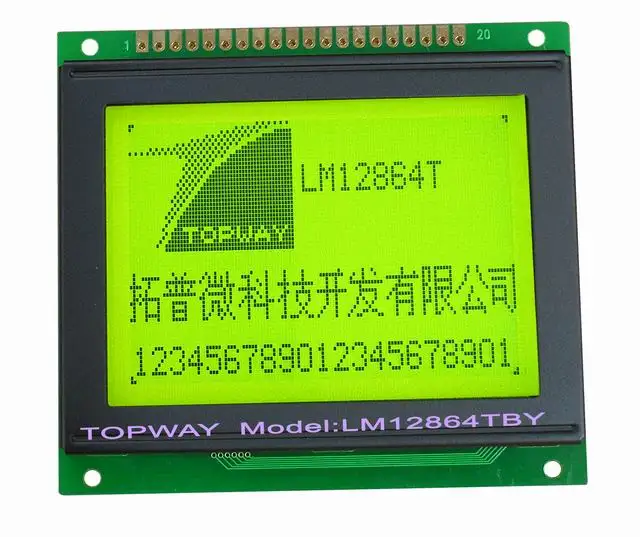

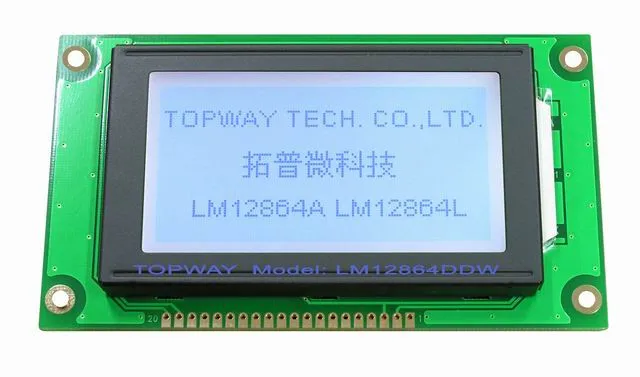

128x64 graphics lcd module LM12864B/C/D/F/G/H/L/M
| Main Parameters | |
| Item | 128x64 graphics LCD Module |
| Model name | LM12864B/C/D/F/G/H/L/M |
| Pixel | 8192 |
| Resolution | 128x64 |
| Brightness | White BL |
| Outline Size | B: 78.5(W)x51(H)x8.9(D) mm C: 78(W)x70(H)x12.9(D) mm D: 113(W)x65(H)x13.8(D) mm F: 78(W)x70(H)x12.9(D) mm G: 93(W)x70(H)x13.8(D) mm H: 78(W)x70(H)x11.5(D) mm L: 93(W)x70(H)x15.3(D) mm M: 76(W)x65(H)x13.5(D) mm |
| Viewing Area | B: 72(W)x39.5(H) mm C: 62(W)x44(H) mm D: 71.7(W)x39(H) mm F: 62(W)x44(H) mm G: 71.7(W)x39(H) mm H: 62(W)x44(H) mm L: 71.7(W)x39(H) mm M: 55(W)x30.6(H) mm |
| Dots | 128x64 |
| Drive Power Supply Voltage | 3.3V/5V |
| Viewing Angle | 6.00 o'clock/12.00 o'clock |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | White background with Black words Yellow-Green background with Black words Blue background with White words |
| IC | ST7920, ST7565R |
Main features of this new design as follows,
1. 128x64 display form
2. STN-Pos/Neg FSTN-Pos LCD, high contrast,
3. Super light white LED backlight, low power consumption
4. support 8bit parallel or SPI interface.
5. Many kinds of outline size to choose
