2.8 Kw 3 Phase Silent 8500w Generator
US $90.00-$110.00
5 kw small silent diesel generator,huahe diesel generator set silent
- Category: Generators >>>
- Supplier: Huahe,Heavy,Industries,Co.,Ltd.
Share on:
Product Overview
Description

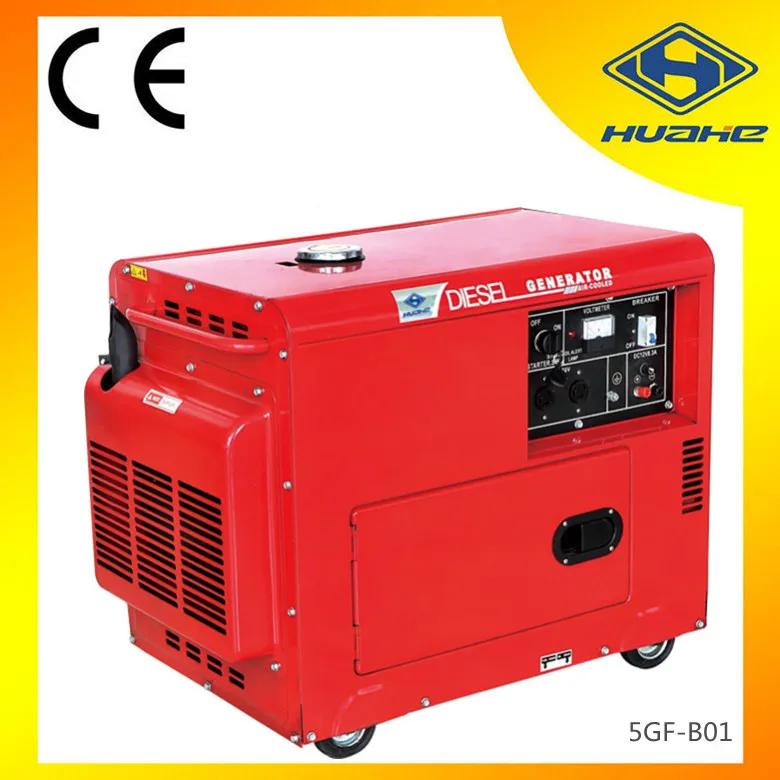

5 kw small silent diesel generator,huahe diesel generator set silent
Brief Introduction:
1. With 24 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.65--5KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 5--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series
h.Electric Pallet Truck Series
i.Electric Stacker Series
j.Accessories:OEM Offered .
Discription Of Product
Model | Silent type | ||
5GF | |||
Generator
| Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit
| Noise level at 7m dB (A) | 770 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 157 | ||
Factory Show
Packing
Loading
Certificate
Remarks: We can offer the OEM/ODM/Drop shipping service,can put your own brand or provide your design and tech pack to us,we make sample as your request.
As the price is quite different for your order quatities,before you place an order,pls be kindly to negotiate with us for the latest pirce!Thank you.
