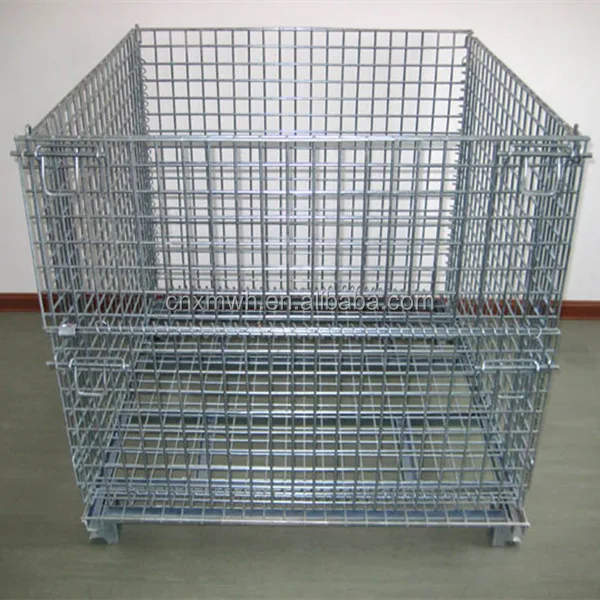

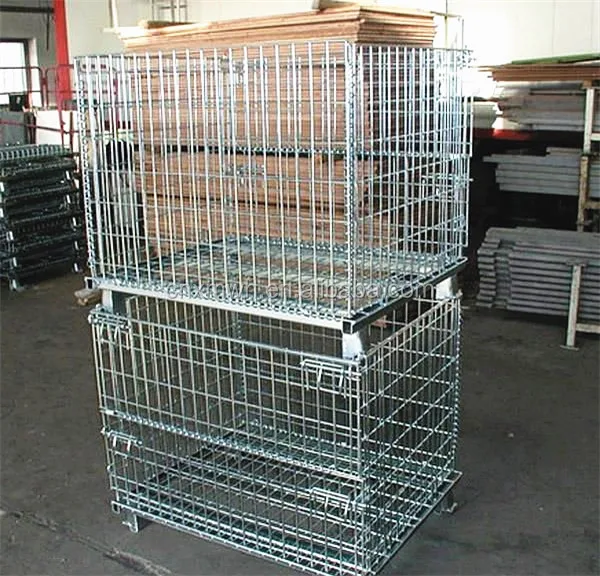

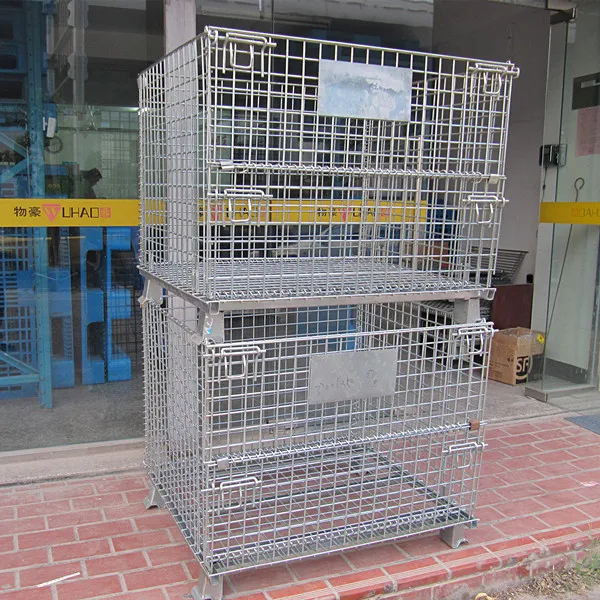

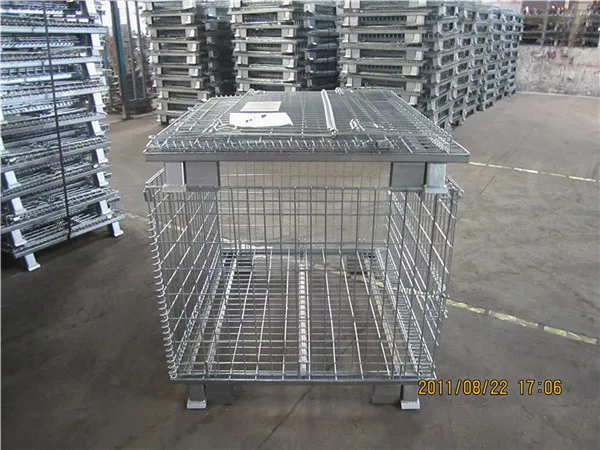

Metal stackable collapsible wire mesh container

Share on:


Price:$45.00 - $80.00
Price in USD:Details

Quantity:


Product Overview

Description






Product Description







Metal stackable collapsible wire mesh container recommended for applications requiring maximum ruggedness and durability in a wide range of manufacturing and warehousing storage applications. The unique fold-down feature collapses this container to approximately 10 inches when not in use.





Features:


Sturdy spiral hinges


Welded, interlocking channel base


Heavy-duty structure


Four way fork entry for easy


Folds flat for easy storage


Stock sizes available for immediate shipment


Custom sizes and options available.








Collapsible Wire Mesh Containers are the perfect solution for your material handling needs.





Why should you use collapsible Wire Mesh Containers instead of Wooden Boxes or Crates?











Wire Mesh Containers
- Stackable
- Product visible
- Mobile by forklift
- Gates for product access easily
- Fire safety
- Collapsible for easy storage



Wooden Containers
- Do not stack safely
- Product not visible
- No gate, for easy access
- Short life cycle


- Moisture and Insect maybe
- Water will not flow through box










Kinds of stackable collapsible wire mesh containers:

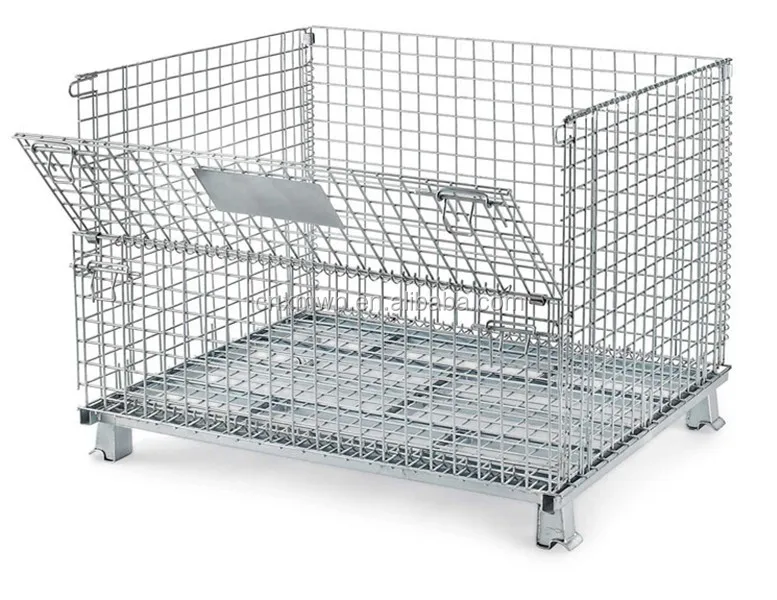

Regular standard wire mesh container,


wire mesh container





Product Advantage:


a. Welded wire mesh structure, storage content visible


b. Zinc galvanized and Powder coated finishing are available


c. Stackable, collapsible, folds to flat for saving space when not in use


d. Drop gate for easy access goods even cages stacked


e. 4 sides entry and easily move by forklift


f.  Lowest maintenance cost


g. Other optional parts include wheels, handle, racking legs, solid wall, lined plastic sheet, etc


h. Products specification can be customized.





Our common standard types of metal stackable collapsible wire mesh container:





Upon to your usage, we have several regular models of wire containers for your choice.


If there are not suitable one for you, we accept your customized design also.





cage stack6.jpg
































































































































































Regular models of wire mesh container
Item No.SpecificationWire diameterMesh gaugeLoad capacitySelf-weightFeet height
External size (L*W*H)(mm)Internal size (L*W*H)(mm)(mm)(mm)(kg)(kg)±2%(mm)
  A1-800800*600*640750*550*5005.850*5080028100
  A1-7005.650*5070027
  A1-6005.350*5060023
  A1-4004.850*5040020.6
  A2-6005.850*10060025
  A3-10006.350*50100032
  B1-12001000*800*840950*750*7005.850*50120044100
  B1-10005.650*50100042
  B1-8005.350*5080035
  B1-6004.850*5060031
  B2-10005.850*100100039
  B3-15006.350*50150051
  C1-15001200*1000*8901150*950*7505.850*50150060100
  C1-13005.650*50130056
  C2-10005.850*100100054
  C2-8005.650*10080048
  C3-20006.350*50200068
Remark: the size, wire diameter, mesh gauge can be customized as your design.




The product information:

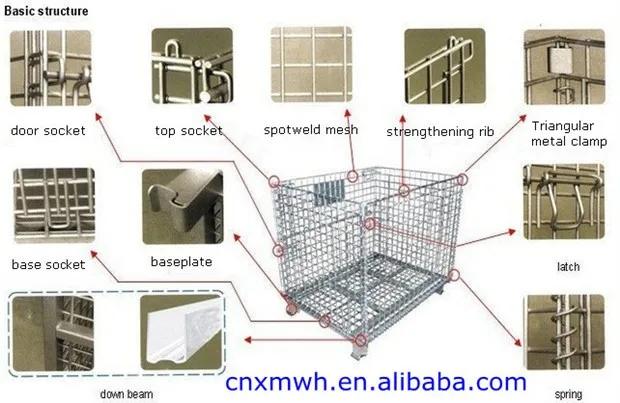

3, The structure of standard collapsible wire mesh container:












A,  Bending-shaped handle latch, open and lock the door naturally.


B,  U-shaped down beam, reinforce loading capacity.


C,  Particular structure of baseplate, ensure the stability when stacked.


D,  Spring hinge connect the reticular wire mesh, foldable when not in use.


E,  Triangular metal clamp on the top to ensure the intensity of the spring hinge.


F,  Auxiliary strengthened rib structure, ensure the stability when unfold.


G,  Multiple spot welding technique, ensure the solidity and durability.


H,  Independent bolt and drop gate for easy to fetch products when stacked.

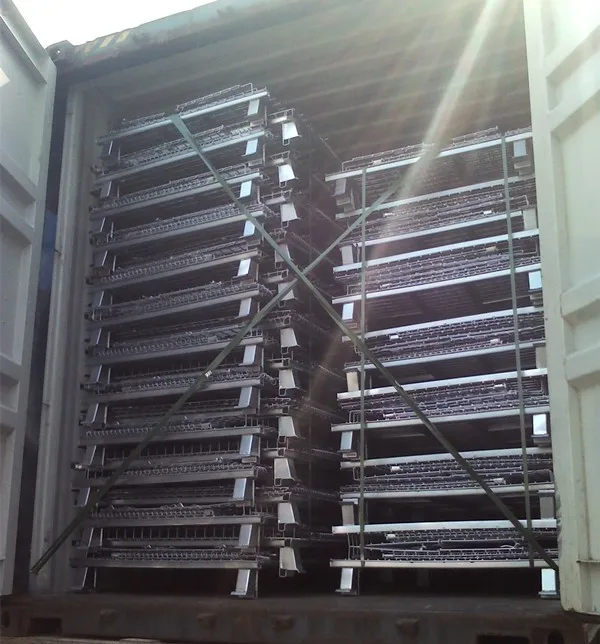

Packaging & Shipping

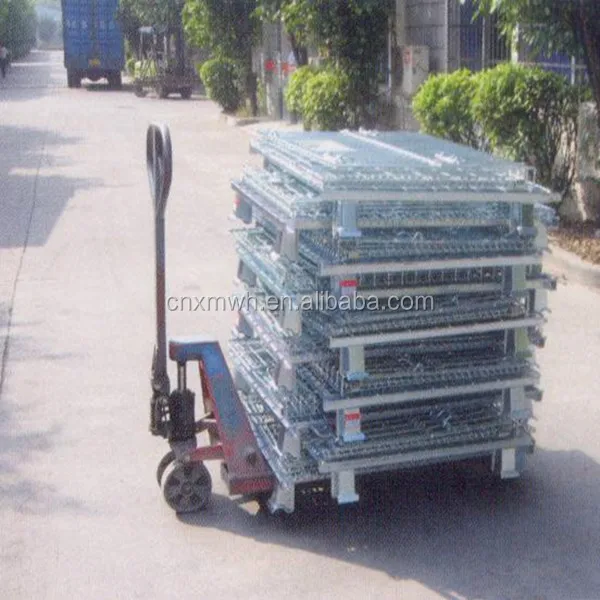

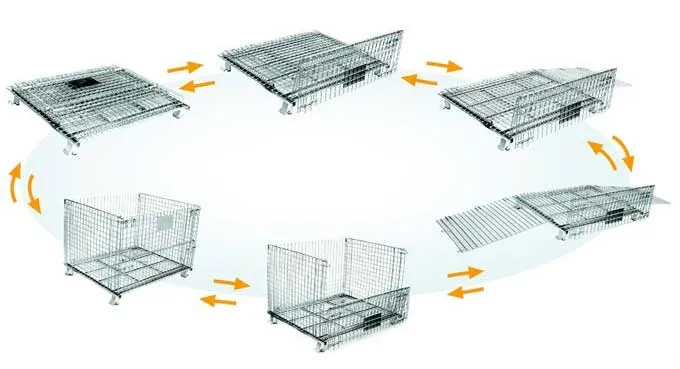

Folding method:

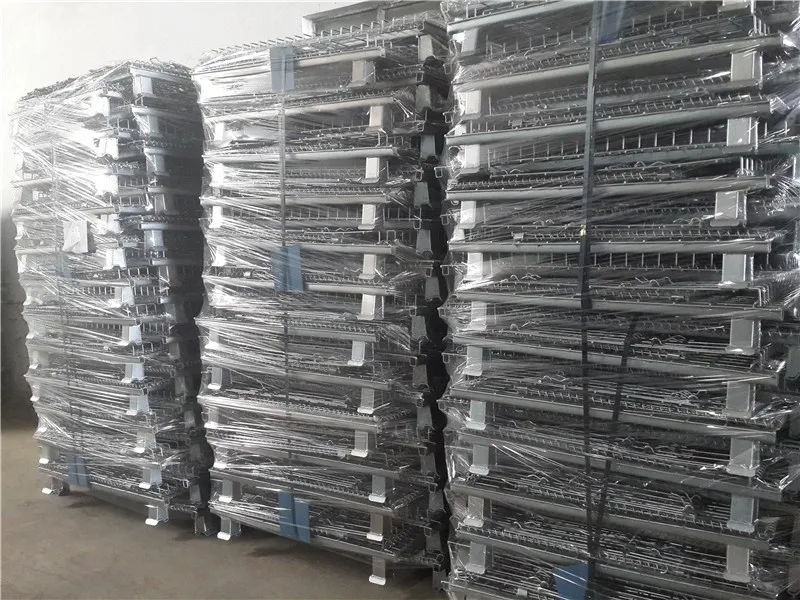

Packging



1. Plastic banding



2. Stretch film wrapped







On time delivery time



1. 20GP(10 days)  40GP(25 days)  40HQ(30 days) after received deposit normally



2. To ensure packaging safety












collapsible wire mesh container.jpg

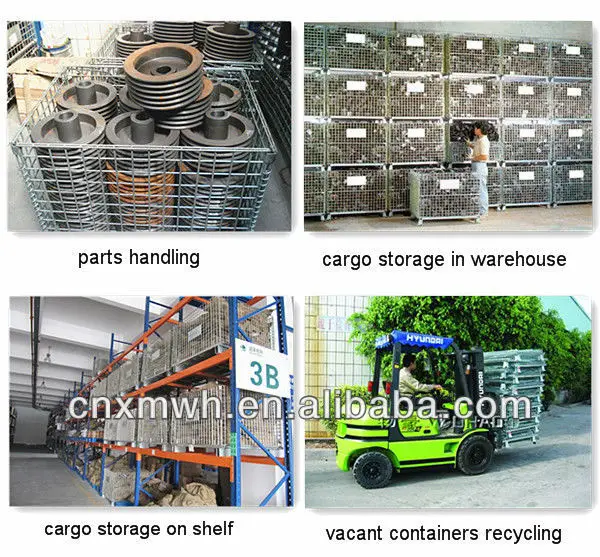

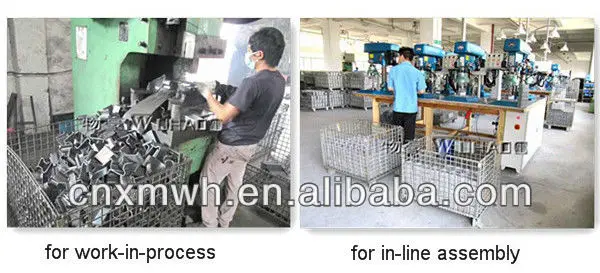

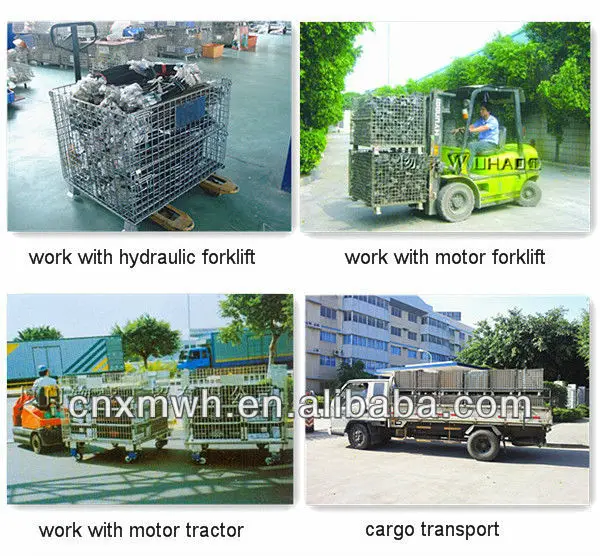

Product Uses


This wire mesh container as a popular logistics tool, it is widely used in warehouse, factory, storage ect.







Nowadays, the metal stackable collapsible wire mesh container play an important role in cargo logistics, they can be used as pallet or storage cage, and they are widely used for cargo handling, transportation and storage, especially for automotive parts, accessories and spare parts, hardware, machinery, electronics, warehousing etc.


usage2 of foldable wire container.jpgusage1 of foldable wire container.jpgusage3 of foldable wire container.jpg






Related Products


Other type of wire mesh container products:




Other kinds of cage models:





(1) Standard wire container with wheels


moveable wire cage.jpg





(2) Pallet cage

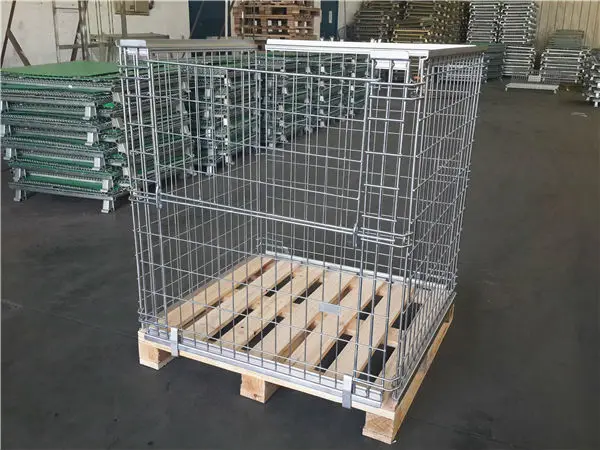

(3) Wire feet cage ( Euro style cage)


Color galvanized wire mesh storage container.jpg





(4) heavy duty cage


metal pallet cage.jpg

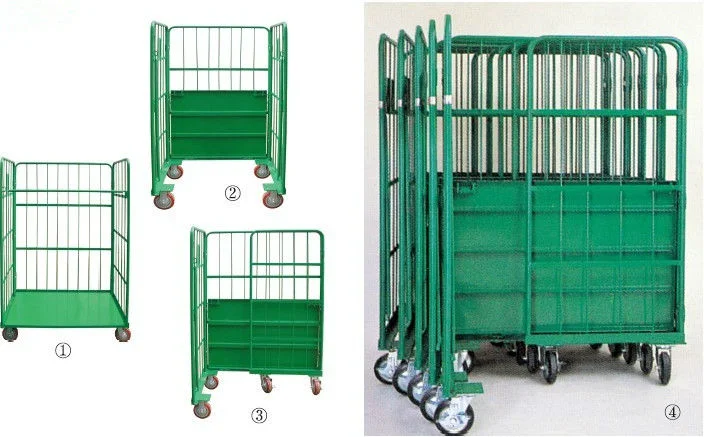

(5) roll cage trolley


normal style roll cage.png





All OEM storage cage product is available, please inform us if you have any requirement.
