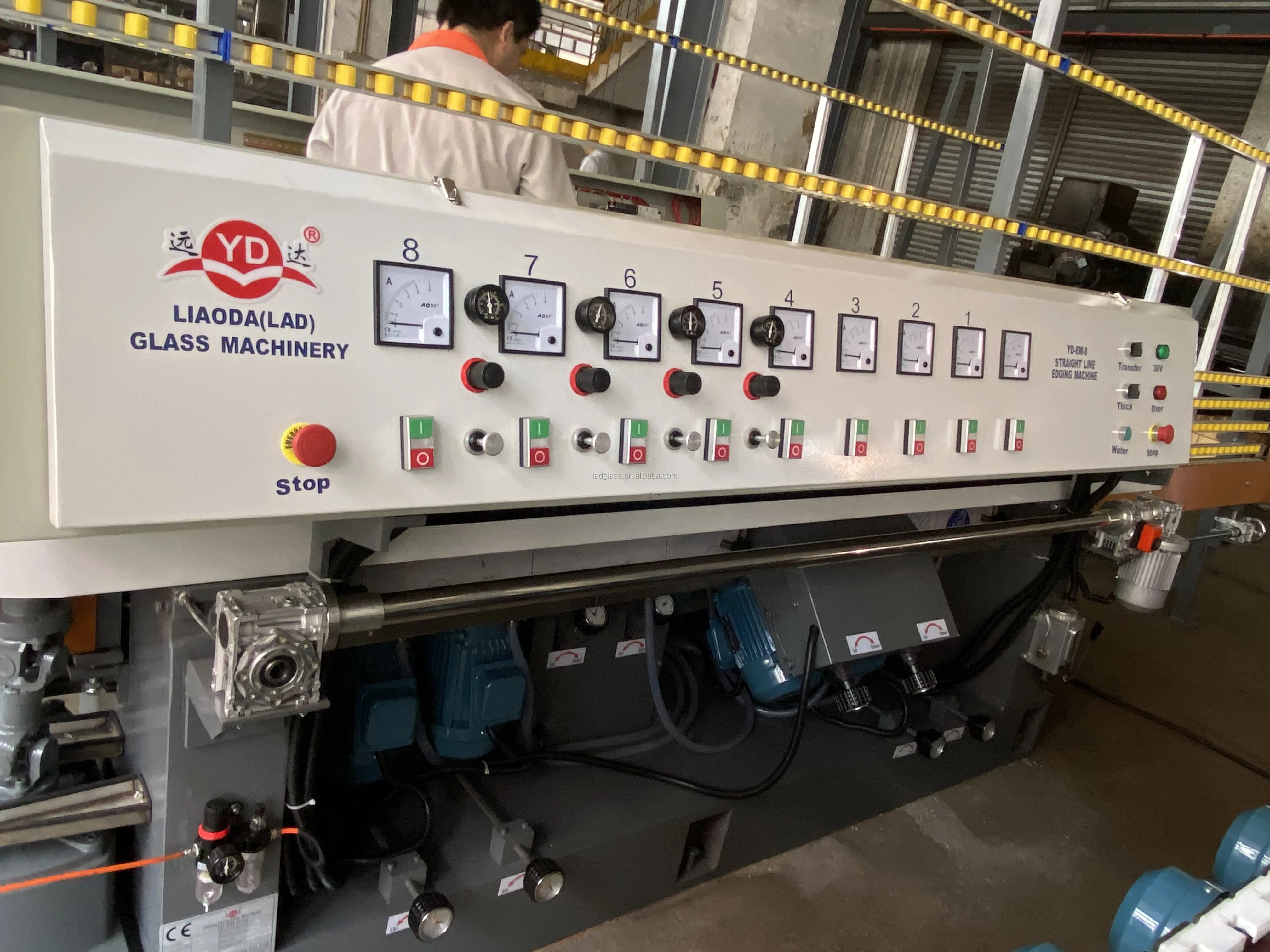

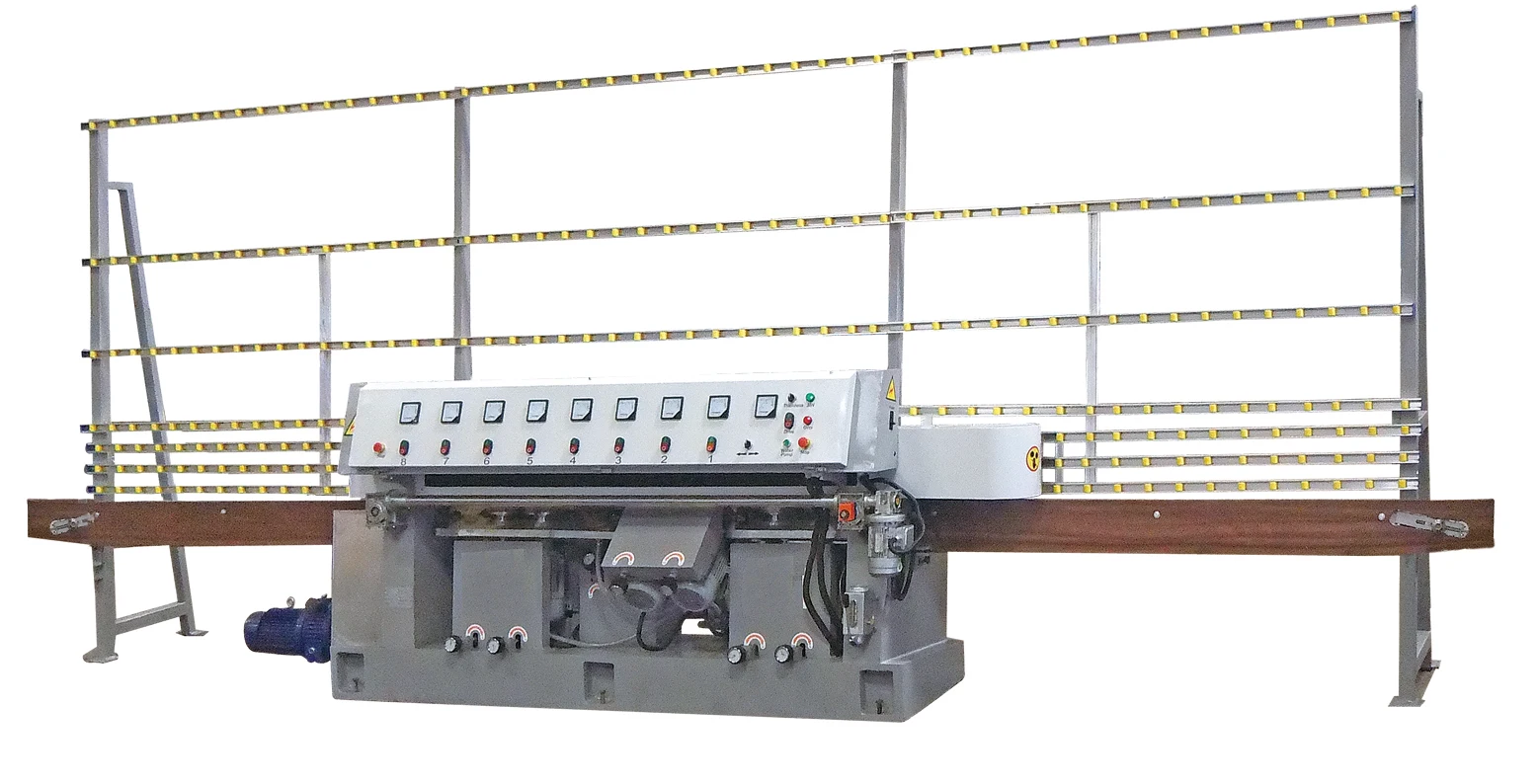

8 motors manual window glass edging grinding machine

Product Overview

Description

8 motors manual window glass edging grinding machine





Functions:

l Processes rectilinear glass plates in various sizes and thicknesses;

l The grinding (roughing), finishing resin and fillets can be performed simultaneously;

l The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.





Technical data

Item	Specification
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Arrise angle:	45°
Max. glass size:	3000x3000mm/2500x3500mm
Min. glass size:	80x80mm
Glass thickness:	3-19mm
Installed power	15.5kw
Working speed	0.7-5.0m/min
Weight	2600kg
Worktable height	750mm
Overall dimension (L.W.H)	6500x1000x2600mm

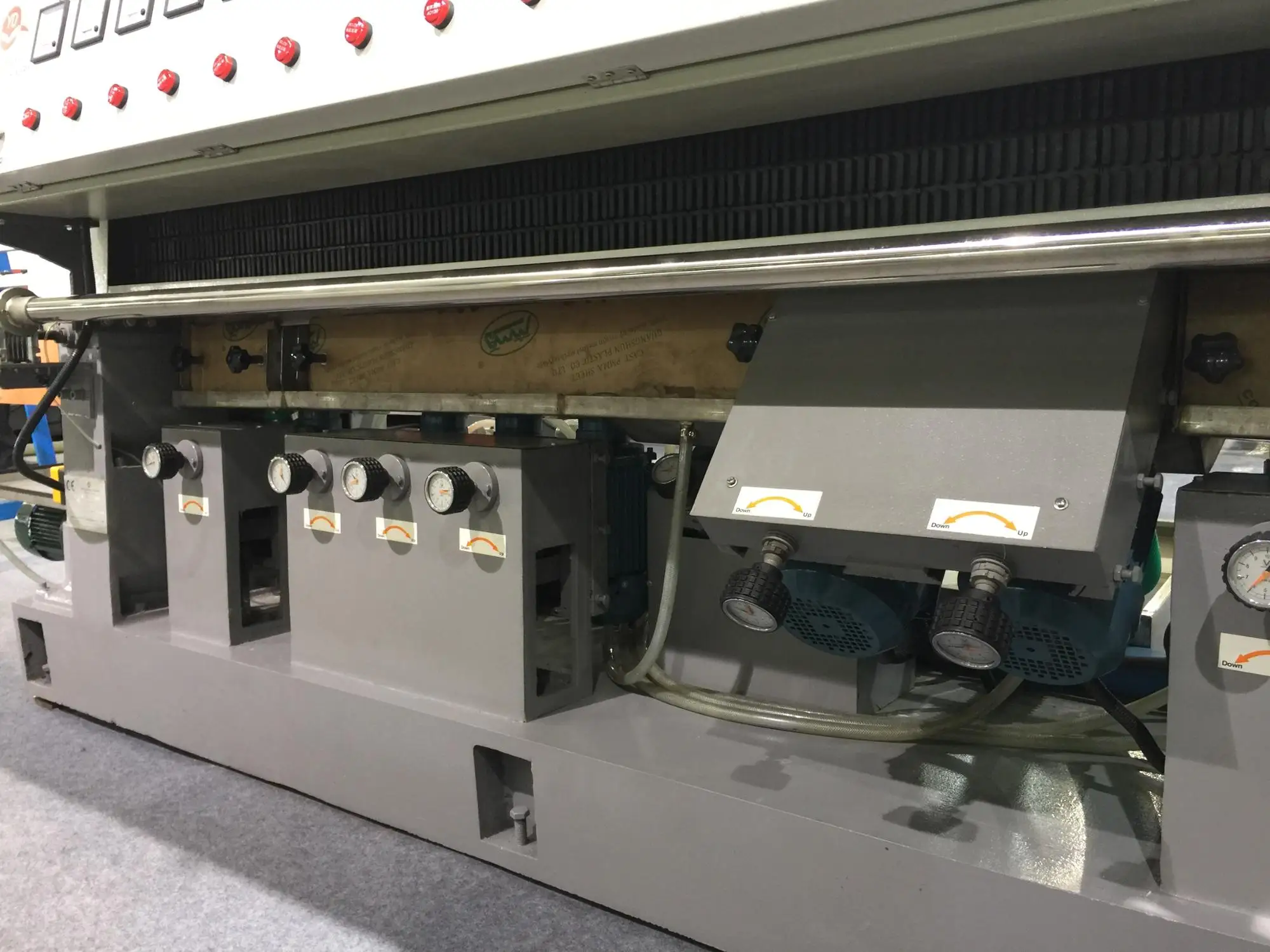

Machine characters:

l Machine basement, cast steel



l Motors for spindles: three phase induction motor, Chinese brand or ABB

Wheel for flat edge: 2.2KW, 4.7A, 2840r/min

Wheels for arris: 1.5KW, 3.7A, 2840r/min

l Cycloid-pin wheel: Chinese brand

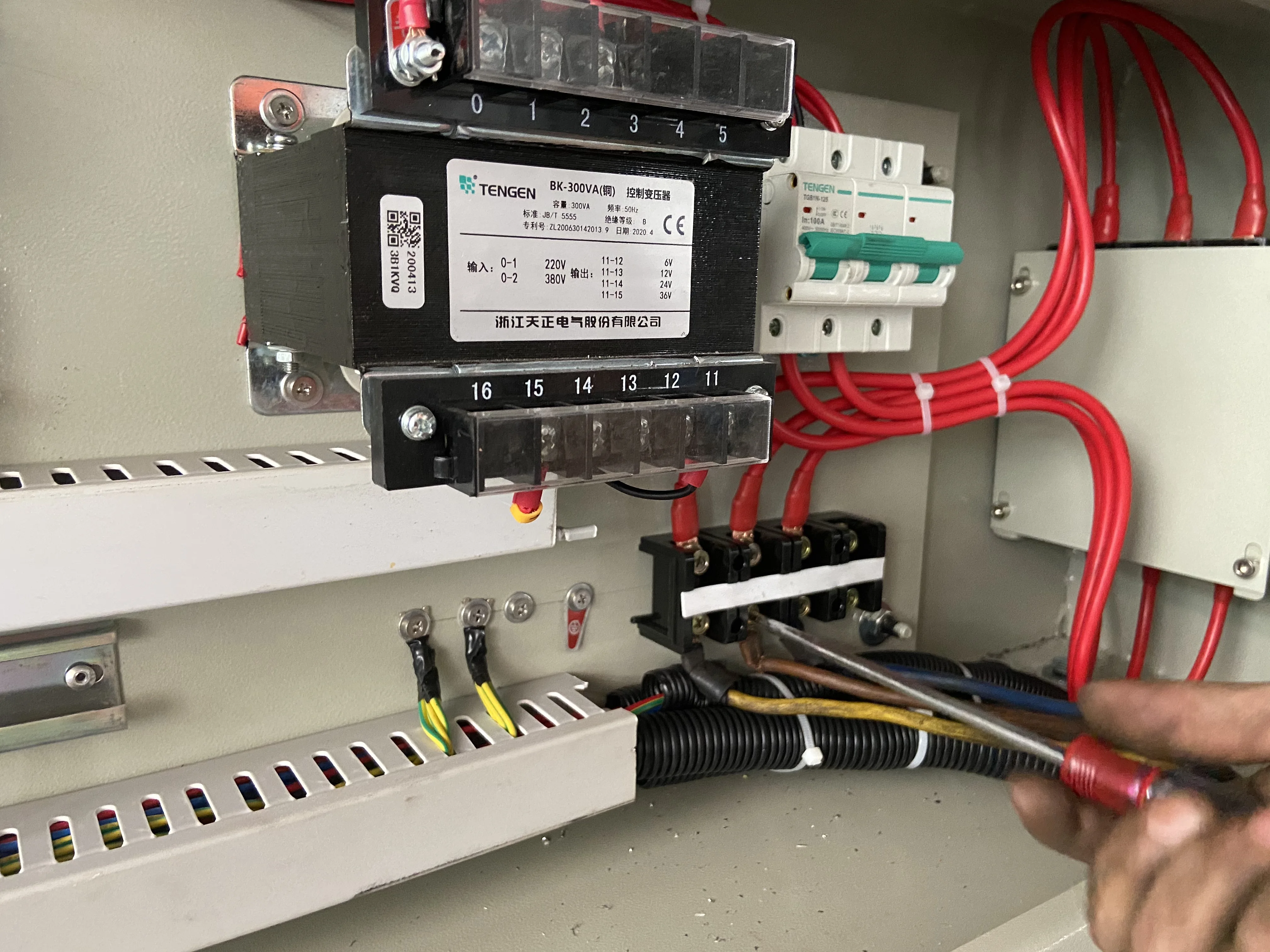

l Control system: Manual, PLC or MCU, Micro-computer

l Speed control: Stepless or Frequency speed control



l synchronous belt



l stainless steel water tank



l Steel glass rack or alum rack





l Manual or automatic lubrication pump



l Easy motor adjusting



l Bearing structure for option



Our customers











Exhibitions: Chinaglass







How to make an inquiry of glass processing plant?



We will need following information to make an offer and suggestions for your project:



1. Max. and Min. glass size of glass to be processed

2. Glass thickness range, especially the min. glass thickness

3. Glass type

4. Output requirement

5. Glass type
6. Power (Voltage and frequency)

7. Or tell your requirement we will recommand suitable machines to you!
