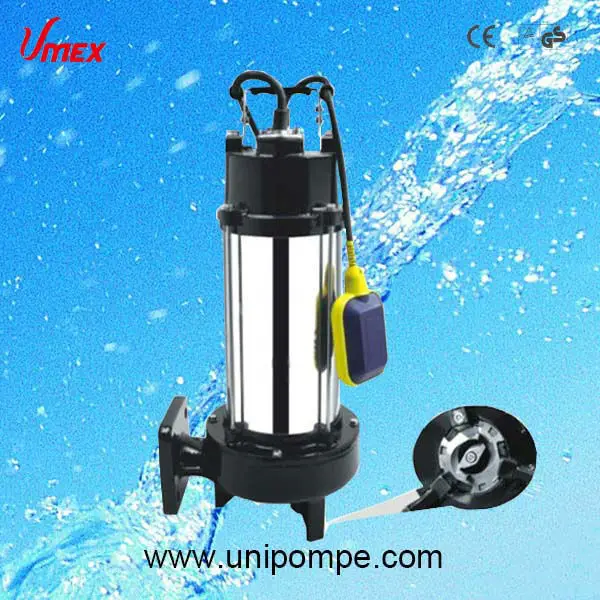

WQ Model best hot sale submersible pump for dirty water
- Category: >>>
- Supplier: Umex (ningbo) Imp. & Exp. Co. Ltd.
Share on (1127052222):
Product Overview
Description
WQ MODEL SUBMERSIBLE SEWAGE WATER PUMP
Product Description
submersible pump for dirty water
8Flow rate: up to 350 L/min (21 m3/h)
8Head: up to 25m
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 15mm

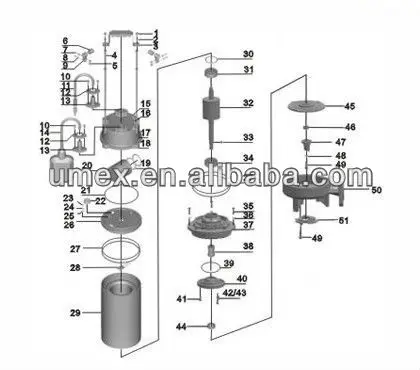

Explosive View
N. | DESCRIPTION | N. | DESCRIPTION | N. | DESCRIPTION | N. | DESCRIPTION |
1 | Bolt | 16 | "O" ring | 31 | Bearing | 46 | Word ring |
2 | Washer | 17 | Streching washer | 32 | Rotor | 47 | Rotation cutter |
3 | Handle | 18 | Capacitor cover | 33 | Key | 48 | Streching washer |
4 | Bolt | 19 | "O" ring | 34 | Bearing | 49 | Screw |
5 | Nut | 20 | Capacitor | 35 | Bolt | 50 | Pump body |
6 | Protector | 21 | "O" ring | 36 | Washer | 51 | Fixed cutter |
7 | Screw | 22 | Line protector | 37 | Connection part |
|
|
8 | Washer | 23 | Screw | 38 | Mechanical seal |
|
|
9 | Cable presser | 24 | Streching washer | 39 | "O" ring |
|
|
10 | Screw | 25 | Washer | 40 | Oil chamber cover |
|
|
11 | Cable | 26 | Motor cover | 41 | Screw |
|
|
12 | Flange | 27 | "O" ring | 42 | Screw |
|
|
13 | Cable protector | 28 | Thermal protector | 43 | "O" ring |
|
|
14 | Float switch | 29 | Stator | 44 | Oil seal |
|
|
15 | Bolt | 30 | Undulated washer | 45 | Impeller |
|
|

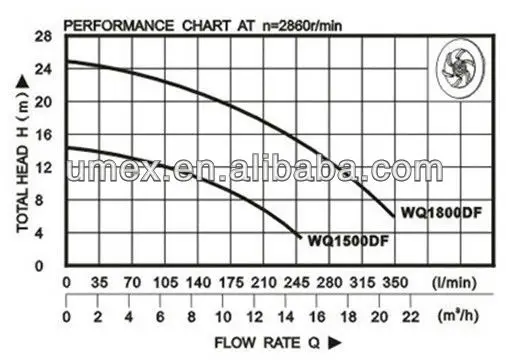

Performance Chart
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL | POWER | MAX.HEAD | MAX.FLOW | OUTLET | Voltage/Frequency | G.W | PACKING DIMENSION | 20"QUANTITY |
(Kw) | (m) | (L/min) | (mm) | (V/Hz) | (K.g) | (cm) | pcs | |
WQ1500DF | 1.5 | 14.5 | 250 | 50 | 220/50 | 31.5 | 59X35.5X25 | 540 |
WQ1800DF | 1.8 | 25 | 350 | 50 | 220/50 | 38 | 59X35.5X25 | 540 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.

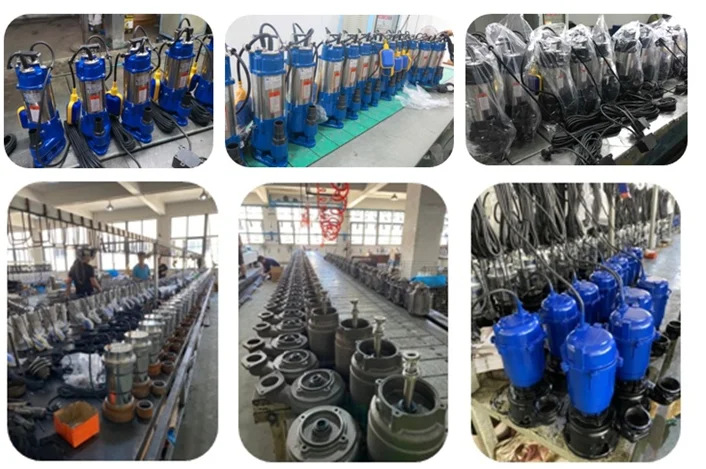

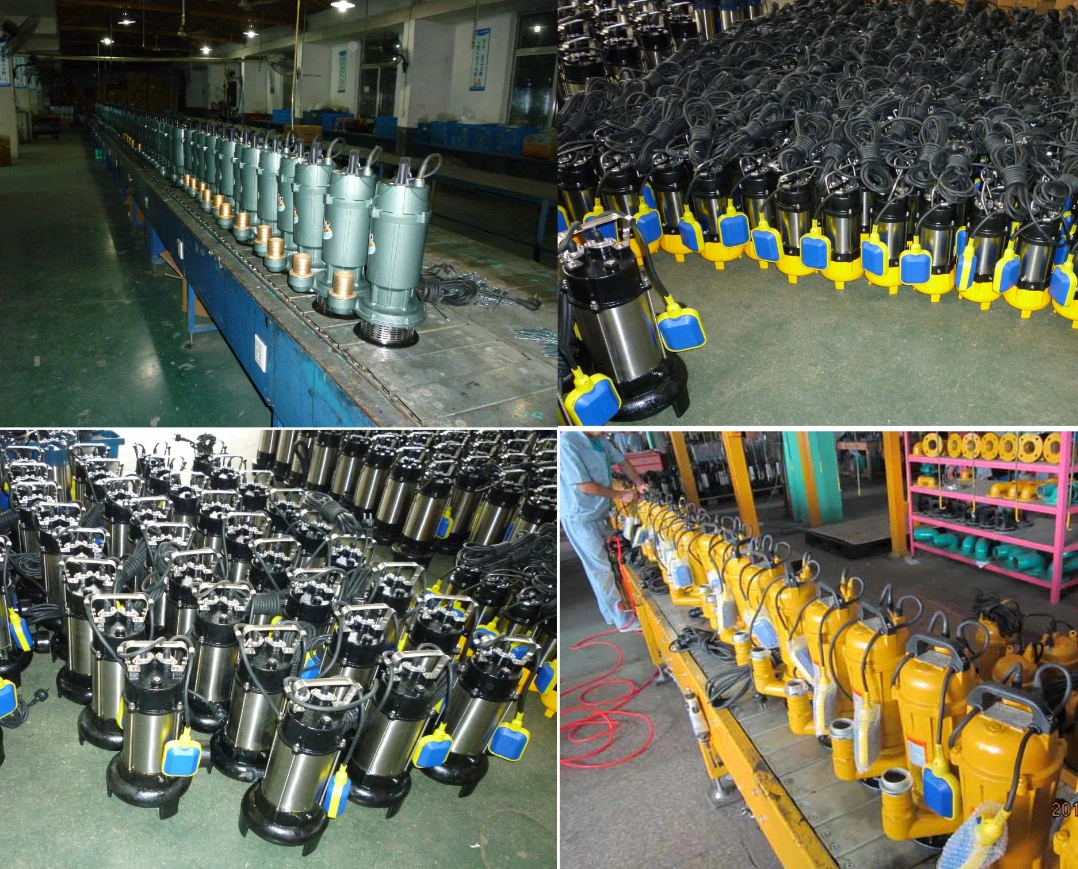

Production Flow
Certifications
FAQ
Q1.What will you do for after sale?
A: We will follow up and await your feedback after we delivery the goods to you.
Q2.Why did you choose us?
A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps and pump fittings.
Q3.How does your factory do regarding quality control?
A:Quality is priority, and we will do 100% quality inspection before shipment.
Q4.Can we use our own logo and design?
A: Yes, you can. We'll produce pump on your brand and according to your design.
Q5.What's the delivery time of your products?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season.
