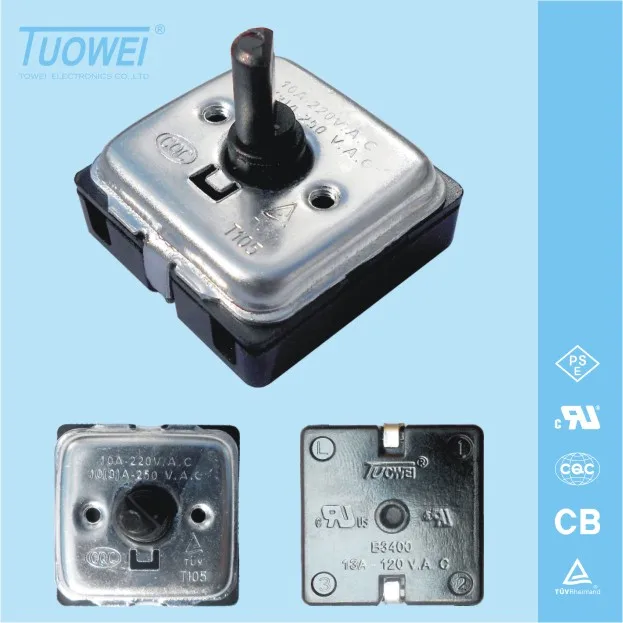

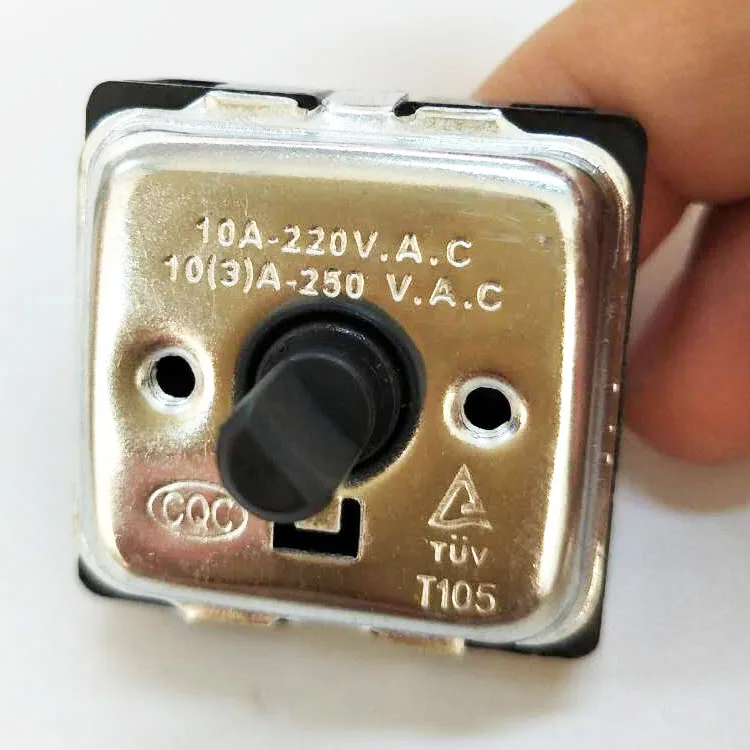

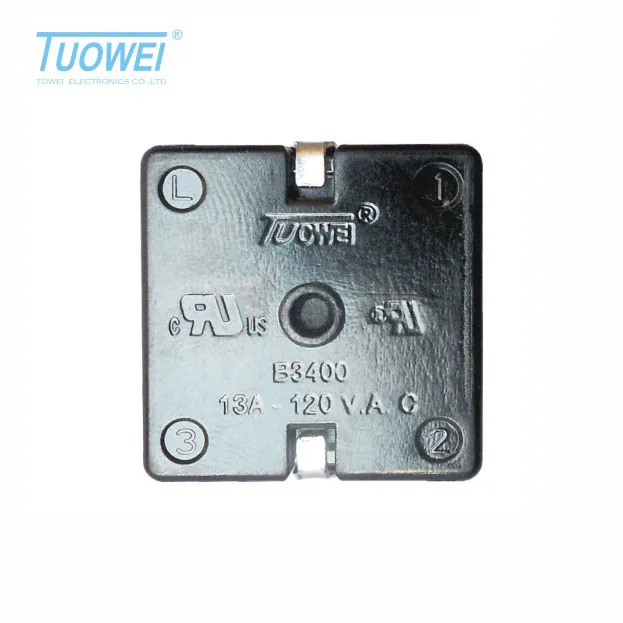

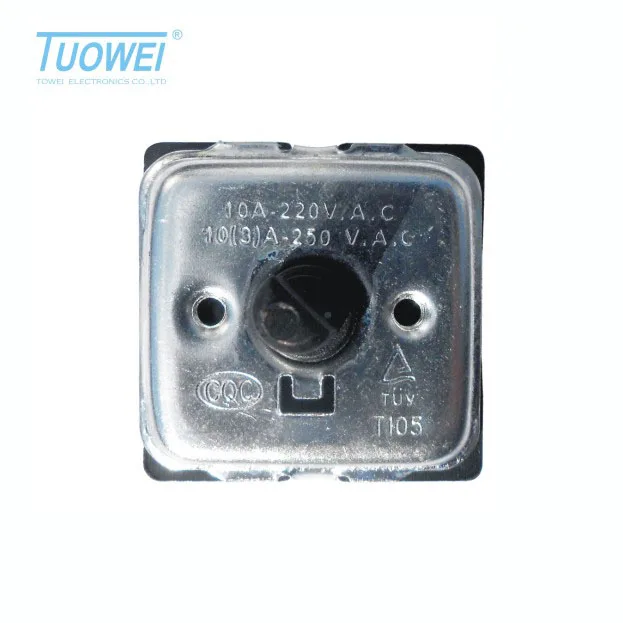

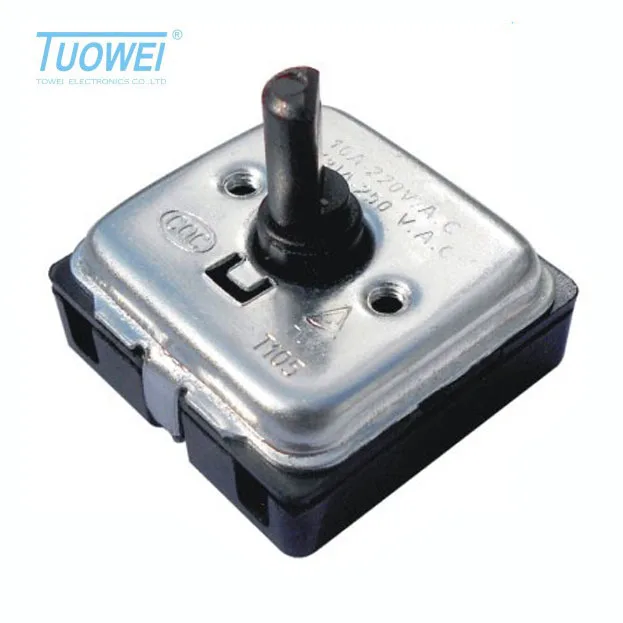

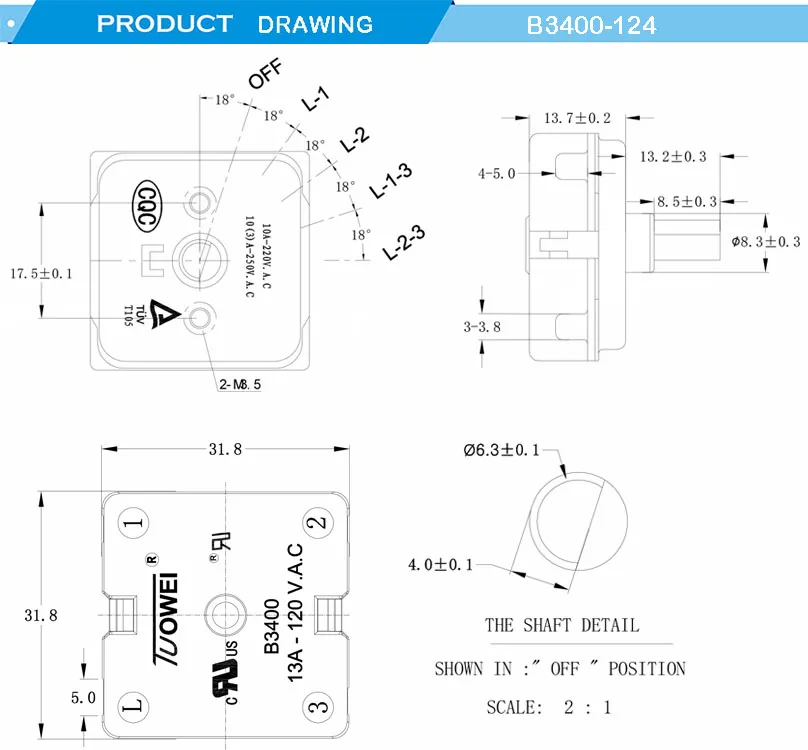

13A powerful steel housing 5 Position 4 speed Heater Rotary Switch
Item No.:B3400-124
Technical Parameter | |
Electrical Rating | 13A-120V AC, 10(3)A-250V |
| Function | OFF, L-1, L-2, L-1-3, L-2-3 |
Rotary angle | 18° |
Install way | pair of mounting holes |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 105°C |
| Pol/Thr | 1/2 or M |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 22-14AWG UL1015 |
Material: | |
| Cover: Zinc plating Iron | |
| Insulating piece: PF Grade: pfcp207(XPC) | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: Bakelite Flame rating: V0 Temperature: 130°C Grade: Dupont | |
| Apply to: | |
| Electric Heater, blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and other home appliances | |
B3400 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
1 | L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 | L-2 | L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 5 | OFF | L-2 | L-1-2 | ||
| 6 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 8 | OFF | L-1-3 | L-1-2 | L-1-2-3 | |
| 13 | OFF | L-1 | L-2 | ||
| 15 | OFF | L-2 | L-3 | L-2-3 | |
| 16 | OFF | L-2 | L-1-2 | L-2-3 | L-3 |
| 24 | OFF | L-1 | L-2 | L-1-3 | L-2-3 |
| 28 | OFF | L-2 | L-2-3 | ||
| 29 | OFF | L-2 | L-1-2 | L-2-3 | L-1-2-3 |
| 47 | OFF | L-1-3 | L-1-2 | ||
| 67 | L-2 | L-3 |
