trench drain grating cover | metal trench cover(manufacturer)

Product Overview

Description

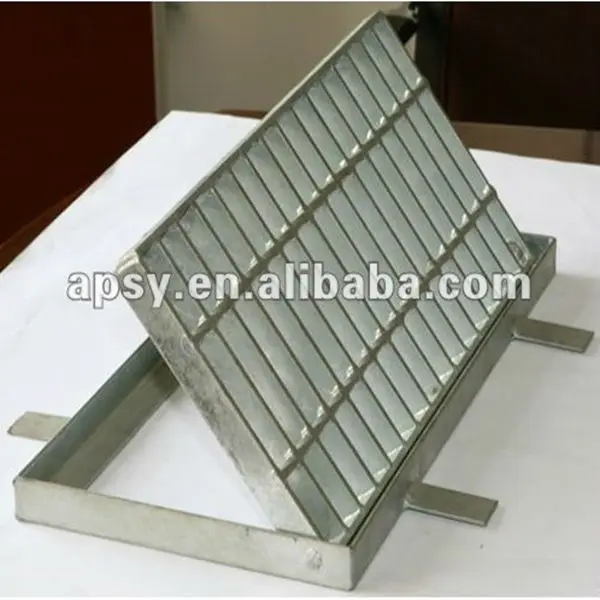

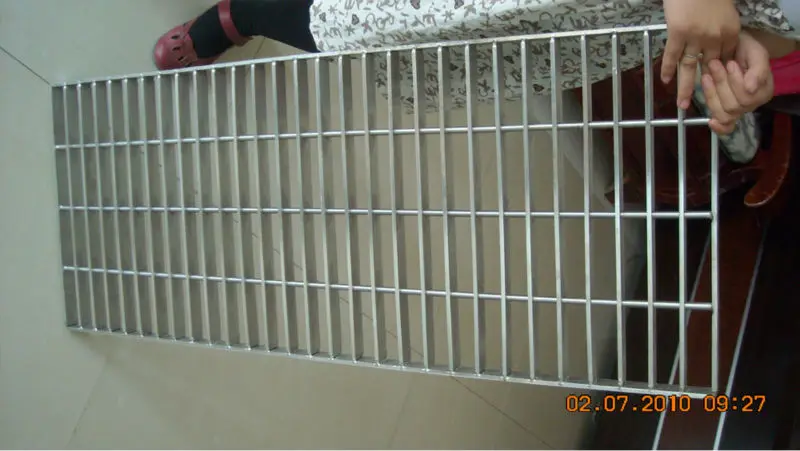

structural trench drain cover steel grating (manufacturer)



 1>Material:low caebon steel bar



2>Surface Treatment: Un-Coated, Painted, Hot Galvanized



3>bearing bar pitch:30mm,40mm,60mm



4>cross bar pitch:50mm,100mm



5>bearing bar thickness:3mm,5mm(as a common)



6>bearing bar widch:20mm,25mm,32mm,40mm,45mm,50mm,55mm,60mm(as a common)

7>bearing bar style: Plane style,I -Serrated style,anti-slip



8>Quality Control:
    Steel Grating standard:

   CHN - YB/T4001-1998
  USA - ANSI/NAAMMMBG531-88
  ENGLAND - BS4592-1987
  AUSTRALIA - AS1657-199

  Steel Standard: CHN - GB700-88
  Hot Galvanized Standard: CHN - GB/T13912-92

 Kinds of types are avalibale.



Common specifications:

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1992, Japan:JIS

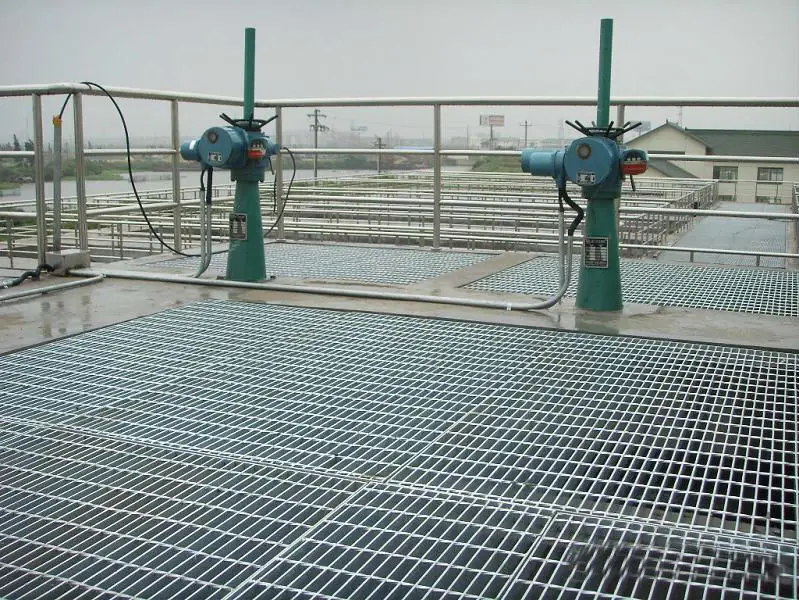

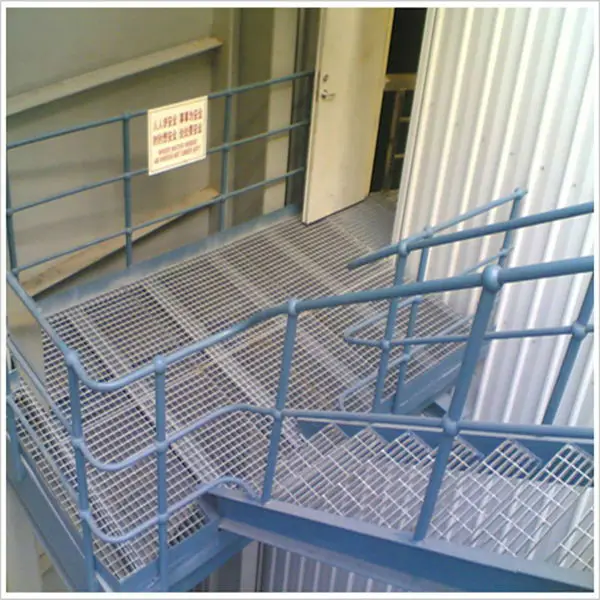

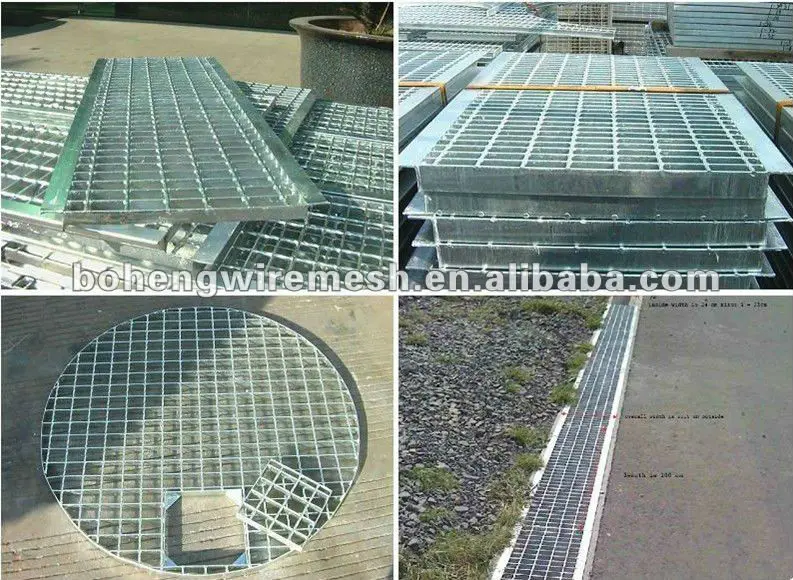

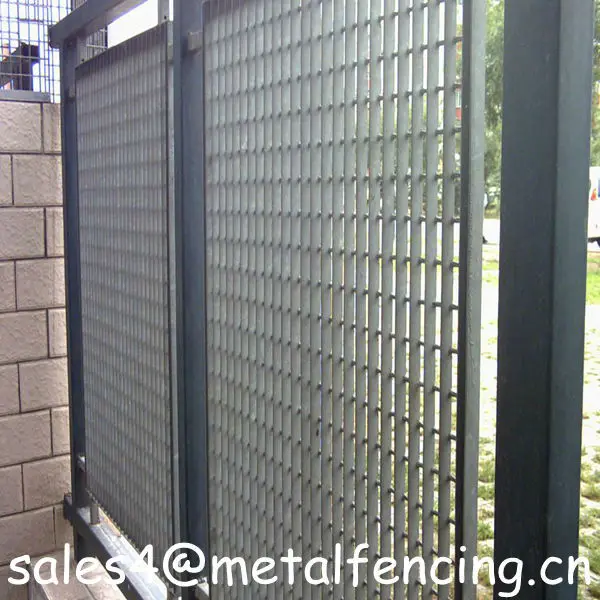

Beautiful; surface gloss, Cooling, ventilation, lighting, explosion, prevent slippery performance is good, Prevent product contamination. Widely used in petroleum chemical industry, power plant,Water, sewage, municipal engineering, environmental sanitation engineering fields of the platform, aisle, floorway ,Ditch cover, covers, ladders, fences, guardrail etc.





In strict accordance with the customer's requirements



Usual width and thickness of bearing bar: 25*3, 25*5, 30*3, 30*5, 32*3, 32*5,  40*3, 40*5, 50*5, 60*5, 70*5 mm

Width of bearing bar: 20, 25, 30,32,40, 50, 60, 70mm

Bearing bar pitch: 30mm, 40mm, 60mm







 bearing bar surface:

                                                                plain style

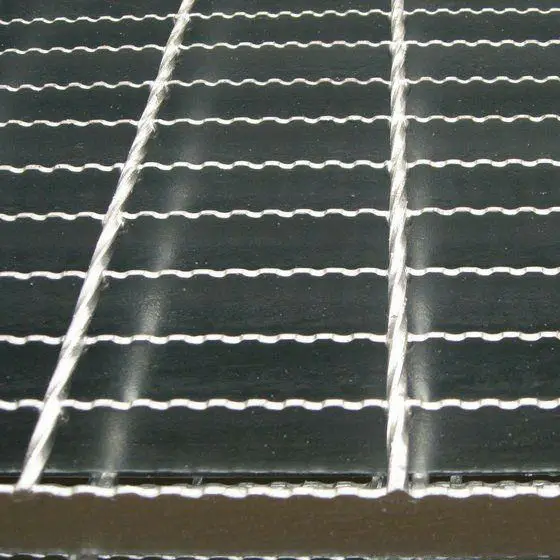

                                                            I serrated style
