Electric Hydraulic Logging Winch for Oilwell 4000M

Product Overview

Description

Electric Hydraulic Logging Winch:

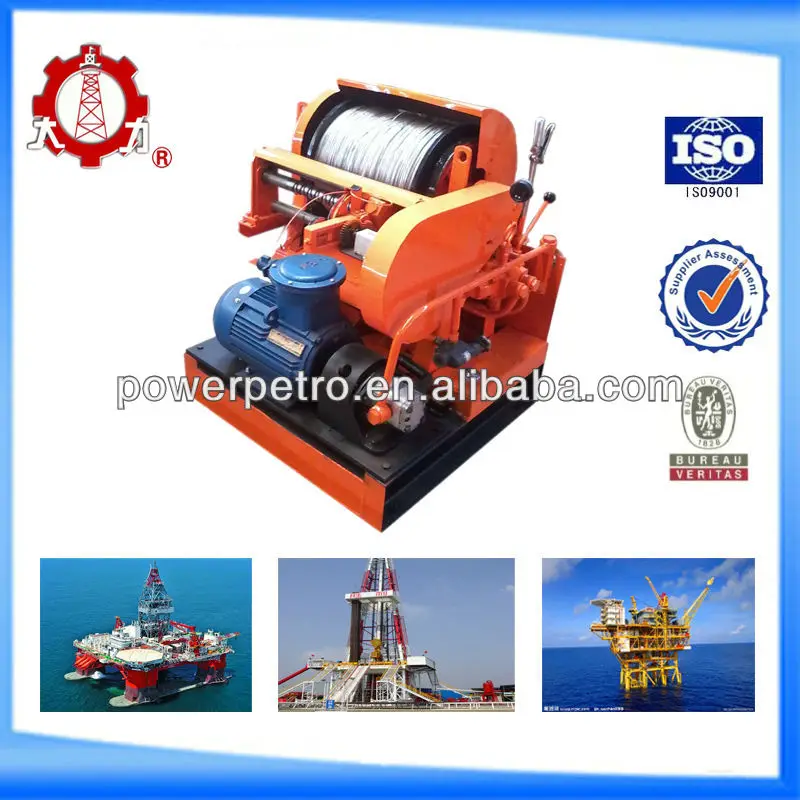

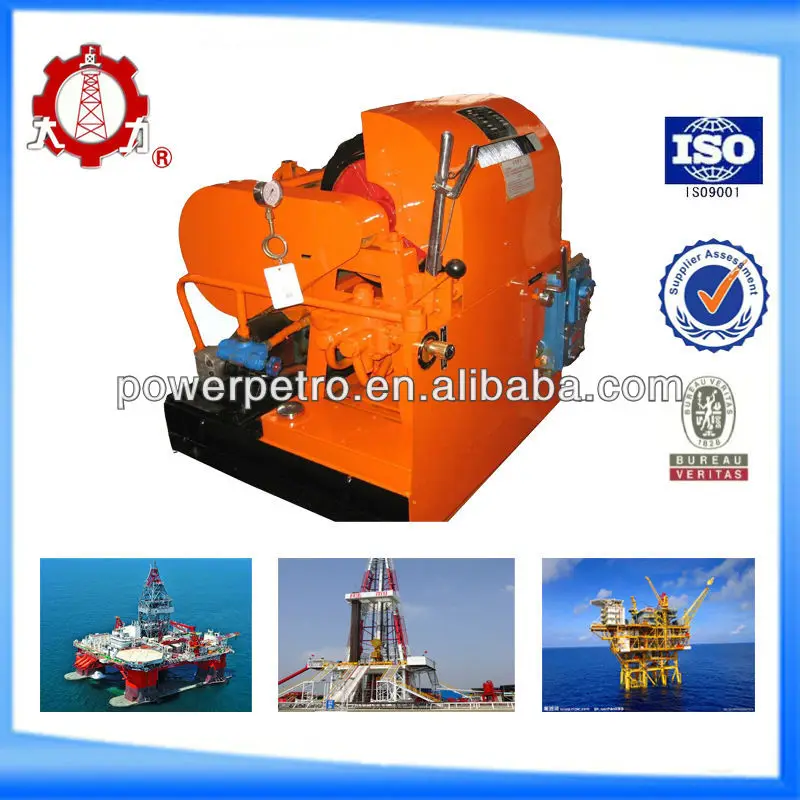

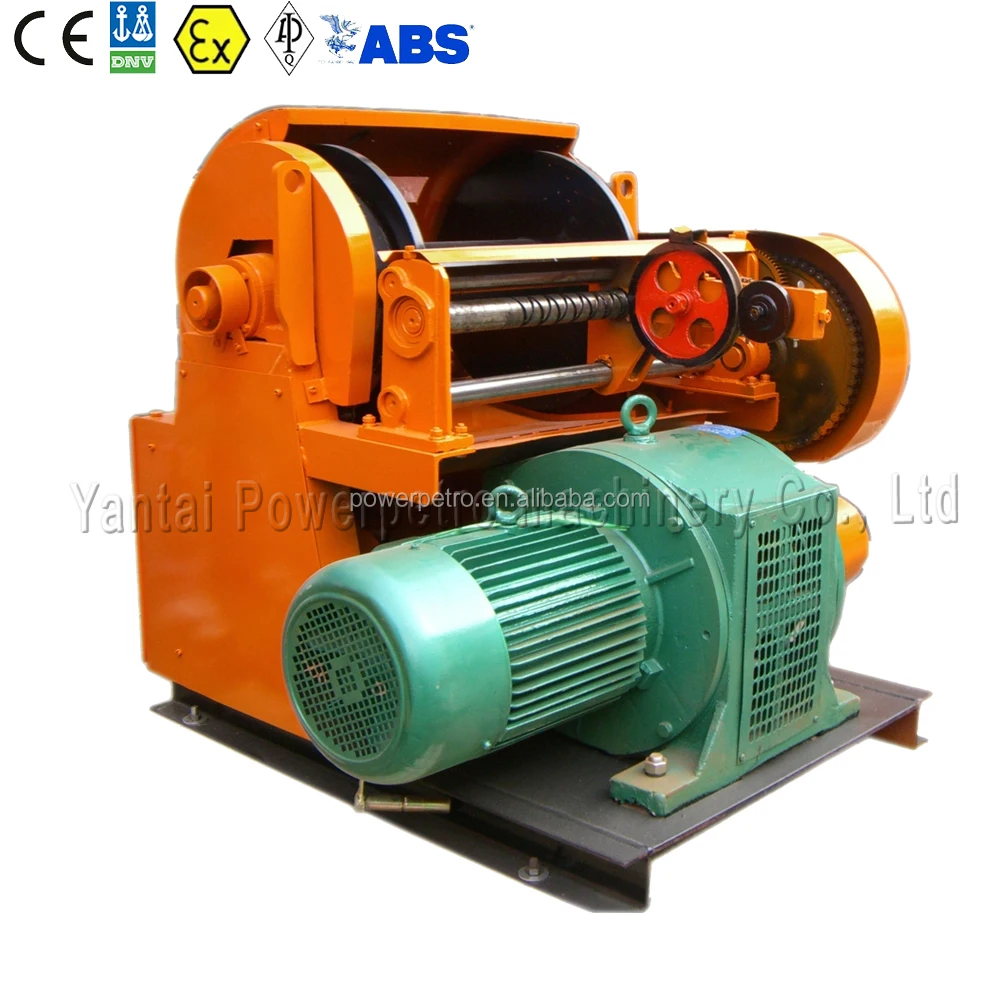

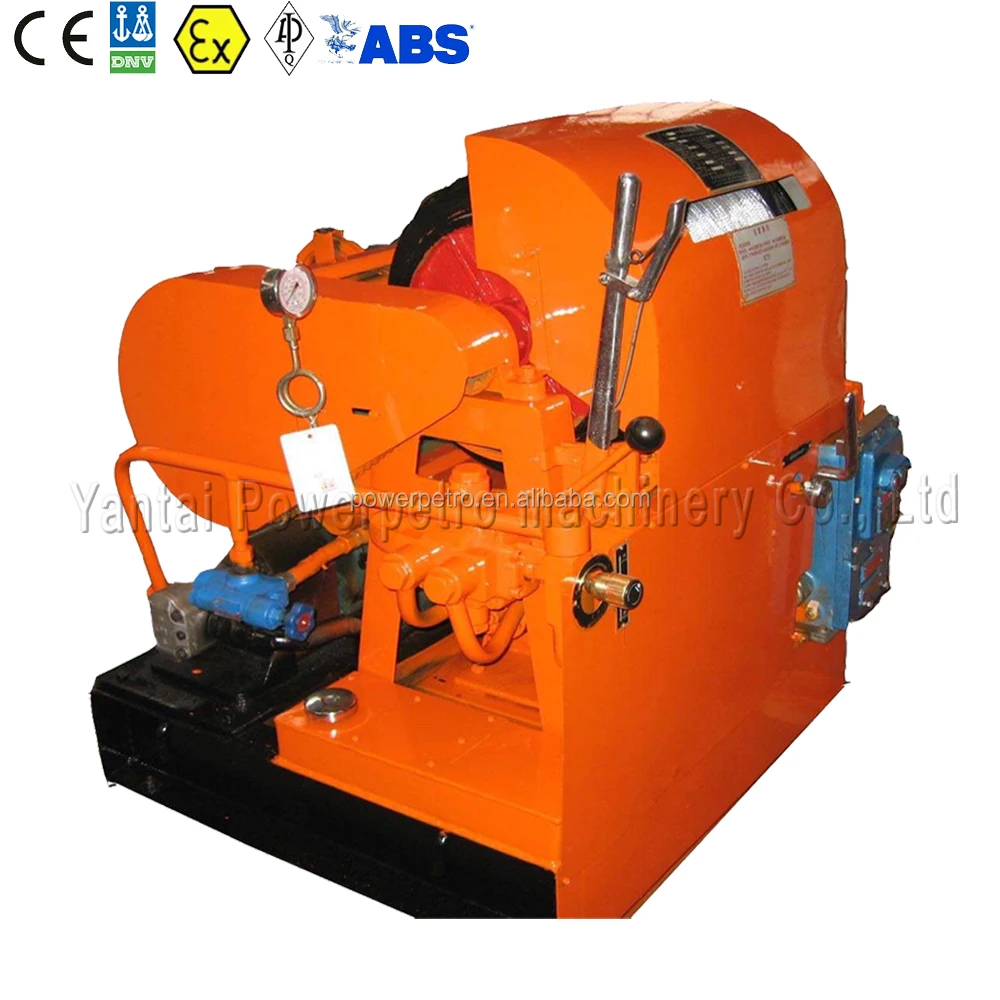

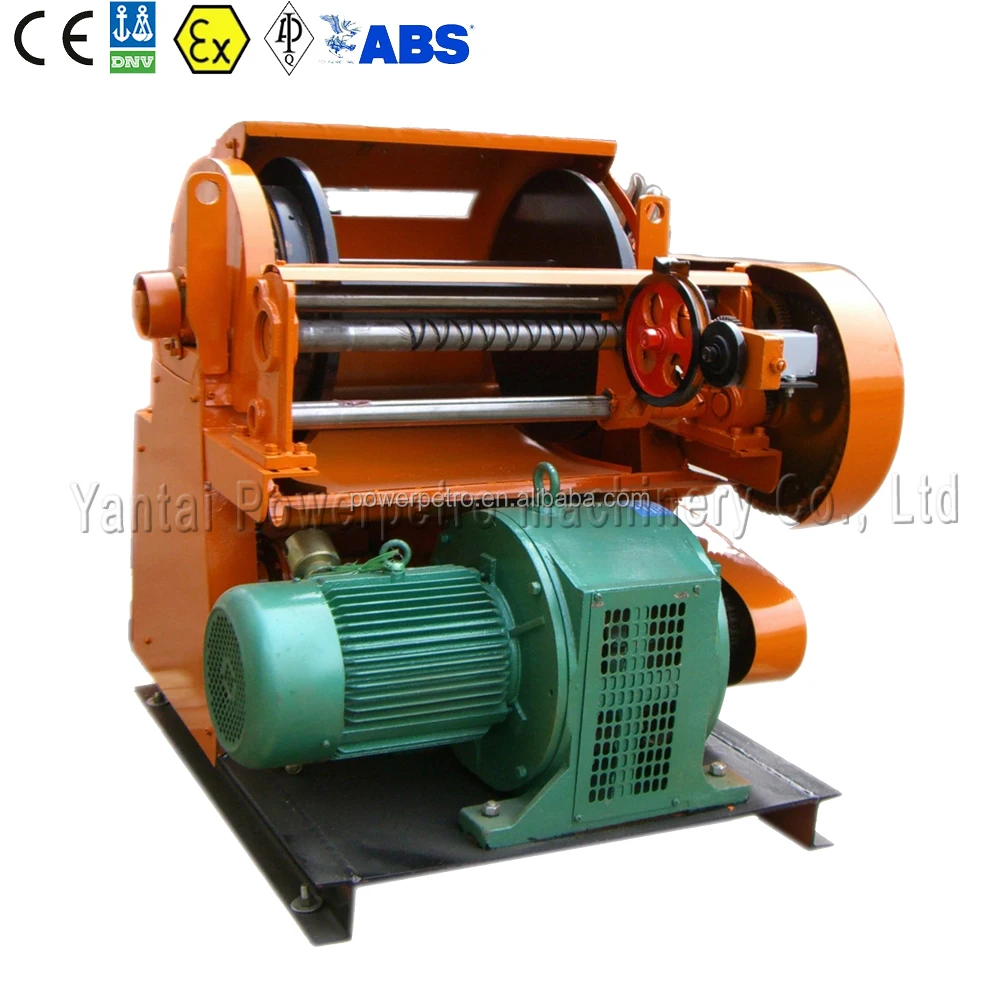

CJ Electric Hydraulic Logging Winch is mainly applied in the measurement of petroleum wells (vertical, directional, cluster), by lifting and lowering measurement instruments to obtain the gradient, location and depth of the wells. It is driven by the electromagnetic governor motor, transferring torque to the drum through sprockets, equipping with speed controller to control the rotary speed of the drum. It is ideal equipment for logging petroleum wells.



Features:

1. Automatic spooling device;

2. Brake system is reliable and easy to operate;

3. Wide range of measurement with high precision;

4. Automaticaly show the depth and easy to reset.

5. Enclosed Construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts.



Specifications:



Model:	CJ6000 ( F )	CJ7000(F)
The depth of logging:	19685 ft	22965 ft
Power:	7.5 Kw	7.5 Kw
Working pressure of hydraulic pressure systems:	≤2276 psi	≤2276 psi
Max lifting power:	916 lb	916 lb
Diameter of the steel wire:	0.098 in	0.098 in
Means:	Diameter gear and hydraulic	stepless speed regulation































The max rotational speed of all gears



Site of handle	The max speed(r/min)
Ⅰ	91
Ⅱ	170



Overall dimension: length × width × height ( in ) = 35.24×36.22×38.39



Weight: 1762 lb





We hereby confirm that Electric Logging Winch can be tailor-made to meet your special needs and requests, with highest quality, prompt delivery and first-rate after-sale service.
