12 inch gabion baskets chicken wire mesh cage rock wall

Product Overview

Description

Gabion Baskets Chicken Wire Mesh



1. Material of chicken wire:

Low carbon steel wire, Stainless steel wire



2. Assortments available for chicken wire :

1) Hot -dipped galvanized after weaving

2) Hot -dipped galvanized before weaving

3) Electro galvanized after weaving

4) Electro galvanized before weaving

5) PVC Coated before or after weaving

6) Stainless steel wire

7) Galvanized Drawn Iron Wire

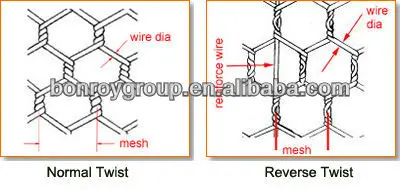

3. Weaving types for chicken wire :

1) Normal Twist      2) Reverse Twist



4. Applications for chicken wire :

Used in building,oil,chemical industry,breed,plant protect.food processings reinforce,guard and heat-keeping for example,make net cast,stone cage,insulated net,wall boiler cover,poultry fence, chicken wire mesh, rabbit fence, ect.



5. Specifications of chicken wire:

Galvanized hexagonal wire netting mesh Min. Gal.v. Width Wire Gauge (Diameter) Inch mm Tolerance(mm) 3/8" 10mm ±1.0 0.7mm - 145 2' - 1M 27, 26, 25, 24, 23 1/2" 13mm ±1.5 0.7mm - 95 2' - 2M 25, 24, 23, 22, 21 5/8" 16mm ±2.0 0.7mm - 70 2' - 2M 27, 26, 25, 24, 23, 22 3/4" 20mm ±3.0 0.7mm - 55 2' - 2M 25, 24, 23, 22, 21, 20, 19 1" 25mm ±3.0 0.9mm - 55 1' - 2M 25, 24, 23, 22, 21, 20, 19, 18 1-1/4" 31mm ±4.0 0.9mm - 40 1' - 2M 23, 22, 21, 20, 19, 18 1-1/2" 40mm ±5.0 1.0mm - 45 1' - 2M 23, 22, 21, 20, 19, 18 2" 50mm ±6.0 1.2mm - 40 1' - 2M 23, 22, 21, 20, 19, 18 2-1/2" 65mm ±7.0 1.0mm - 30 1' - 2M 21, 20, 19, 18 3" 75mm ±8.0 1.4mm - 30 2' - 2M 20, 19, 18, 17 4" 100mm ±8.0 1.6mm - 30 2' - 2M 19, 18, 17, 16

Note: 1.) The above tolerance comply with standard EN10223-2:1997; 2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting Mesh Wire Gauge (MM) Width Inch MM - - 1/2" 13mm 0.6mm - 1.0mm 2' - 2M 3/4" 19mm 0.6mm - 1.0mm 2' - 2M 1" 25mm 0.7mm - 1.3mm 1' - 2M 1-1/4" 30mm 0.85mm - 1.3mm 1' - 2M 1-1/2" 40mm 0.85mm - 1.4mm 1' - 2M 2" 50mm 1.0mm - 1.4mm 1' - 2M We also offer other specifications you need

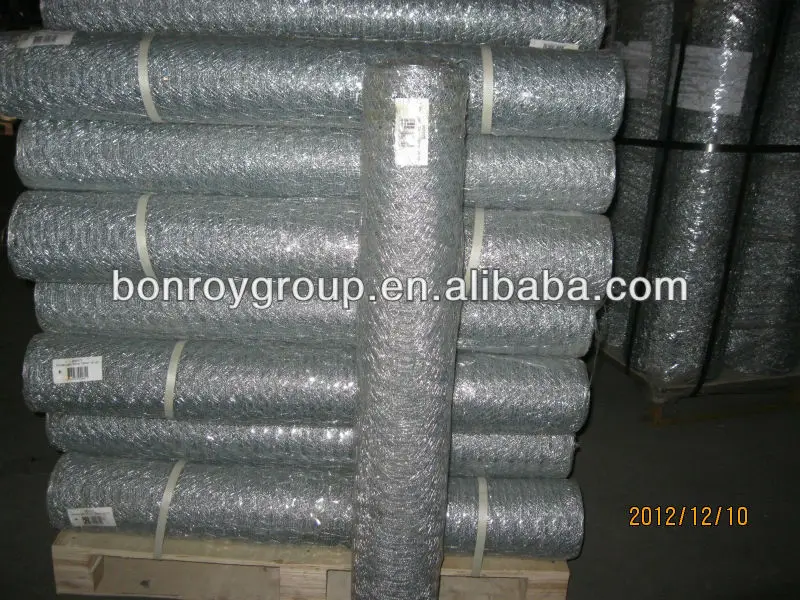

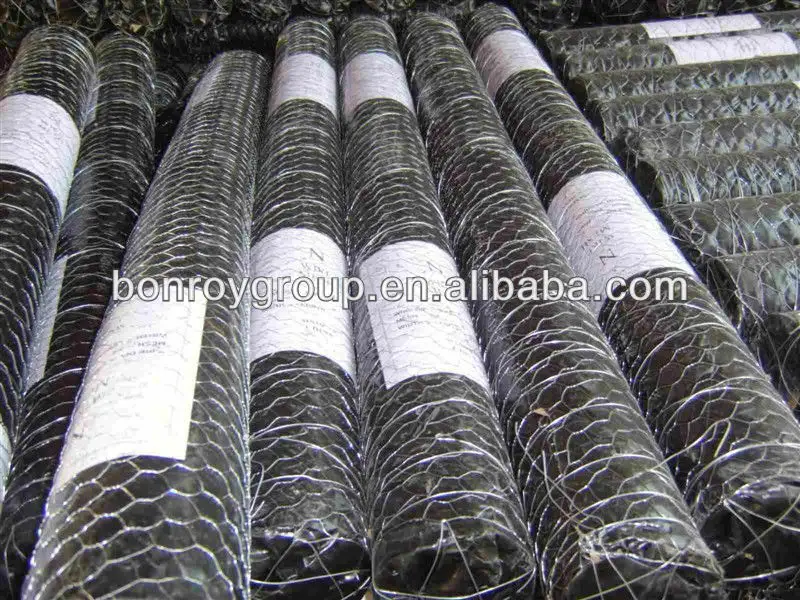

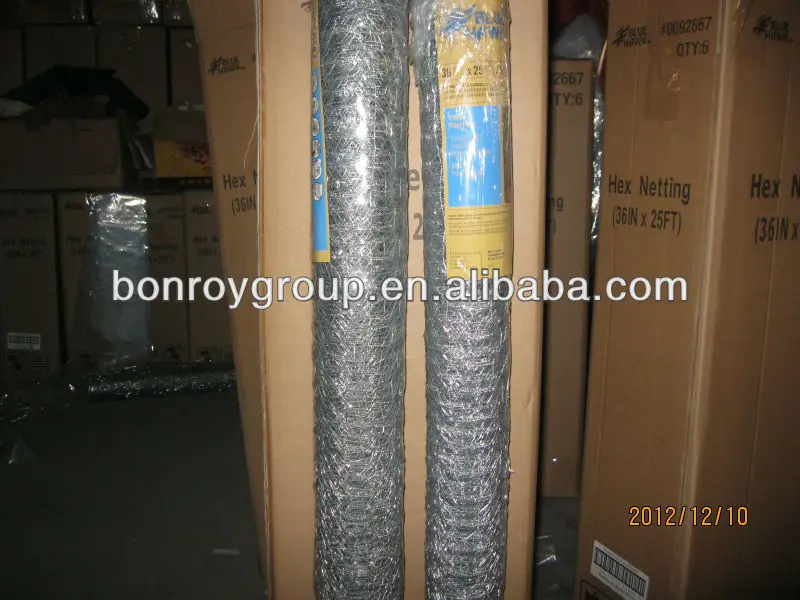

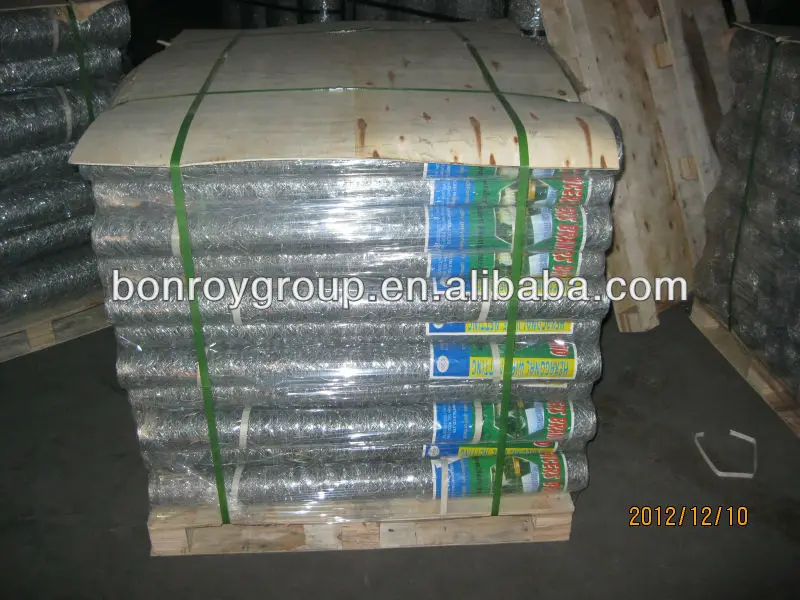

6. chicken wire packing:

with black waterproof paper

with plastic film

with carton

with pallet

 Also, other packings are available as customers' requirement.

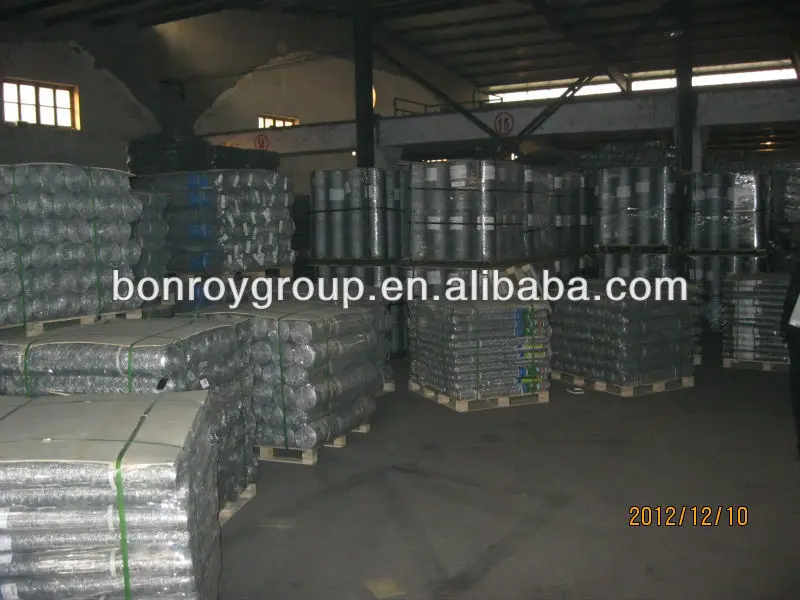

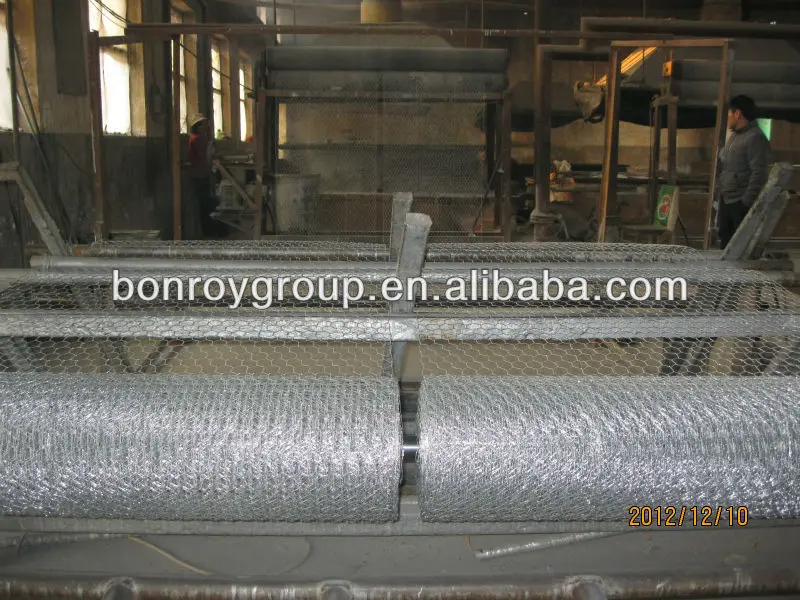

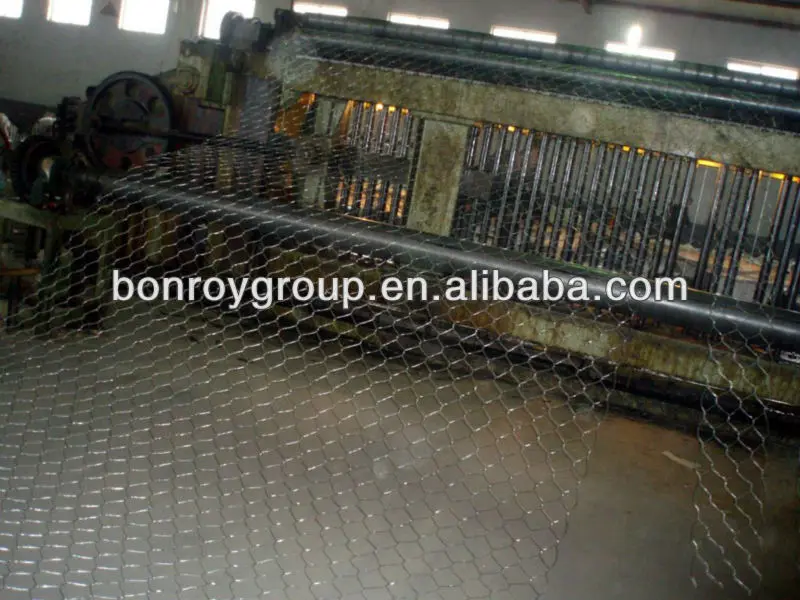

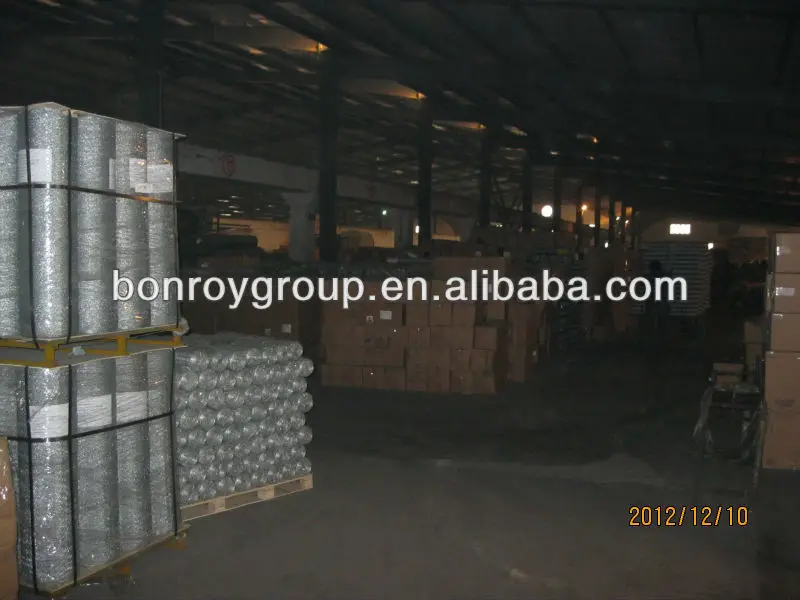

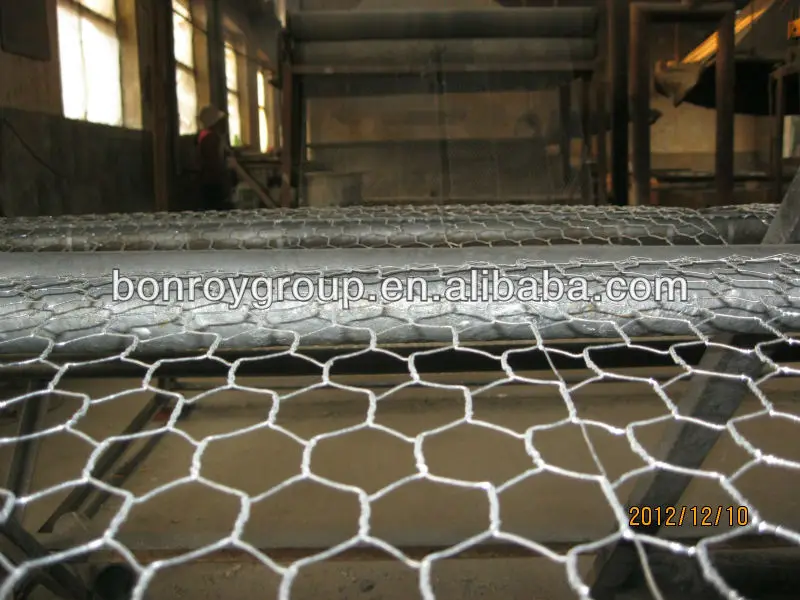

7. Factory and production line pictures:
