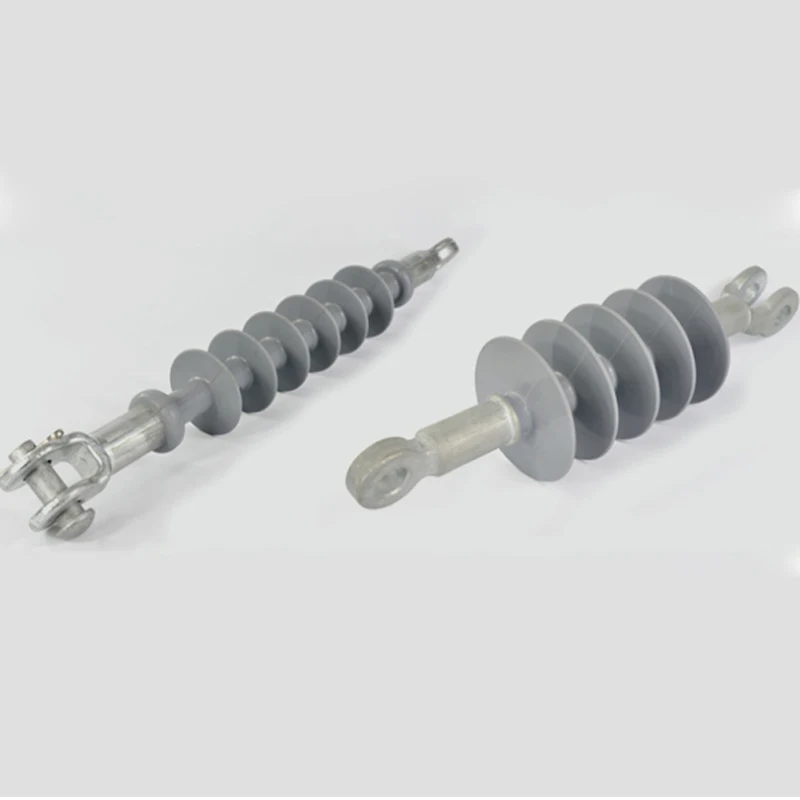

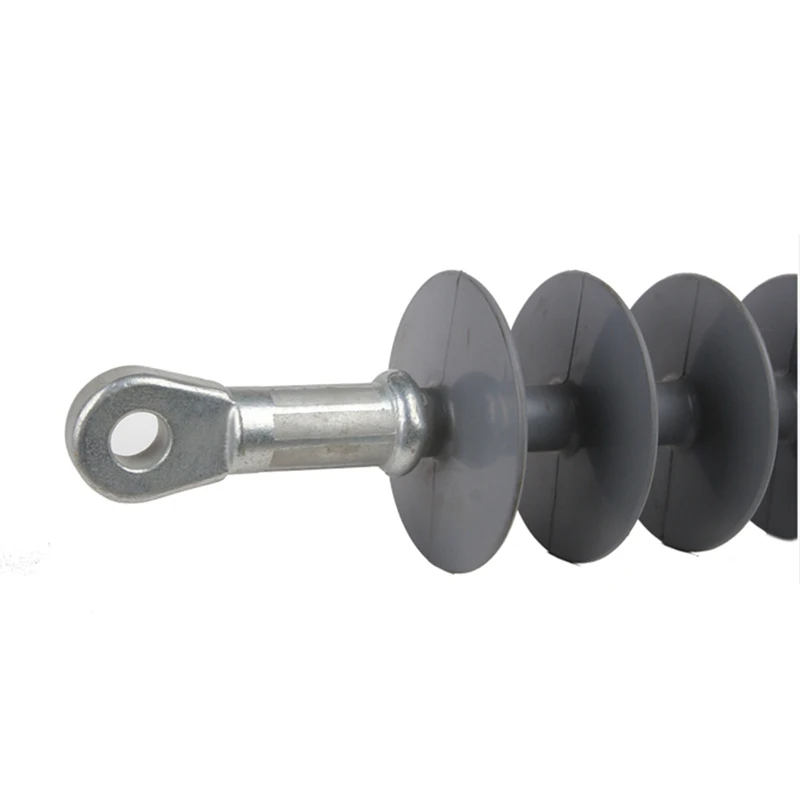

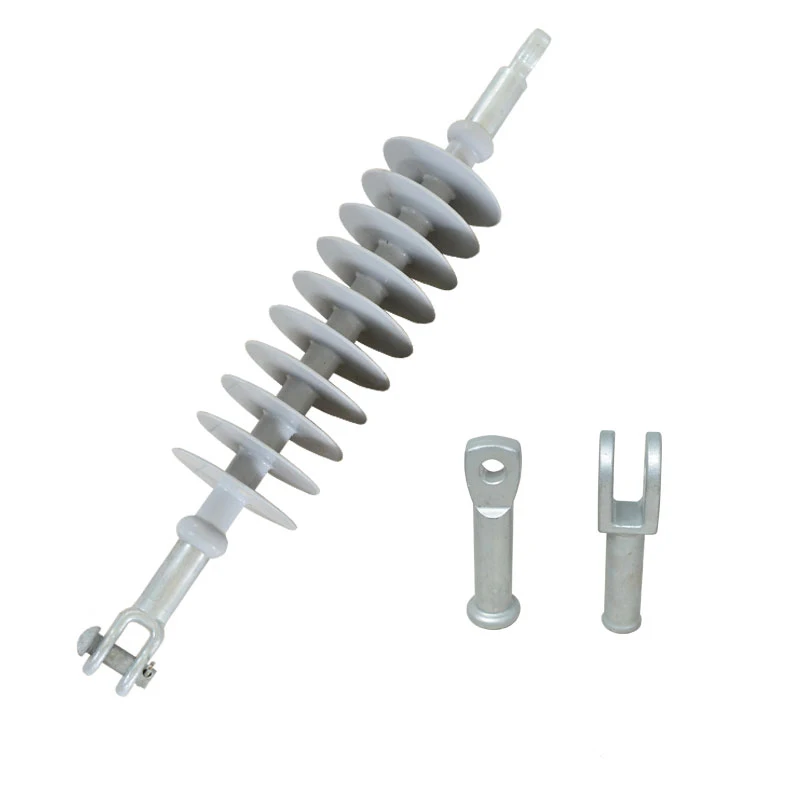

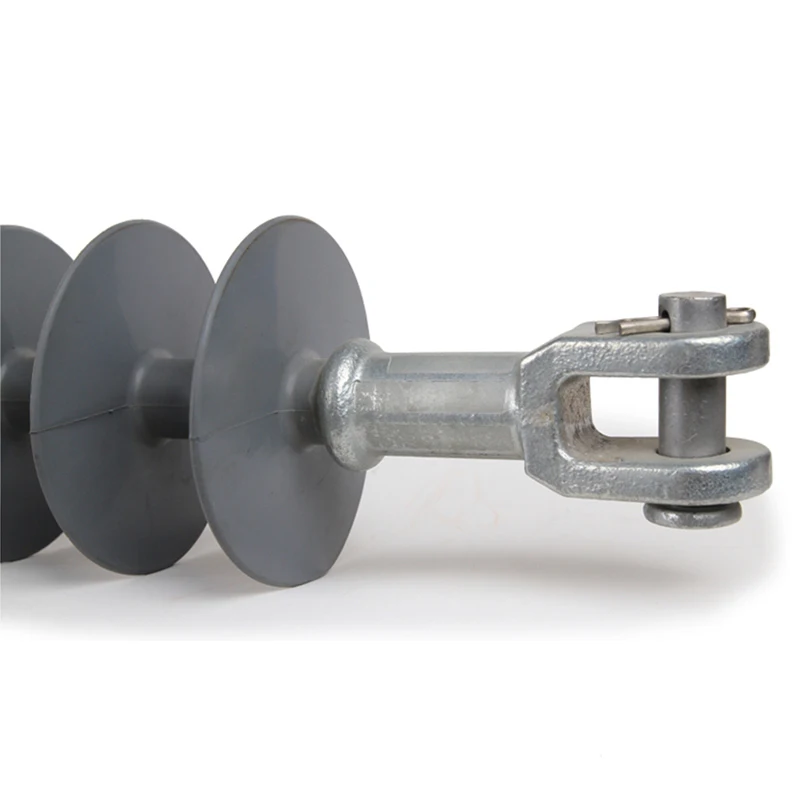

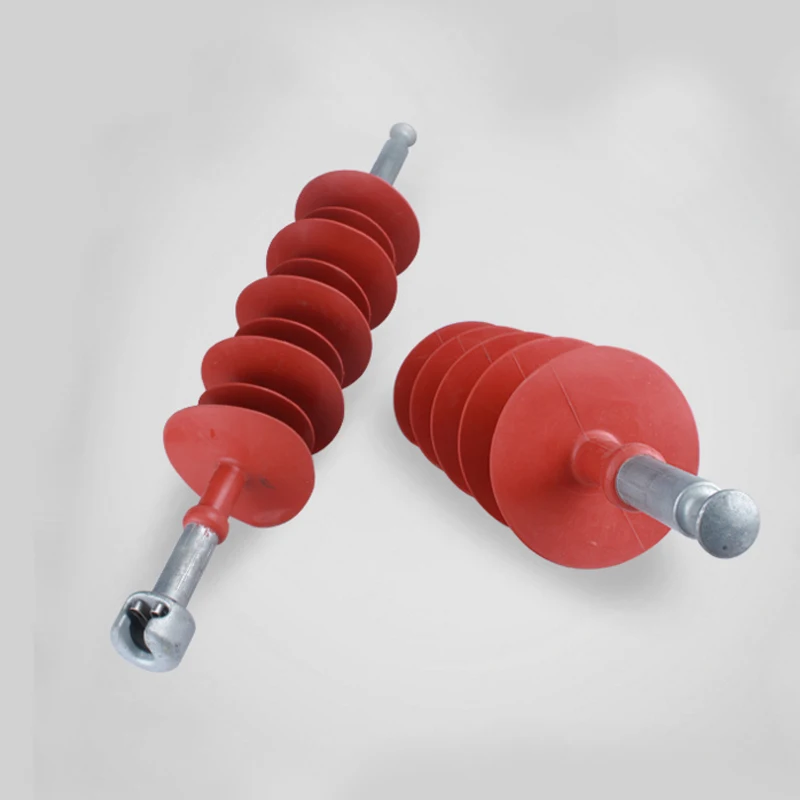

Higher tensile strength polymer composite insulator
- Category: >>>
- Supplier: Taizhou Huadong Insulated Material Co. Ltd.
Share on (1130832180):
Product Overview
Description
Product Description
Our main products are as follows:
1.10kv -750kv silicone rubber insulator
2.Diam.5-180mm Insulator core rod(epoxy resin rod)
3.Many kinds of insulator fittings such as ball,socket,Tongue,Clevis,Flange and so on.
4.Silicone rubber
our website : //thim.en.alibaba.com/

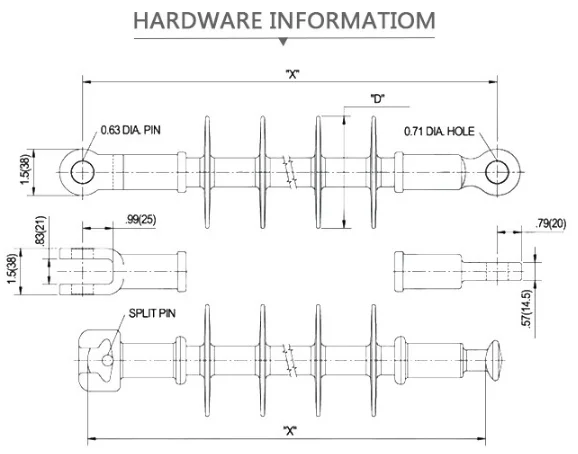

Type | No. Of Sheds | “X” Length inches (mm) | Diameter Inches (mm) | Leakage Distance Inches (mm) | Dry Arc Distance inches (mm) | Lighting withstand voltage | Wet power frequency voltage | Coupling size | SML Pounds (kN) | |
D | d | |||||||||
FXBW-10/70 | 4 | 310 | 105 | 75 | 350 | 152 | 90 | 40 | 16 | 70 |
FXBW-36/40 | 9 | 440 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 40 |
FXBW-36/100 | 9 | 483 | 130 | 90 | 950 | 320 | 230 | 150 | 16 | 100 |
FXBW-35/70 | 12 | 660 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 70 |
FXBW-35/100 | 12 | 680 | 135 | 110 | 1600 | 526 | 230 | 150 | 16 | 100 |
FXBW-66/70 | 20 | 980 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 70 |
FXBW-66/100 | 20 | 1000 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 100 |
FXBW-66/120 | 20 | 1040 | 135 | 110 | 2500 | 826 | 410 | 185 | 16 | 120 |
FXBW-110/70 | 26 | 1190 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 70 |
FXBW-110/100 | 26 | 1210 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 100 |
FXBW-110/120 | 26 | 1250 | 135 | 110 | 3500 | 1050 | 550 | 250 | 16 | 120 |
FXBW-220/120 | 54 | 2470 | 150 | 120 | 6300 | 2130 | 1000 | 395 | 16 | 120 |
FXBW-220/210 | 56 | 2470 | 170 | 120 | 6300 | 2155 | 1000 | 395 | 20 | 210 |
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. Metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating
shedding prolonging the service life
Product characteristics
1.No flaw,crack in the surface and interior ,each bar color uniform(green or light yellow).
2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.
3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed
to bear overload.
4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature
resistance,stress corrosion resistance etc.
(1)Small volume,light weight,sheds have good elasticity,not broken,con venient
transportation and installation, economy.
(2)High mechanical strength FRP ROD has high tensile strength, small size,light
weight,high tensile strength.
(3)High antifouling property,good aging resistance performance,high anti pollution
flashover voltage , good electric corrosion resistance.
(4)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(5)Simple production process,short delivery time.
Testing Equipment
We have a strict quality assurance system,first-class production equipment and inspection
instrument,and multiple technical talented persons.The quality of our products accords with
IEC,ISO,ASTM,ANSI,GB/T,Q/G-DW,JB/T,DL etc.
Application
This product is suitable for high voltage line facilities,technical reform of city network,polluted
area,power facilities,line use,high voltage line hard jumper,high voltage transmission lines,
high speed railway and city light rail traffic construction,etc
Company Information
Taizhou HuaDong Insulated Material Co.,Ltd. is mainly engaged in the production of FRP ROD,
profiles ,related terminal parts and accessories products.The terminal and accessories
products such as : various types of composite insulators, silicone rubber, insulator
fittings ,line fittings and so on. The epoxy fiberglass core we produce as interm ediate
connector and insulating parts is widely used in all the fields and many kinds of composite
insulators production.
.
Contact us
TELL:0523-88665172 88026699 82775589
Mobile:+86-13921721767
FAX:0523-88660086 88026677
Postcold:225529
SKYPE:HINSJUN
WEB:www.cnthim.com
WhatsApp ID: +86-13921721767
ADD: Group 1,Huayang village,ShenGao town,Jiangyan district,Taizhou city,
Jiangsu province,China225529
