tungsten copper plate/sheet

Product Overview

Description

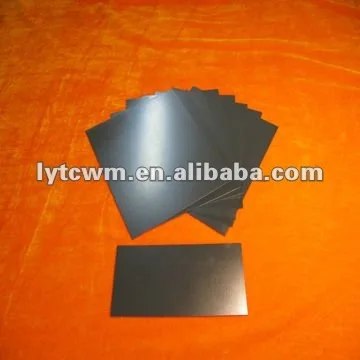

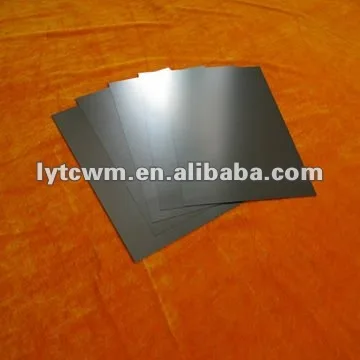

1.Tungsten sheet

 Tungsten sheet size:  (0.05-40)×(<400)×L

 Tungsten Purity: W :99.95% min

Appearance: black or polished, hot roll or cold roll

2.Dimension: supplied according to the needs of users: (0.05-40)×(20-600)×L  (L≤2000mm )

3.Main applications: This product is suitable for light, electric vacuum device, electric semiconductor device, glass fiber kiln heating element, heat shield, boat and finished products etc.

4. Tungsten Sheet Size (max mm)

Thickness	Width	Length
0.05-0.15	100	200
0.15-0.20	205	1000
0.20-0.25	300	1000
0.25-0.30	330	1000
0.30-0.50	350	800
0.50-0.80	300	600
0.80-1.0	300	500
1.0-1.50	400	650
1.50-3.0	300	600
>3.0	300	L
