Tuowei Nut mounted electric warm fan heater blender 13A~120VAC Item No.: B3400 42A 4 position rotary switch

Product Overview

Description

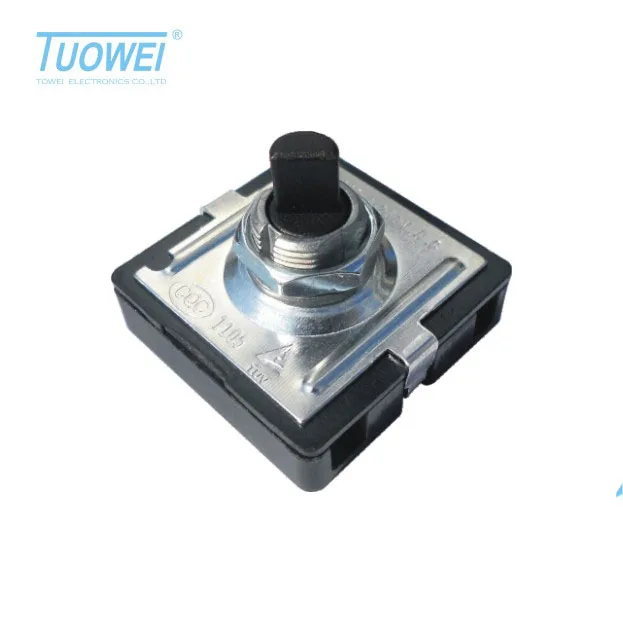

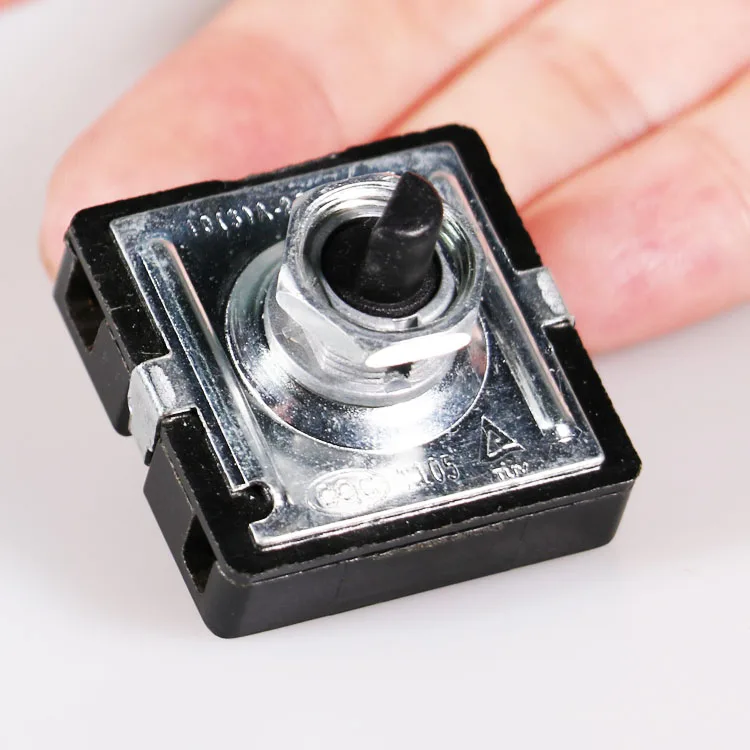

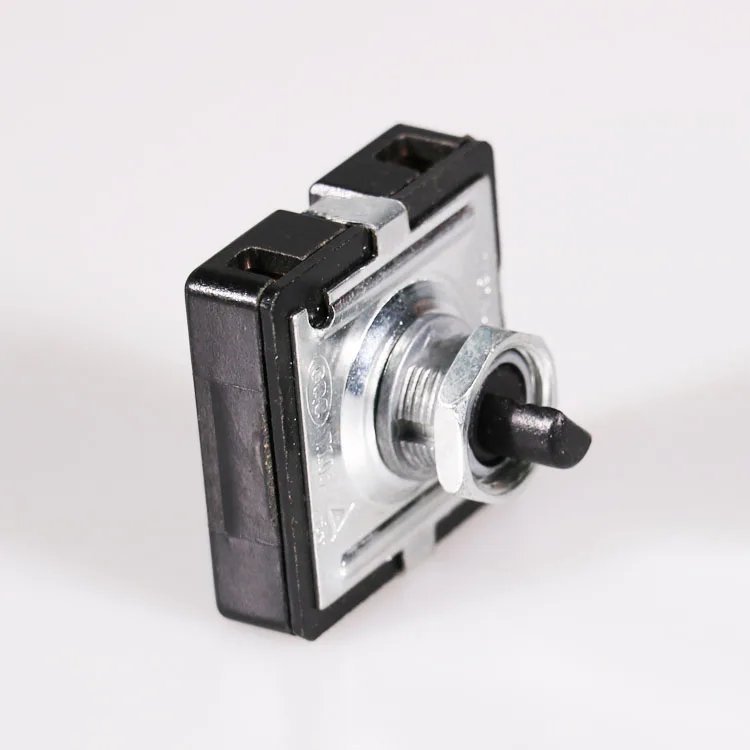

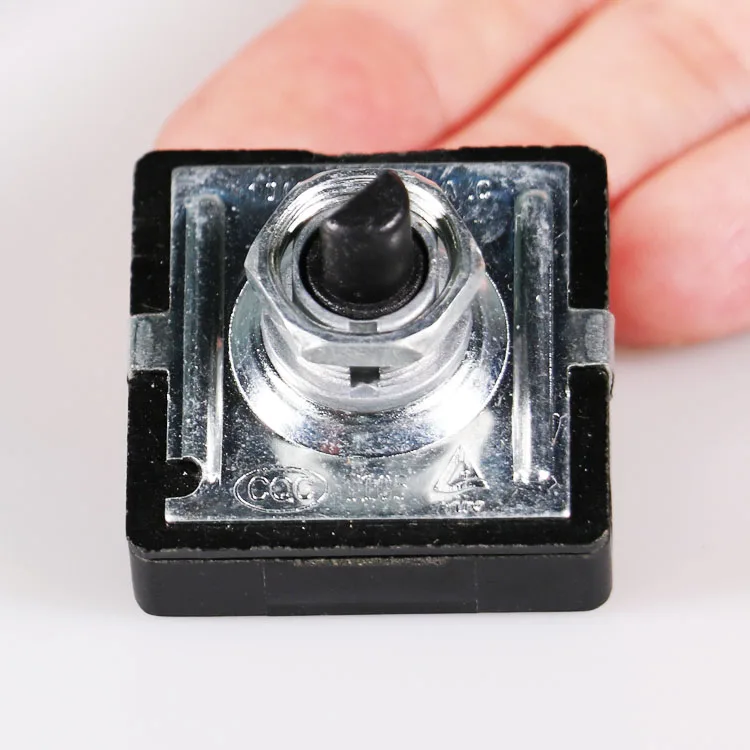

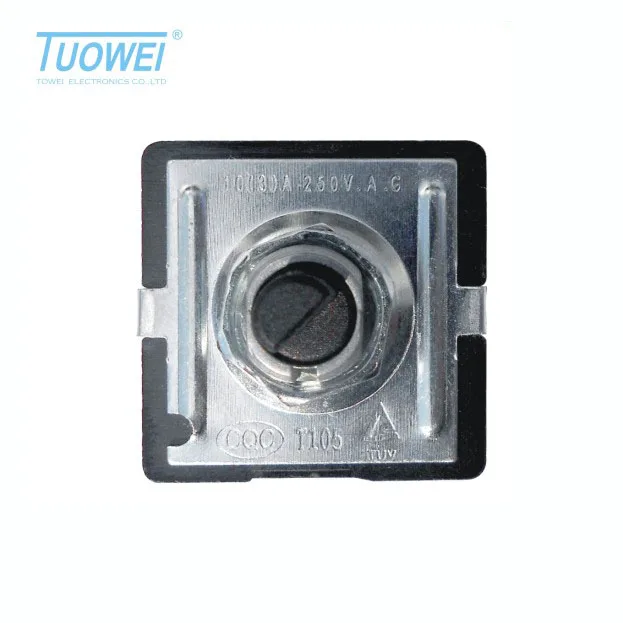

Tuowei Nut mounted lectric Warm Fan or Heater 13A~120VAC 4 positions Rotary Switches Item No.:B3400-42A



Technical Parameter
Electrical Rating	13A-120V AC,10(3)A~250VAC
Function	OFF, L-1  L-2  L-3
Rotary Angle	45°
Install way:	Nut mounted
HZ	60/50
Load	Res/ Mot
Temp(C)	105°C
Pol/Thr	1/2 or M
PP/Circuit	--/A
Endur	10K
Operation force	1800G+_250GF
Withstand voltage	1500V.A.C.
SPCOA	22-14AWG UL1015
Material:
Cover: Zinc plating Iron
Insulating piece: PF                                                                                         Grade: pfcp207(XPC)
Rotary: PA66                Flame rating: V-2 or V0               Temperature: 130°C              Grade: Dupont
Movable Contract: Copper
Terminals: Brass
Base: Bakelite              Flame rating: V0                         Temperature: 130°C              Grade: Dupont
Apply to:
Electric Fan Heater, warm blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and other home appliances.

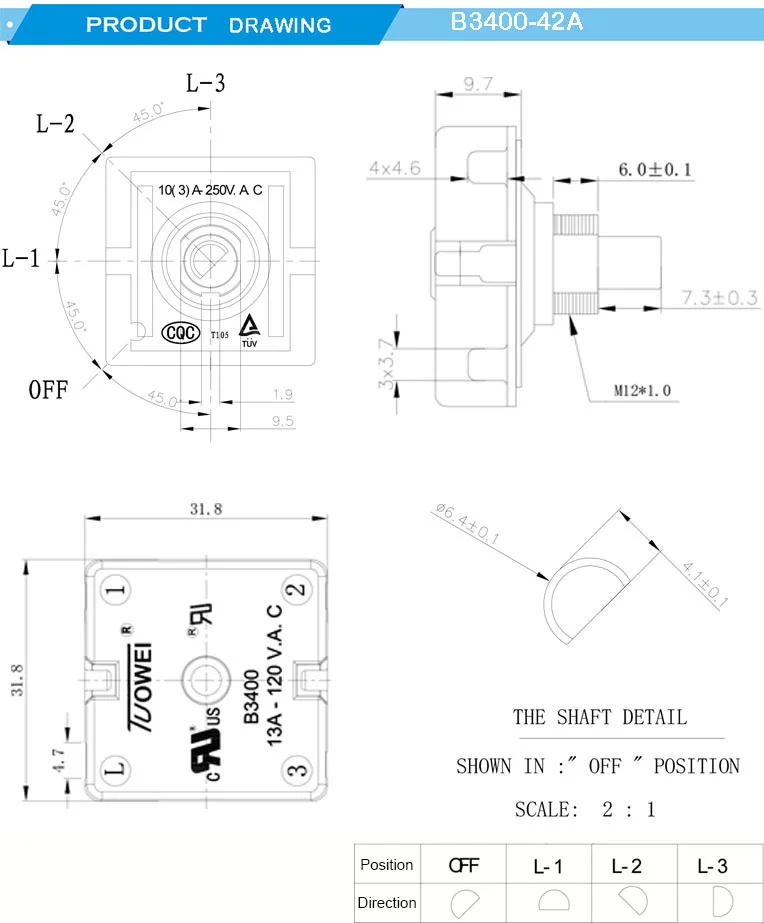

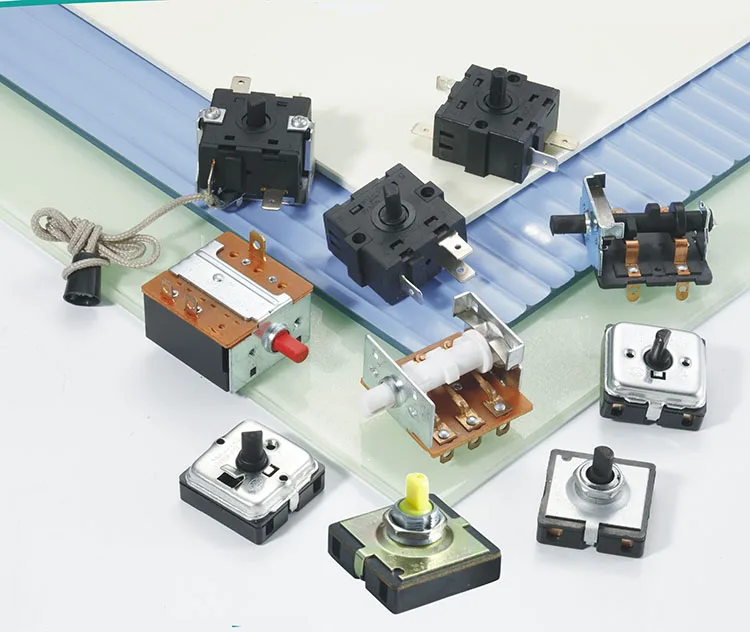

B3400 series have many different function circuits as below:

NO.	Position 1	Position 2	Position 3	Position 4	Position 5
1	L-1	L-2	L-3
2	OFF	L-1	L-2	L-3
3	OFF	L-1	L-2	L-3	OFF
4	OFF	L-2	L-1-2	L-1-2-3
5	OFF	L-2	L-1-2
6	OFF	L-2	L-1-2	L-1-2-3
7	OFF	L-1	L-1-2
8	OFF	L-1-3	L-1-2	L-1-2-3
13	OFF	L-1	L-2
15	OFF	L-2	L-3	L-2-3
16	OFF	L-2	L-1-2	L-2-3	L-3
24	OFF	L-1	L-2	L-1-3	L-2-3
28	OFF	L-2	L-2-3
29	OFF	L-2	L-1-2	L-2-3	L-1-2-3
47	OFF	L-1-3	L-1-2
67	L-2	L-3
