CILINDROS DE GNV GAS, FIBER GLASS CNG GAS CYLINDER FOR SALE

Product Overview

Description

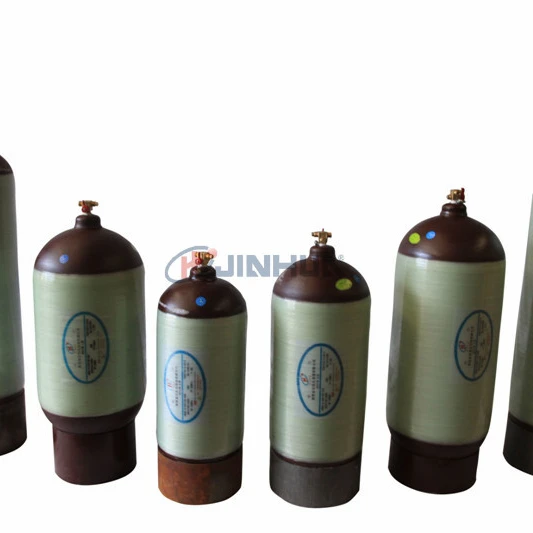

JINHUA Brand CNG-2 cylinder for vehicle, fiber glass material, working pressure:200bar, fit for various models vehicles.





Type 2 CNG Cylinder product specification

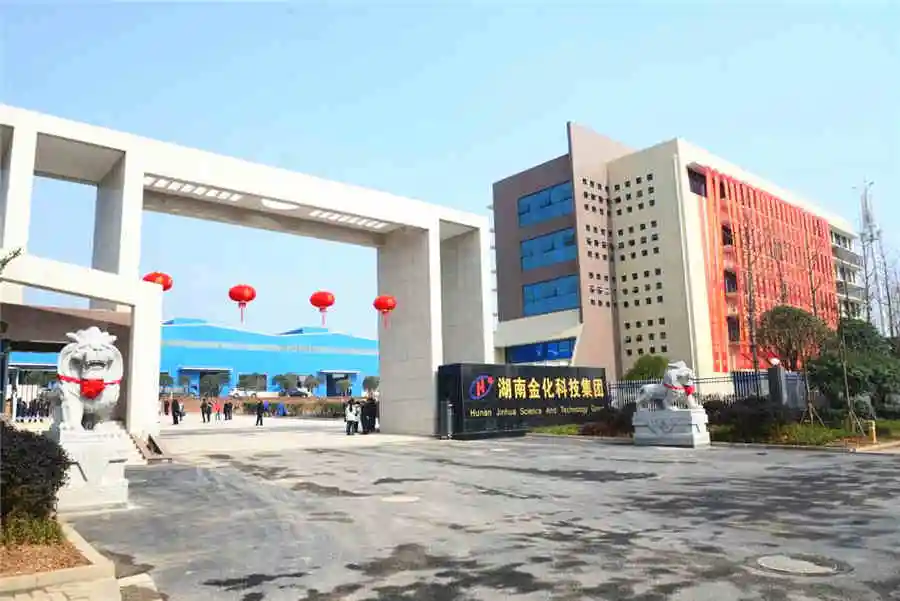

HengYang JinHua High Pressure Container Co.,Ltd Unit 15 Changfeng Avenue, Huaxin High-New Tech Developing Zone, Zhengxiang District, HengYang HuNan CHINA 421001  TEL: (86) 734-8366 068     FAX: (86) 734 8852 623     whatsapp:+86-18173390807
ISO11439:2013 Type II CNG composite cylinder for vehicle (steel liner hoop-wrapped with glass fiber) (CNG-2) Working Pressure: 20(MPa) Hyd.Test Pressure: 30(MPa)
Type	Liner Outside Dia.(mm)	Design wall Thickness(mm)	Liner Material	Nomial Capacity(L)	Nominal Length(mm)	Nominal Weight(kg)
CNG2-G-300-V-20B	300	4.3	30CrMo	45	787	34.5
				50	862	37.7
				55	938	40.8
				60	1012	44.0
				65	1088	47.1
CNG2-G-325-V-20B	325	4.4	30CrMo	45	706	34.4
				50	770	37.4
				55	834	40.4
				60	898	43.4
				65	962	46.4
				70	1026	49.5
				75	1090	52.5
				80	1154	55.5
				90	1282	61.5
				100	1410	67.5
				110	1538	73.5
				120	1666	79.5
CNG2-G-356-V-20B	356	4.8	30CrMo	60	784	46.2
				65	837	49.2
				70	891	52.2
				75	944	55.2
				80	997	58.1
				85	1051	61.2
				90	1104	64.2
				100	1210	70.1
				120	1422	82.1
				140	1634	94.1
				150	1740	100.1
CNG2-G-406-V-20B	406	5.5	30CrMo	80	816	62.9
				85	857	66.0
				90	898	69.0
				100	980	75.1
				110	1062	81.2
				120	1144	87.3
				130	1226	93.3
				150	1390	105.3
				180	1636	123.3



These specification are certified by SGS corporation, more specifications are available, tailored specification is welcomed.





Standard:ISO11439:2000;



  Material:30CrMo+glass fiber;

  Working pressure/testing pressure:200/300bar;

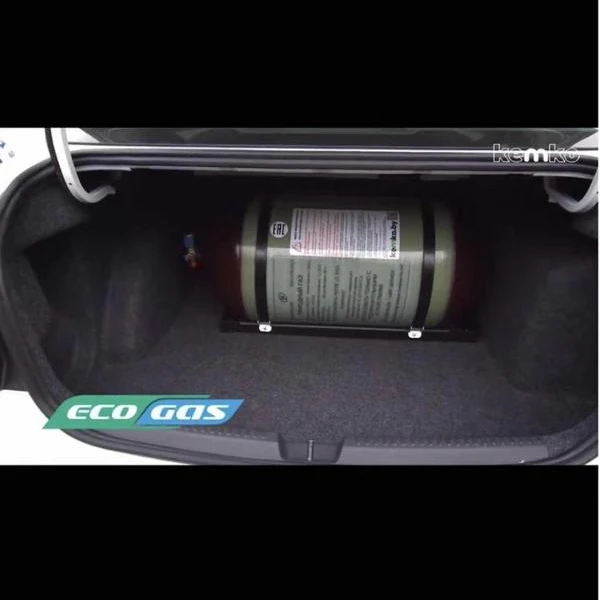

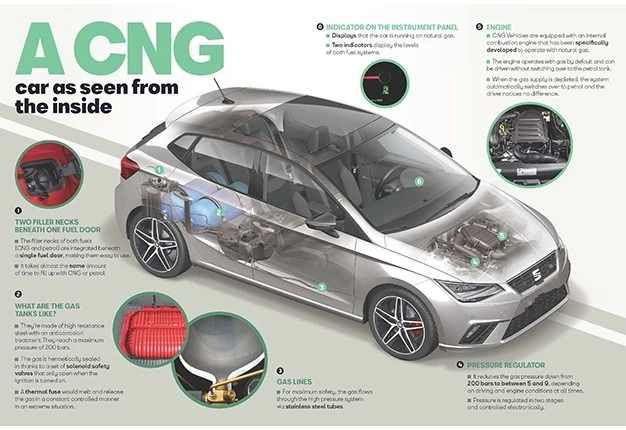

  Application:natural gas powered vehicles, such as  Cars, buses,  trucks etc.



To ensure quality:



Top quality raw material will be adopted;

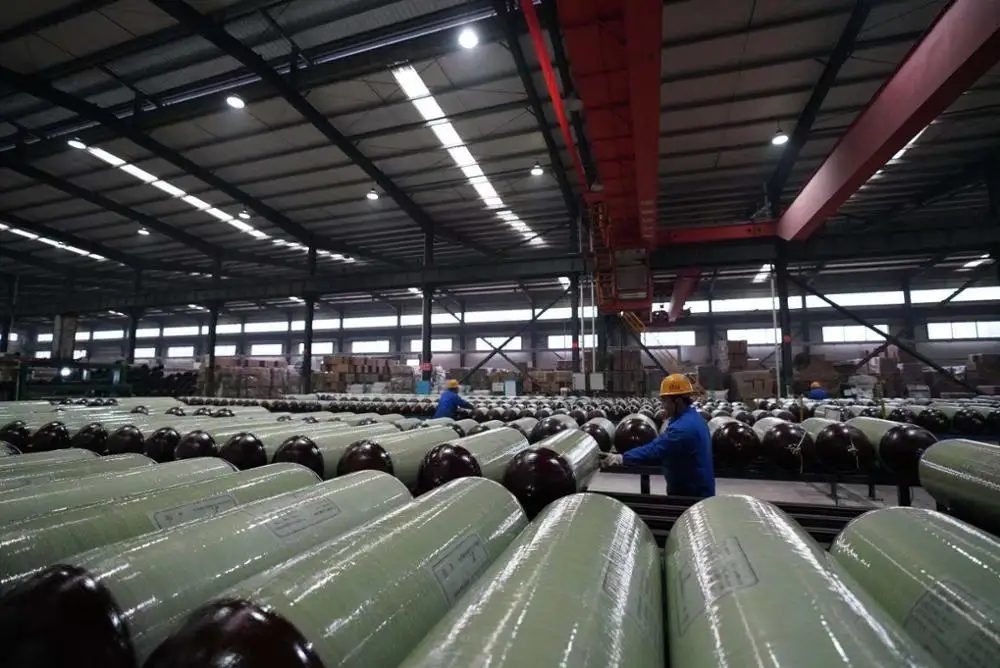

All the cylinders are manufactured according to ISO standard.

Each cylinder will be tested according to ISO11439 standard;Lot reports by company or third party inspection agency will be provided when delivery.







Other products:

ISO9809 industrial gas cylinders: oxygen cylinders, nitrogen cylinder, hydrogen cylinders, argon cylinders, CO2 cylinders etc, WP/TP:150/225bar;

ISO11439 cng-1 cylinders : WP/TP:200/3000Bar





If you have any question,pls feel free to contact us!
